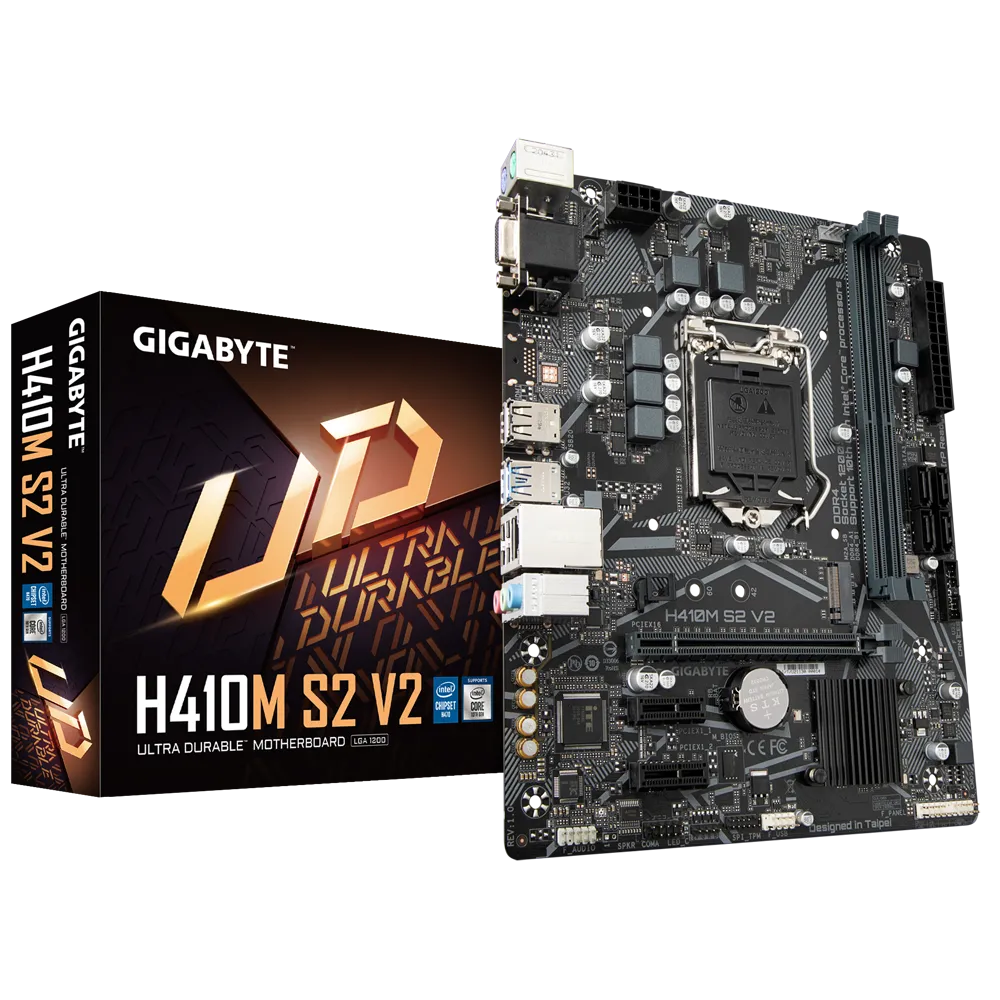

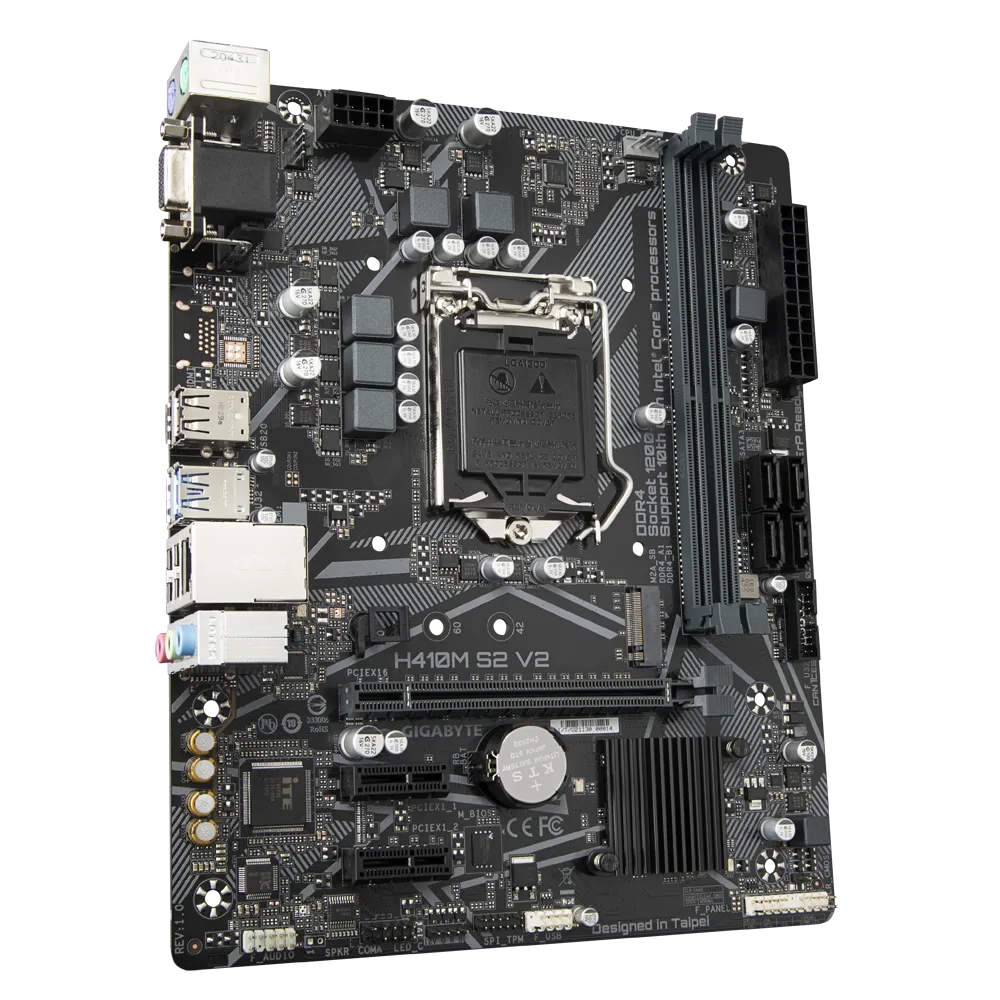

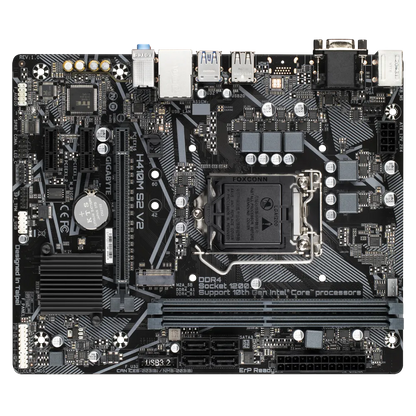

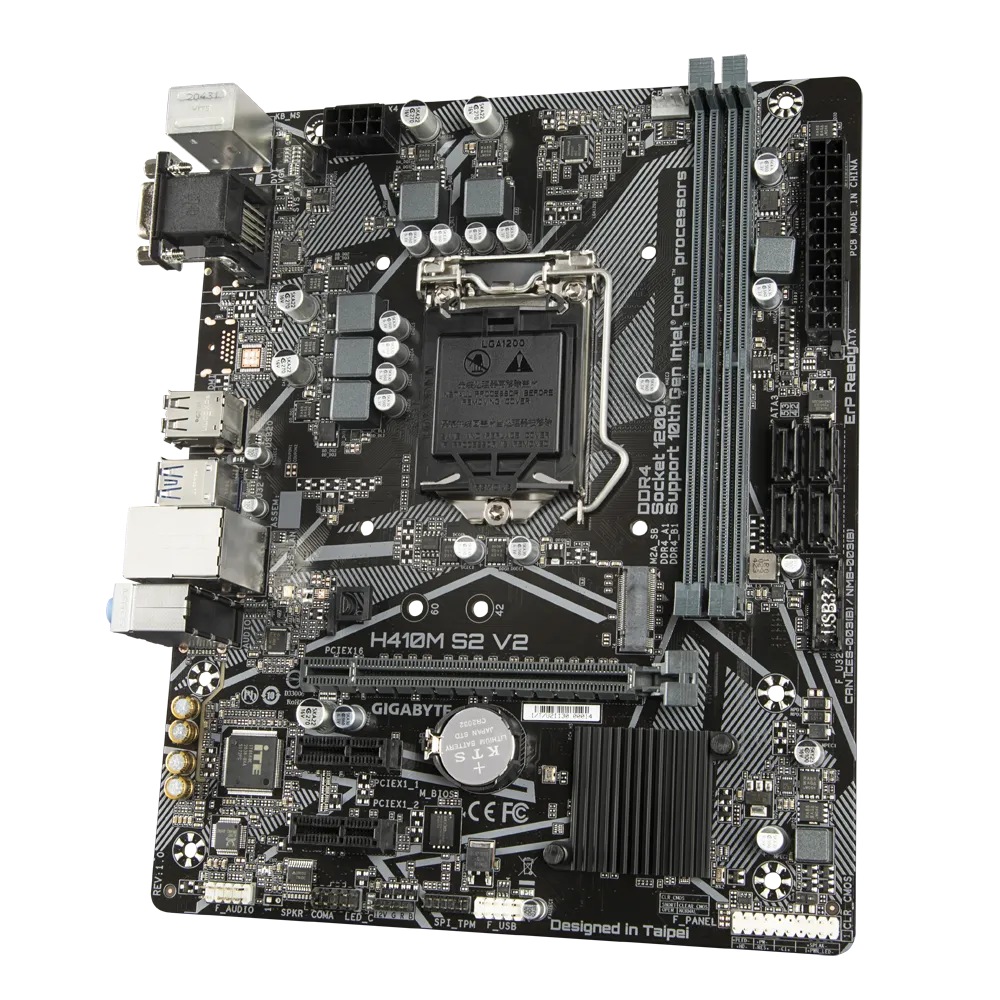

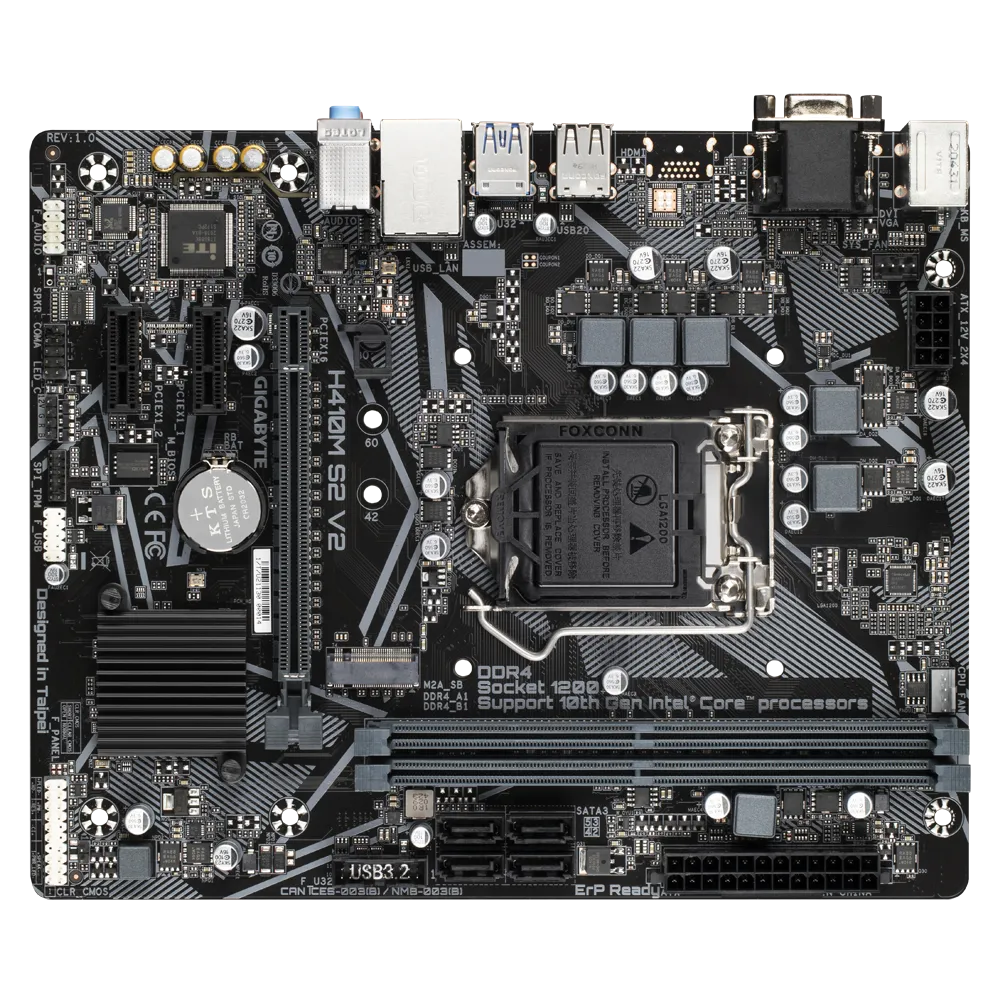

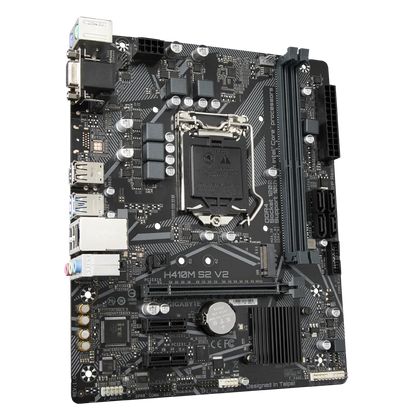

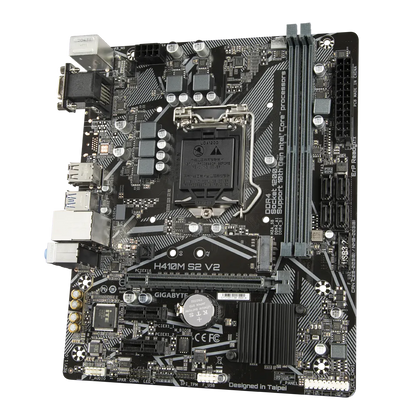

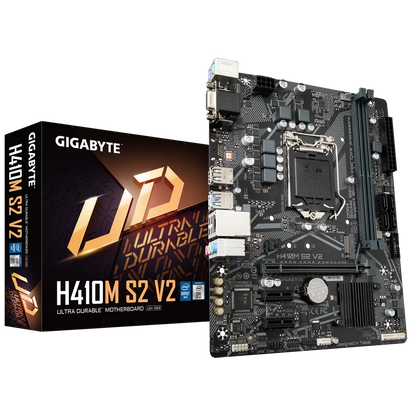

GIGABYTE GA-H410M-S2 V2 INTEL LGA1200 MOTHERBOARD
GIGABYTE GA-H410M-S2 V2 INTEL LGA1200 MOTHERBOARD
Regular price
Rs. 5,390.00
Sale price
Rs. 5,390.00
Regular price
Rs. 8,499.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| CPU | 1. Support for 10th Generation IntelÃCoreô i9 processors/IntelÃCoreô i7 processors/IntelÃCoreô i5 processors/IntelÃCoreô i3 processors/IntelÃPentiumÃprocessors/IntelÃCeleronÃprocessors in the LGA1200 package |
| 2. L3 cache varies with CPU | |
| (Please refer "CPU Support List" for more information.) | |
| Chipset | IntelÃH470 Express Chipset |
| Memory | 1. IntelÃCoreô i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 2. IntelÃCoreô i5/i3/PentiumÃ/CeleronÃprocessors: | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| 4. Dual channel memory architecture | |
| 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 7. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-IntelÃHD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Maximum shared memory of 512 MB | |
| Audio |
1. RealtekÃAudio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | |
| LAN | IntelÃGbE LAN chip (1000/100 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express slots conform to PCI Express 3.0 standard.) | |
| Supports up to ASPM L1.2 power management protocols. | |
| Storage Interface | 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
| 2. 4 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| 4. IntelÃOptaneô Memory Ready | |
| M.2 connectors support up to ASPM L1.2 PCIe power management protocols. | |
| USB | Chipset: |
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 4 x SATA 6Gb/s connectors | |
| 4. 1 x CPU fan header | |
| 5. 1 x system fan header | |
| 6. 1 x RGB LED strip header | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 1 x USB 3.2 Gen 1 header | |
| 10. 1 x USB 2.0/1.1 header | |
| 11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 12. 1 x serial port header | |
| 13. 1 x Clear CMOS jumper | |

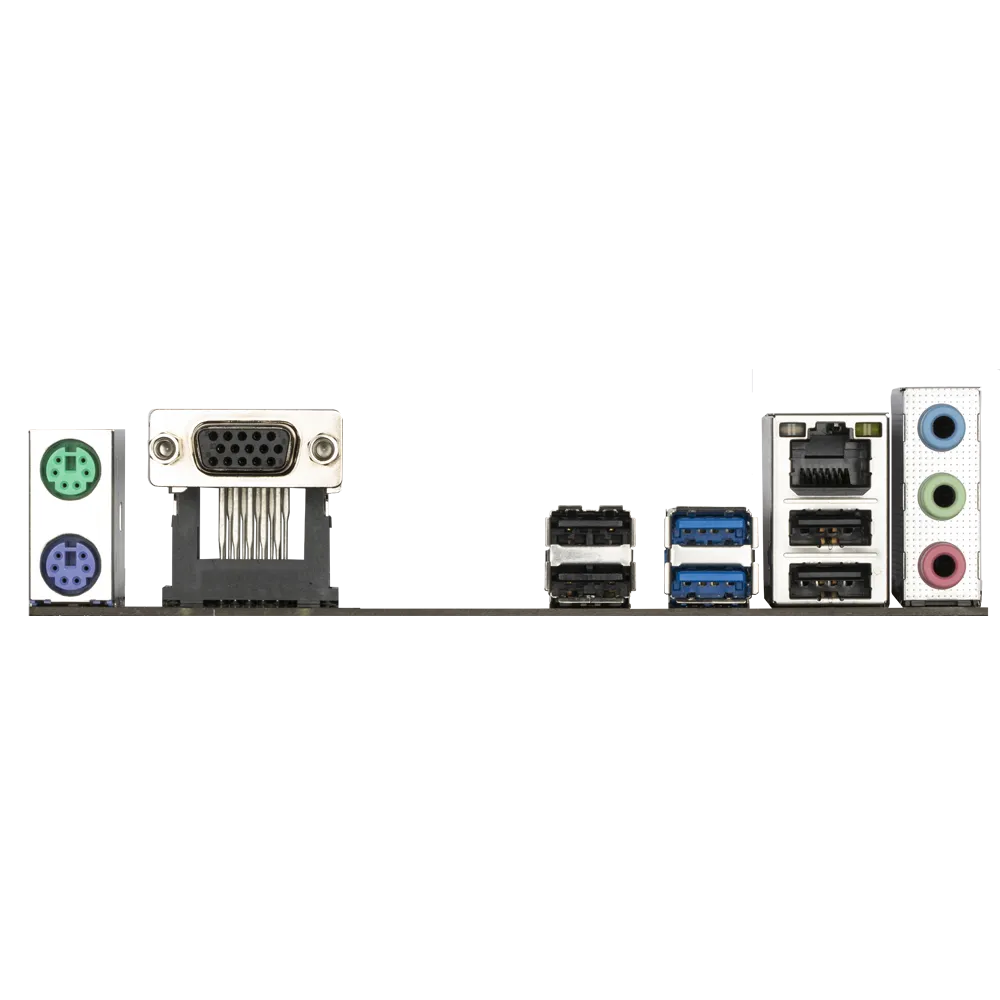

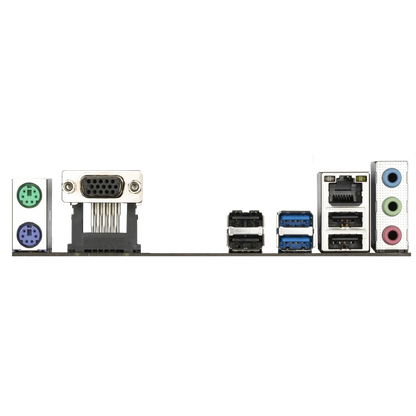

| Back Panel Connectors |
1. 1 x PS/2 keyboard port |
| 2. 1 x PS/2 mouse port | |
| 3. 1 x D-Sub port | |
| 4. 2 x USB 3.2 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
| I/O Controller | iTEÃI/O Controller Chip |
| H/W Monitoring |
1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Overheating warning | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS |
1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features |
1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| Ambient LED | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
| Bundled Software |
1. NortonÃInternet Security (OEM version) |
| 2. cFosSpeed | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Warranty | 3 Years |
