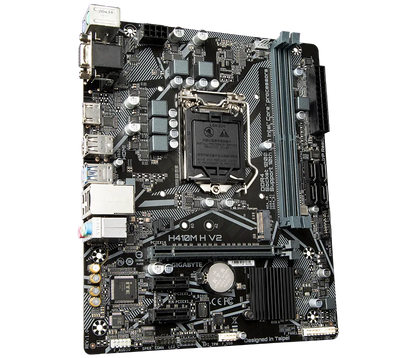

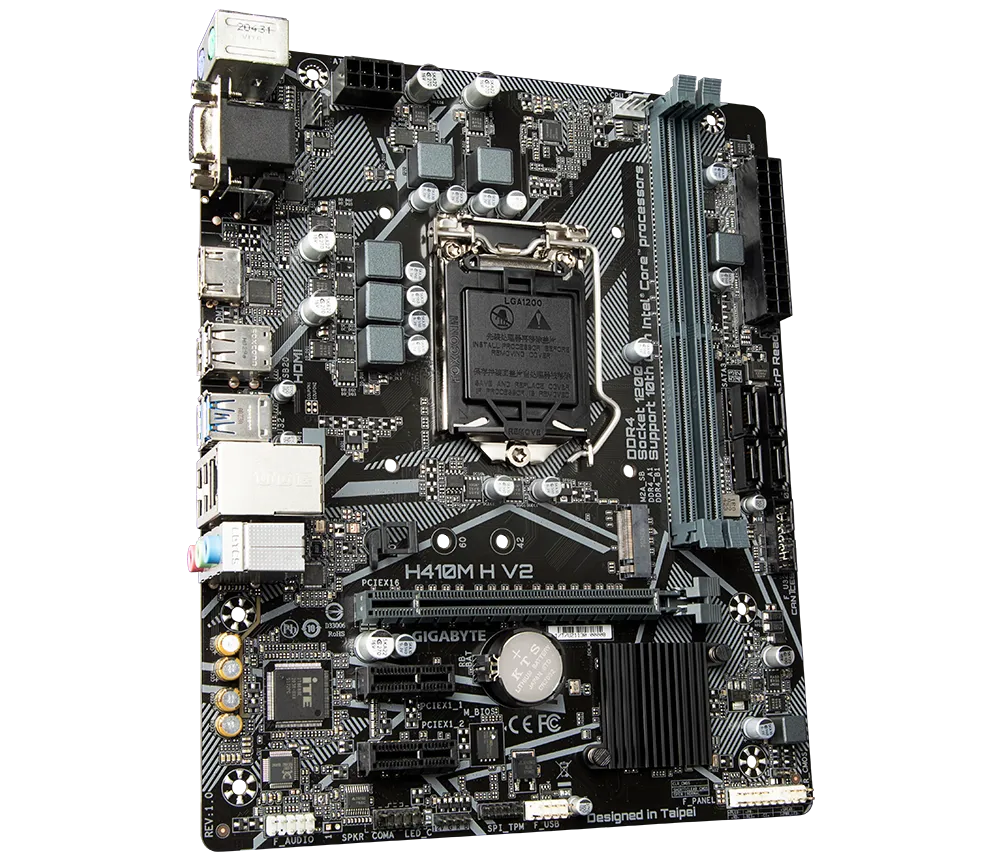

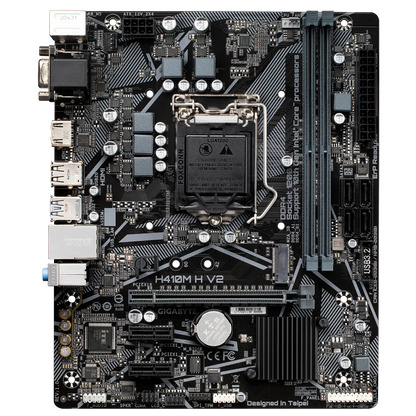

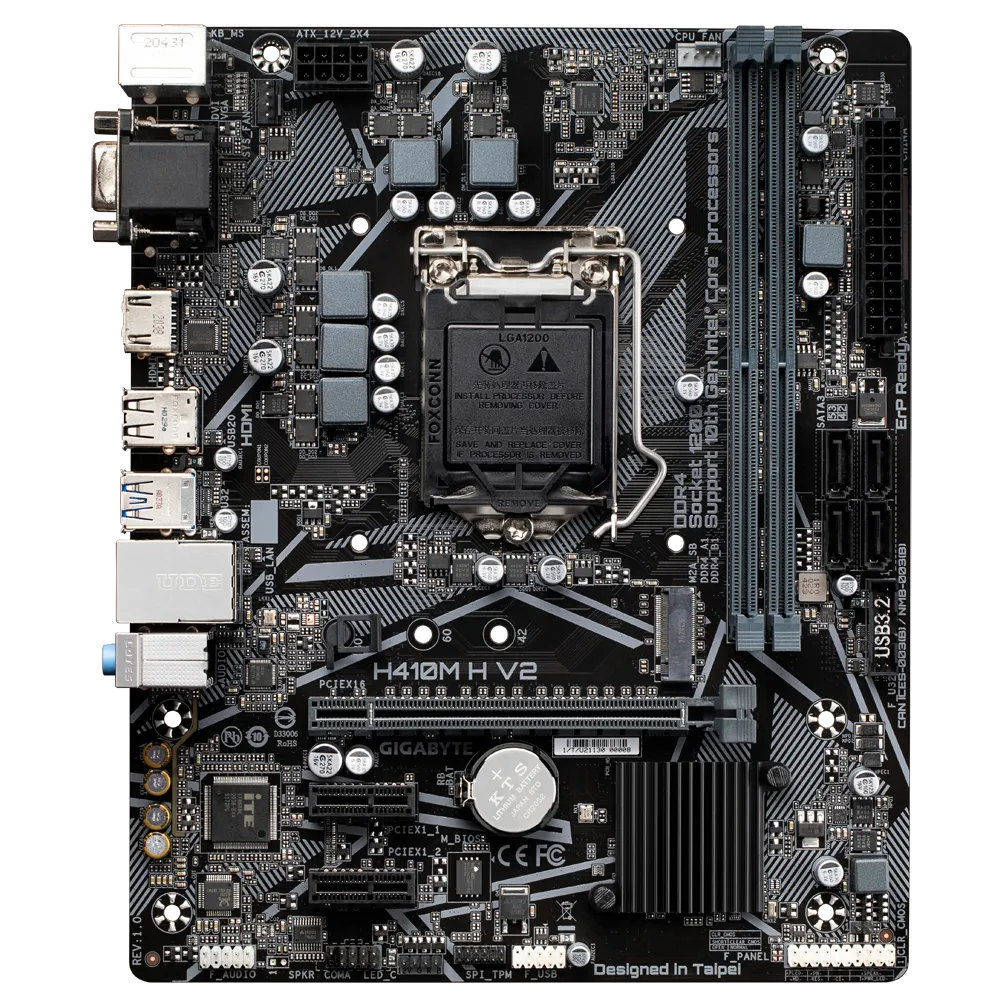

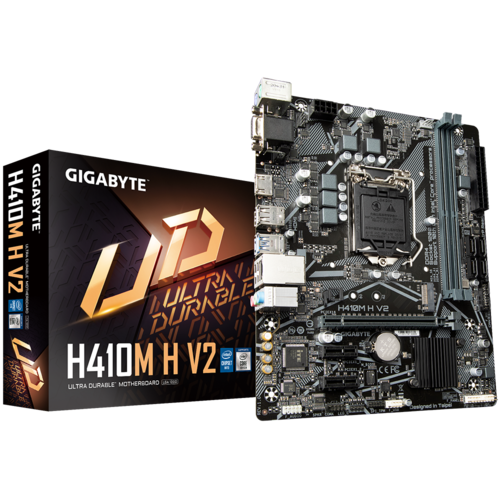

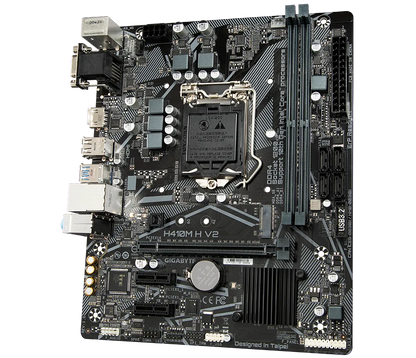

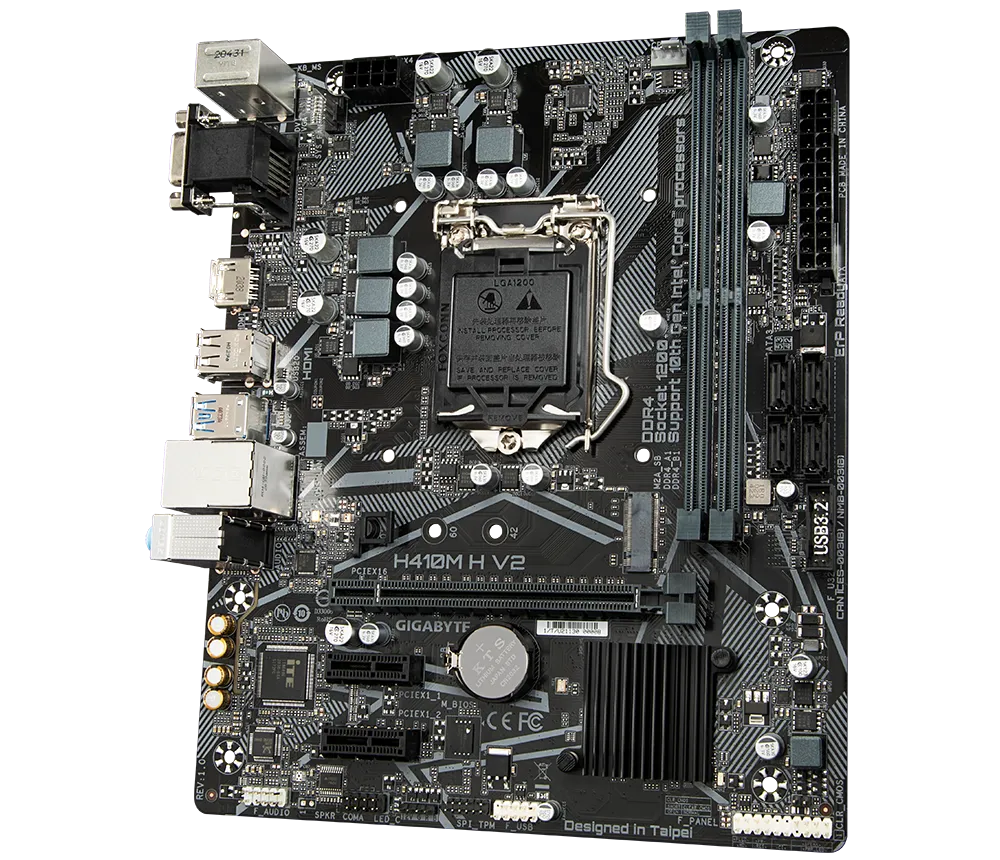

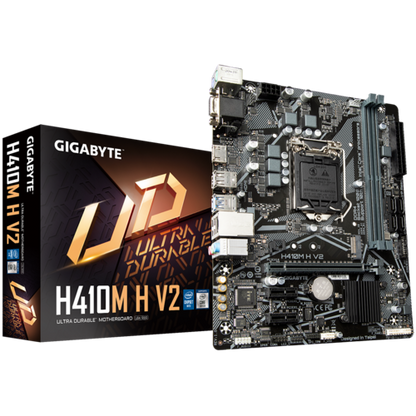

GIGABYTE GA-H410M-H V2 INTEL LGA1200 MOTHERBOARD
GIGABYTE GA-H410M-H V2 INTEL LGA1200 MOTHERBOARD
Regular price
Rs. 5,906.00
Sale price
Rs. 5,906.00
Regular price
Rs. 9,360.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| CPU | 1. Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/ |
| Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/ | |
| Intel Celeron processors in the LGA1200 package | |
| 2. L3 cache varies with CPU | |
| (Please refer "CPU Support List" for more information.) | |
| Chipset | Intel H470 Express Chipset |
| Memory | Intel Core i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| Intel Core i5/i3/Pentium/Celeron processors: | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| 2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| Maximum shared memory of 512 MB | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | |
| LANSpecifications | Intel GbE LAN chip (1 Gbit/100 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express slots conform to PCI Express 3.0 standard.) | |
| Supports up to ASPM L1.2 power management protocols. | |
| Storage Interface | 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
| 2. 4 x SATA 6Gb/s connectors | |
| 3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| 4. Intel Optane Memory Ready | |
| M.2 connectors support up to ASPM L1.2 PCIe power management protocols. | |
| USB | Chipset: |
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x system fan header | |
| 5. 1 x RGB LED strip header | |
| 6. 4 x SATA 6Gb/s connectors | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 1 x USB 3.2 Gen 1 header | |
| 10. 1 x USB 2.0/1.1 header | |
| 11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 12. 1 x serial port header | |
| 13. 1 x Clear CMOS jumper | |

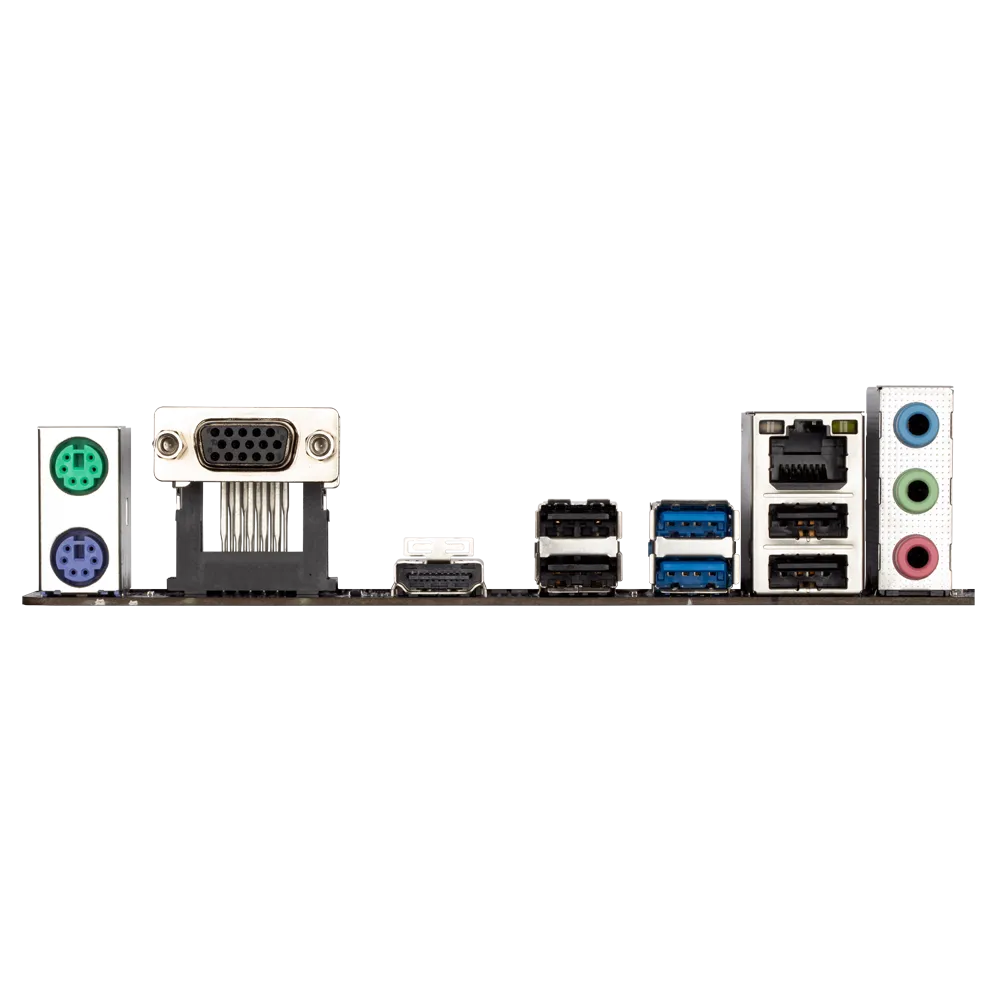

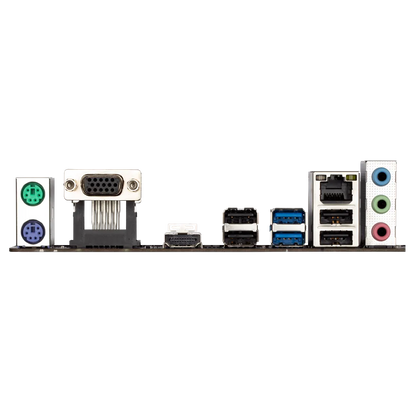

| Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x D-Sub port | |
| 3. 1 x HDMI port | |
| 4. 2 x USB 3.2 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
| I/O Controller | 1. iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| Ambient LED | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
| Bundled Software | 1. Norton Internet Security (OEM version) |
| 2. cFosSpeed | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 22.6cm x 18.5cm |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
