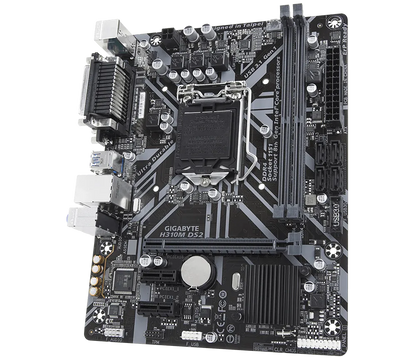

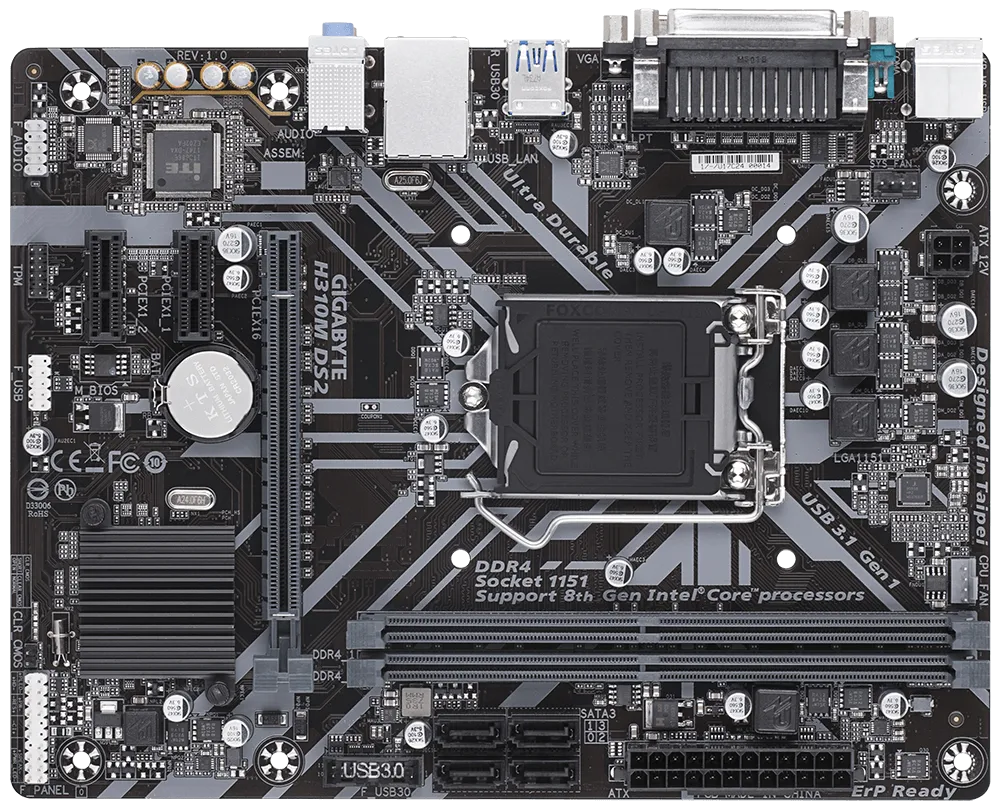

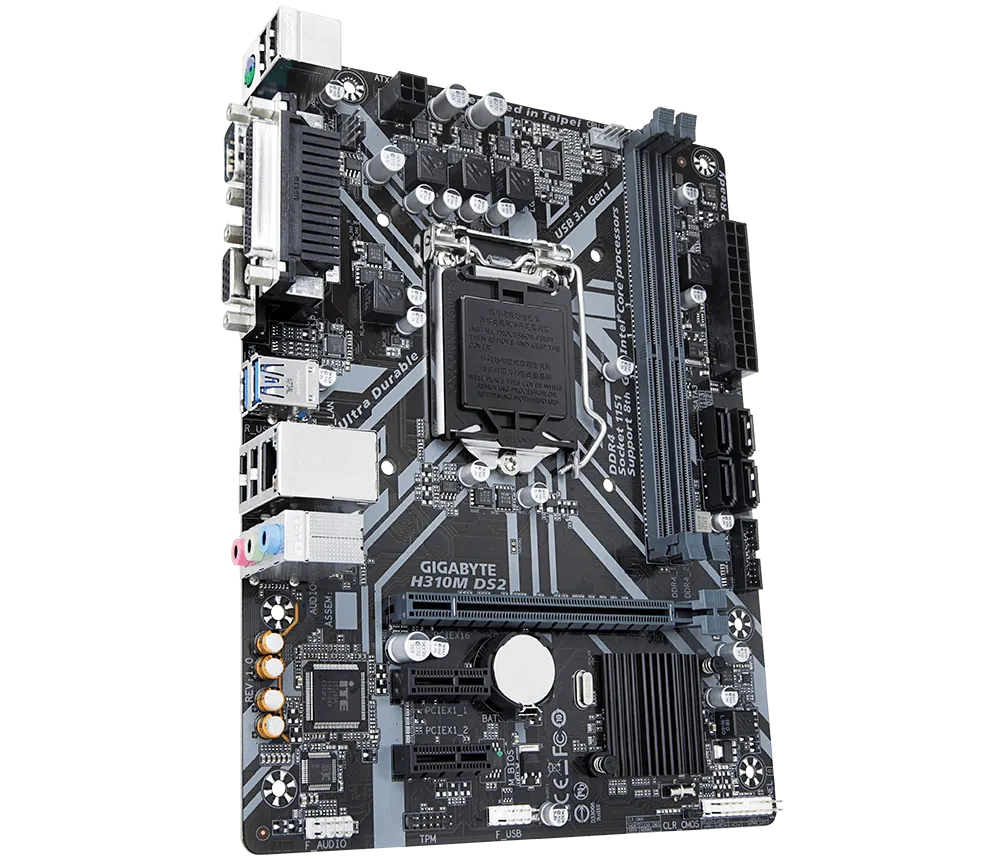

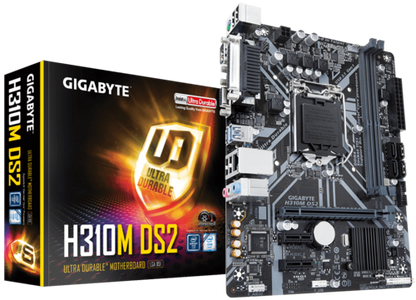

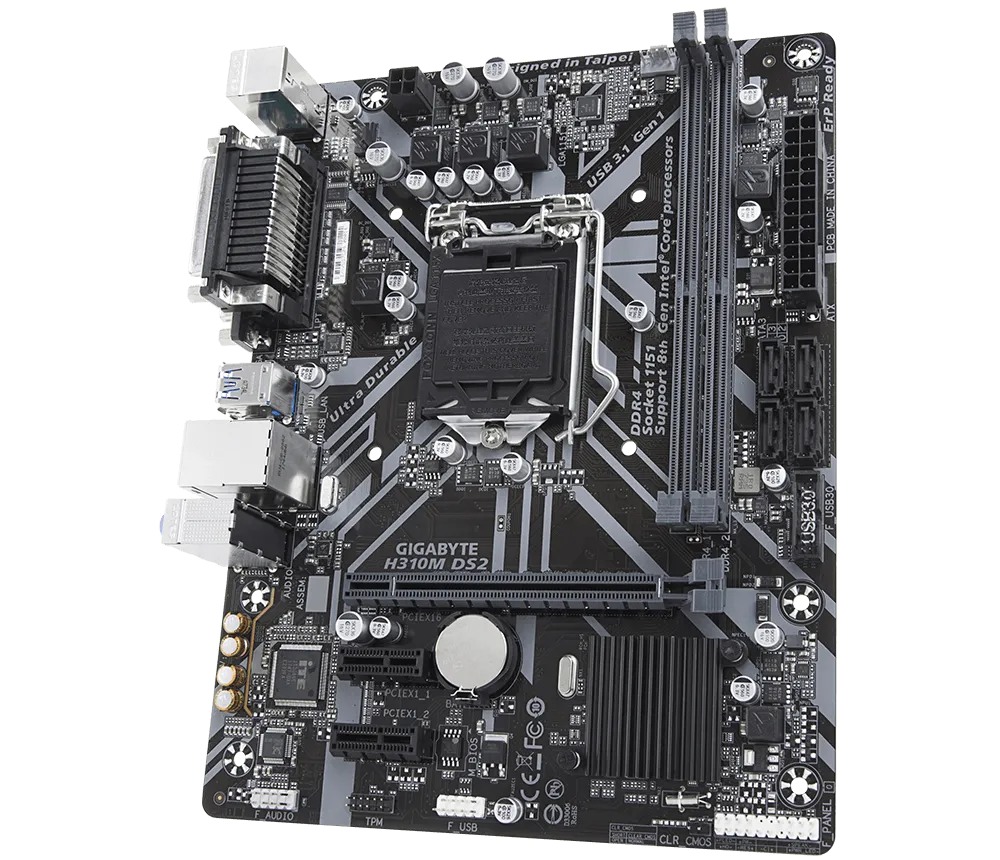

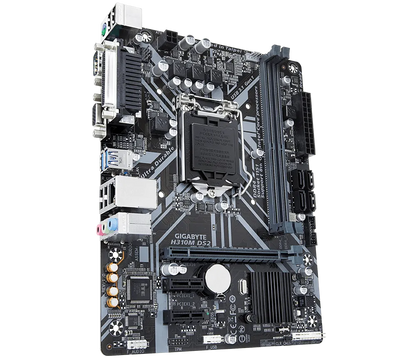

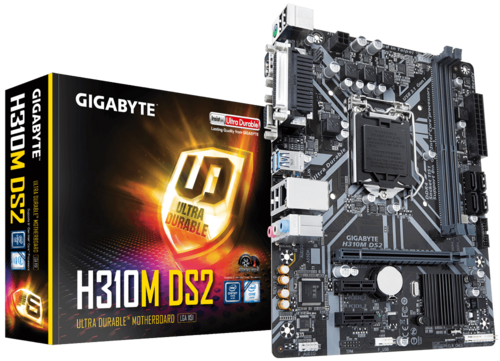

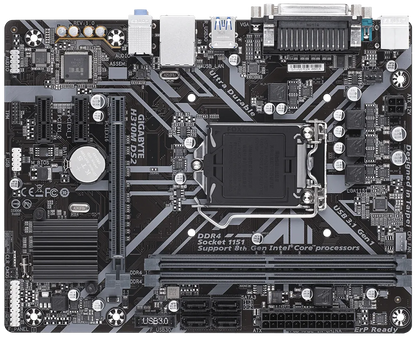

GIGABYTE GA-H310M-DS2 INTEL LGA1151 MOTHERBOARD
GIGABYTE GA-H310M-DS2 INTEL LGA1151 MOTHERBOARD
Regular price
Rs. 6,076.00
Sale price
Rs. 6,076.00
Regular price
Rs. 8,000.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
- Supports 9th and 8th Gen Intelà Coreô Processors
- Dual Channel Non-ECC Unbuffered DDR4
- 8-Channel HD Audio with High Quality Audio Capacitors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- All new GIGABYTEô APP Center, simple and easy use
- Anti-Sulfur Resistors Design
Specifications
CPU
|
| 1. Support for 9th and 8th Generation IntelÃCoreô i9 processors/IntelÃCoreô i7 processors/IntelÃCoreô i5 processors/IntelÃCoreô i3 processors/IntelÃPentiumÃprocessors/IntelÃCeleronÃprocessors in the LGA1151 package |
| 2. L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) |
Chipset
|
| 1. IntelÃH310 Express Chipset |
Memory
|
| 1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| 2. Dual channel memory architecture |
| 3. Support for DDR4 2666/2400/2133 MHz memory modules |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 6. Support for Extreme Memory Profile (XMP) memory modules |
| * To support 2666 MHz or XMP memory, you must install an 8thGeneration IntelÃCoreô i7/i5 processor. |
| (Please refer "Memory Support List" for more information.) |
Onboard Graphics
|
Integrated Graphics Processor-IntelÃHD Graphics support:
|
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Maximum shared memory of 1 GB |
Audio
|
| 1. RealtekÃALC887 codec |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| 4. Support for S/PDIF Out |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN
|
| 1. RealtekÃGbE LAN chip (10/100/1000 Mbit) |
Expansion Slots
|
| 1. 1 x PCI Express x16 slot, running at x16 |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| 2. 2 x PCI Express x1 slots |
| (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
Storage Interface
|
Chipset:
|
| 1. 4 x SATA 6Gb/s connectors |
USB
|
Chipset:
|
| 1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
Internal I/O Connectors
|
| 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector |
| 3. 4 x SATA 6Gb/s connectors |
| 4. 1 x CPU fan header |
| 5. 1 x system fan header |
| 6. 1 x front panel header |
| 7. 1 x front panel audio header |
| 8. 1 x USB 3.1 Gen 1 header |
| 9. 1 x USB 2.0/1.1 header |
| 10. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| 11. 1 x Clear CMOS jumper |

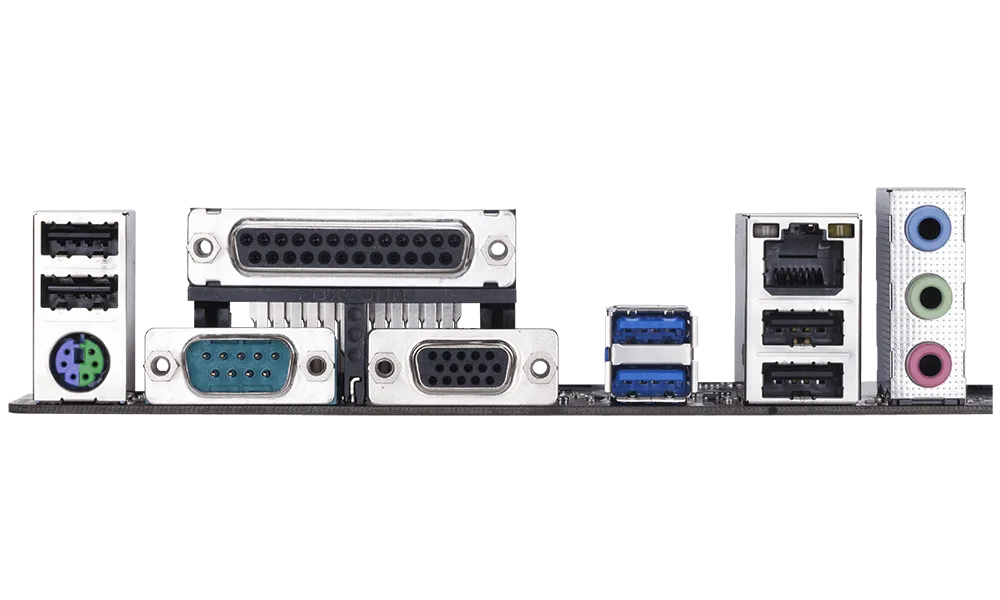

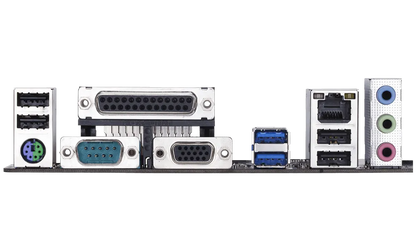

Back Panel Connectors
|
| 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x parallel port |
| 3. 1 x serial port |
| 4. 1 x D-Sub port |
| 5. 2 x USB 3.1 Gen 1 ports |
| 6. 4 x USB 2.0/1.1 ports |
| 7. 1 x RJ-45 port |
| 8. 3 x audio jacks |
I/O Controller
|
| 1. iTEÃI/O Controller Chip |
H/W Monitoring
|
| 1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Overheating warning |
| 5. Fan fail warning |
| 6. Fan speed control |
| * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS
|
| 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features
|
| 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| 3D OSD |
| @BIOS |
| AutoGreen |
| Cloud Station |
| EasyTune |
| Fast Boot |
| Game Boost |
| ON/OFF Charge |
| Platform Power Management |
| Smart Backup |
| Smart Keyboard |
| Smart Survey |
| Smart TimeLock |
| Smart HUD |
| System Information Viewer |
| USB Blocker |
| V-Tuner |
| 2. Support for Q-Flash |
| 3. Support for Xpress Install |
Bundled Software
|
| 1. NortonÃInternet Security (OEM version) |
| 2. RealtekÃ8118 Gaming LAN Bandwidth Control Utility |
Operating System
|
| 1. Support for Windows 10 64-bit |
Form Factor
|
| 1. Micro ATX Form Factor; 22.6cm x 17.4cm |
