GIGABYTE GA-H110M-H INTEL LGA1151 MOTHERBOARD
GIGABYTE GA-H110M-H INTEL LGA1151 MOTHERBOARD
Regular price
Rs. 7,282.00
Sale price
Rs. 7,282.00
Regular price
Rs. 7,500.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| CPU | Support for 7th/6thGeneration IntelÃCoreô i7 processors/IntelÃCoreô i5 processors/IntelÃCoreô i3 processors/IntelÃPentiumÃprocessors/IntelÃCeleronÃprocessors in the LGA1151 package |
| * For 7thGeneration IntelÃCoreô processors support need to update the latest BIOS. | |
| L3 cache varies with CPU | |
| Chipset | 1. IntelÃH110 Express Chipset |
| Memory | 1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. | |
| 2. Dual channel memory architecture | |
| 3. Support for DDR4 2400/2133 MHz memory modules | |
| 4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Onboard Graphics | 1. Integrated Graphics Processor - IntelÃHD Graphics support: |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz | |
| * Support for HDMI 1.4 version. | |
| 2. Maximum shared memory of 1024 MB | |
| Audio | 1. RealtekÃAudio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| 4. Support for S/PDIF Out | |
| LAN | 1. RealtekÃGbE LAN chip (1 Gbit/100 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| (The PCI Express x16 slot conform to PCI Express 3.0 standard.) | |
| 2. 2 x PCI Express x1 slots | |
| (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) | |
| Storage Interface | Chipset: |
| 1. 4 x SATA 6Gb/s connectors | |
| USB | Chipset: |
| 1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector | |
| 3. 4 x SATA 6Gb/s connectors | |
| 4. 1 x CPU fan header | |
| 5. 1 x system fan header | |
| 6. 1 x front panel header | |
| 7. 1 x front panel audio header | |
| 8. 1 x S/PDIF Out header | |
| 9. 1 x USB 3.0/2.0 header | |
| 10. 2 x USB 2.0/1.1 headers | |
| 11. 1 x Trusted Platform Module (TPM) header | |
| 12. 1 x Clear CMOS jumper | |

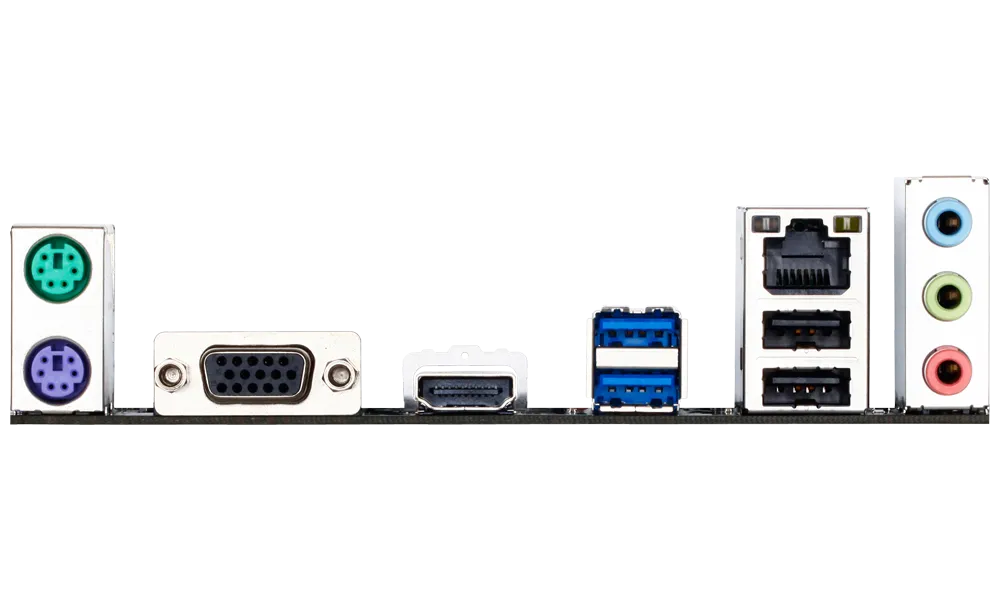

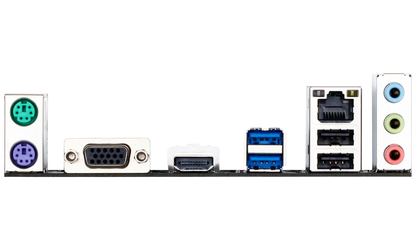

| Back Panel Connectors | 1. x PS/2 mouse port |
| 2. 1 x PS/2 Keyboard port | |
| 3. 1 x D-Sub port | |
| 4. 1 x HDMI port | |
| 5. 2 x USB 3.0/2.0 ports | |
| 6. 2 x USB 2.0/1.1 ports | |
| 7. 1 x RJ-45 port | |
| 8. 3 x audio jacks (Line In, Line Out, Mic In) | |
| I/O Controller | 1. iTEÃI/O Controller Chip |
| H/W Monitoring | 1. System voltage detection |
| 2. CPU/System temperature detection | |
| 3. CPU/System fan speed detection | |
| 4. CPU/System overheating warning | |
| 5. CPU/System fan fail warning | |
| 6. CPU/System fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1. 1 x 64 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. | |
| 3D OSD | |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Fast Boot | |
| Smart TimeLock | |
| Smart Keyboard | |
| Smart Backup | |
| System Information Viewer | |
| USB Blocker | |
| 2. Support for Q-Flash | |
| 3. Support for Smart Switch | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. NortonÃInternet Security (OEM version) |
| 2. cFosSpeed | |
| Operating System | 1. WindowsÃ10 64-bit (for 7thGeneration IntelÃProcessors) |
| 2. WindowsÃ10 64-bit / WindowsÃ8.1 64-bit / WindowsÃ7 32-bit / 64-bits (for 6thGeneration IntelÃProcessors) | |
| * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7 | |
| Form Factor | 1. Micro ATX Form Factor; 22.6cm x 17.4cm |
