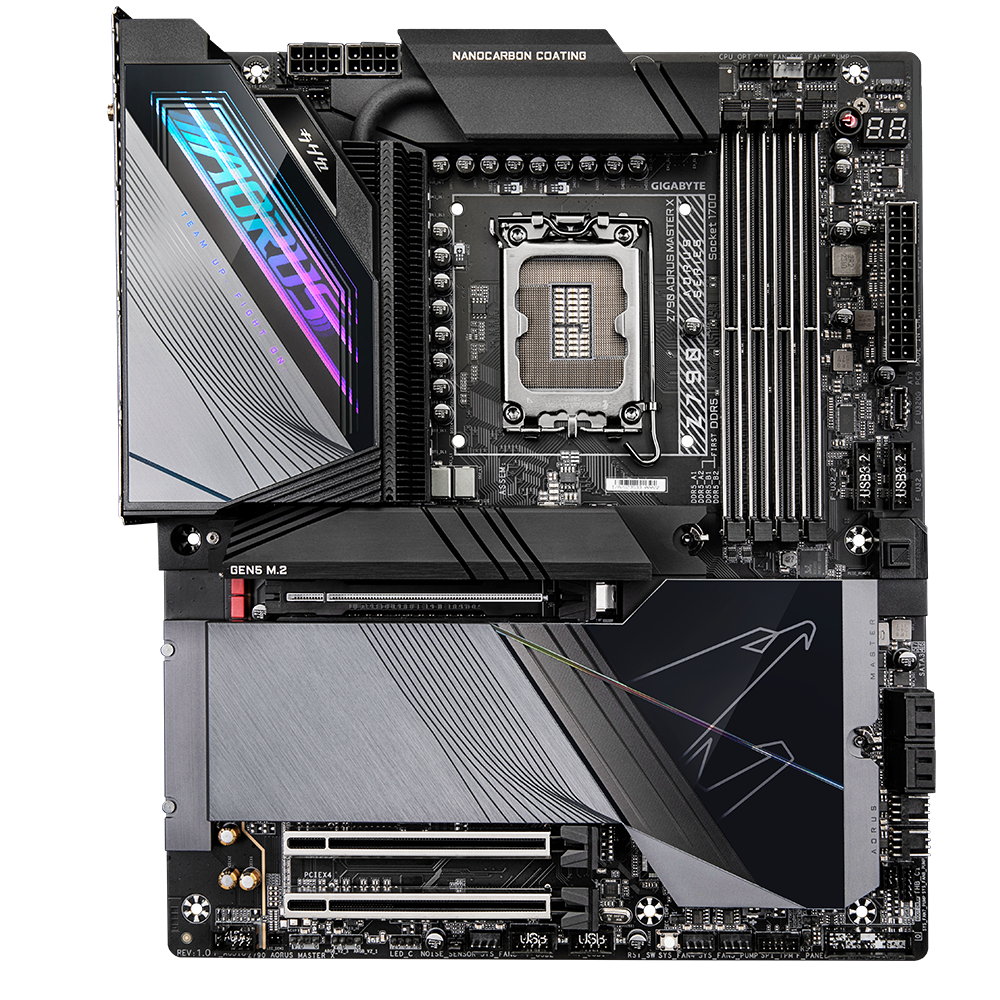

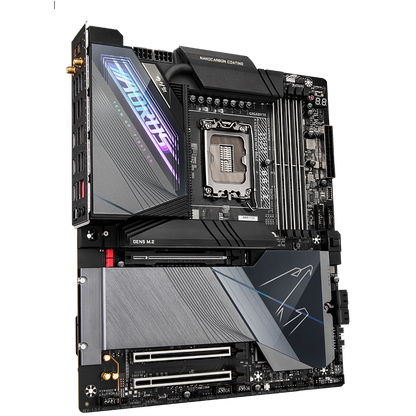

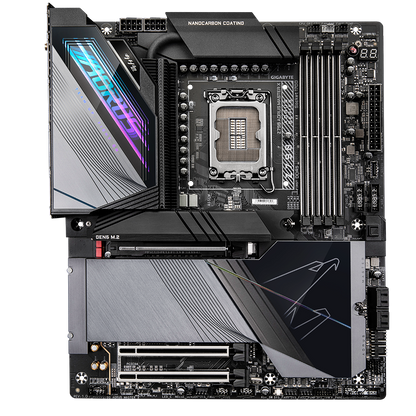

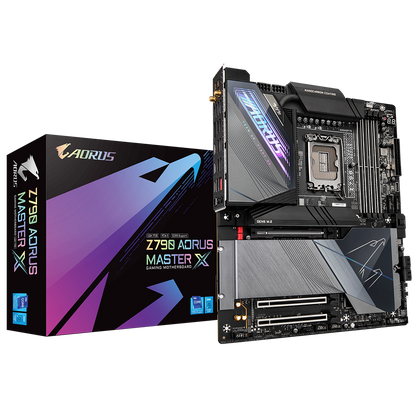

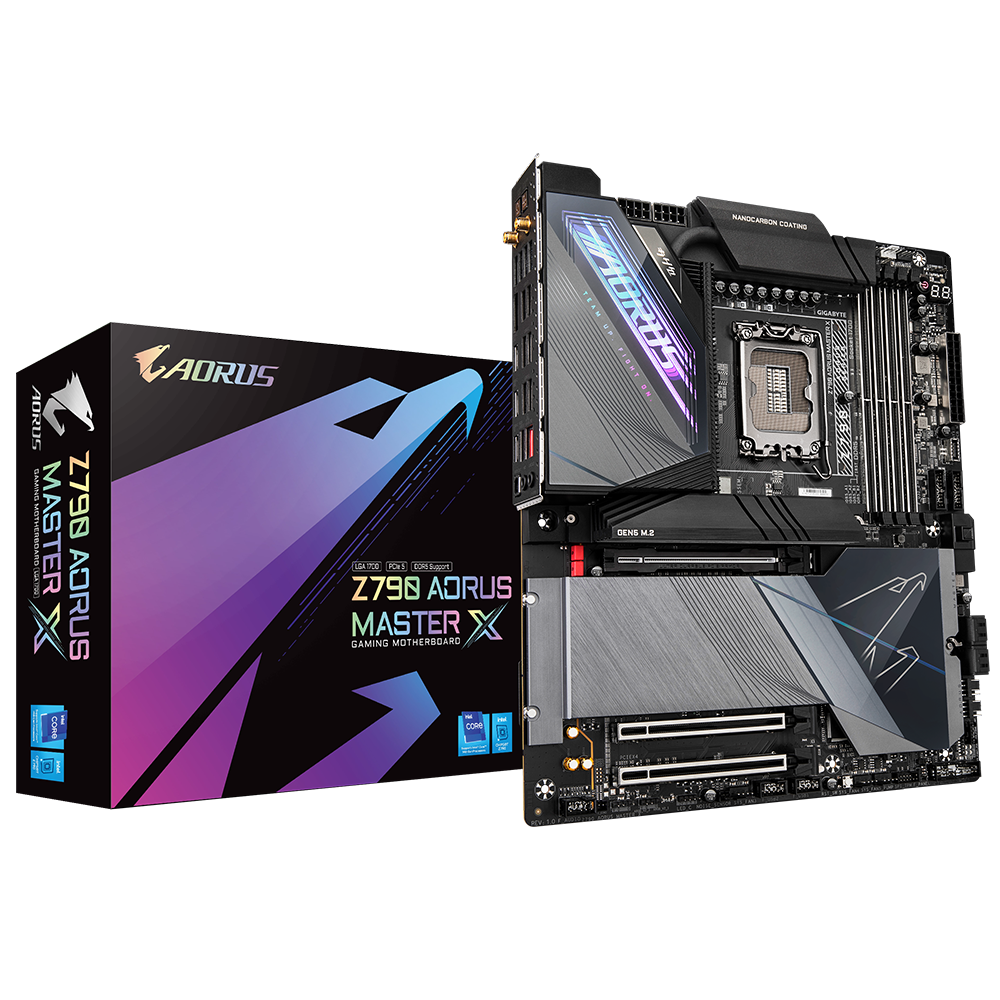

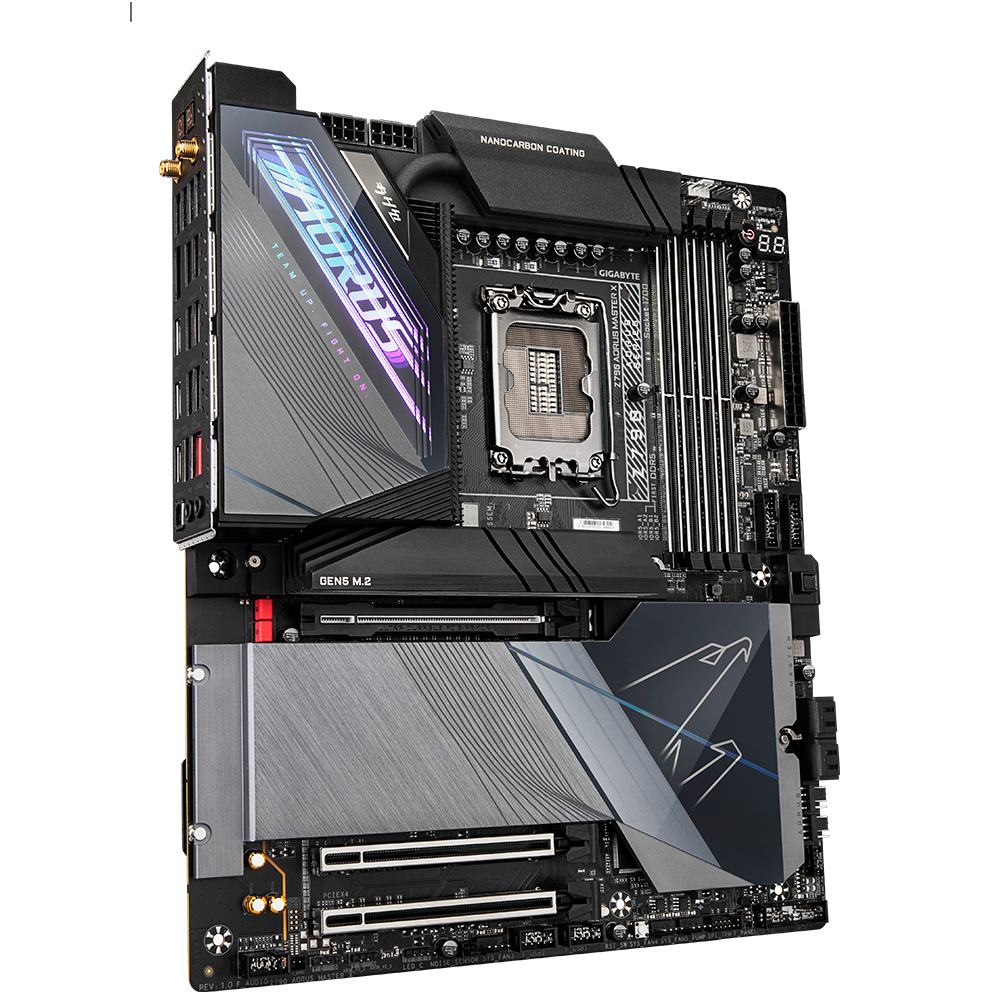

GIGABYTE GA-Z790 AORUS MASTER X DDR5 INTEL LGA1700 MOTHERBOARD
GIGABYTE GA-Z790 AORUS MASTER X DDR5 INTEL LGA1700 MOTHERBOARD
Regular price
Rs. 58,055.00
Sale price
Rs. 58,055.00
Regular price
Rs. 90,000.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| Model | MASTER X |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | Support for the 13th and 12th Generation Intelà Coreô, Pentiumà Gold and Celeronà Processors* |
| Chipsets | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 x DDR5 DIMM sockets |
| Memory Standard | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O. |
| Maximum Memory Supported | up to 192 GB |
| Channel Supported | Dual channel memory architecture |
| Expansion Slots | |
| PCI Express x16 | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, su |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
| SATA RAID | RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics |
| Onboard Audio | |
| Audio Channels | 2/4/5.1-channel |
| Audio Chipset | Realtek ALC1220-VB codec |
| Onboard LAN | |
| LAN Chipset | Marvellà AQtion AQC113C 10GbE LAN chip |
| Max LAN Speed | 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps |

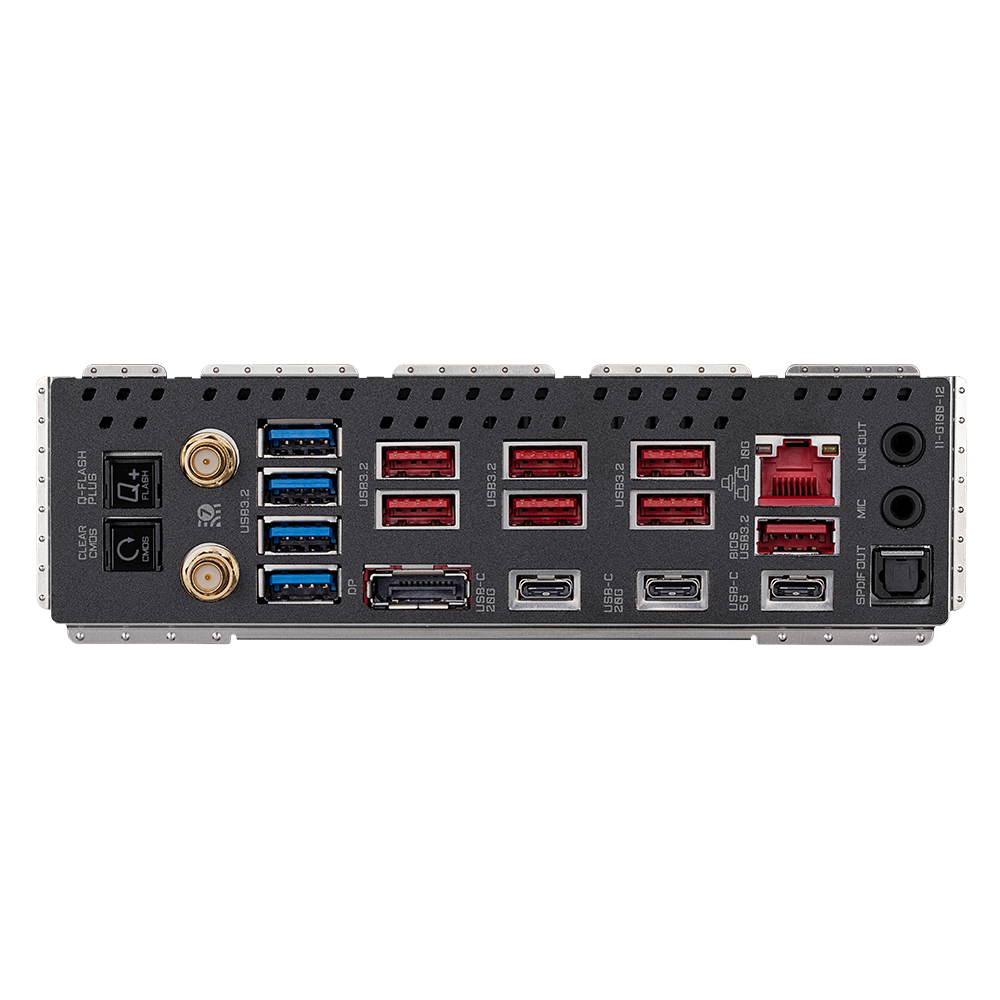

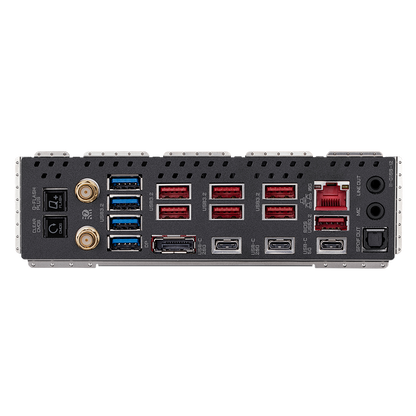

| Rear Panel Ports | |
| USB | 3 x USB Type-CÃ ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel),1 x USB Type-CÃ port on the back panel, with USB 3.2 Gen 1 support - 7 x USB 3.2 Gen 2 Type-A ports (red) on the back |
| S/PDIF Out | 1 x optical S/PDIF Out connector |
| Audio Ports | 2 x audio jacks |
| Video Ports | - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Onboard USB | |
| Onboard 1394 | |
| Physical Spec | |
| Form Factor | E-ATX Form Factor; 30.5cm x 27.0cm |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
