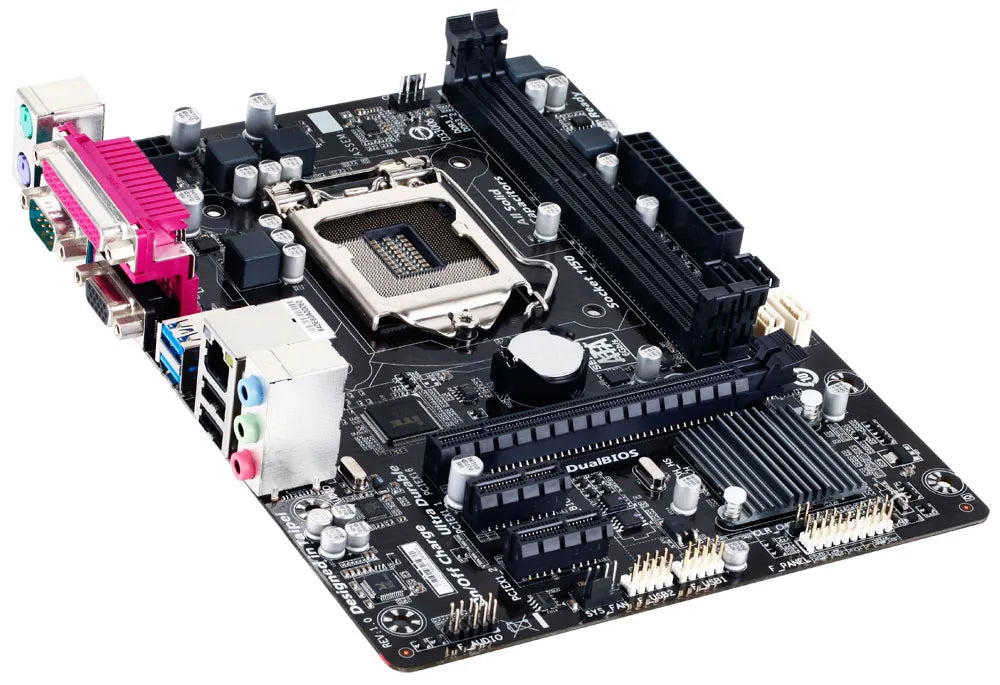

GIGABYTE GA-H81M-DS2 INTEL LGA1150 MOTHERBOARD
GIGABYTE GA-H81M-DS2 INTEL LGA1150 MOTHERBOARD
Regular price
Rs. 6,174.00
Sale price
Rs. 6,174.00
Regular price
Rs. 9,999.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| Model | GA-H81M-DS2 |
| CPU | 1. Support for IntelÃCoreô i7 processors/IntelÃCoreô i5 processors/IntelÃCoreô i3 processors/IntelÃPentiumÃprocessors/IntelÃCeleronÃprocessors in the LGA1150 package |
| 2. L3 cache varies with CPU | |
| (Please refer ìCPU Support Listà for more information.) | |
| Chipset | Intelà H81 Express Chipset |
| Memory | 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory |
| * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. | |
| 2. Dual channel memory architecture | |
| 3. Support for DDR3 1600/1333 MHz memory modules | |
| 4. Support for non-ECC memory modules | |
| 5. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer ìMemory Support Listà for more information.) | |
| Onboard Graphics | Integrated Graphics Processor ñ IntelÃHD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 19201200 | |
| 2. Maximum shared memory of 1 GB | |
| Audio | 1. RealtekÃALC887 codec |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| LAN | Realtekà GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express slots conform to PCI Express 2.0 standard.) | |
| Storage Interface | Chipset: |
| 1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices | |
| 2. 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices | |
| USB | Chipset: |
| 1. Up to 2 USB 3.0/2.0 ports on the back panel | |
| 2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector | |
| 3. 2 x SATA 6Gb/s connectors | |
| 4. 2 x SATA 3Gb/s connectors | |
| 5. 1 x CPU fan header | |
| 6. 1 x system fan header | |
| 7. 1 x front panel header | |
| 8. 1 x front panel audio header | |
| 9. 2 x USB 2.0/1.1 headers | |
| 10. 1 x Clear CMOS jumper | |

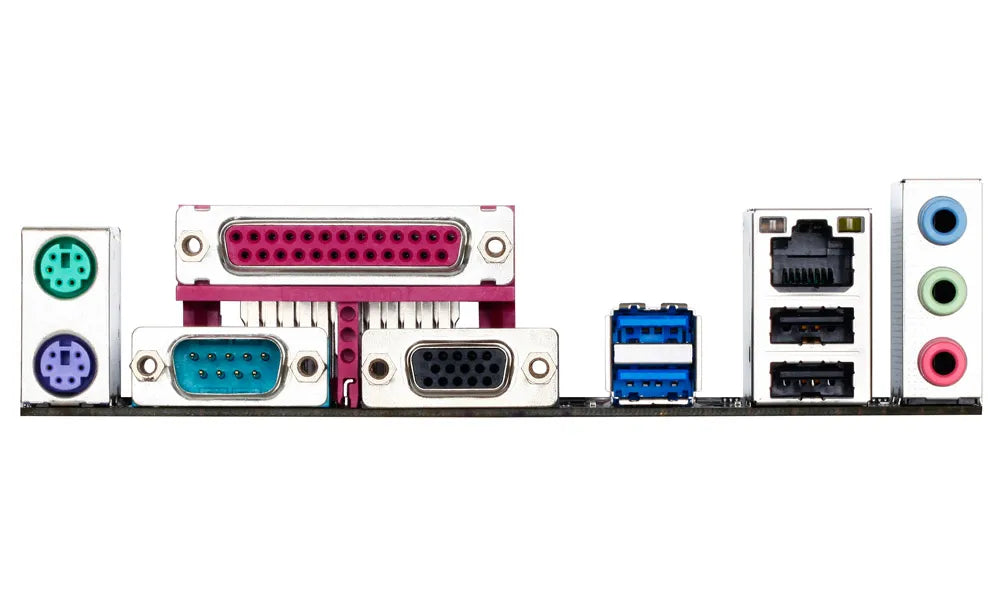

| Back Panel Connectors | 1. 1 x PS/2 mouse port |
| 2. 1 x PS/2 Keyboard port | |
| 3. 1 x parallel port | |
| 4. 1 x serial port | |
| 5. 1 x D-Sub port | |
| 6. 2 x USB 3.0/2.0 ports | |
| 7. 2 x USB 2.0/1.1 ports | |
| 8. 1 x RJ-45 port | |
| 9. 3 x audio jacks (Line In, Line Out, Mic In) | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | 1. System voltage detection |
| 2. CPU/System temperature detection | |
| 3. CPU/System fan speed detection | |
| 4. CPU/System overheating warning | |
| 5. CPU/System fan fail warning | |
| 6. CPU/System fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1. 2 x 64 Mbit flash |
| 2. Use of licensed AMI EFI BIOS | |
| 3. Support for DualBIOSô | |
| 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for Q-Flash |
| 2. Support for Xpress Install | |
| 3. Support for APP Center | |
| * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| EZ Setup | |
| USB Blocker | |
| 4. Support for ON/OFF Charge | |
| Bundled Software | Nortonà Internet Security (OEM version) |
| Operating System | Support for Windows 10/8.1/8/7 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Warranty | 3 Years ManufacturerÃs Warranty |
| Country Of Origin | China |
| Manufacturer | Gigabyte Technology (India) Private Limited |
| B-Wing, 807 & 808, Naman MidTown | |
| Elphinstone Road, Mumbai 400013 | |
| Email:sales@gigabyte.in | |
| Tel: +91 0 22 40633222 | |
| Importer | WPG C&C Computers And Peripheral(I) Pvt.Ltd |
| Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III, | |
| New Delhi-110020 | |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 27 x 23.5 x 5.8 Centimeters |
