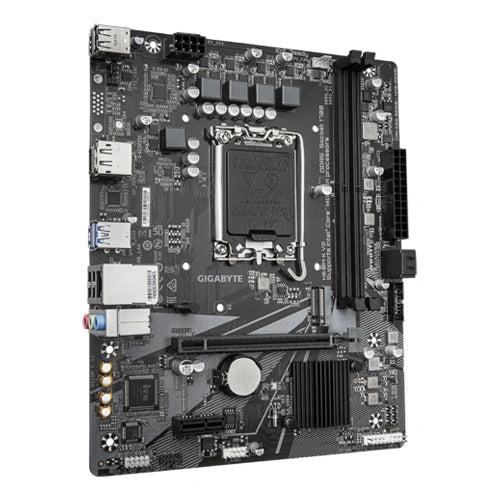

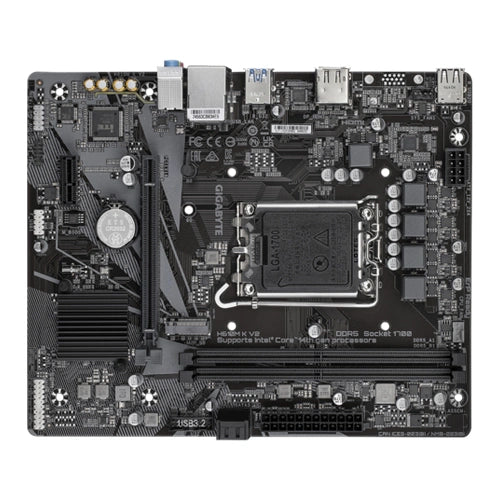

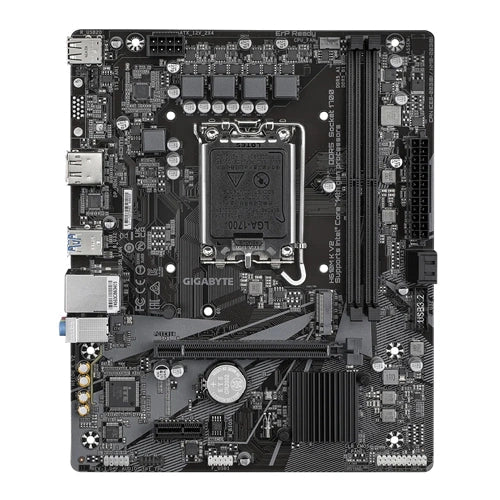

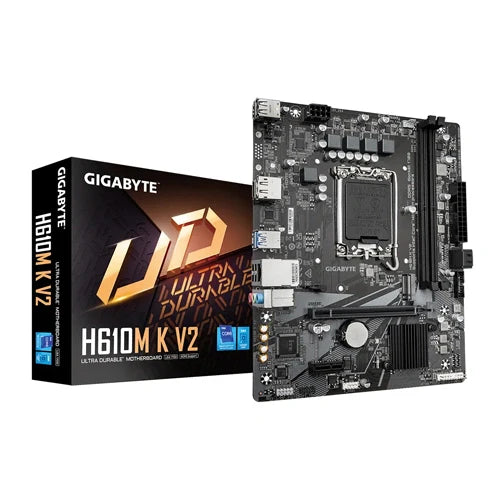

The GIGABYTE GA-H610M-K V2 DDR5 motherboard offers essential support for Intel Core 14th, 13th, and 12th generation processors. Designed with Dual Channel Non-ECC Unbuffered DDR5 memory, this motherboard provides a stable foundation for your computing needs.
Key Features at a Glance
- Supports Intel Core 14th, 13th, and 12th Gen processors.
- Dual Channel Non-ECC Unbuffered DDR5 memory support with 2 DIMMs.
- Integrated GbE LAN with Bandwidth Management.
- NVMe PCIe 3.0 x4 M.2 slot for fast storage.
- High-Quality Audio Capacitors and Audio Noise Guard.
- Smart Fan 6 features multiple temperature sensors and FAN STOP.
Robust Processor and Memory Support
Built to support Intel Core 14th, 13th, and 12th generation processors, the GIGABYTE GA-H610M-K V2 DDR5 provides a robust platform for your system. Its Dual Channel Non-ECC Unbuffered DDR5 memory architecture, with two DIMM slots, ensures efficient data handling for various applications.
Enhanced Connectivity and Storage
Experience reliable networking with the integrated GbE LAN, featuring bandwidth management for stable connections. The NVMe PCIe 3.0 x4 M.2 slot allows for quick access to your data with compatible solid-state drives, enhancing system responsiveness.
Durable Design and Smart Cooling
The motherboard incorporates an Anti-Sulfur Resistors Design for enhanced durability in various environments. With Smart Fan 6, including multiple temperature sensors and Hybrid Fan Headers with FAN STOP, you can maintain optimal system temperatures. Enjoy clear audio quality thanks to High Quality Audio Capacitors and Audio Noise Guard.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen,Pentium,Celeron |
| Chipset | H610 |
| Memory Speed | up to 5600 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI,1 x DisplayPort |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Back Panel I/O Ports | 1 x HDMI port 1 x DisplayPort 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors does the GIGABYTE GA-H610M-K V2 DDR5 support?
A: It supports Intel Core 14th, 13th, and 12th generation processors.
Q: What type of memory does this motherboard use?
A: It supports Dual Channel Non-ECC Unbuffered DDR5 memory across two DIMM slots.
Q: Does this motherboard have an M.2 slot?
A: Yes, it features an NVMe PCIe 3.0 x4 M.2 slot for compatible solid-state drives.
