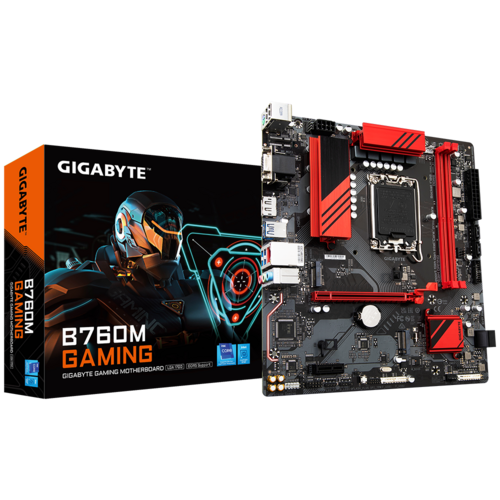

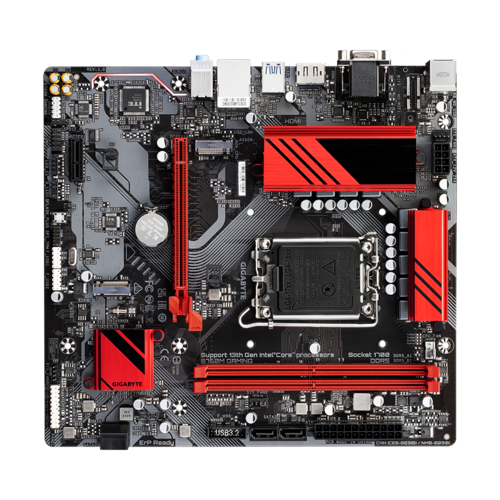

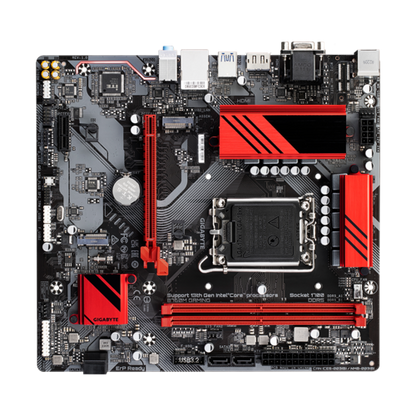

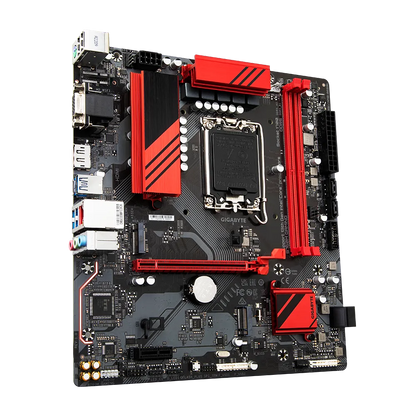

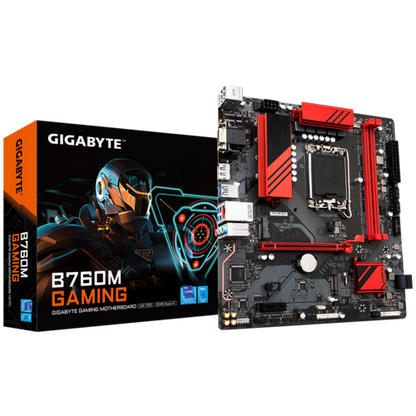

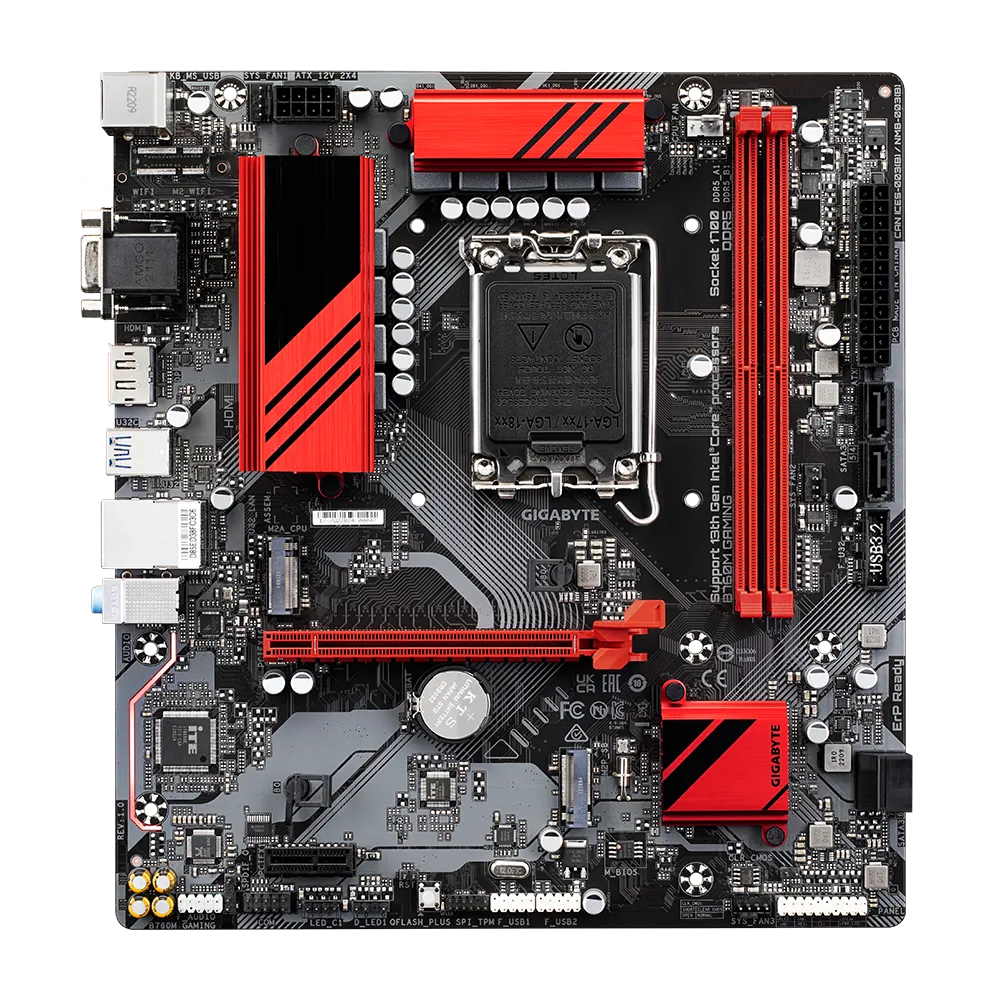

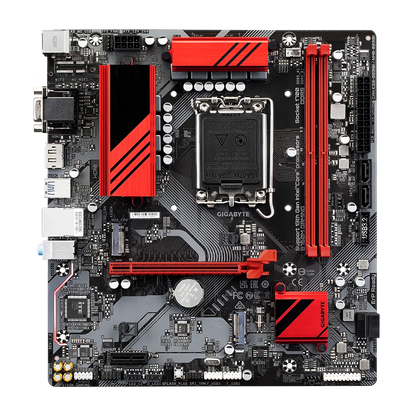

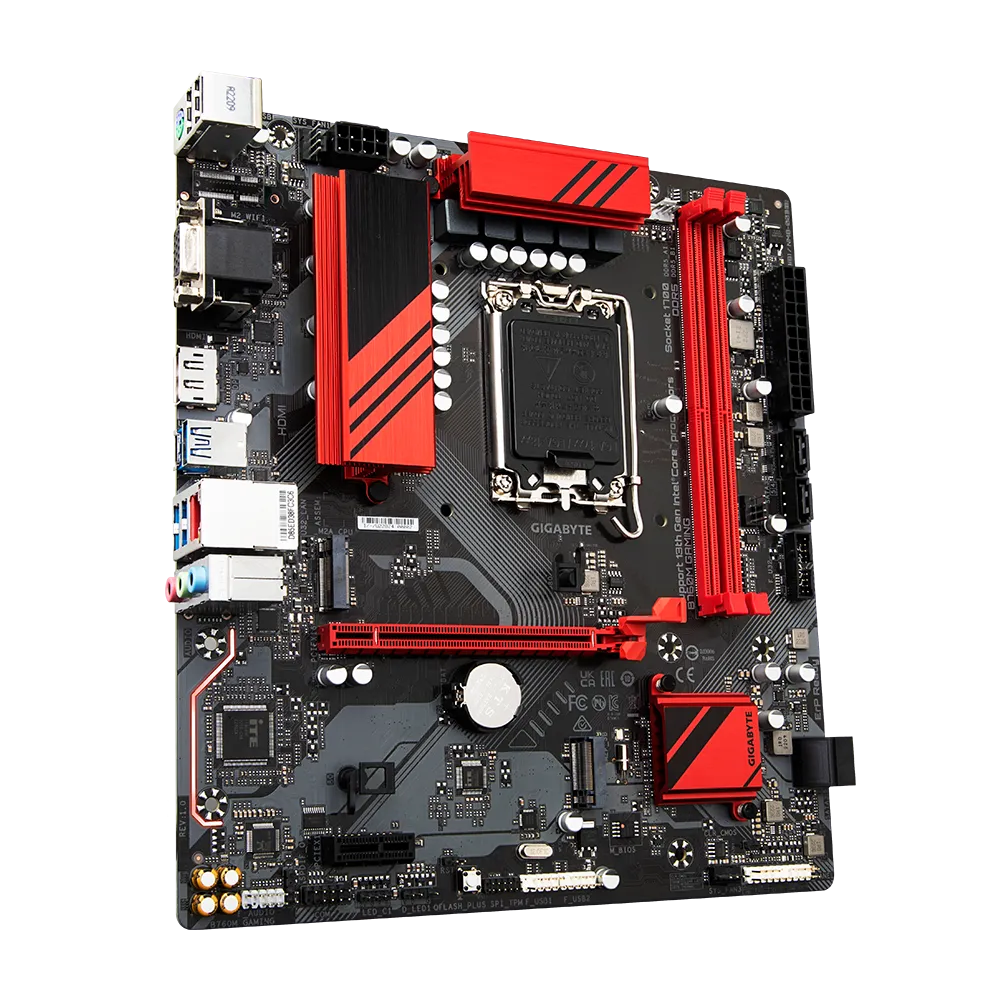

GIGABYTE GA-B760M GAMING DDR5 INTEL LGA1700 MOTHERBOARD
GIGABYTE GA-B760M GAMING DDR5 INTEL LGA1700 MOTHERBOARD
Regular price
Rs. 11,116.00
Sale price
Rs. 11,116.00
Regular price
Rs. 18,000.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
CPU
|
1. LGA1700 socket: Support for the 13th and 12th Generation IntelÃCoreô, PentiumÃGold and CeleronÃProcessors |
| 2. L3 cache varies with CPU | |
| (Please refer "CPU Support List" for more information.) | |
Chipset
|
1. IntelÃB760 Express Chipset |
Memory
|
1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory | |
| 3. Dual channel memory architecture | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
Onboard Graphics
|
Integrated Graphics Processor-IntelÃHD Graphics support:
|
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to 3 displays at the same time | |
Audio
|
1. RealtekÃAudio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| 4. Support for S/PDIF Out | |
LAN
|
1. RealtekÃ2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots
|
CPU:
|
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
| Chipset: | |
| 1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
Storage Interface
|
CPU:
|
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 2. 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
USB
|
Chipset:
|
| 1. 1 x USB Type-CÃport on the back panel, with USB 3.2 Gen 1 support | |
| 2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| 3. 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 2.0 Hubs: | |
| 1. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
Internal I/O Connectors
|
1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 3 x system fan headers | |
| 5. 1 x addressable LED strip headers | |
| 6. 1 x RGB LED strip headers | |
| 7. 2 x M.2 Socket 3 connectors | |
| 8. 4 x SATA 6Gb/s connectors | |
| 9. 1 x front panel header | |
| 10. 1 x front panel audio header | |
| 11. 1 x S/PDIF Out header | |
| 12. 1 x USB 3.2 Gen 1 header | |
| 13. 2 x USB 2.0/1.1 headers | |
| 14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 15. 1 x serial port header | |
| 16. 1 x Q-Flash Plus button | |
| 17. 1 x reset jumper | |
| 18. 1 x Clear CMOS jumper | |

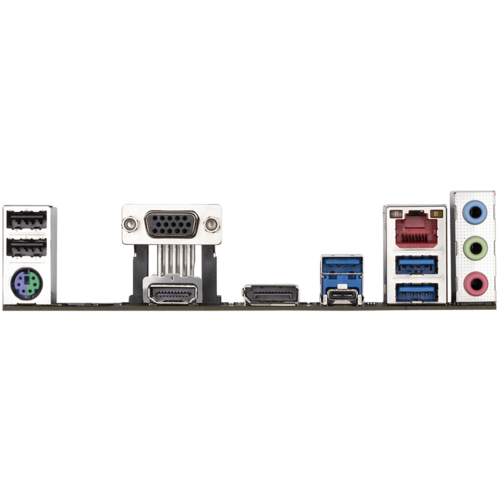

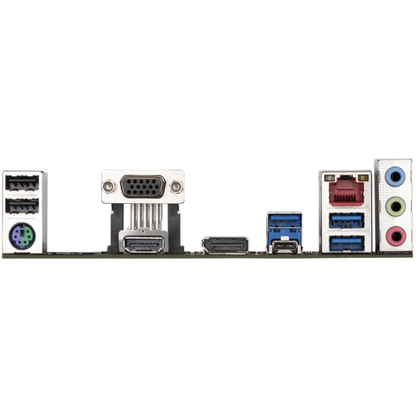

Back Panel Connectors
|
1. 2 x USB 2.0/1.1 ports |
| 2. 1 x PS/2 keyboard/mouse port | |
| 3. 1 x D-Sub port | |
| 4. 1 x HDMI port | |
| 5. 1 x DisplayPort | |
| 6. 3 x USB 3.2 Gen 1 ports | |
| 7. 1 x USB Type-CÃport, with USB 3.2 Gen 1 support | |
| 8. 1 x RJ-45 port | |
| 9. 3 x audio jacks | |
I/O Controller
|
1. iTEÃI/O Controller Chip |
H/W Monitoring
|
1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
BIOS
|
1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features
|
1. Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 2. Support for Q-Flash | |
| 3. Support for Q-Flash Plus | |
Bundled Software
|
1. NortonÃInternet Security (OEM version) |
| 2. LAN bandwidth management software | |
Operating System
|
1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
Form Factor
|
1. Micro ATX Form Factor; 24.4cm x 22.5cm |
