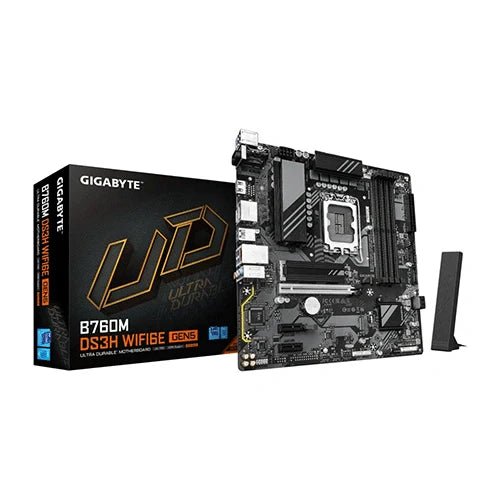

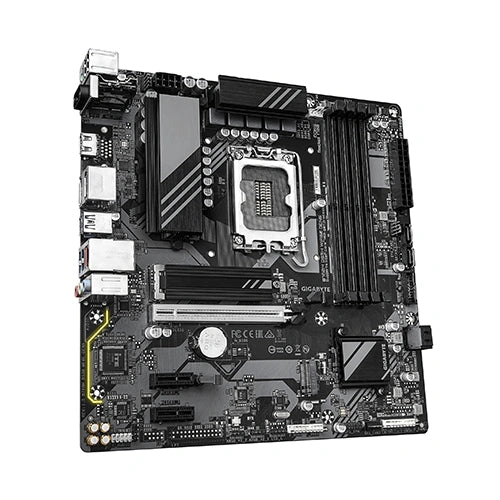

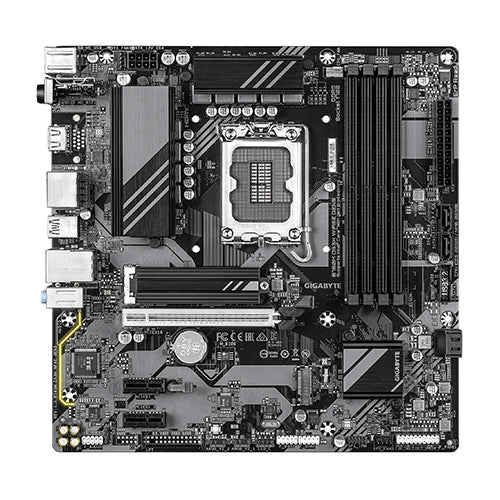

Elevate your system with the GIGABYTE GA-B760M-DS3H WIFI6E GEN5 motherboard, designed to support Intel Core 14th, 13th, and 12th processors. This motherboard combines robust performance features with advanced connectivity and user-friendly innovations, making it an excellent foundation for modern computing builds.
Key Features at a Glance
- Supports Intel Core 14th, 13th, and 12th Processors for broad compatibility.
- PCIe Gen5 Performance with an EZ-Latch Quick Release for the PCIe 5.0x16 slot.
- Dual Channel DDR5 memory support, featuring 4 DIMMs and XMP Memory Module Support.
- Fast Networks with 2.5 GbE LAN and Wi-Fi 802.11ax for reliable online experiences.
- Next Generation Storage provided by two PCIe 4.0 x4 M.2 Connectors.
- Q-Flash Plus allows BIOS updates without installing CPU, memory, or graphics card.
Optimized Performance and Cooling
Experience powerful computing with PCIe Gen5 capabilities, complemented by a Hybrid 6+2+1 Phases VRM Solution for stable power delivery. Smart Fan 6 features multiple temperature sensors and hybrid fan headers with FAN STOP, ensuring efficient and quiet cooling for your components.
Advanced Connectivity and Networking
Stay connected with Fast Networks including 2.5 GbE LAN and Wi-Fi 802.11ax. The WIFI EZ-Plug design offers quick antenna installation, while WIFI Compass auto-detects the best antenna position for the strongest signal. Extended Connectivity options feature Rear USB-C 10Gb/s, DisplayPort, and HDMI for versatile peripheral support.
Effortless System Building and Upgrades
Simplify your build process with the EZ-Latch PCIe 5.0x16 slot, featuring a Quick Release Design. The PCIe UD Slot with SMD PCIe 5.0 Armor provides enhanced graphics card support. For storage, benefit from two PCIe 4.0 x4 M.2 Connectors. Q-Flash Plus allows for convenient BIOS updates, even without a CPU, memory, or graphics card installed.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron |
| Chipset | B760 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules , please refer to "Memory Support List" on Brand website for more information.) |
| Graphics Port | 2 x DisplayPort, 1 x HDMI |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x Display Ports (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are compatible with the GIGABYTE GA-B760M-DS3H WIFI6E GEN5 motherboard?
A: This motherboard supports Intel Core 14th, 13th, and 12th generation processors.
Q: What are the key features for memory and storage on this motherboard?
A: It offers Dual Channel DDR5 with four DIMM slots supporting XMP memory modules and features two PCIe 4.0 x4 M.2 connectors for next-generation storage.
Q: How does the GIGABYTE GA-B760M-DS3H WIFI6E GEN5 simplify system building and maintenance?
A: It includes an EZ-Latch for quick release of the PCIe 5.0x16 slot and Q-Flash Plus for updating the BIOS without needing to install the CPU, memory, or graphics card.
