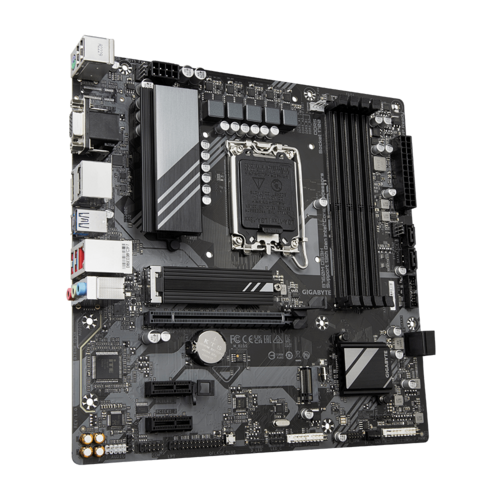

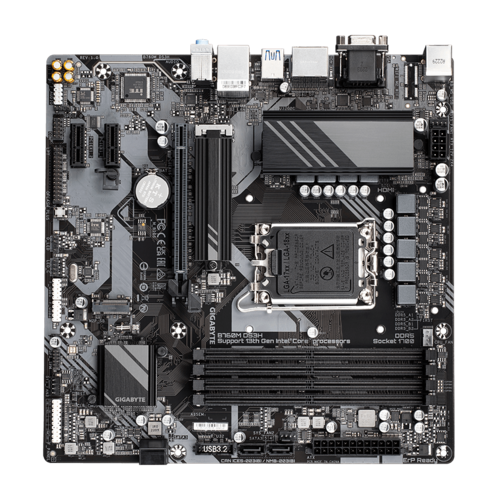

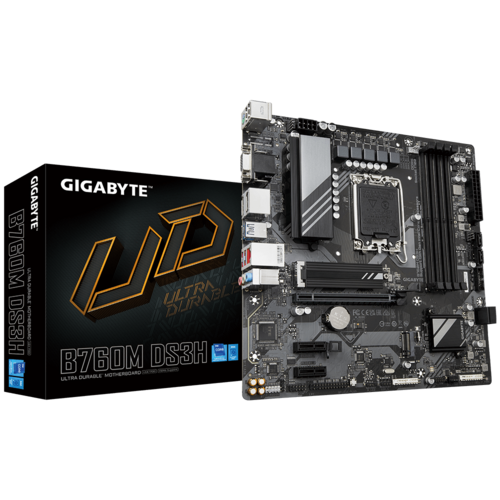

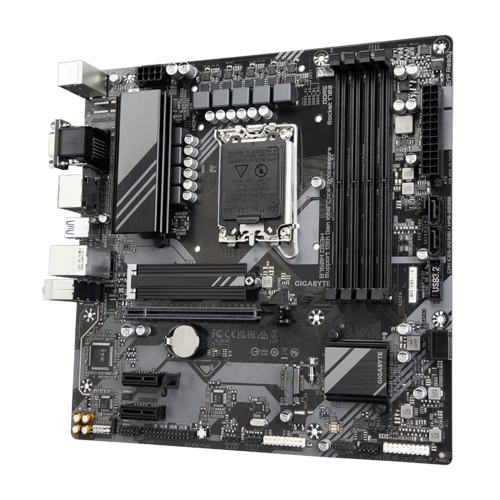

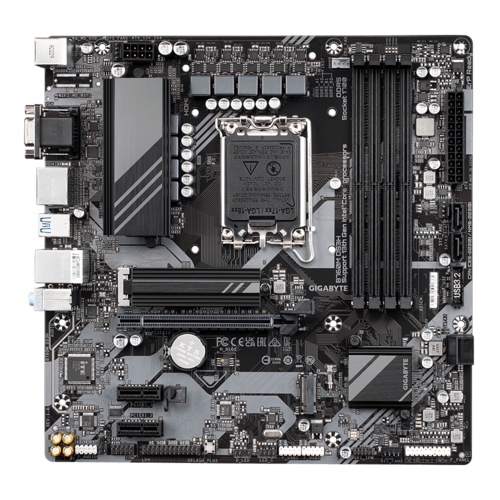

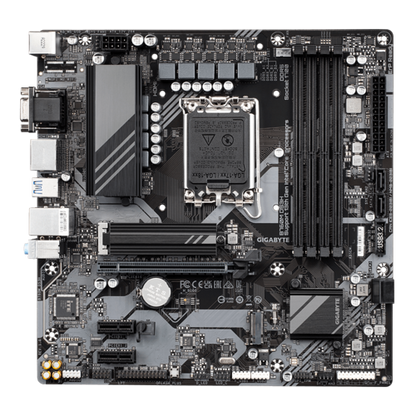

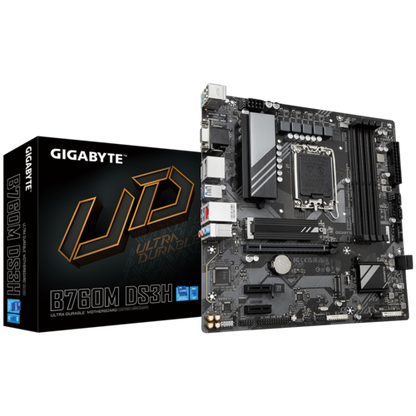

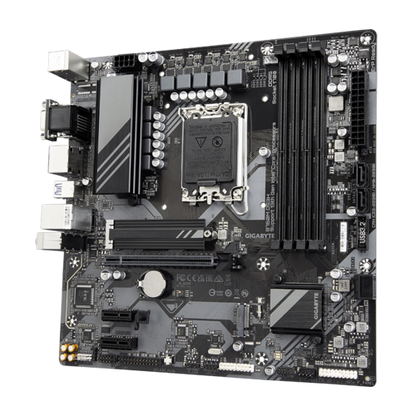

The GIGABYTE GA-B760M-DS3H DDR5 Intel LGA1700 Motherboard provides a solid foundation for your computing needs. This motherboard supports DDR5 memory and is designed for Intel LGA1700 processors, making it a central component for system builders.
Key Features at a Glance
- GIGABYTE brand engineering
- Designed for Intel LGA1700 processors
- Supports DDR5 memory technology
- Equipped with a B760 chipset
- Model: GA-B760M-DS3H
DDR5 Memory Support
This motherboard is built to support DDR5 memory modules, offering compatibility for systems requiring DDR5 technology.
LGA1700 Processor Compatibility
Designed for Intel LGA1700 processors, this motherboard provides essential compatibility for a range of Intel CPUs.
GIGABYTE Foundation
As a GIGABYTE product, the GA-B760M-DS3H benefits from the brand's established design and manufacturing principles.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen |
| Chipset | B760 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x D-Sub, 1 x HDMI, 2 x DisplayPort |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |

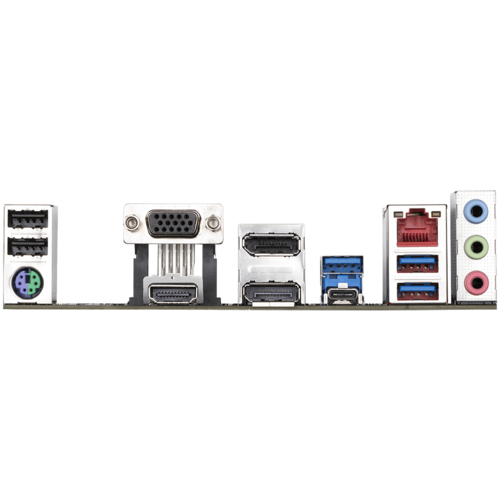

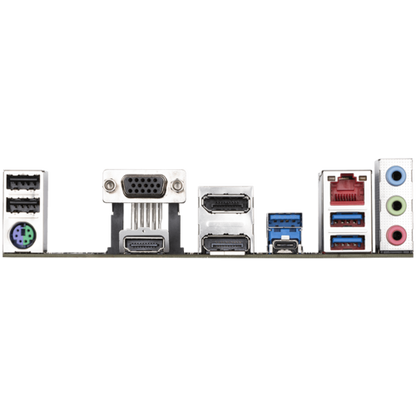

| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What type of memory does this motherboard support?
A: The GIGABYTE GA-B760M-DS3H motherboard supports DDR5 memory modules.
Q: Which CPU socket is compatible with this motherboard?
A: This motherboard is designed for Intel LGA1700 processors.
Q: What is the model name of this GIGABYTE motherboard?
A: The model name is GA-B760M-DS3H.
