Save 34%

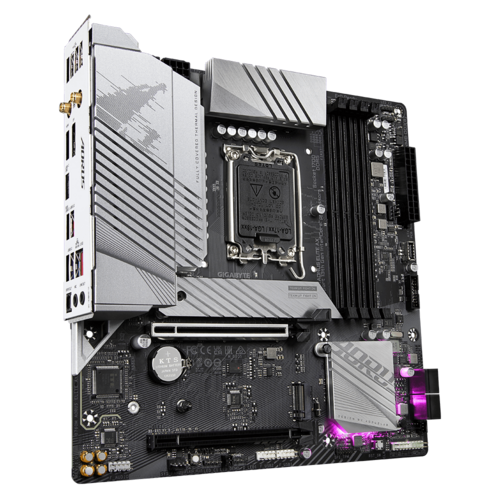

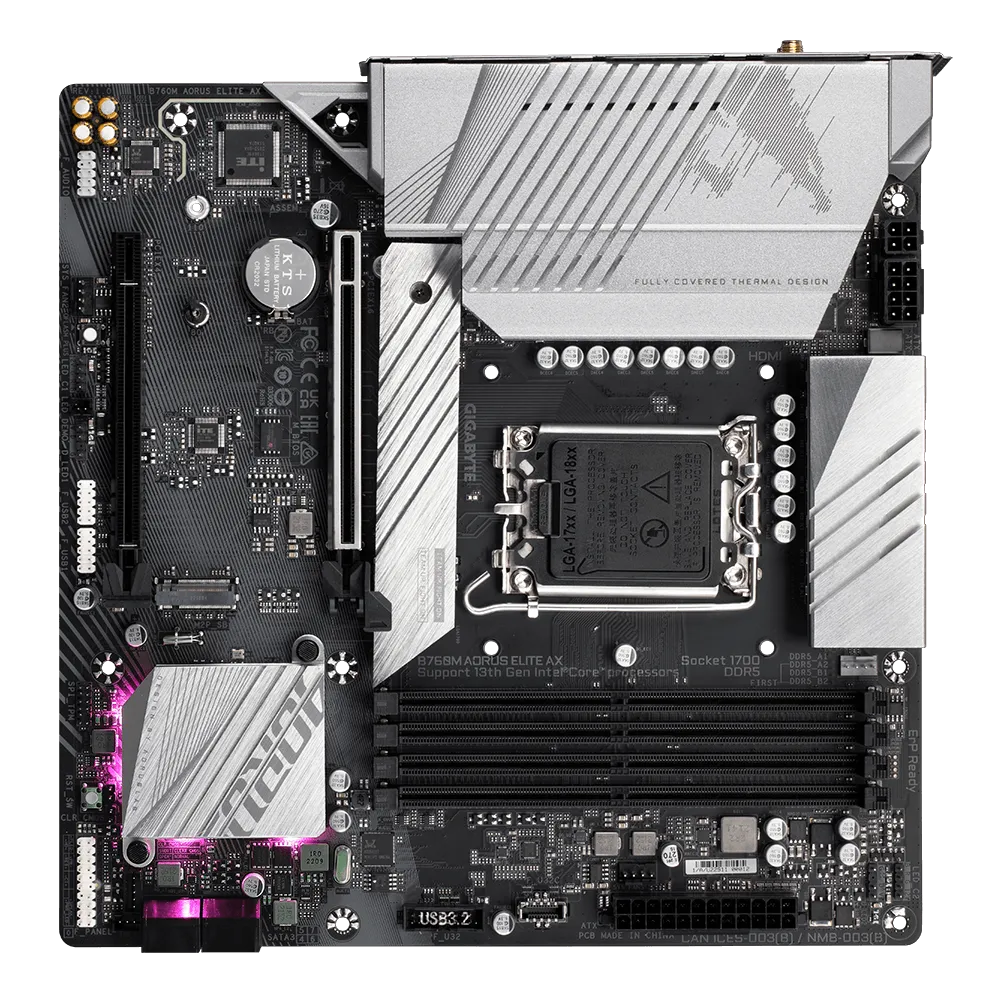

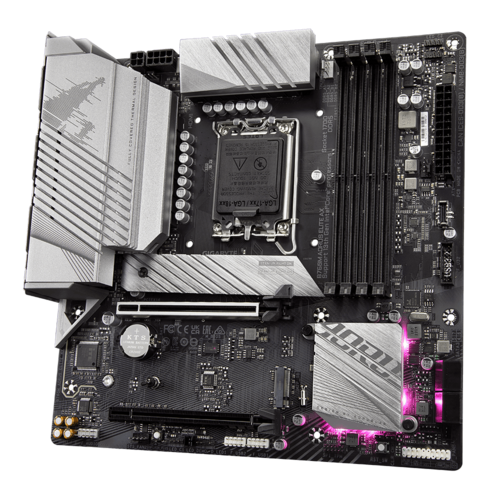

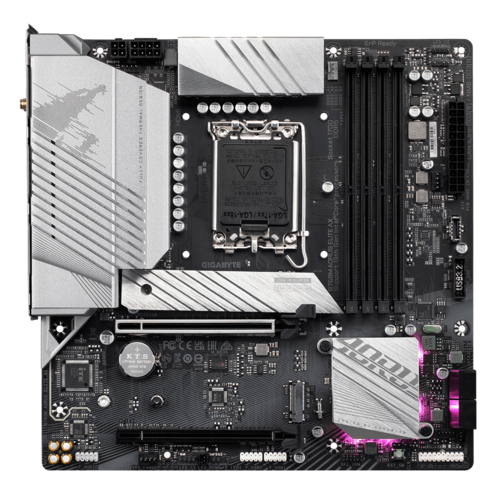

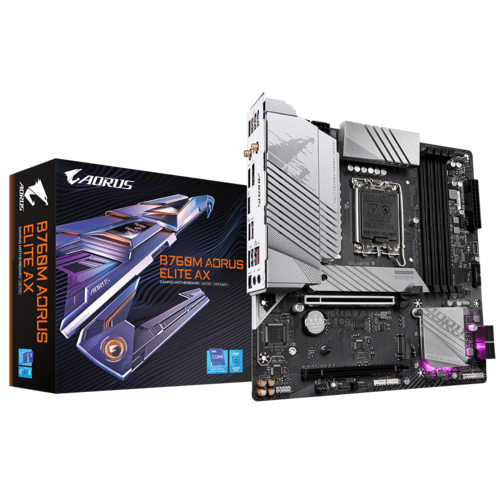

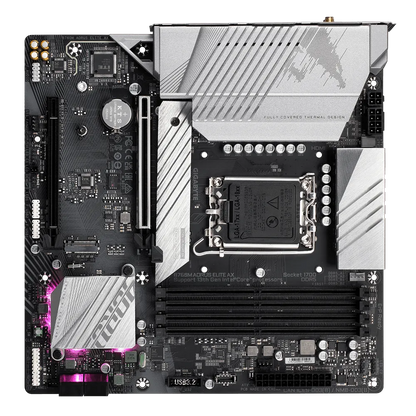

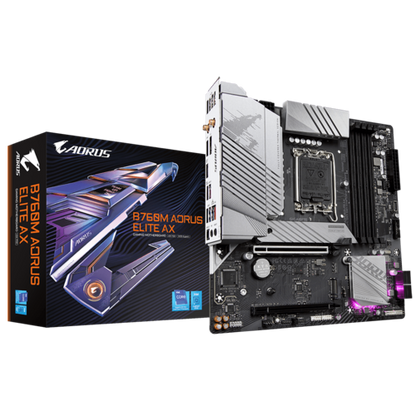

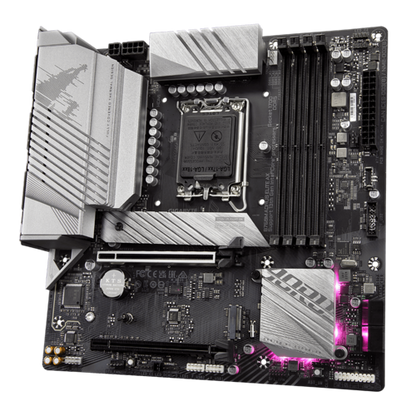

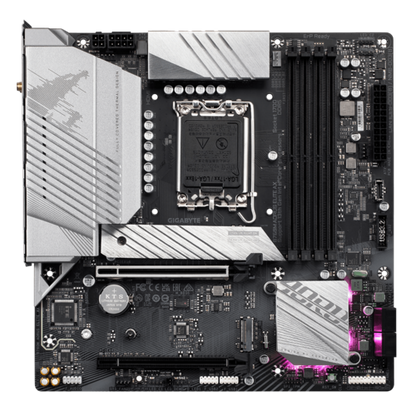

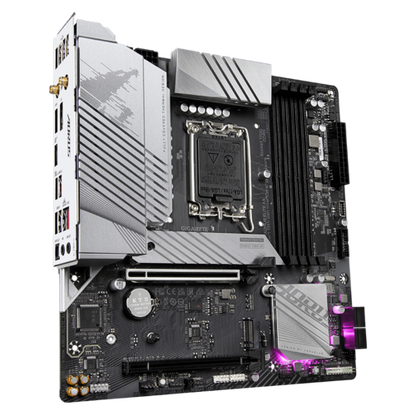

GIGABYTE GA-B760M AORUS ELITE AX DDR5 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 19,271.00Regular price
Rs. 29,000.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| CPU | 1. LGA1700 socket: Support for the 13th and 12th Generation IntelÃCoreô, PentiumÃGold and CeleronÃProcessors* |
| 2. L3 cache varies with CPU | |
| Chipset | 1. IntelÃB760 Express Chipset |
| Memory | 1. Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 3. Dual channel memory architecture | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-IntelÃHD Graphics support: |
| 1. 1 x HDMI port, supporting a maximum resolution of 40962160@60Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 2. 1 x DisplayPort, supporting a maximum resolution of 40962304@60Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Audio | 1. RealtekÃAudio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| 4. Support for S/PDIF Out | |
| LAN | 1. RealtekÃ2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | IntelÃWi-Fi 6E AX211 |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| 2. BLUETOOTH 5.3 | |
| 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Expansion Slots | CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Support for AMD CrossFireXô technology | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 2. 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| 1. 1 x USB Type-CÃport on the back panel, with USB 3.2 Gen 22 support | |
| 2. 1 x USB Type-CÃport with USB 3.2 Gen 2 support, available through the internal USB header | |
| 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 4. 1 x USB 3.2 Gen 1 port on the back panel | |
| 5. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset+USB 2.0 Hub: | |
| 1. 4 x USB 2.0/1.1 ports on the back panel | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x 4-pin ATX 12V power connector | |
| 4. 1 x CPU fan header | |
| 5. 3 x system fan headers | |
| 6. 2 x addressable LED strip headers | |
| 7. 2 x RGB LED strip headers | |
| 8. 2 x M.2 Socket 3 connectors | |
| 9. 4 x SATA 6Gb/s connectors | |
| 10. 1 x front panel header | |
| 11. 1 x front panel audio header | |
| 12. 1 x USB Type-CÃheader, with USB 3.2 Gen 2 support | |
| 13. 1 x USB 3.2 Gen 1 header | |
| 14. 2 x USB 2.0/1.1 headers | |
| 15. 2 x Thunderboltô add-in card connectors | |
| 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 17. 1 x Q-Flash Plus button | |
| 18. 1 x reset button | |
| 19. 1 x reset jumper | |
| 20. 1 x Clear CMOS jumper | |

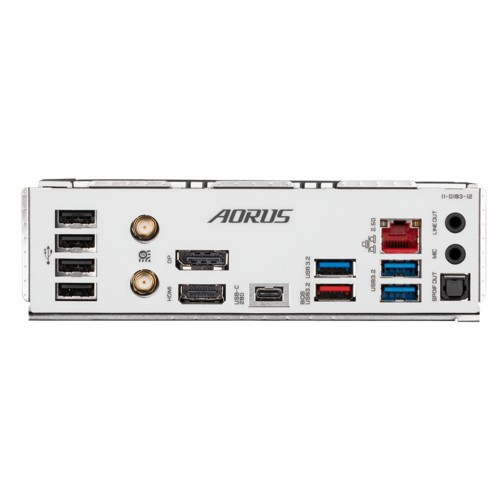

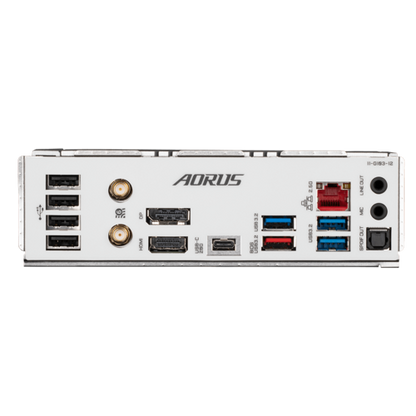

| Back Panel Connectors | 1. 1 x USB Type-CÃport, with USB 3.2 Gen 22 support |
| 2. 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 3. 3 x USB 3.2 Gen 1 ports | |
| 4. 4 x USB 2.0/1.1 ports | |
| 5. 1 x HDMI port | |
| 6. 1 x DisplayPort | |
| 7. 1 x RJ-45 port | |
| 8. 1 x optical S/PDIF Out connector | |
| 9. 2 x audio jacks | |
| I/O Controller | 1. iTEÃI/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| BIOS | 1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Feature | 1. Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 2. Support for Q-Flash | |
| 3. Support for Q-Flash Plus | |
| Bundled Software | 1. NortonÃInternet Security (OEM version) |
| 2. LAN bandwidth management software | |
| Operating System | 1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
| Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
