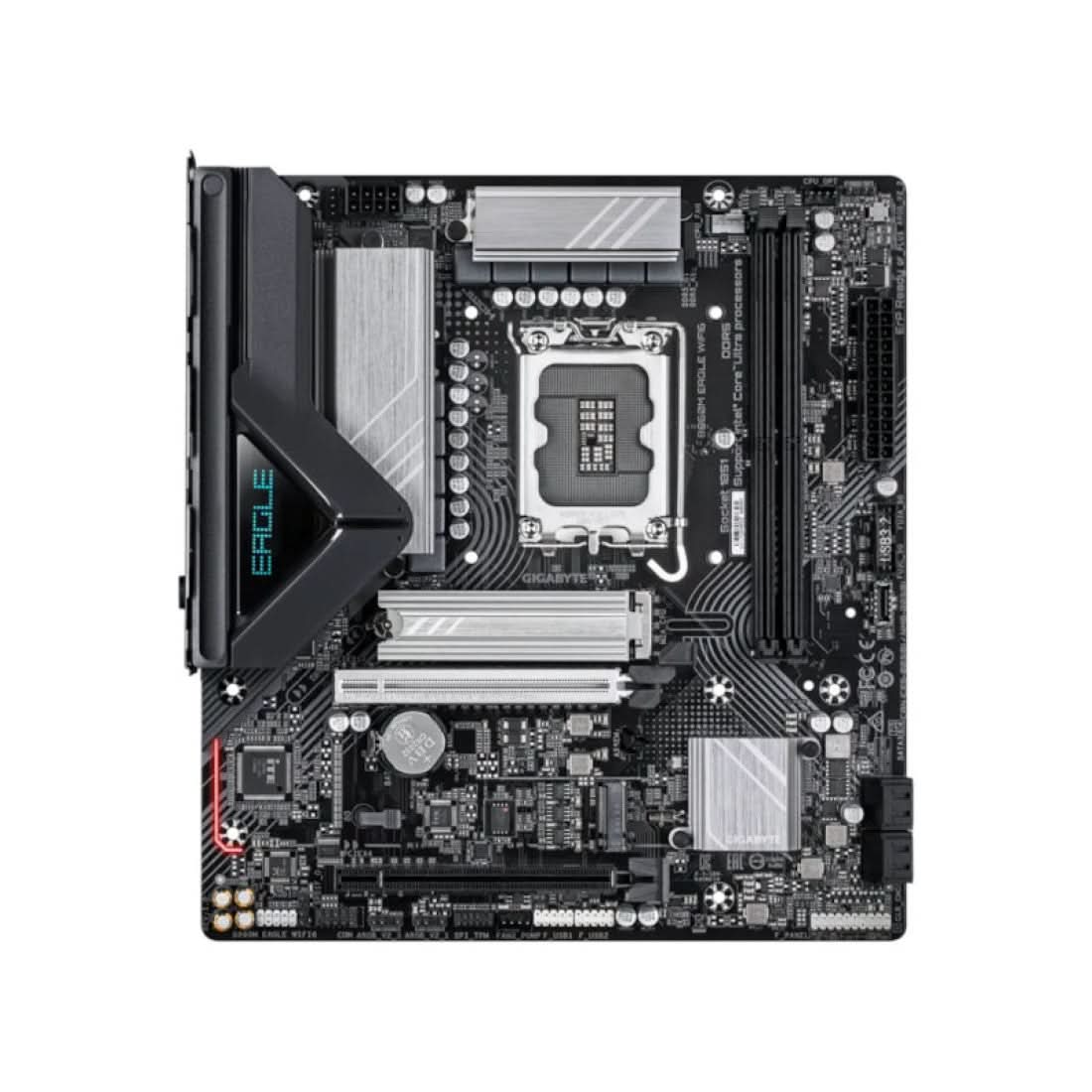

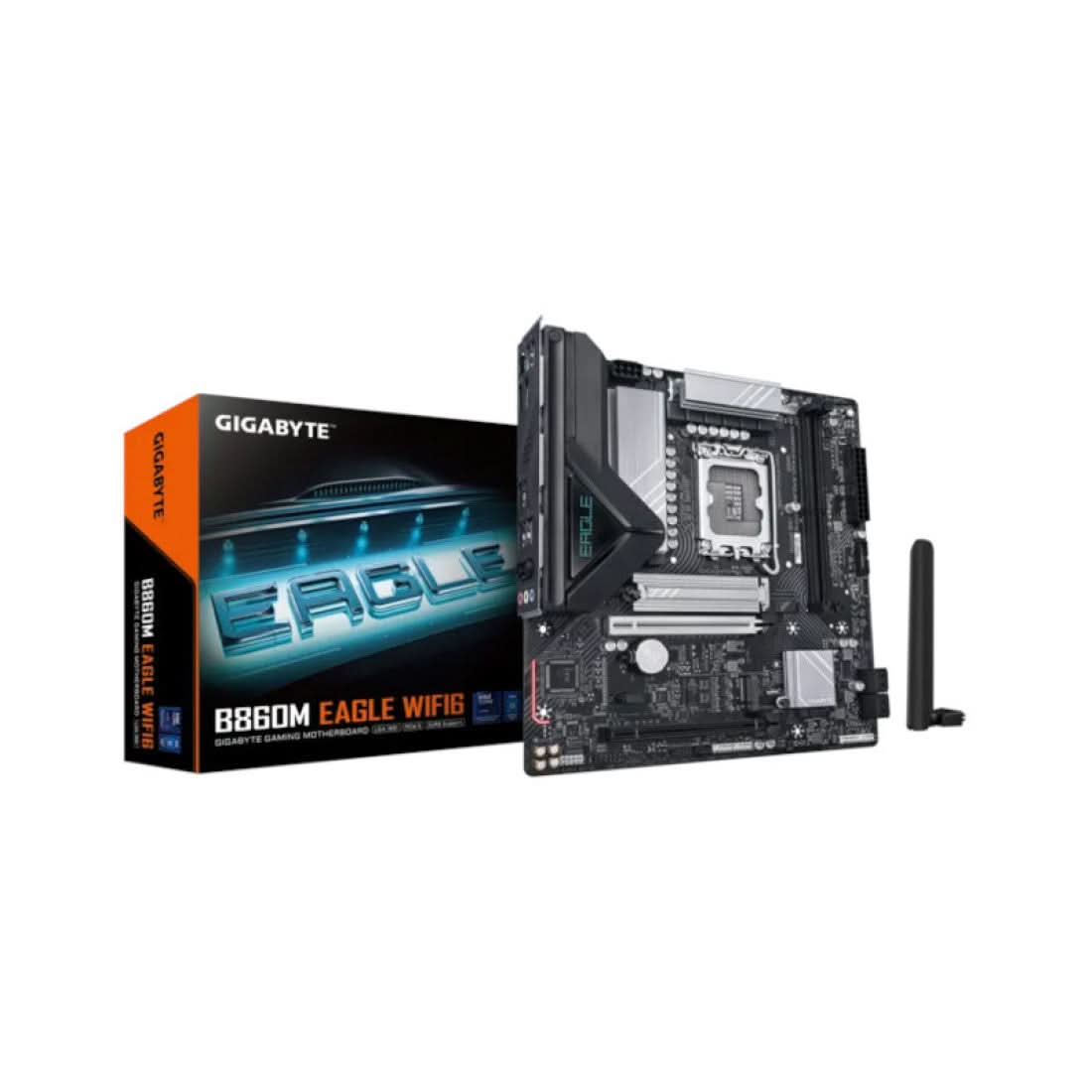

Elevate your PC build with the Gigabyte B860M EAGLE WIFI6 Motherboard, designed to support the latest Intel® Core™ Ultra processors (Series 2). This robust motherboard delivers essential performance and modern features, including dual-channel DDR5 memory support, ultra-fast PCIe 5.0 storage, and integrated Wi-Fi 6 for a powerful and connected computing experience.
Key Features at a Glance
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution for stable power
- Dual Channel DDR5 memory with XMP support
- Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking: 2.5GbE LAN and Wi-Fi 6
- EZ-Latch for quick-release PCIe and M.2 slots
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Optimized Power Delivery & Performance
The Gigabyte B860M EAGLE WIFI6 Motherboard features a Digital 6+1+2 phases VRM solution, ensuring stable and efficient power delivery to your Intel® Core™ Ultra processors. With Dual Channel DDR5 memory support and D5 Bionic Corsa technology, this motherboard provides enhanced memory performance for demanding tasks and applications.
Advanced Connectivity & Storage
Achieve ultra-fast data transfer speeds and versatile storage options with two M.2 slots, including one that supports PCIe 5.0 x4 for the latest high-speed SSDs. Experience seamless online gaming and rapid file transfers through Fast Networking with integrated 2.5GbE LAN and Wi-Fi 6. Extended connectivity ports like HDMI and DisplayPort offer flexible display options.
Efficient Thermal Management
Keep your system cool and stable with advanced thermal solutions. The VRM Thermal Armor Advanced and M.2 Thermal Guard designs efficiently dissipate heat from critical components, ensuring consistent performance and prolonging the lifespan of your motherboard and installed devices.
User-Friendly Design
Building and maintaining your PC is simplified with Gigabyte's EZ-Latch features. Enjoy quick-release and screwless designs for both PCIe and M.2 slots, including M.2 heatsinks (EZ-Latch Click). The WIFI EZ-Plug facilitates quick and easy Wi-Fi antenna installation. A Friendly UI in the BIOS offers Multi-Theme options, AIO Fan Control, and Q-Flash Auto Scan for convenient system management.
Technical Specifications
|
Specification |
|
|
CPU |
LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
|
Chipset |
Intel ® B860 Express Chipset |
|
Memory |
Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
Expansion Slots |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Storage Interface |
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
Back Panel Connectors |

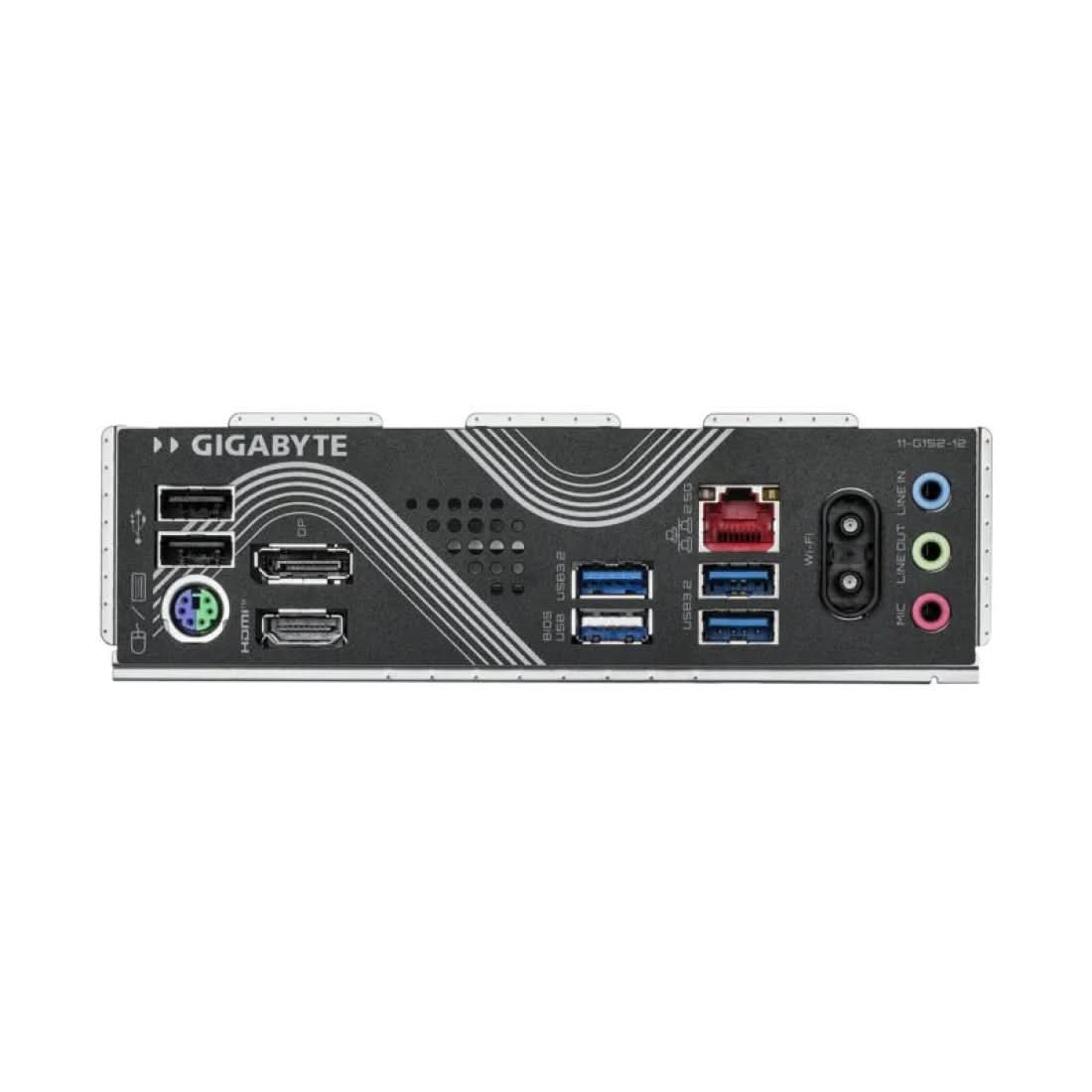

1 x PS/2 keyboard/mouse port 1 x HDMI port* 1 x DisplayPort* 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
|
I/O Controller |
iTE®I/O Controller Chip |
|
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. |
|
BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
|
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11. |
|
Form Factor |
Micro ATX Form Factor; 24.4cm x 22.5cm |
|
Warranty |
3 Years |
|
Note* |
Price, feature and specifications are subject to change without notice. |
Frequently Asked Questions
Q: What processors are compatible with the Gigabyte B860M EAGLE WIFI6 Motherboard?
A: This motherboard supports Intel® Core™ Ultra processors (Series 2).
Q: Does this motherboard support DDR5 memory?
A: Yes, it features Dual Channel DDR5 memory with 2 DIMM slots and XMP Memory Module Support.
Q: What are the networking capabilities of this motherboard?
A: It provides Fast Networking with 2.5GbE LAN and integrated Wi-Fi 6 for high-speed internet connectivity.
