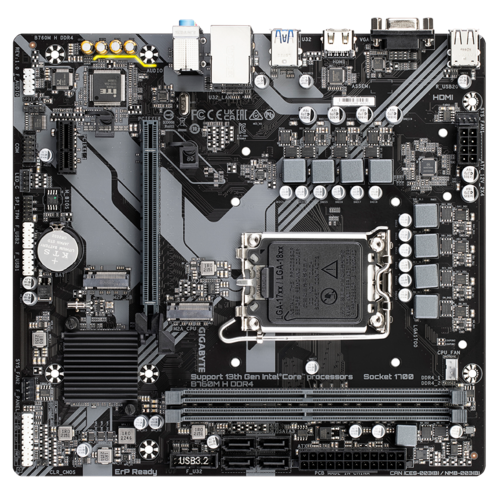

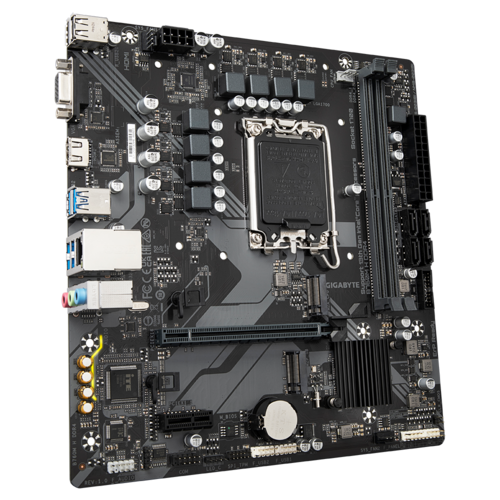

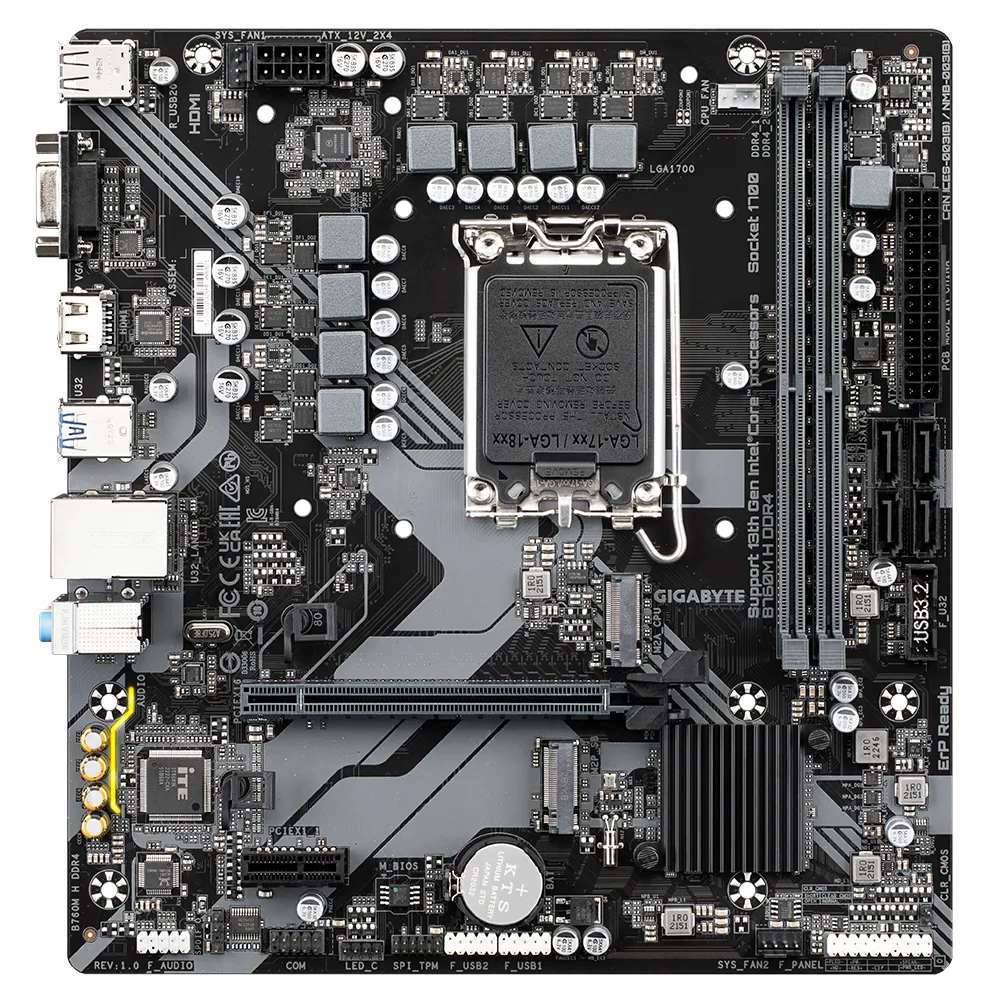

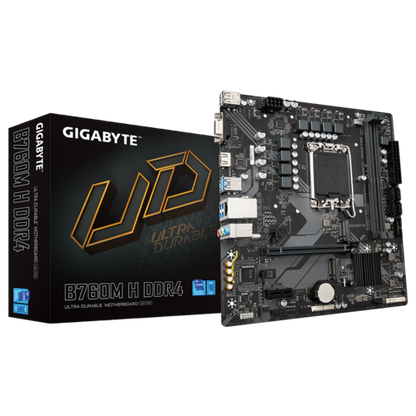

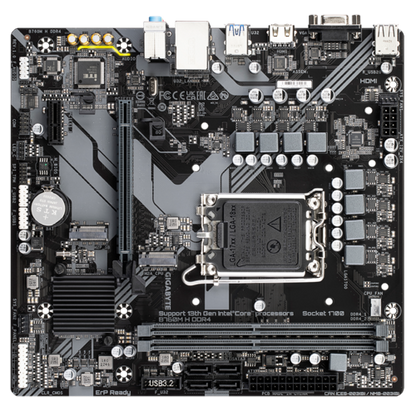

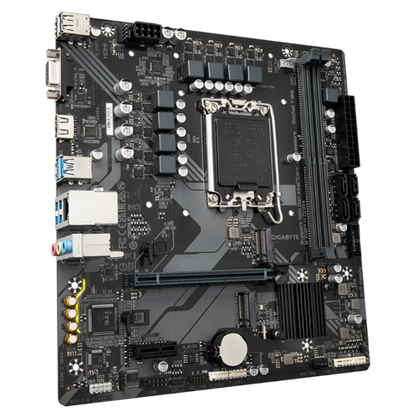

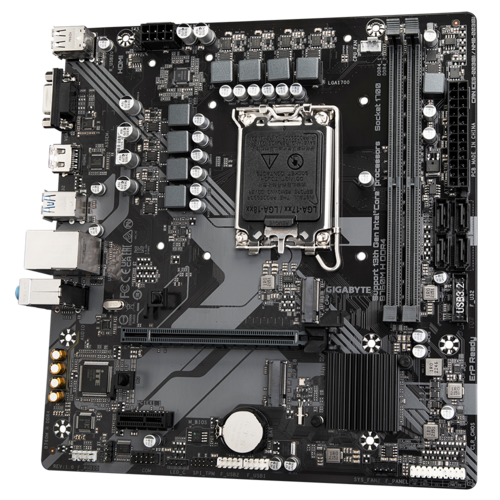

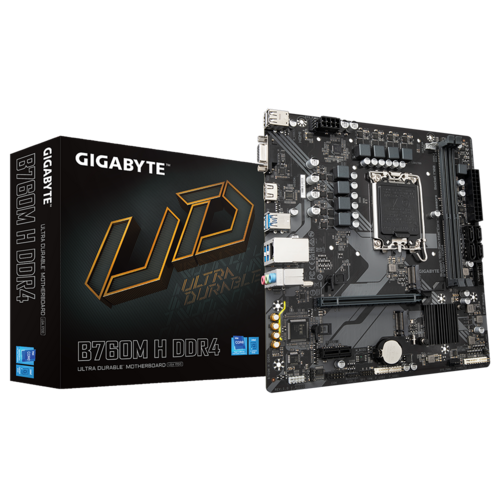

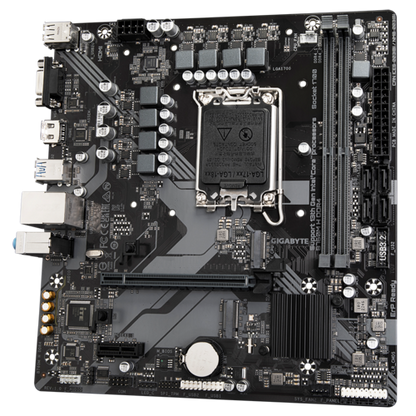

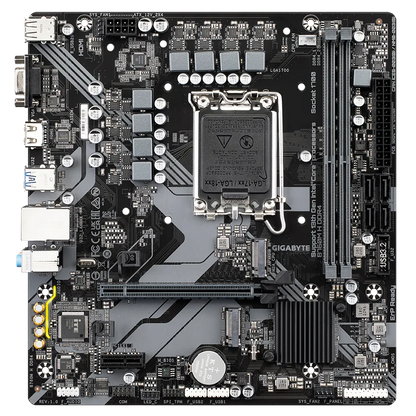

The GIGABYTE B760M H DDR4 Motherboard provides a robust foundation for your next Intel-based PC build, supporting 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors. This Micro ATX motherboard leverages the Intel B760 Express Chipset to deliver essential performance and connectivity for everyday computing and gaming.
Key Features at a Glance
- Supports Intel 12th & 13th Gen Processors (LGA 1700)
- Dual Channel DDR4 Memory, up to 64GB
- PCIe 4.0 x16 Slot for Graphics Cards
- Dual M.2 Connectors for NVMe Storage
- Integrated Intel HD Graphics with D-Sub and HDMI
- Micro ATX Form Factor (23.0cm x 21.5cm)
Optimal Processor Support
Built for the latest Intel processors, this motherboard features the LGA 1700 socket, making it compatible with 12th and 13th Generation Intel Core, Pentium Gold, and Celeron CPUs. Experience reliable performance for a wide range of applications, from productivity to casual gaming, thanks to the Intel B760 Express Chipset.
Fast Memory & Storage Solutions
Equipped with two DDR4 DIMM sockets, the GIGABYTE B760M H supports up to 64GB of dual-channel memory, with speeds up to 3200 MT/s, ensuring smooth multitasking. For storage, it includes two M.2 Socket 3 connectors and four SATA 6Gb/s ports, allowing for versatile and high-speed storage configurations.
Essential Connectivity Options

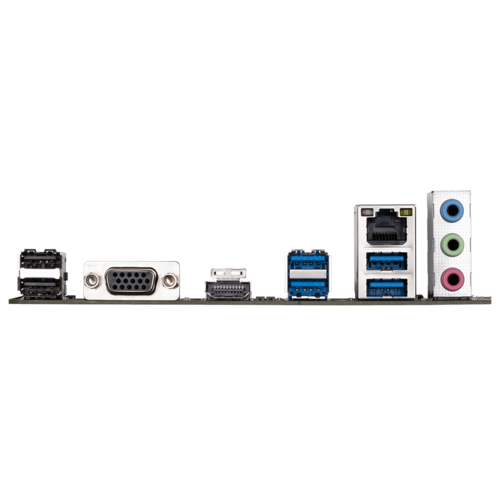

This motherboard offers comprehensive connectivity to support your peripherals and displays. It features a PCIe 4.0 x16 slot for dedicated graphics, along with D-Sub and HDMI ports for integrated graphics output. The back panel includes four USB 3.2 Gen 1 ports, two USB 2.0/1.1 ports, an RJ-45 LAN port, and three audio jacks, providing all the necessary connections for a modern system.
Technical Specifications
| Brand | GIGABYTE |
|---|---|
| Manufacturer | GIGABYTE |
| Series | B760M H DDR4 |
| Item Height | 35 Millimeters |
| Item Width | 23 Centimeters |
| Product Dimensions | 21.5 x 23 x 3.5 cm; 750 g |
| Batteries | 1 Lithium Metal batteries required. (included) |
| Item model number | B760M H DDR4 |
| Processor Type | Pentium |
| Processor Socket | LGA 1700 |
| Memory Technology | DDR4 |
| Maximum Memory Supported | 64 GB |
| Memory Clock Speed | 3200 MHz |
| Graphics Card Interface | PCI, PCI Express |
| Connectivity Type | Wi-Fi |
| Number of USB 2.0 Ports | 2 |
| Number of HDMI Ports | 1 |
| Number of Ethernet Ports | 1 |
| Are Batteries Included | Yes |
| Lithium Battery Weight | 0.07 Grams |
| Number of Lithium Metal Cells | 1 |
| Manufacturer | GIGABYTE |
| Country of Origin | China |
| Item Weight | 750 g |
Frequently Asked Questions
Q: Which Intel processors are compatible with this motherboard?
A: The GIGABYTE B760M H DDR4 Motherboard supports 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors with an LGA 1700 socket.
Q: What type of memory does this motherboard support?
A: It supports DDR4 memory modules, with two DIMM sockets allowing for a total of up to 64GB of system memory in a dual-channel architecture.
Q: What are the video output options available on the motherboard?
A: The motherboard features one D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, and one HDMI port, supporting up to 4096x2160@60 Hz.
