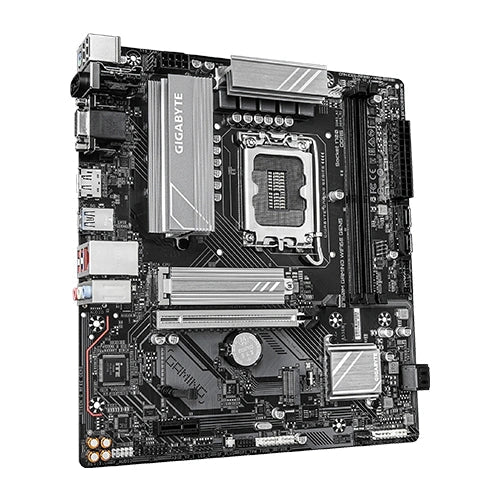

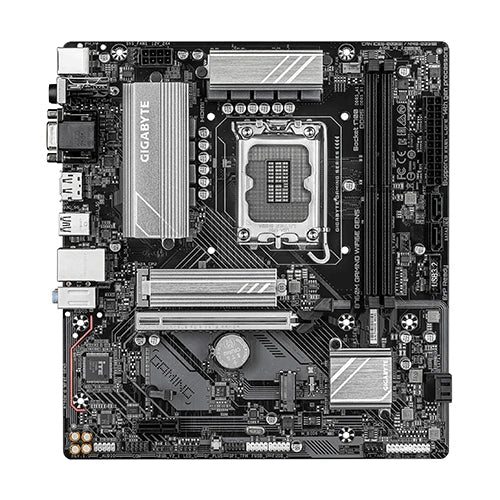

Experience cutting-edge performance with the GIGABYTE B760M GAMING WIFI6E GEN5 motherboard, engineered to deliver an exceptional gaming and computing experience. This robust platform is designed to support the latest Intel processors and advanced connectivity, ensuring a powerful and reliable foundation for your build.
Key Features at a Glance
- PCIe Gen5 for superior performance
- Supports Intel Core 14th, 13th, and 12th generation processors
- Dual Channel DDR5 memory with XMP support
- Integrated Wi-Fi 802.11ax and 2.5GbE LAN for fast networking
- EZ-Latch PCIe 5.0x16 slot with quick release design
- Q-Flash Plus for convenient BIOS updates without CPU, memory, or graphics card
Next-Gen Performance and Compatibility
Power your system with support for Intel Core 14th, 13th, and 12th generation processors. The GIGABYTE B760M GAMING WIFI6E GEN5 motherboard features PCIe Gen5 for exceptional data transfer speeds, ensuring your components operate at their peak.
Seamless Connectivity and Storage
Stay connected with integrated Wi-Fi 802.11ax and a rapid 2.5GbE LAN. Optimize your storage with two PCIe 4.0 x4 M.2 connectors, providing fast access to your games and applications. The innovative WIFI EZ-Plug and WIFI Compass features simplify antenna installation and enhance signal strength.
Enhanced Durability and User-Friendly Design
Built for stability and longevity, this motherboard incorporates a Hybrid 6+2+1 Phases VRM Solution for consistent power delivery. The PCIe UD Slot with SMD PCIe 5.0 Armor provides enhanced support for graphics cards, while the EZ-Latch design allows for quick and secure PCIe 5.0x16 slot management. Smart Fan 6 offers intelligent cooling control, and Q-Flash Plus enables BIOS updates without a CPU, memory, or graphics card.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | B760 |
| Memory Speed | up to 8000 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 1x HDMI, 1x DisplayPort, 1x D-Sub |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

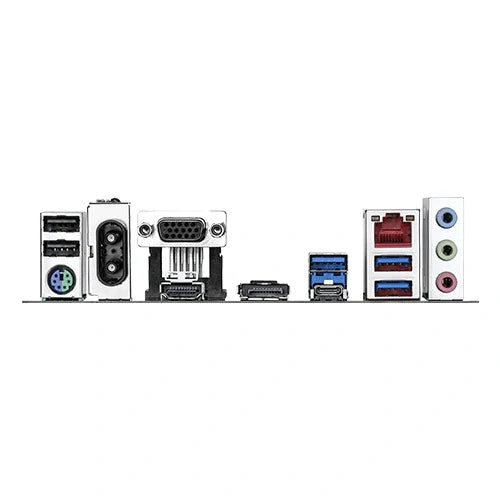

| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x D-Sub port (Note) 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are compatible with this motherboard?
A: The GIGABYTE B760M GAMING WIFI6E GEN5 motherboard supports Intel Core 14th, 13th, and 12th generation processors.
Q: Does this motherboard support Wi-Fi?
A: Yes, it features integrated Wi-Fi 802.11ax, along with WIFI EZ-Plug and WIFI Compass for optimized signal.
Q: Can I update the BIOS without a CPU installed?
A: Yes, the Q-Flash Plus feature allows you to update the BIOS without installing the CPU, memory, or graphics card.
