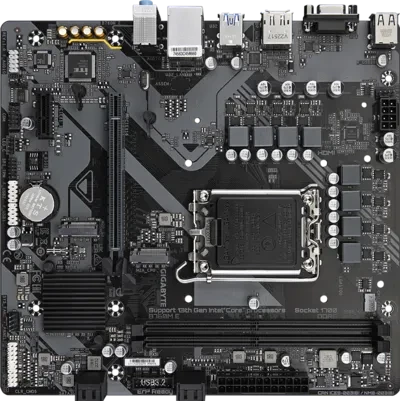

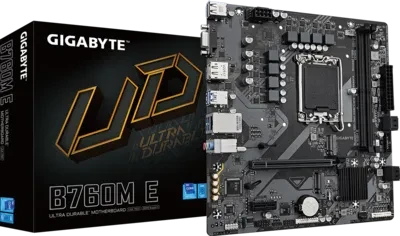

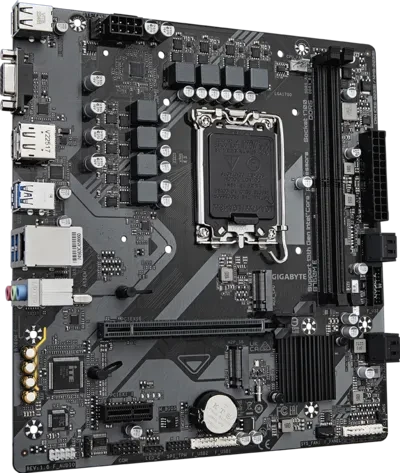

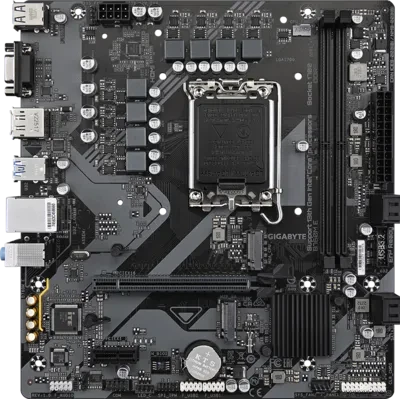

Gigabyte B760M E (Rev. 1.0) Intel B760 Express Chipset Micro ATX Motheboard
Gigabyte B760M E (Rev. 1.0) Intel B760 Express Chipset Micro ATX Motheboard
Regular price
Rs. 8,673.00
Sale price
Rs. 8,673.00
Regular price
Rs. 13,098.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Features
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：Display Port, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Specifications
| CPU Support | LGA1700 socket, Intel® Core™ 14th, 13th, 12th Gen, Pentium® Gold, Celeron®. L3 cache varies by CPU. Triple-display support. |
| Chipset | Intel® B760 Express |
| Memory | 2 x DDR5 DIMM slots, up to 128 GB, Dual Channel, Supports 4000–7200 MT/s (O.C.), ECC/Non-ECC, XMP support |
| Onboard Graphics | 1 x D-Sub (1920x1200@60Hz) 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3) 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 Chipset: 1 x PCIe 3.0 x1 |
| Storage | CPU: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280) Chipset: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280), 4 x SATA 6Gb/s RAID 0/1/5/10 support |
| USB | Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, D-Sub, DisplayPort, HDMI, RJ-45, 3 x Audio jacks Internal: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin 12V, CPU fan header, 2 x system fan headers, 1 x RGB header, 2 x M.2 connectors, 4 x SATA 6Gb/s, front panel header, front panel audio header, S/PDIF Out header, TPM header, serial port header, Clear CMOS jumper |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 128 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | GIGABYTE Control Center (GCC), Q-Flash |
| Bundled Software | Norton Internet Security OEM, LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 23.0 cm x 21.5 cm |
