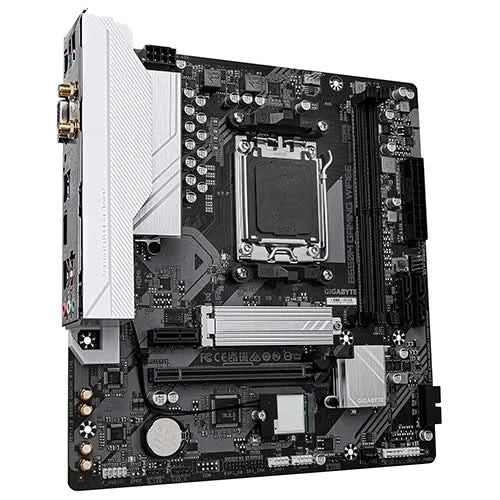

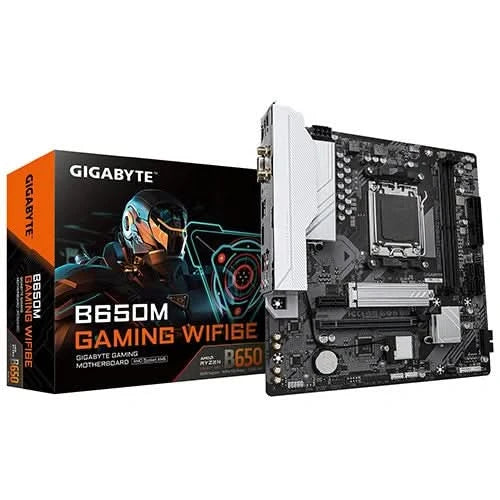

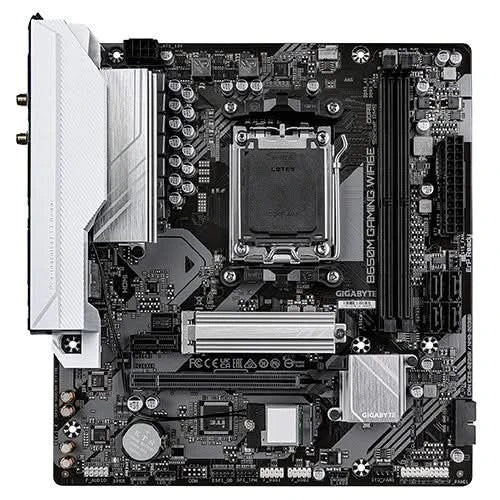

Gigabyte B650M Gaming WIFI6E AM5 M-ATX Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Experience robust performance with the Gigabyte B650M Gaming WIFI6E AM5 M-ATX Motherboard. Designed to support AMD Ryzen 7000, 8000, and 9000 Series Processors, this motherboard delivers a reliable and efficient foundation for your gaming PC or workstation. With advanced features like Dual Channel DDR5 memory support, rapid PCIe 4.0 storage, and fast Wi-Fi 6E networking, it's built for demanding users seeking a stable and high-speed computing environment.
Key Features at a Glance
- AMD Socket AM5 supports Ryzen 7000/8000/9000 Series Processors.
- Robust 5+2+2 Phases Digital VRM Solution for stable power delivery.
- Dual Channel DDR5 with AMD EXPO & Intel XMP Memory Module Support (2*SMD DIMMs).
- Fast networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
- PCIe 4.0 x4 M.2 Connector for SuperSpeed Storage.
- Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card.
Unleashed Processor Potential
The Gigabyte B650M Gaming WIFI6E AM5 M-ATX Motherboard is engineered for the latest AMD Ryzen 7000, 8000, and 9000 Series Processors, utilizing the AM5 socket. Its 5+2+2 phases digital VRM solution, featuring Low RDS(on) MOSFETs, delivers precise power to critical components, ensuring enhanced system performance and hardware scalability for next-generation computing.
Next-Gen Memory & Storage Speeds
Boost your system's responsiveness with Dual Channel DDR5 memory support, featuring two SMD DIMMs. This platform supports AMD EXPO™ and Intel® XMP memory modules, allowing for extreme memory overclocking up to 6400 and beyond. For storage, a PCIe 4.0 x4 M.2 connector provides SuperSpeed data transfer, ensuring quick load times and efficient multitasking.
Seamless Connectivity & Control
Stay connected with 2.5GbE LAN and Wi-Fi 6E 802.11ax, offering fast and stable network performance for gaming and streaming. The motherboard also includes extended connectivity options like HDMI and D-sub. Manage your system's cooling effectively with Smart Fan 6, which incorporates multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimized thermal control.
User-Friendly Design
Experience convenience with features like the EZ-Latch PCIe x16 Slot, designed for quick release. For hassle-free maintenance, Q-Flash Plus enables BIOS updates without requiring the CPU, memory, or graphics card to be installed, simplifying system setup and upgrades.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 6400 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

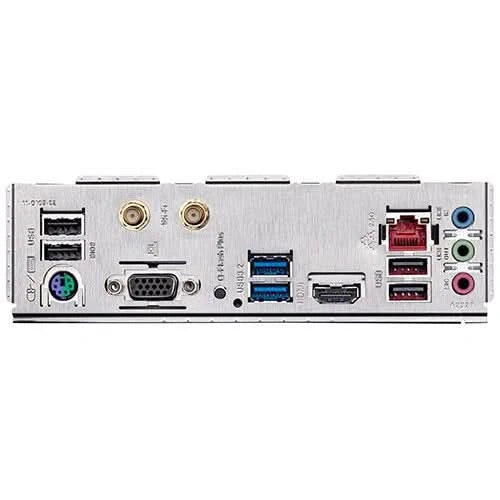

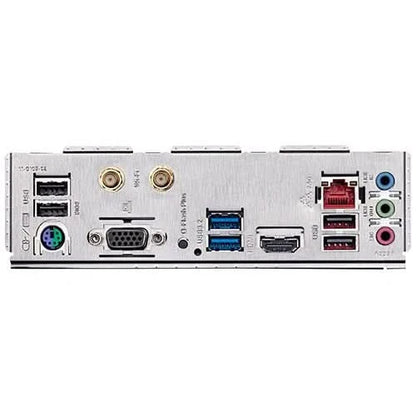

| Back Panel I/O Ports | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port* 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port* 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU. |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note |
***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Frequently Asked Questions
Q: What processor series does this motherboard support?
A: It supports AMD Ryzen 7000, 8000, and 9000 Series Processors on the AM5 socket.
Q: What kind of memory does the Gigabyte B650M Gaming WIFI6E support?
A: It supports Dual Channel DDR5 memory modules, with AMD EXPO™ and Intel® XMP capabilities for overclocking up to 6400 and beyond.
Q: Can I update the BIOS without a CPU installed?
A: Yes, the Q-Flash Plus feature allows you to update the BIOS without installing the CPU, memory, or graphics card.
