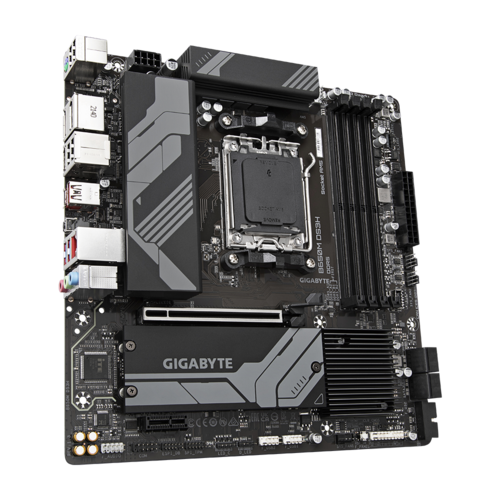

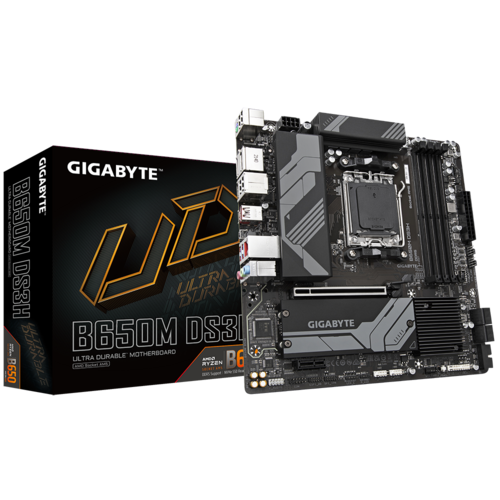

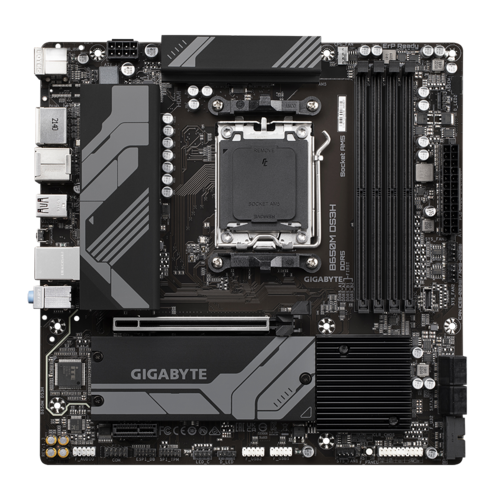

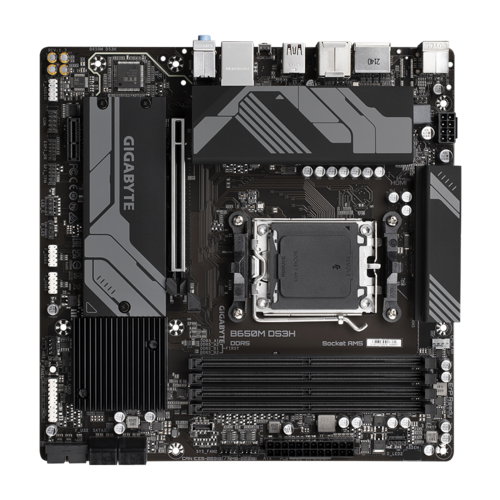

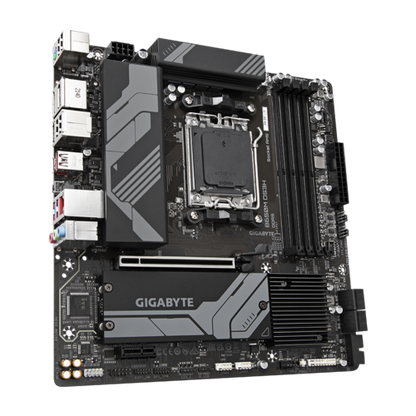

GIGABYTE GA-B650M-DS3H AMD AM5 MOTHERBOARD
GIGABYTE GA-B650M-DS3H AMD AM5 MOTHERBOARD
Regular price
Rs. 14,847.00
Sale price
Rs. 14,847.00
Regular price
Rs. 24,999.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzenô 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPOô) and Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor: |
| 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz | |
| Support for DisplayPort 1.4 version and HDR. | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Support for HDMI 2.1 version and HDCP 2.3. | |
| Support native HDMI 2.1 TMDS compatible ports. | |
| Audio | Realtekà Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| LAN | Realtekà 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
| Storage Interface | CPU: |
| 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) | |
| Chipset: | |
| 4 x SATA 6Gb/s connectors | |
| USB | CPU: |
| 1 x USB Type-CÃ port on the back panel, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| CPU + USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-CÃ port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors` | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-CÃ header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

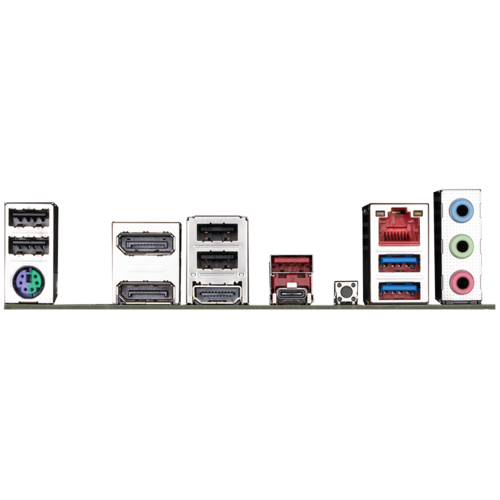

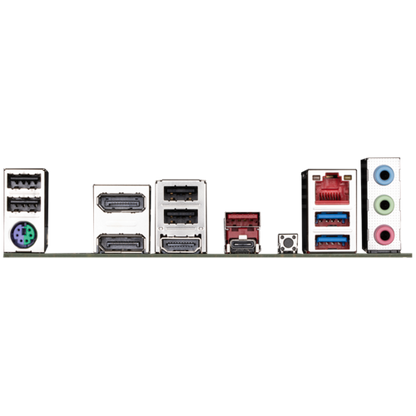

| Back Panel Connectors | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x DisplayPorts | |
| 1 x HDMI port | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 1 x USB Type-CÃ port, with USB 3.2 Gen 2 support | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x USB 3.2 Gen 1 ports | |
| 3 x audio jacks | |
| I/O Controller | iTEÃ I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Bundled Software | Nortonà Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
