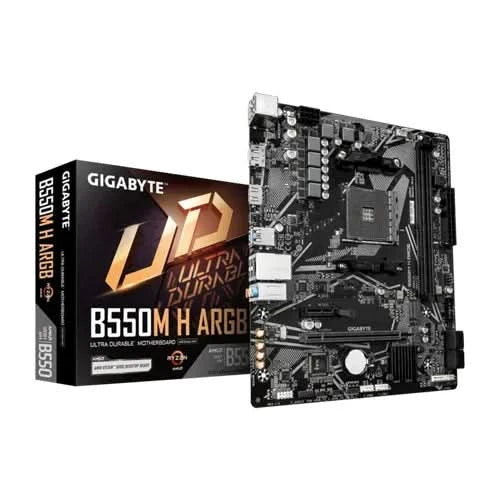

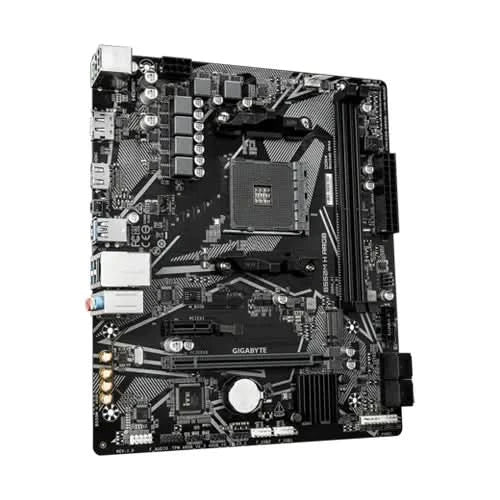

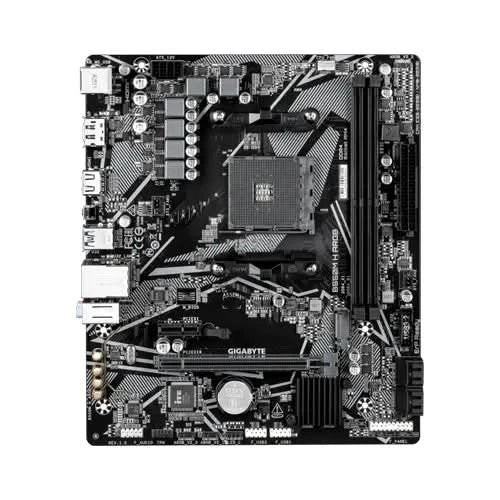

Gigabyte B550M H ARGB M-ATX Motherboard
Gigabyte B550M H ARGB M-ATX Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Elevate your PC build with the Gigabyte B550M H ARGB M-ATX Motherboard, engineered to support a wide range of AMD Ryzen processors. This motherboard provides a solid foundation for your system, integrating essential features for connectivity, expansion, and efficient cooling.
Key Features at a Glance
- Supports AMD Ryzen 5000, 4000, and 3000 Series Processors.
- Dual Channel DDR4 memory support with 2 DIMM slots (ECC/Non-ECC).
- Integrated ARGB header and Q-Flash Plus button.
- PCIe Gen4.0 x4 M.2 slot with NVMe & SATA mode support.
- Fast Network via GbE LAN.
- Smart Fan 6 for efficient cooling control.
Optimized Processor Support
Designed to power your system, this motherboard offers broad compatibility with AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series processors. Build a powerful rig with the latest CPU technologies.
Advanced Connectivity & Storage
Benefit from a fast network experience with integrated GbE LAN, ensuring stable and quick internet access. The PCIe Gen4.0 x4 M.2 slot supports both PCIe NVMe and SATA modes, providing high-speed storage options for your applications and games.
Enhanced Cooling & User Control
Maintain optimal system temperatures with Smart Fan 6, featuring multiple temperature sensors and hybrid fan headers with FAN STOP capability. Easily manage and monitor your system's performance using the intuitive GIGABYTE CONTROL CENTER (GCC).
Rich Multimedia Experience
Enjoy crisp, immersive sound with 8-Channel HD Audio, featuring high-quality audio capacitors. Multi-display setups are effortlessly supported via rear HDMI and DisplayPort outputs, perfect for productivity or entertainment.
Technical Specifications
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000,Ryzen 4000,Ryzen 3000 |
| Chipset | B550 |
| Memory Speed | up to 5100 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 1 x DisplayPort, 1 x HDMI |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are compatible with the Gigabyte B550M H ARGB M-ATX Motherboard?
A: This motherboard supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000, and Ryzen 3000 G-Series Processors.
Q: What type of memory does this motherboard accommodate?
A: It supports Dual Channel ECC/ Non-ECC Unbuffered DDR4 memory, utilizing two DIMM slots.
Q: What features are included for cooling and system control?
A: The motherboard features Smart Fan 6 with multiple temperature sensors, hybrid fan headers with FAN STOP, and the GIGABYTE CONTROL CENTER (GCC) for easy management.
