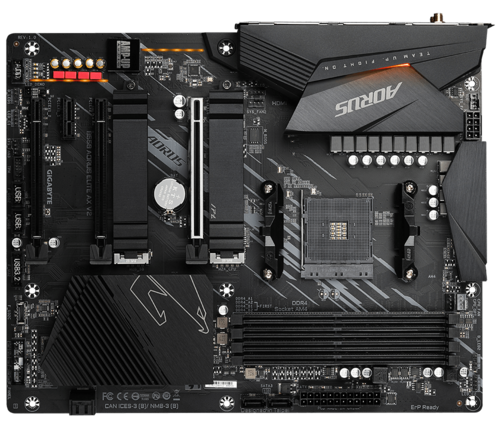

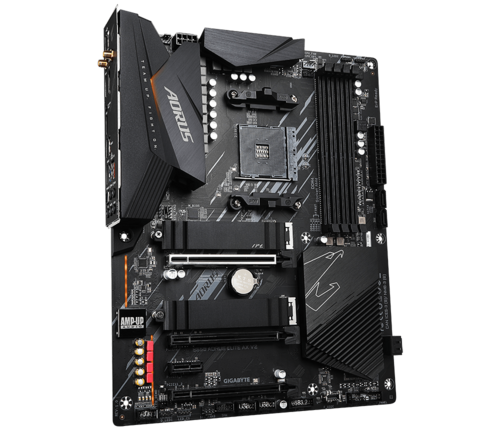

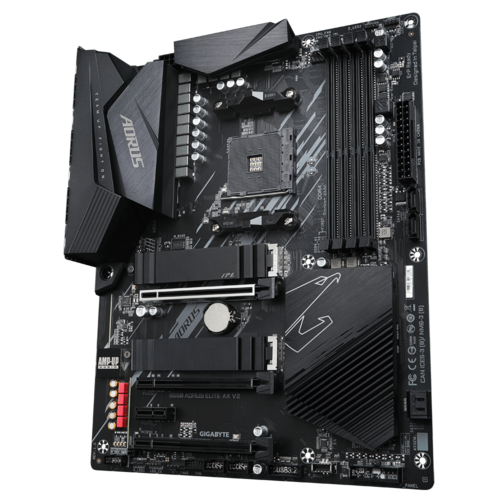

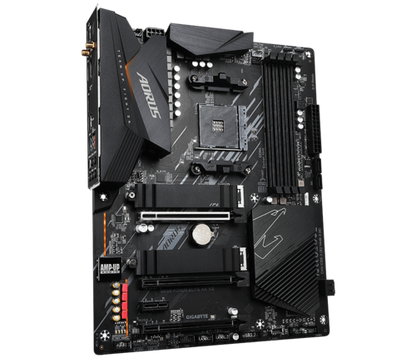

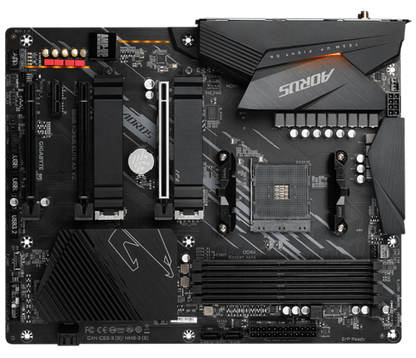

GIGABYTE GA-B550 AORUS ELITE AX V2 AMD AM4 MOTHERBOARD
GIGABYTE GA-B550 AORUS ELITE AX V2 AMD AM4 MOTHERBOARD
Regular price
Rs. 17,161.00
Sale price
Rs. 17,161.00
Regular price
Rs. 22,950.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| Category | Details |
|---|---|
| CPU |
AMD Socket AM4, supports: - Ryzen 5000 Series / 5000G Series - Ryzen 4000G Series - Ryzen 3000 Series / 3000G Series (Refer to "CPU Support List" for more info.) |
| Chipset | AMD B550 |
| Memory |
- 4× DDR4 DIMM, up to 128GB - Supports DDR4: 4733(O.C.) to 2133 MHz - Dual channel architecture - Supports ECC/Non-ECC unbuffered DIMMs* - Supports XMP (ECC support varies by CPU) |
| Onboard Graphics |
Integrated Graphics Processor: - 1× DisplayPort (5120×2880@60Hz, DP1.4, HDCP 2.3, HDR) - 1× HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) - Max shared memory: 16GB |
| Audio |
- Realtek ALC1200 codec - High Definition Audio - 2/4/5.1/7.1-channel - Supports S/PDIF Out |
| LAN | Realtek 2.5GbE LAN (2.5G/1G/100M) |
| Wireless |
Intel Wi-Fi 6 AX200 - WiFi a/b/g/n/ac/ax - Dual-Band 2.4/5GHz - Bluetooth 5 - 160MHz, up to 2.4Gbps* *Actual speeds vary by environment |
| Expansion Slots |
- 1× PCIe x16 (CPU) Ryzen 5000/3000: PCIe 4.0 x16 Ryzen 5000G/4000G/3000G: PCIe 3.0 x16 - 1× PCIe x16 (Chipset): PCIe 3.0 x2 - 1× PCIe x16 (Chipset): PCIe 3.0 x1 - 1× PCIe x1 (Chipset): PCIe 3.0 x1 |
| Storage |
- 1× M.2 (CPU) 2242/2260/2280/22110 Ryzen 5000/3000: PCIe 4.0 x4/x2 & SATA Ryzen 5000G/4000G/3000G: PCIe 3.0 x4/x2 & SATA - 1× M.2 (Chipset) 2242/2260/2280/22110 PCIe 3.0 x4/x2 & SATA - 4× SATA 6Gb/s (RAID 0/1/10) |
| USB |
CPU: - Ryzen 5000/3000: 2× USB 3.2 Gen2 Type-A (red) rear - Ryzen 5000G/4000G/3000G: 2× USB 3.2 Gen1 (red) rear - 2× USB 3.2 Gen1 (rear) Chipset: - 1× USB Type-C (USB 3.2 Gen1, internal) - 1× USB 3.2 Gen1 (rear) - 2× USB 3.2 Gen1 (internal) - 2× USB 2.0 (rear) - 4× USB 2.0 (internal) |
| Internal I/O |
24-pin ATX power 8-pin ATX 12V power 2× M.2 slots 4× SATA 6Gb/s CPU fan Water cooling CPU fan 3× system fan RGB LED strip header 2× Addressable LED headers 2× RGB LED headers Front panel Audio header USB Type-C (Gen1) header USB 3.2 Gen1 header 2× USB 2.0 headers TPM header (2×6 pin) Clear CMOS jumper |

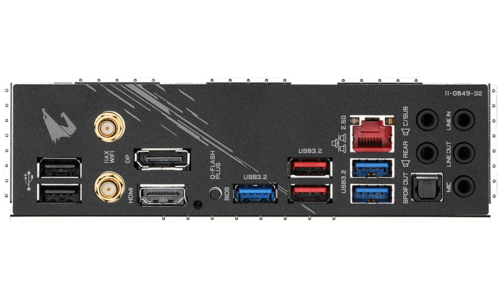

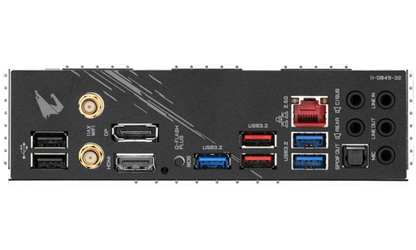

| Back Panel |
- 1× DisplayPort - 1× HDMI - 2× SMA antenna connectors - 2× USB 3.2 Gen2 / Gen1 (red)* *Gen2 only with Ryzen 5000/3000 - 3× USB 3.2 Gen1 - 2× USB 2.0 - 1× RJ-45 LAN - 1× Optical S/PDIF Out - 5× Audio jacks - Q-Flash Plus button |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring |
Voltage, temperature, fan speed, Water cooling flow detection, Overheating & fan fail warning, Fan speed control* |
| BIOS |
- 256 Mbit AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, - SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash |
| Bundled Software |
- Norton Internet Security (OEM) - LAN bandwidth management software |
| Operating System |
- Windows 11 64-bit - Windows 10 64-bit |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
