GIGABYTE GA-B450M-DS3H WIFI AMD AM4 MOTHERBOARD
GIGABYTE GA-B450M-DS3H WIFI AMD AM4 MOTHERBOARD
Regular price
Rs. 8,036.00
Sale price
Rs. 8,036.00
Regular price
Rs. 10,370.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications
| CPU | AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory |
| Dual channel memory architecture | |
| Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | |
| Integrated Graphics Processor: | 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) | |
| * Support for HDMI 2.0 version and HDCP 2.2.(Note) | |
| Maximum shared memory of 16 GB | |
| Audio | RealtekÃALC887 codec |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| Support for S/PDIF Out | |
| LAN | RealtekÃGbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | |
| 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) | |
| 1 x PCI Express x16 slot, running at x4 (PCIEX4) | |
| 1. 1 x PCI Express x1 slot | |
| (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) | |
| (Note) Actual support may vary by CPU. | |
| Multi-Graphics Technology | |
| Support for AMD Quad-GPU CrossFireô and 2-Way AMD CrossFireô technologies | |
| Storage Interface | |
| 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) | |
| * Actual support may vary by CPU. | |
| * Supports only M.2 SATA SSDs when using an AMD Athlonô-series/ 7th Gen. A-series or Athlonô X4 APU. | |
| 4 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, and RAID 10 | |
| Chipset: | 1. 2 x USB 3.1 Gen 1 ports available through the internal USB header |
| 2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| CPU: | 1. 4 x USB 3.1 Gen 1 ports on the back panel |
| Internal I/O Connectors | |
| 1 x 24-pin ATX main power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 1 x USB 3.1 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |

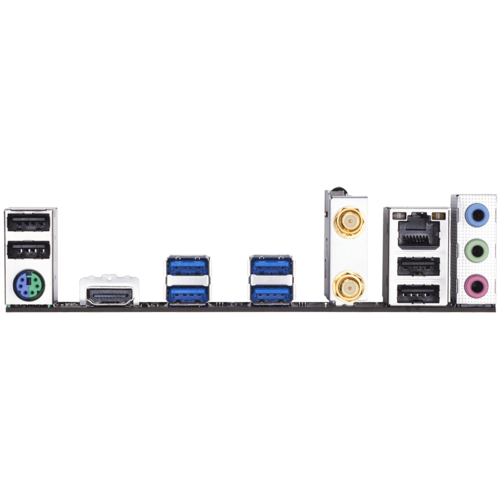

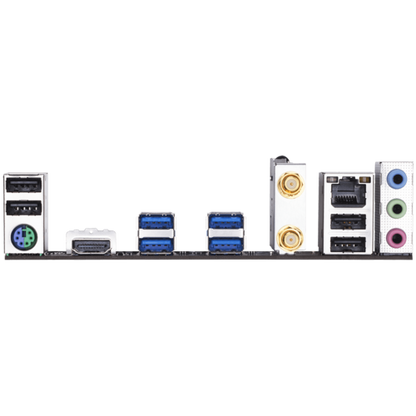

| Back Panel Connectors | |
| 1 x PS/2 keyboard/mouse port | |
| 1 x DVI-D port | |
| 1 x HDMI port | |
| 4 x USB 3.1 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | |
| iTEÃI/O Controller Chip | |
| H/W Monitoring | |
| Voltage detection | |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | |
| 1 x 128 Mbit flash | |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 3D OSD | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| Smart Keyboard | |
| Smart TimeLock | |
| Smart HUD | |
| Smart Survey | |
| System Information Viewer | |
| USB Blocker | |
| V-Tuner | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundle Software | |
| NortonÃInternet Security (OEM version) | |
| cFosSpeed | |
| Operating System | |
| Support for Windows 10 64-bit | |
| Support for Windows 7 64-bit | |
| * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. | |
| * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7 | |
| Form Factor | |
| Micro ATX Form Factor; 24.4cm x 21.5cm |
