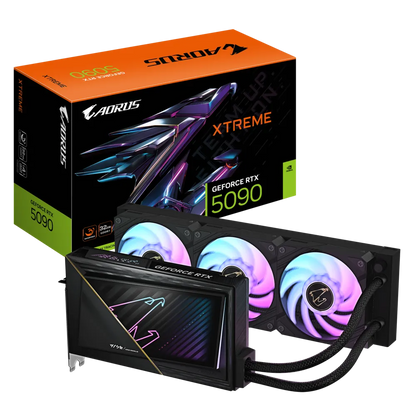

GIGABYTE AORUS GEFORCE RTX 5090 XTREME WATERFORCE W 32GB GDDR7
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

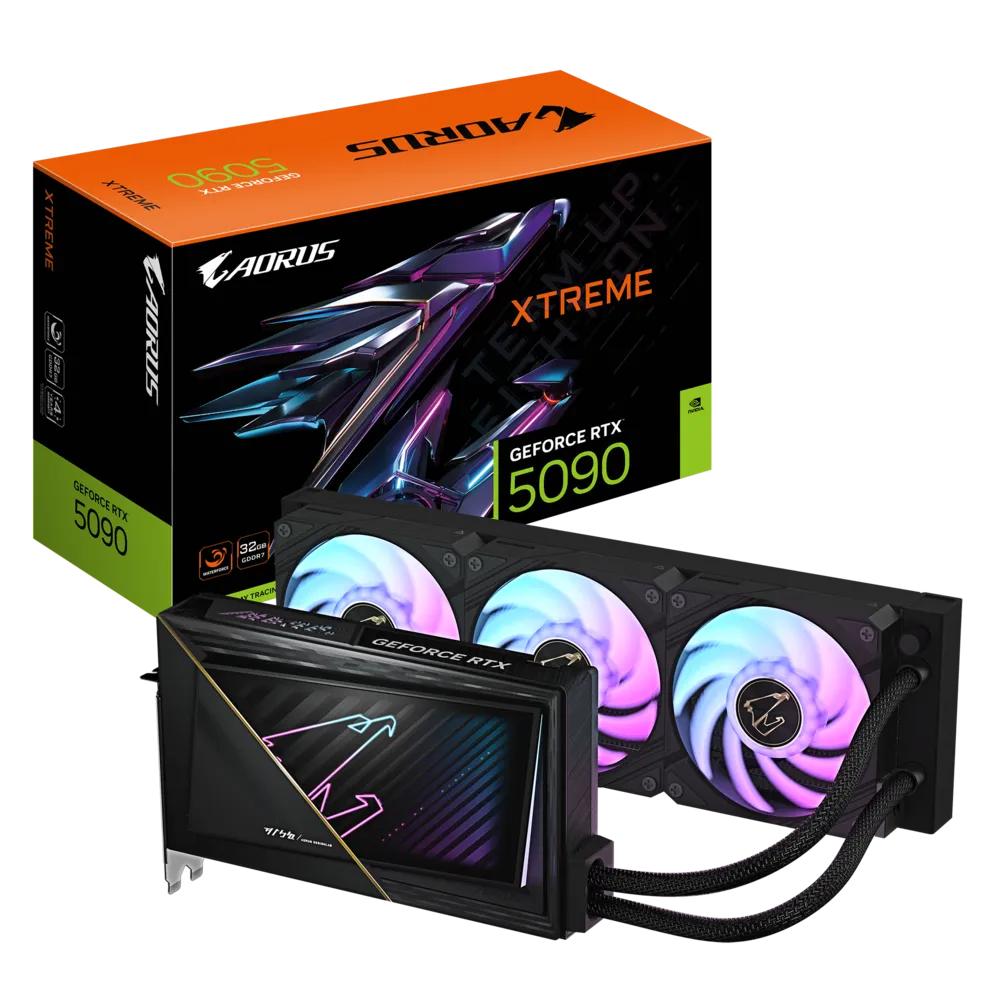

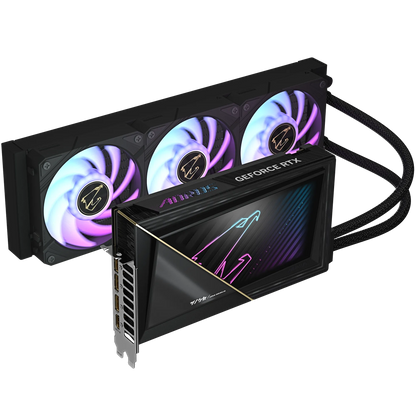

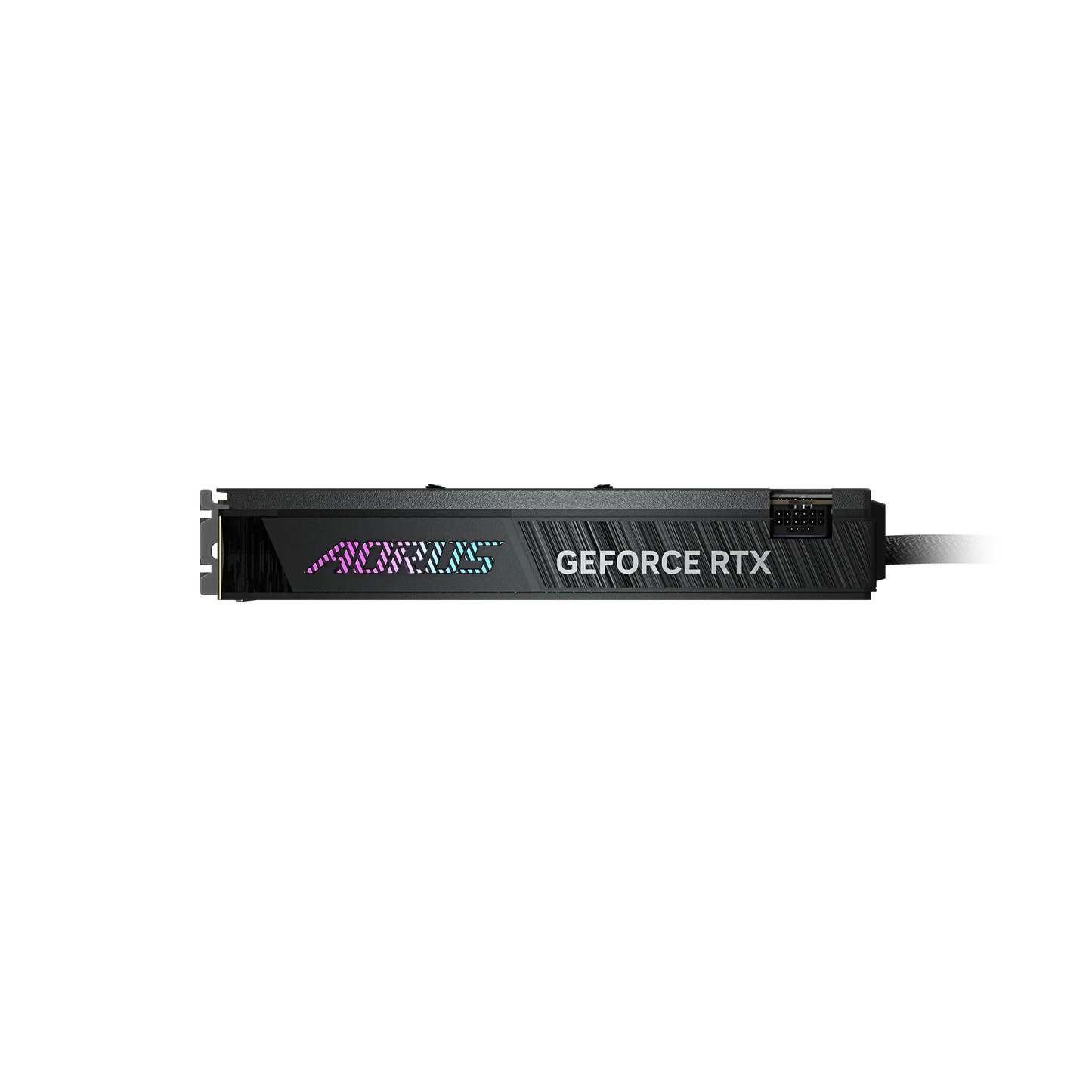

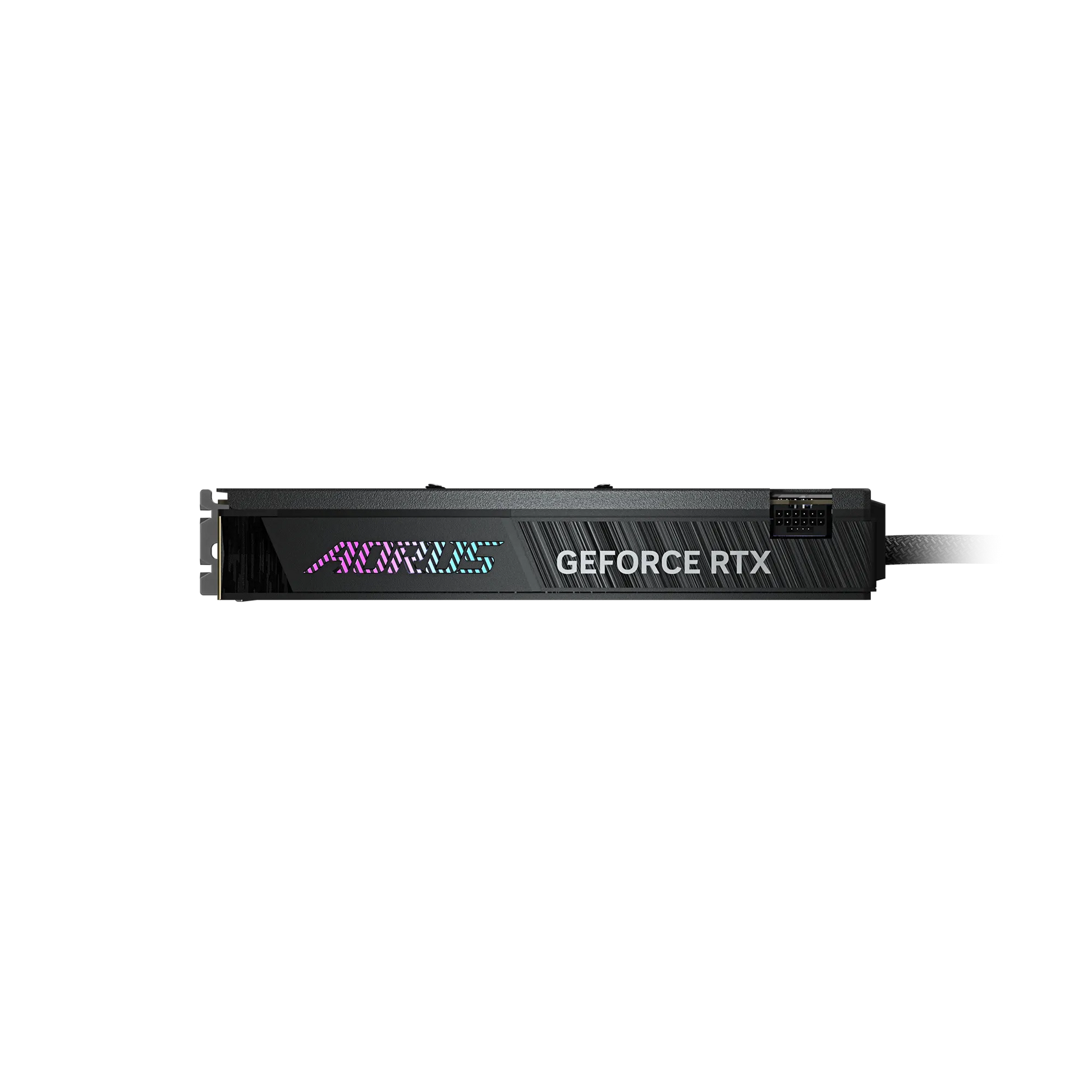

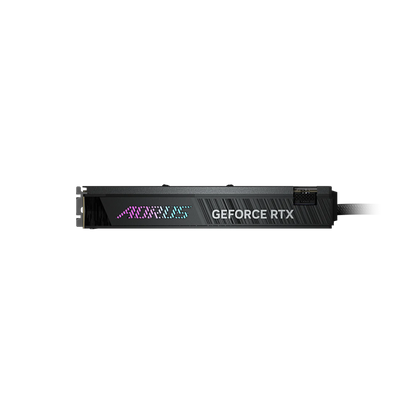

Experience cutting-edge performance with the GIGABYTE AORUS GeForce RTX 5090 XTREME WATERFORCE W 32GB GDDR7 graphics card (GV-N5090AORUSX-WB-32GD). Engineered for advanced gaming and demanding applications, this GPU integrates state-of-the-art cooling and powerful NVIDIA technology to deliver an exceptional experience.
Key Features at a Glance
- Powered by NVIDIA Blackwell architecture and DLSS 4
- Integrated with 32GB GDDR7 512-bit memory interface

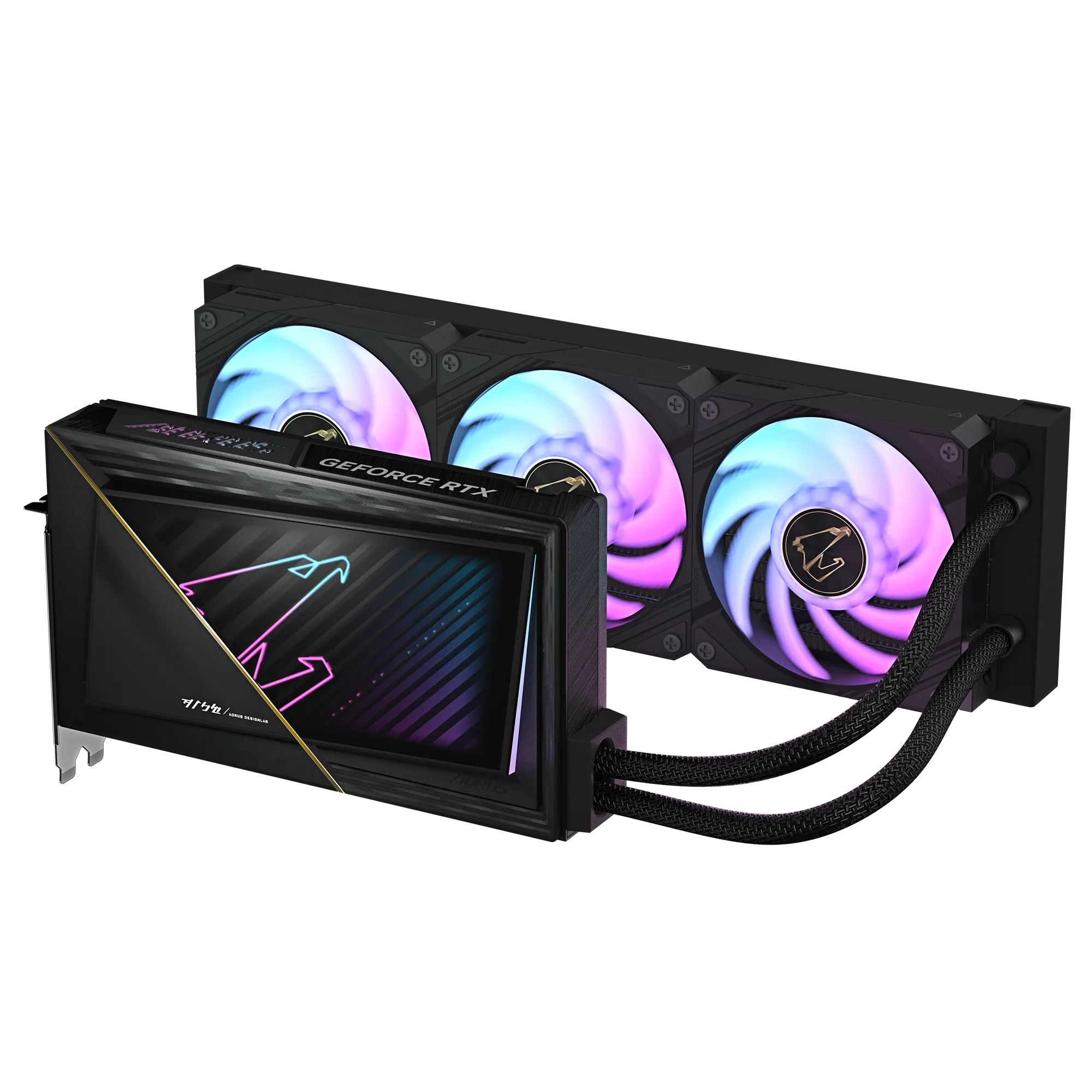

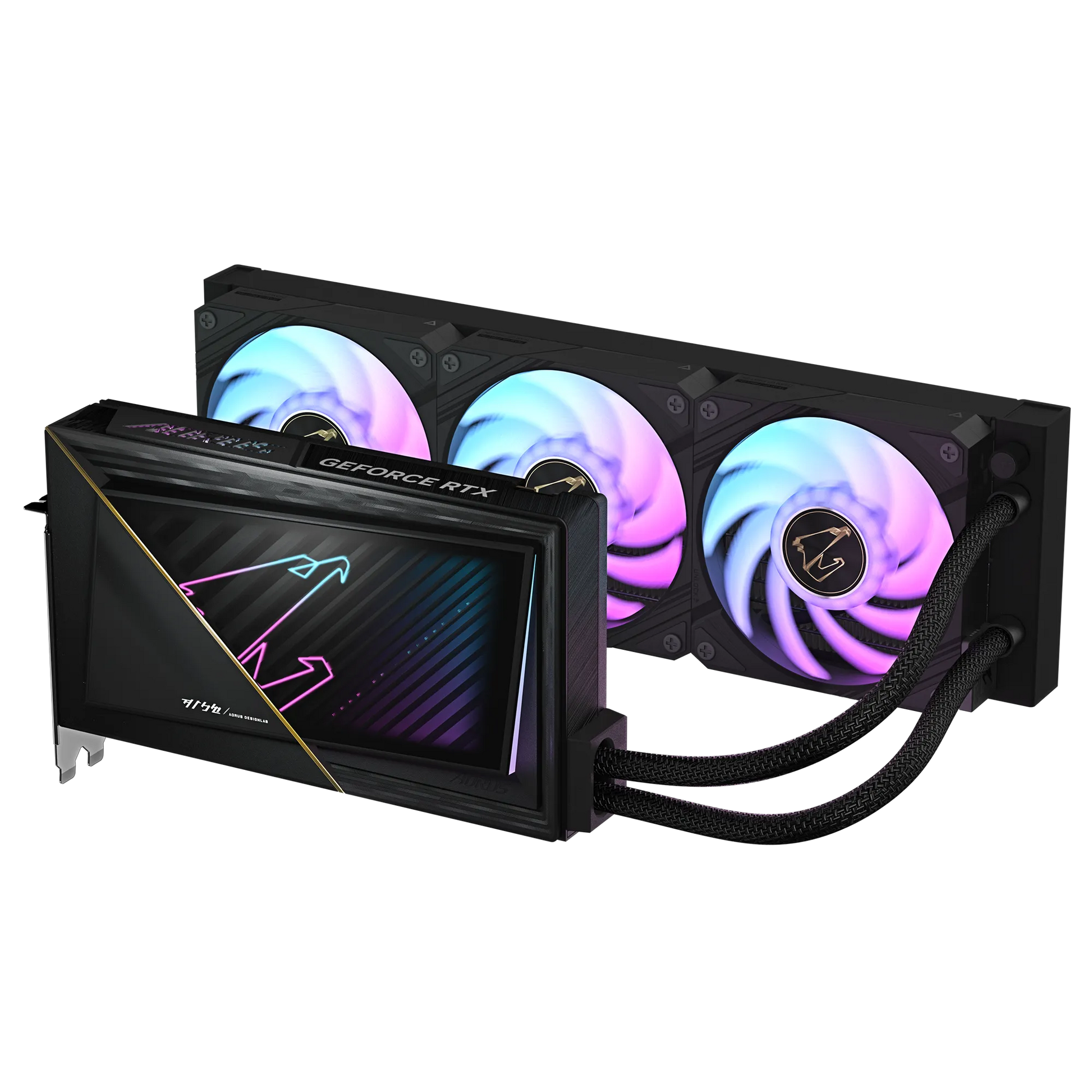

- WATERFORCE all-in-one cooling system
- 360mm radiator with three 120mm ARGB fans
- Patented leak detection for enhanced reliability
- Protective metal back plate
- RGB Lighting
Powerful NVIDIA Blackwell Architecture
Leveraging the latest NVIDIA Blackwell architecture and DLSS 4, this GIGABYTE AORUS graphics card ensures superior graphical processing power. This advanced foundation delivers breathtaking visuals and smooth frame rates, enhancing your gaming and creative workflows.

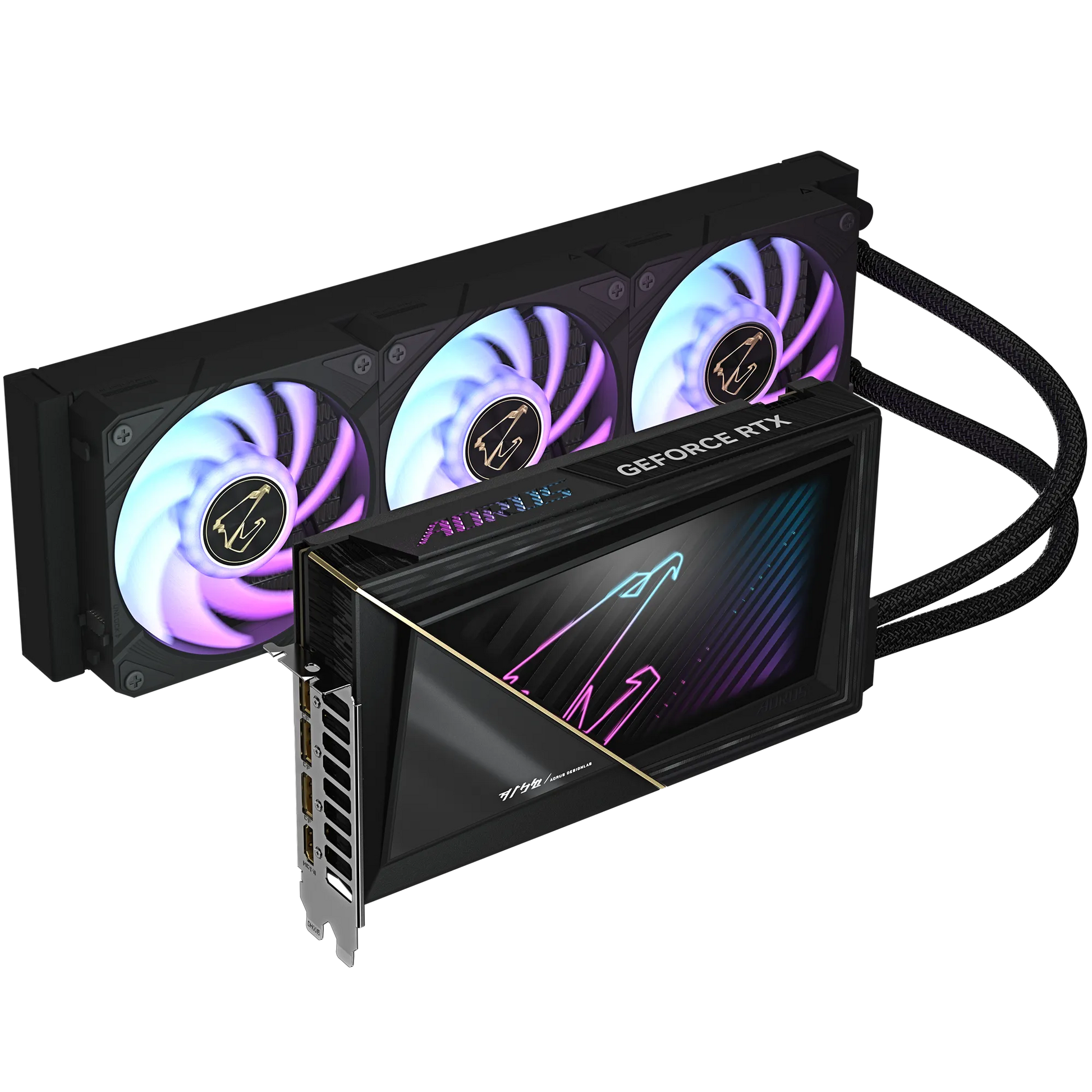

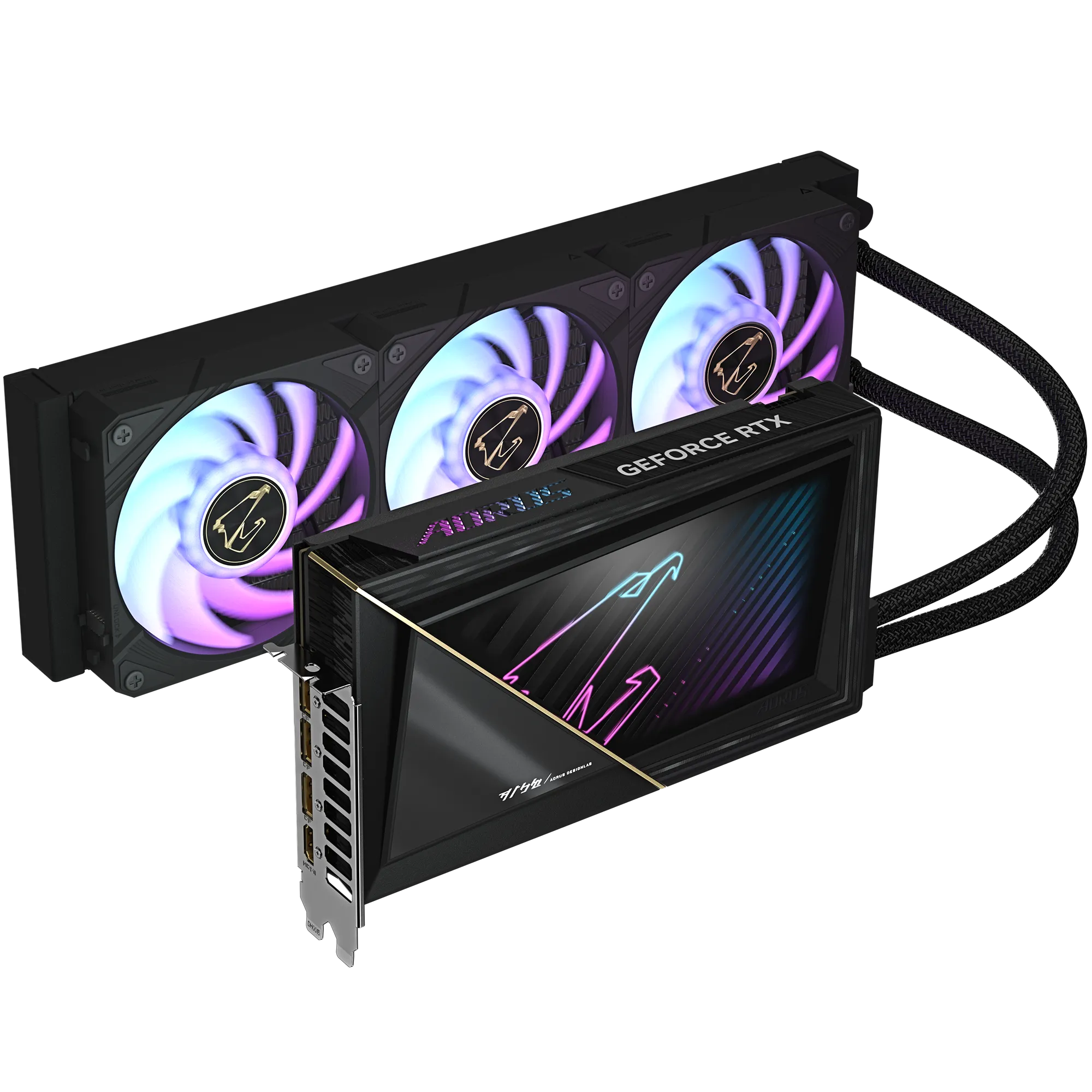

Advanced WATERFORCE Cooling System
Stay cool under pressure with the innovative WATERFORCE all-in-one cooling system. Featuring liquid metal thermal grease for the GPU and a 360mm radiator with three 120mm ARGB fans, this system efficiently dissipates heat, maintaining optimal performance during intense sessions. Enjoy peace of mind with patented leak detection technology.
Robust Memory and Design
Equipped with a robust 32GB GDDR7 512-bit memory interface, this graphics card handles high-resolution textures and complex scenes with ease. A protective metal back plate adds durability and a sleek finish, while customizable RGB lighting allows for personalized aesthetics to match your setup.
Technical Specifications
|
Graphics Processing |
GeForce RTX™ 5090 |
|
Core Clock |
2655 MHz (Reference card : 2407MHz) |
|
CUDA® Cores |
21760 |
|
Memory Clock |
28 Gbps |
|
Memory Size |
32 GB |
|
Memory Bus |
512 bit |
|
Memory Type |
GDDR7 |
|
Card Bus |
PCI-E 5.0 |
|
Digital Max Resolution |
7680 x 4320 |
|
Multi-view |
4 |
|
Dimension |
L=245 W=146 H=36 mm |
|
PCB Form |
ATX |
|
DirectX |
DirectX 12 API |
|
OpenGL |
OpenGL 4.6 |
|
Recommended PSU |
1000W |
|
Power Connectors |
16 pin*1 |
|
Output |
DisplayPort 2.1a *3 HDMI 2.1b *1 |
|
Accessories |
1. Quick guide 2. Warranty registration 3. 1x 12V-2x6 to 4x PCIe 8pin adapter 4. AORUS identity sticker 5. AORUS metal sticker
|
|
Warranty |
3+1 Years (Online registration required) |
|
Note* |
Price, feature and specifications are subject to change without notice. |
Frequently Asked Questions
Q: What architecture powers this graphics card?
A: The GIGABYTE AORUS GeForce RTX 5090 XTREME WATERFORCE W is powered by the NVIDIA Blackwell architecture and features DLSS 4.
Q: What type of cooling system does it use?
A: It features a WATERFORCE all-in-one cooling system, including liquid metal thermal grease for the GPU and a 360mm radiator with three 120mm ARGB fans, along with patented leak detection.
Q: What is the memory configuration of this GPU?
A: This graphics card is integrated with a 32GB GDDR7 512-bit memory interface.
