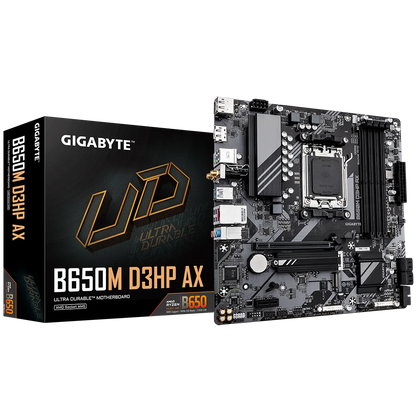

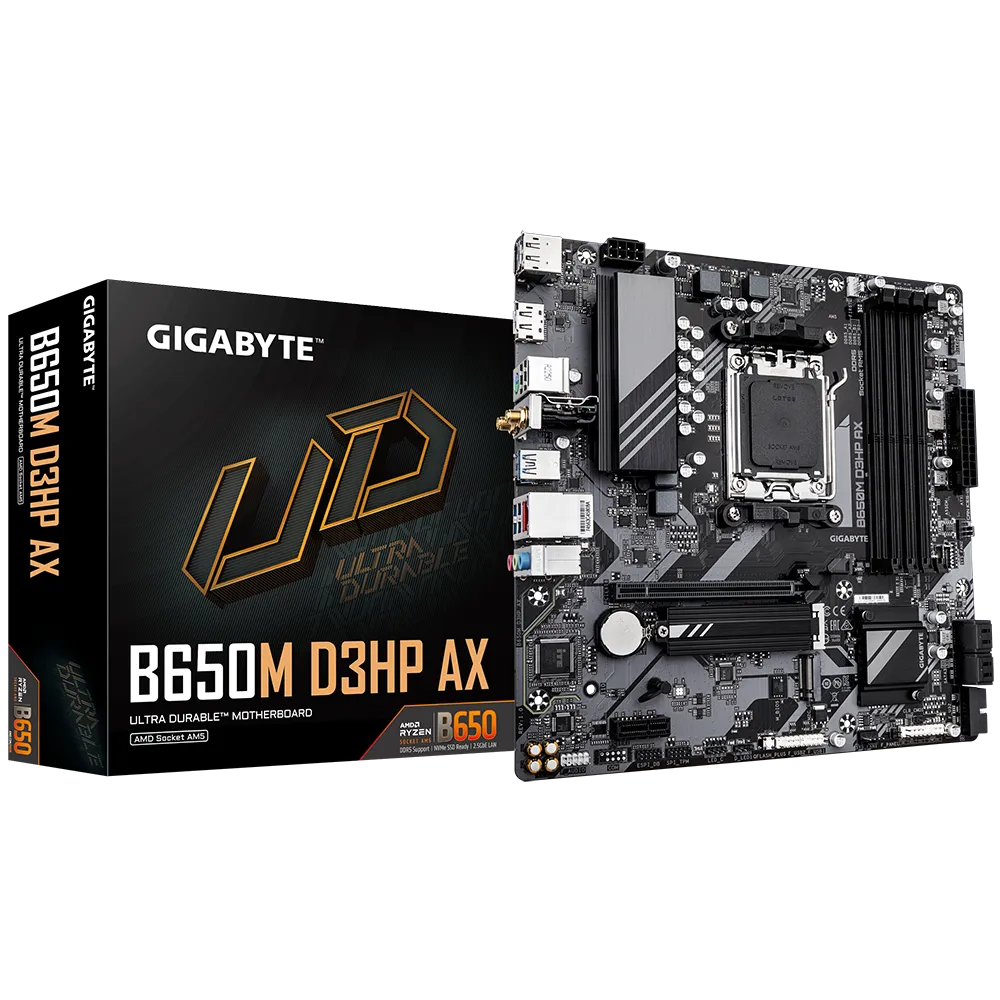

GIGABYTE AMD B650M D3HP AX DDR5 MOTHERBOARD
GIGABYTE AMD B650M D3HP AX DDR5 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

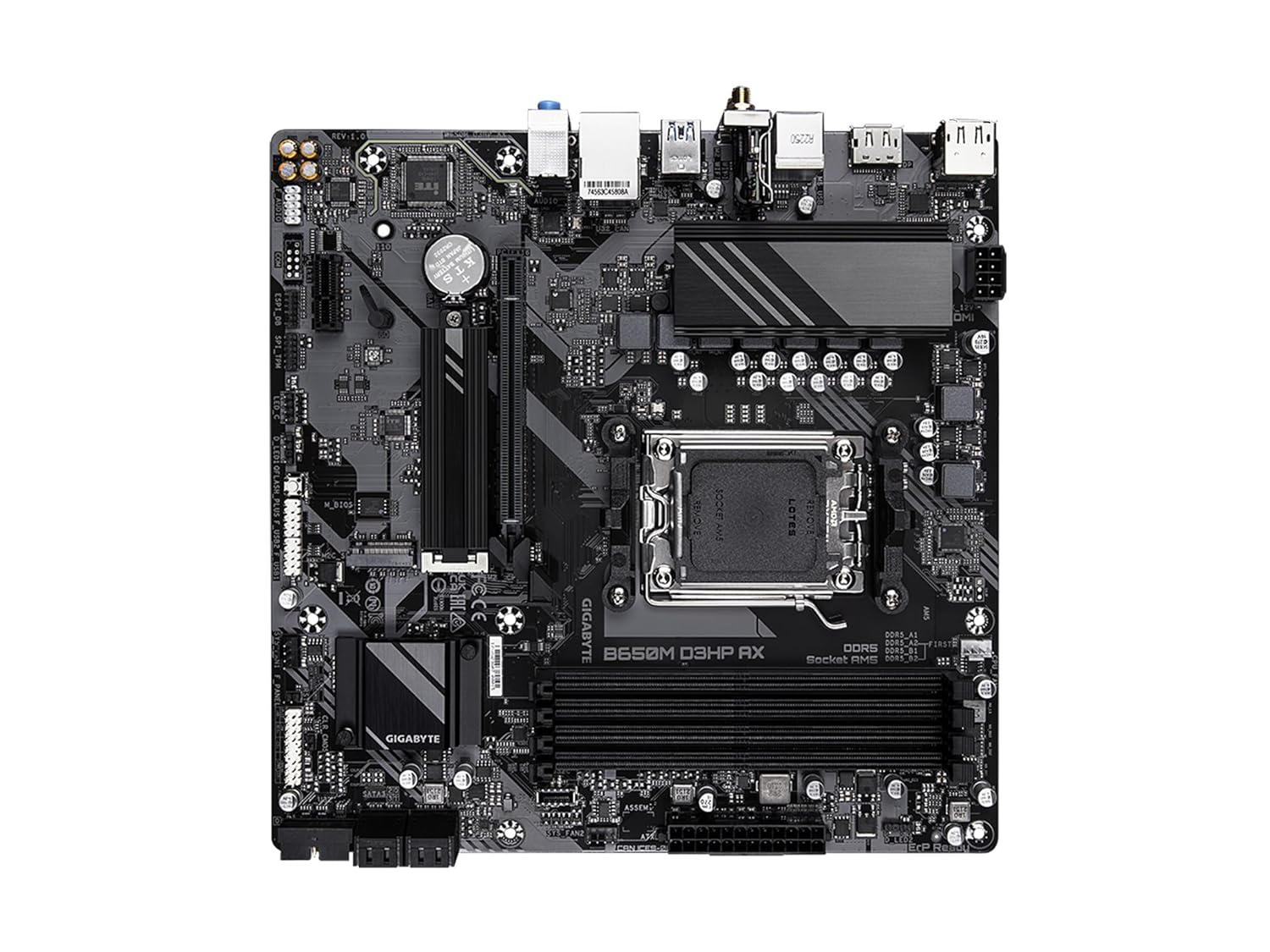

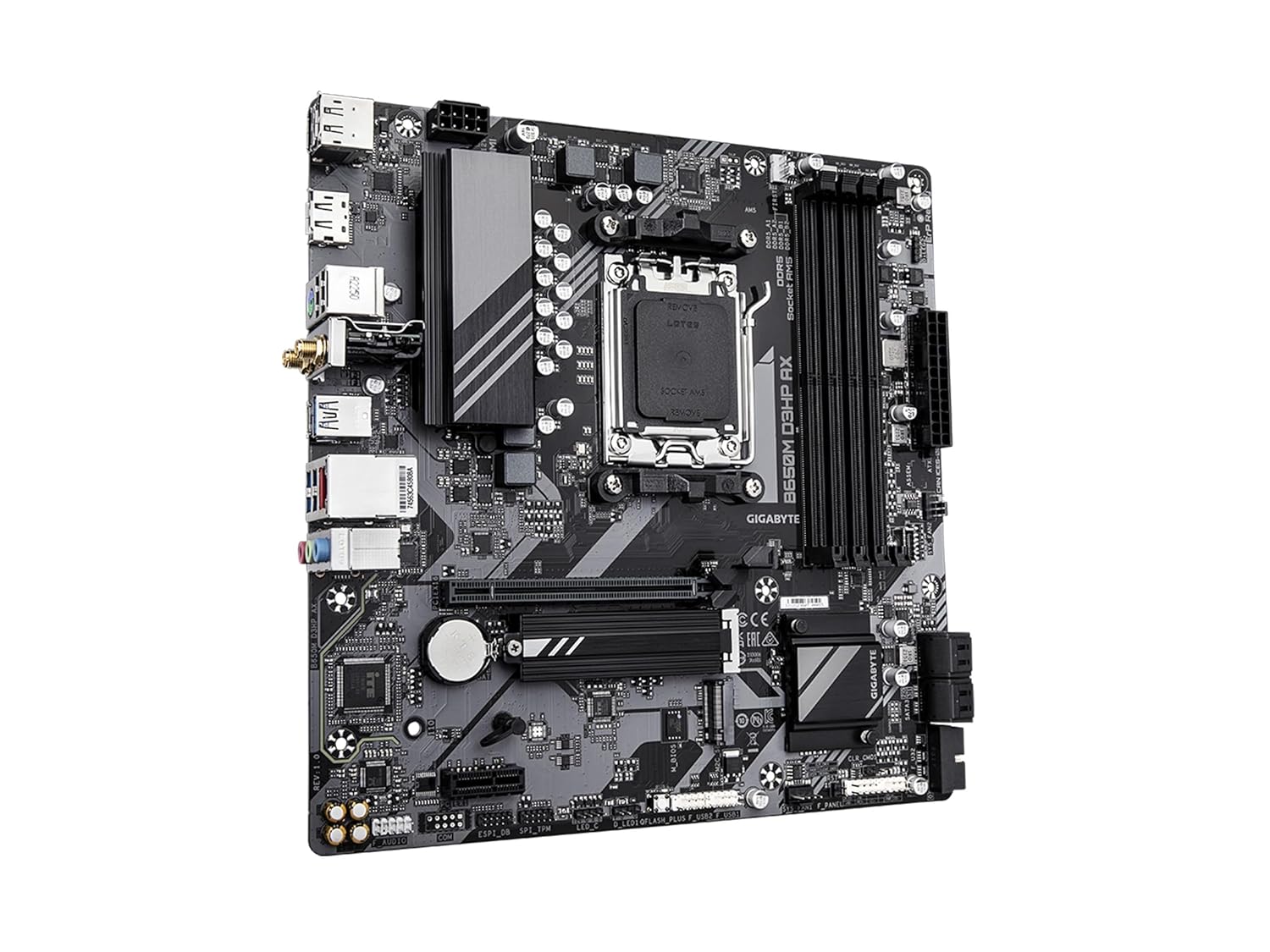

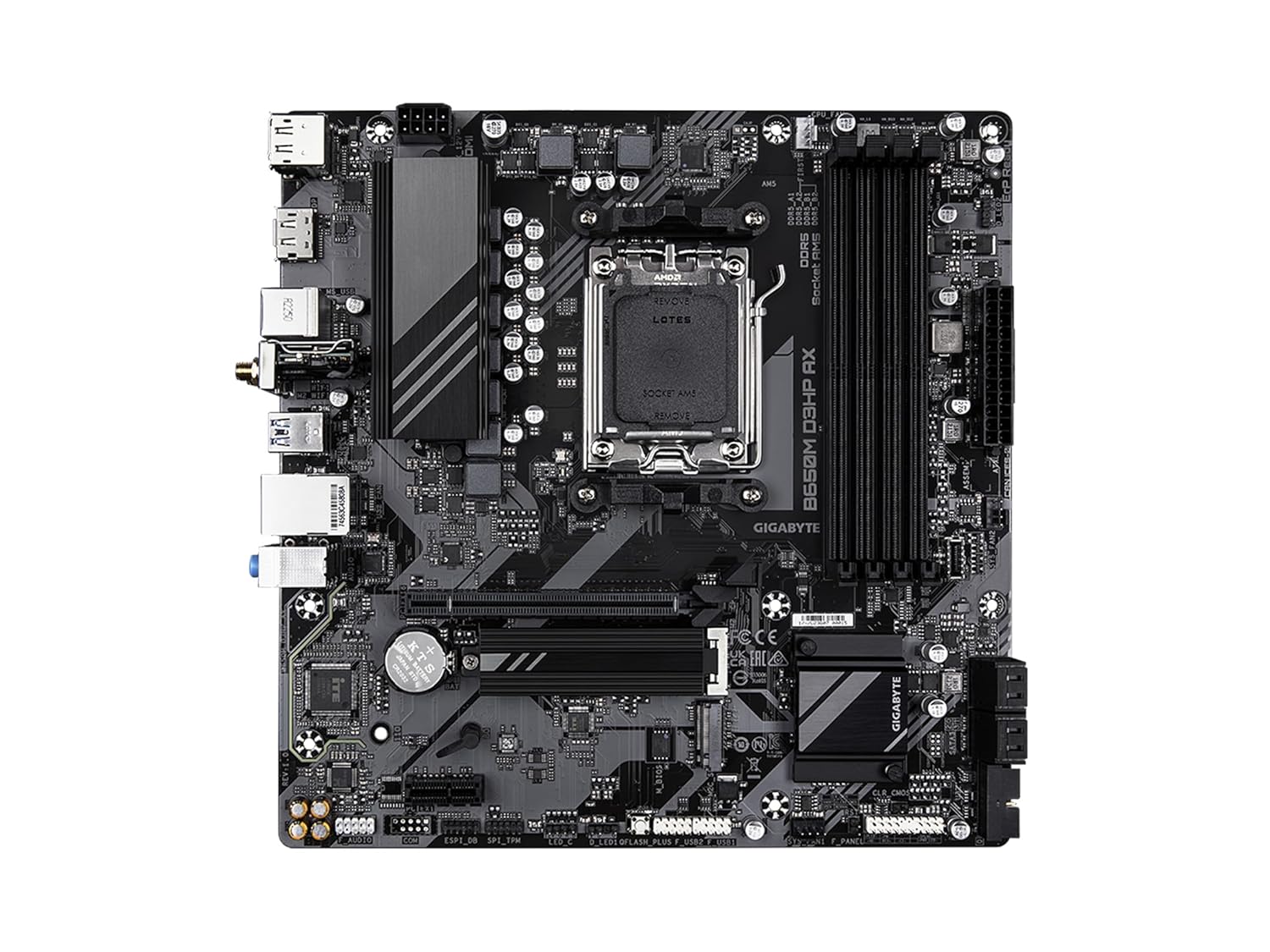

Experience powerful performance and robust connectivity with the GIGABYTE AMD B650M D3HP AX DDR5 MOTHERBOARD. Designed to support AMD Ryzen 7000 Series Processors, this motherboard integrates advanced features like DDR5 memory compatibility, a sturdy power design, and high-speed networking to build a reliable and responsive system.
Key Features at a Glance
- AMD AM5 Socket for Ryzen 7000 Series Processors
- DDR5 memory compatibility with 4 SMD DIMMs, supporting AMD EXPO & Intel XMP
- Direct 5+2+2 Phases Digital VRM Solution for stable power delivery
- Advanced connectivity including 2 PCIe 4.0 x4 M.2 slots and USB 3.2 Gen 1 Type-C
- Integrated 2.5GbE LAN for fast and reliable network access
Next-Generation Processor Support
Built with the AMD AM5 Socket, this motherboard is ready to unlock the full potential of AMD Ryzen 7000 Series Processors. It provides a cutting-edge foundation for your high-performance computing needs.
Enhanced Memory Performance
Benefit from lightning-fast data processing with DDR5 compatibility, featuring four SMD DIMM slots. Support for both AMD EXPO and Intel XMP memory modules ensures optimized performance and easy overclocking for your RAM.
Reliable Power Delivery
A robust power design, incorporating a Direct 5+2+2 Phases Digital VRM Solution, provides stable and efficient power to critical components. This ensures consistent performance and reliability even under demanding workloads.
High-Speed Data & Networking
Experience rapid data transfers and seamless online experiences. This motherboard features two PCIe 4.0 x4 M.2 slots for high-speed storage and a USB 3.2 Gen 1 Type-C port for versatile connectivity. The integrated 2.5GbE LAN delivers ultra-fast networking for gaming and streaming.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Graphics Port | 2 x DisplayPorts,1 x HDMI |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Wireless Networking | Wi-Fi 6E,BLUETOOTH 5.3 |
| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors does this motherboard support?
A: This motherboard features an AMD AM5 Socket and supports AMD Ryzen 7000 Series Processors.
Q: What type of memory is compatible with this motherboard?
A: It is compatible with DDR5 memory modules and includes support for AMD EXPO & Intel XMP memory profiles.
Q: What kind of network connectivity does this motherboard offer?
A: The motherboard features an integrated 2.5GbE LAN for high-speed network access.
