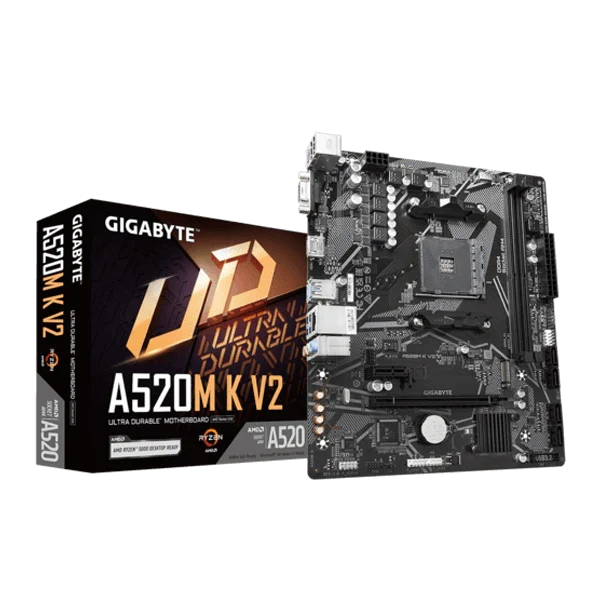

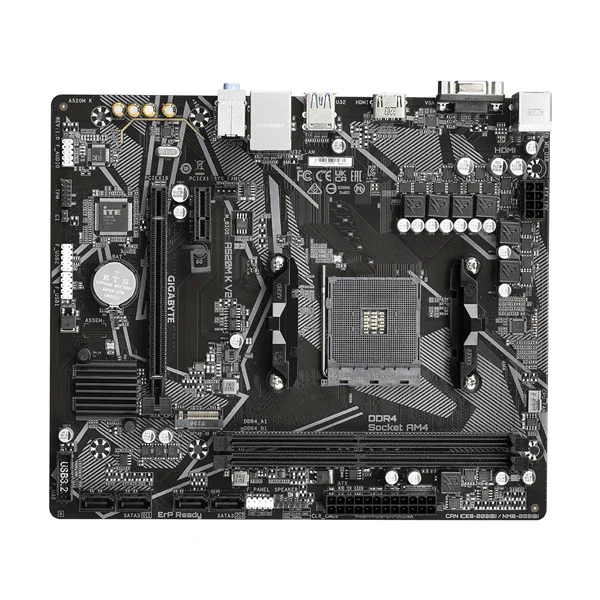

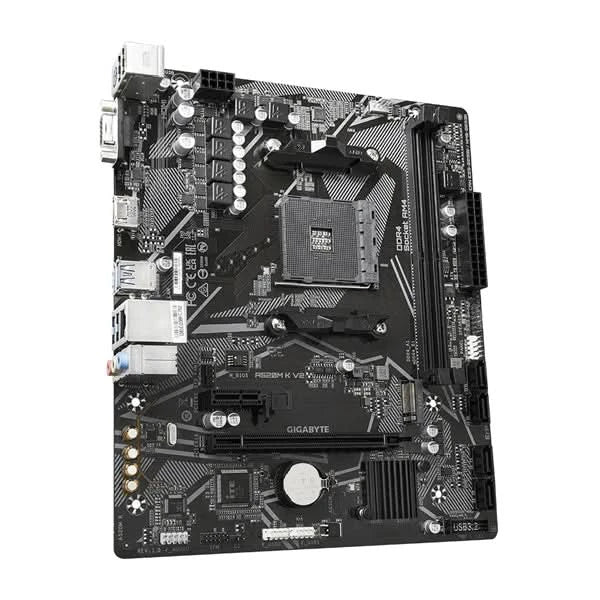

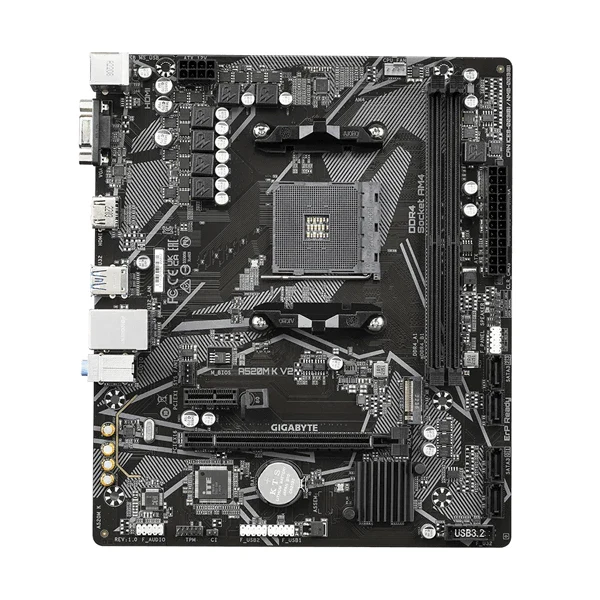

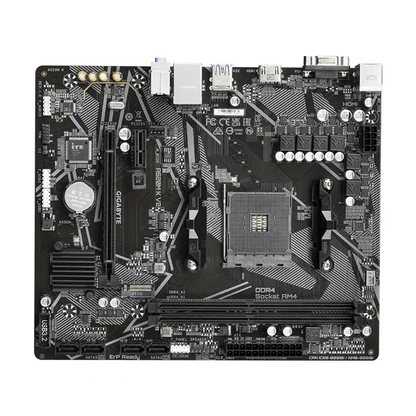

The Gigabyte A520M K V2 DDR4 M-ATX Motherboard is designed to support AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series Processors, offering a robust foundation for your build. This motherboard provides essential features for a reliable and efficient system, including advanced storage options and smart cooling capabilities, all within a compact micro-ATX form factor.
Key Features at a Glance
- Supports AMD Ryzen 5000/5000 G/4000 G/3000 Series Processors.
- Dual Channel ECC/Non-ECC Unbuffered DDR4 memory across 2 DIMMs.
- PCIe Gen3 x4 M.2 connector with PCIe NVMe & SATA mode support.
- GbE LAN featuring integrated Bandwidth Management.
- 8-Channel HD Audio enhanced with high-quality audio capacitors.
- Smart Fan 5 with multiple temperature sensors and hybrid fan headers.
High-Speed Storage with M.2
Leverage the PCIe Gen3 x4 2280 M.2 connector on your Gigabyte A520M K V2 Motherboard. This feature allows you to maximize your system’s potential with fast NVMe and SATA mode storage options, ensuring quicker boot times and application loading for improved efficiency.
Optimized Network Performance
Experience stable and responsive online activity with GbE LAN, which includes a dedicated network bandwidth management application. This technology helps reduce network latency and maintain low ping times, providing a smoother and more reactive experience in crowded network environments.
Intelligent Cooling with Smart Fan 5
Keep your system cool and performing at its best with Smart Fan 5. This intelligent cooling solution allows for precise control over your fans, featuring multiple temperature sensors, hybrid fan headers, and the ability to stop fans for silent operation. It also supports liquid cooling setups for advanced thermal management.
Immersive High-Definition Audio
Enjoy crystal-clear sound with 8-Channel HD Audio, enhanced by high-end audio capacitors for superior quality. The integrated Audio Noise Guard further protects sensitive analog components from potential noise pollution at the PCB level, delivering realistic and high-fidelity sound effects for all your entertainment.
Technical Specifications
| Motherboard | |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G |
| Chipset | A520 |
| Memory Speed | up to 5100 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x D-Sub, 1 x HDMI |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |

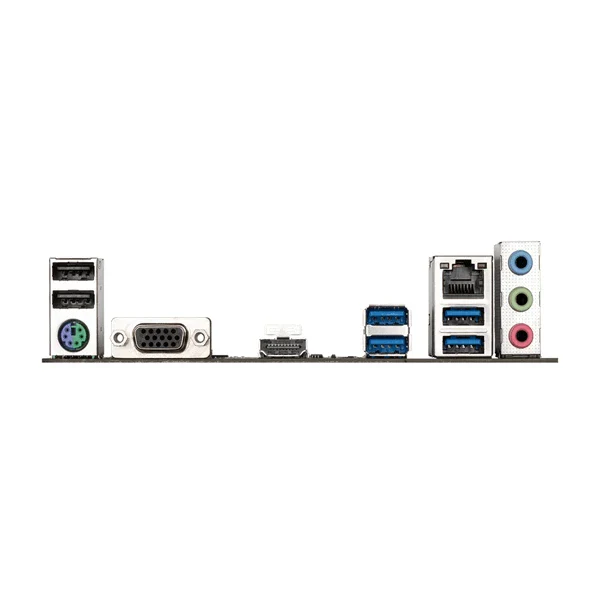

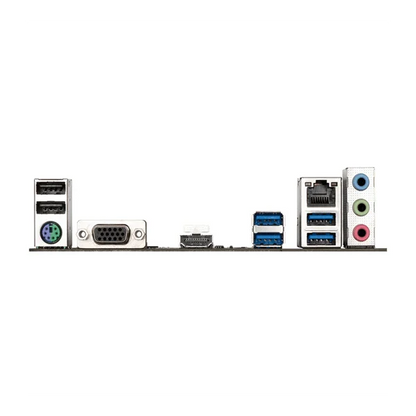

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note |
Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
Frequently Asked Questions
Q: What processors are supported by the Gigabyte A520M K V2 Motherboard?
A: This motherboard supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series Processors.
Q: Does this motherboard support NVMe SSDs?
A: Yes, it features a PCIe Gen3 x4 M.2 connector that supports both PCIe NVMe and SATA mode SSDs for high-speed storage.
Q: How does Smart Fan 5 contribute to system cooling?
A: Smart Fan 5 includes multiple temperature sensors and hybrid fan headers with FAN STOP capability, allowing users to maintain optimal system performance by keeping components cool and quiet, even supporting liquid cooling setups.
