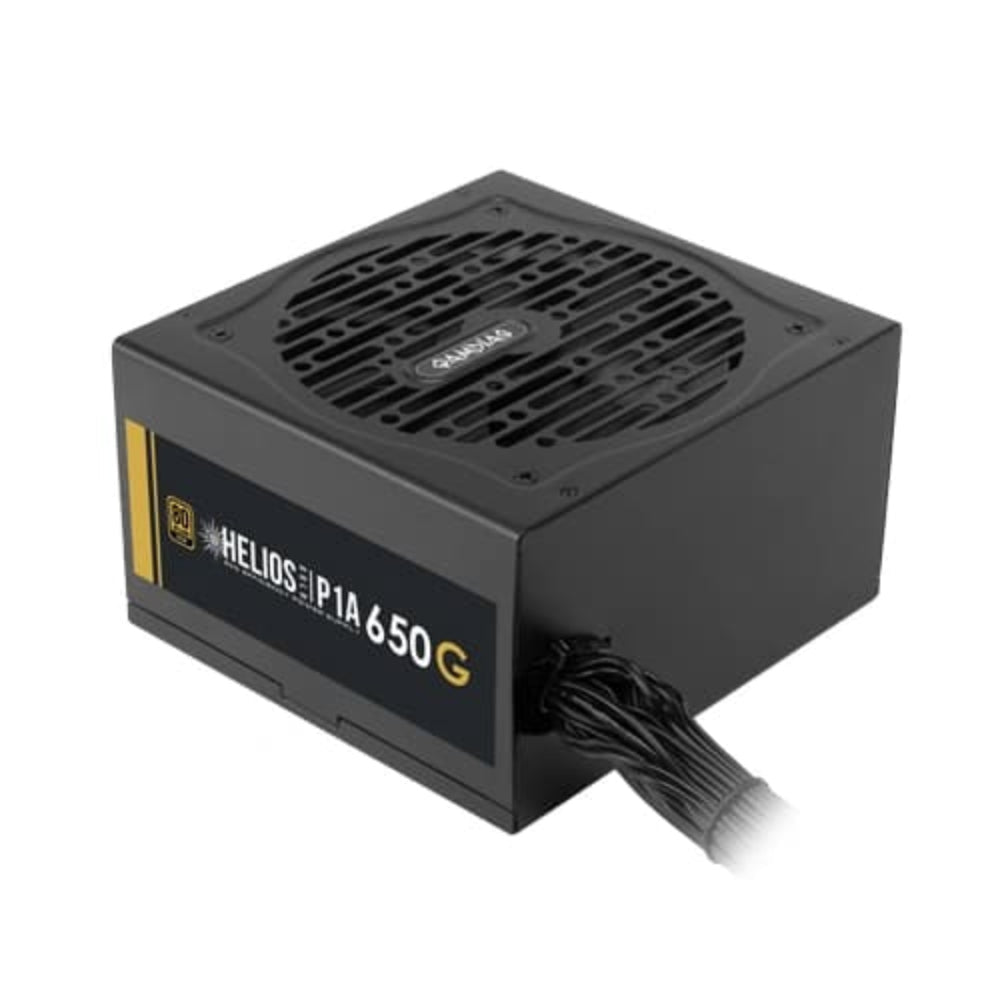

Features of GAMDIAS Helios P1A-650G 650 Watt 80 Plus Gold Non Modular Power Supply

• 650W 80 Plus Gold
• High Quality Capacitors
• 120mm Hydraulic Bearing Fan
• Compatible with ATX12V v2.52
• Support C6/C7 Power State
• Automatic Fan Speed Optimizing According to Temperature
• Full DC-DC, LLC Resonant Circuit Design
• Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP

POWERFUL. EFFICIENT. STABLE.

Certified with 80 PLUS GOLD, the HELIOS P1A-650G can deliver a stable output of up to 90% efficiency and reduce power consumption. It features black flat cables for easy installation and cable management and is equipped with high-quality capacitors and a hydraulic bearing fan to perform reliably at top conditions.

80 PLUS GOLD CERTIFIED

With an 80 PLUS GOLD certification, the unit guarantees stable power output at up to 92% efficiency at 50% load while reducing considerable power consumption.

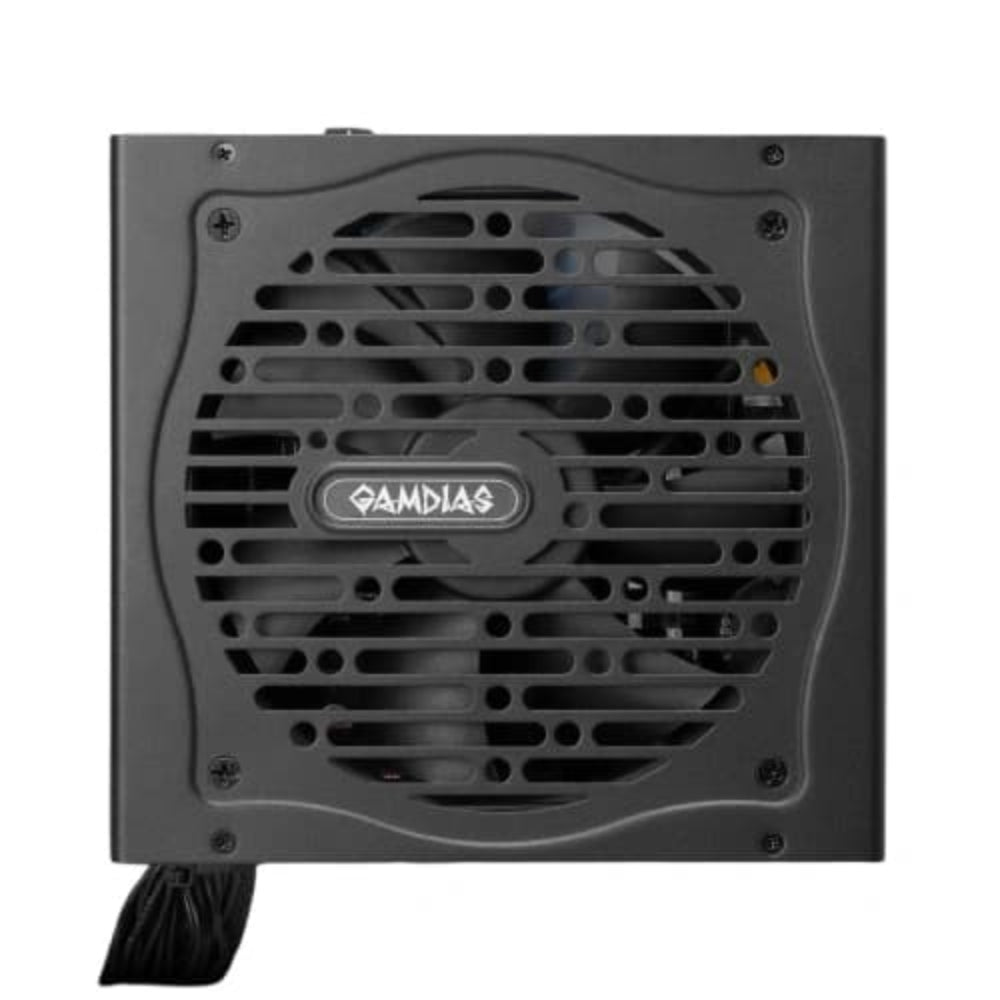

SMART HYDRAULIC FAN

Equipped with a 120mm hydraulic bearing fan, the PSU ensures silent and stable operations for long durations. The fan also features automatic fan speed optimization, enabling the fan speed to be adjusted based on the detection of temperature and load.

LLC RESONANT CIRCUIT LAYOUT

Made with DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.

FLAT BLACK CABLES

The sleek and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.

HEAVY-DUTY PROTECTION

This PSU offers complete protection, meeting full demands to help the system operate safely and stably.

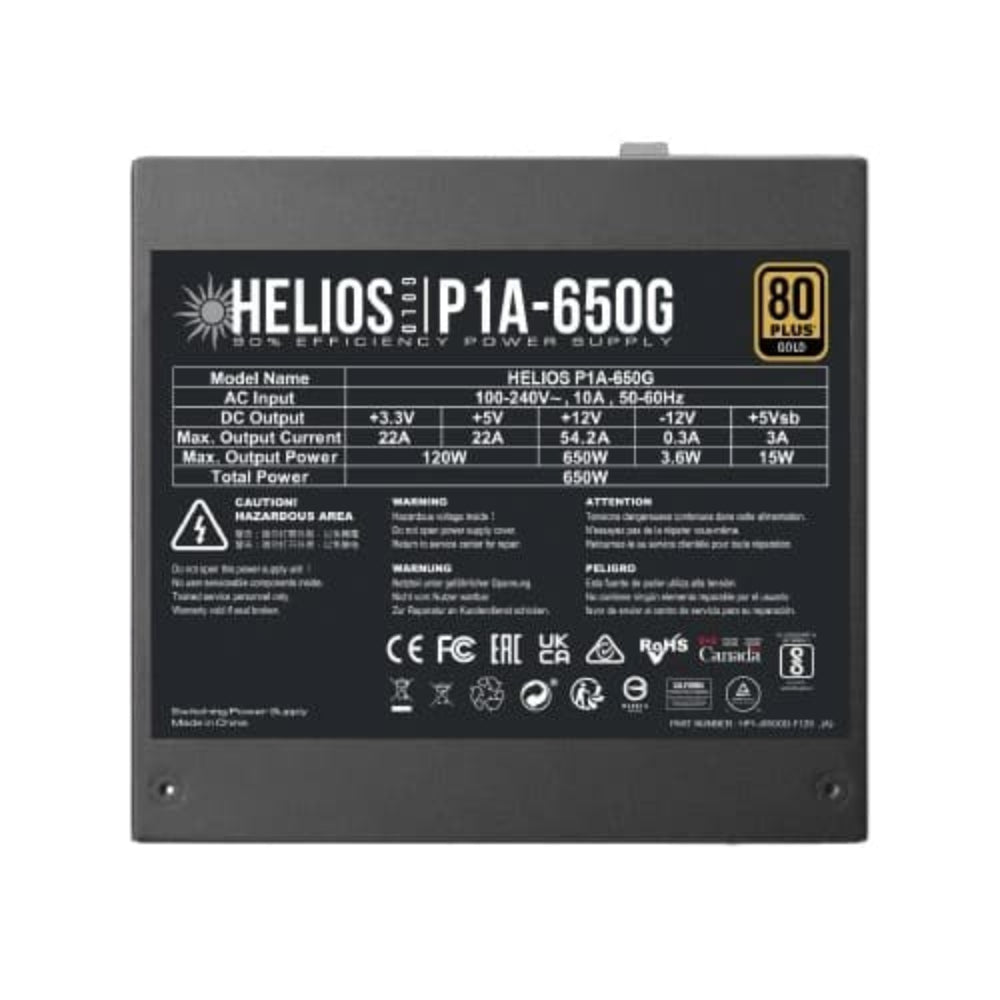

Specifications of GAMDIAS Helios P1A-650G 650 Watt 80 Plus Gold Non Modular Power Supply
