Features

• Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

• Fully Modular to reduce clutter and improve airflow

• NVIDIA SLI & AMD Crossfire Ready

• 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads

• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

• 100% Japanese Capacitors ensure long-term reliability

• Active Clamp +DC to DC design for efficient operation

• EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

• Active Power Factor Correction

• Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

• DC-DC Converter improves 3.3V/5V stability



  Specifications

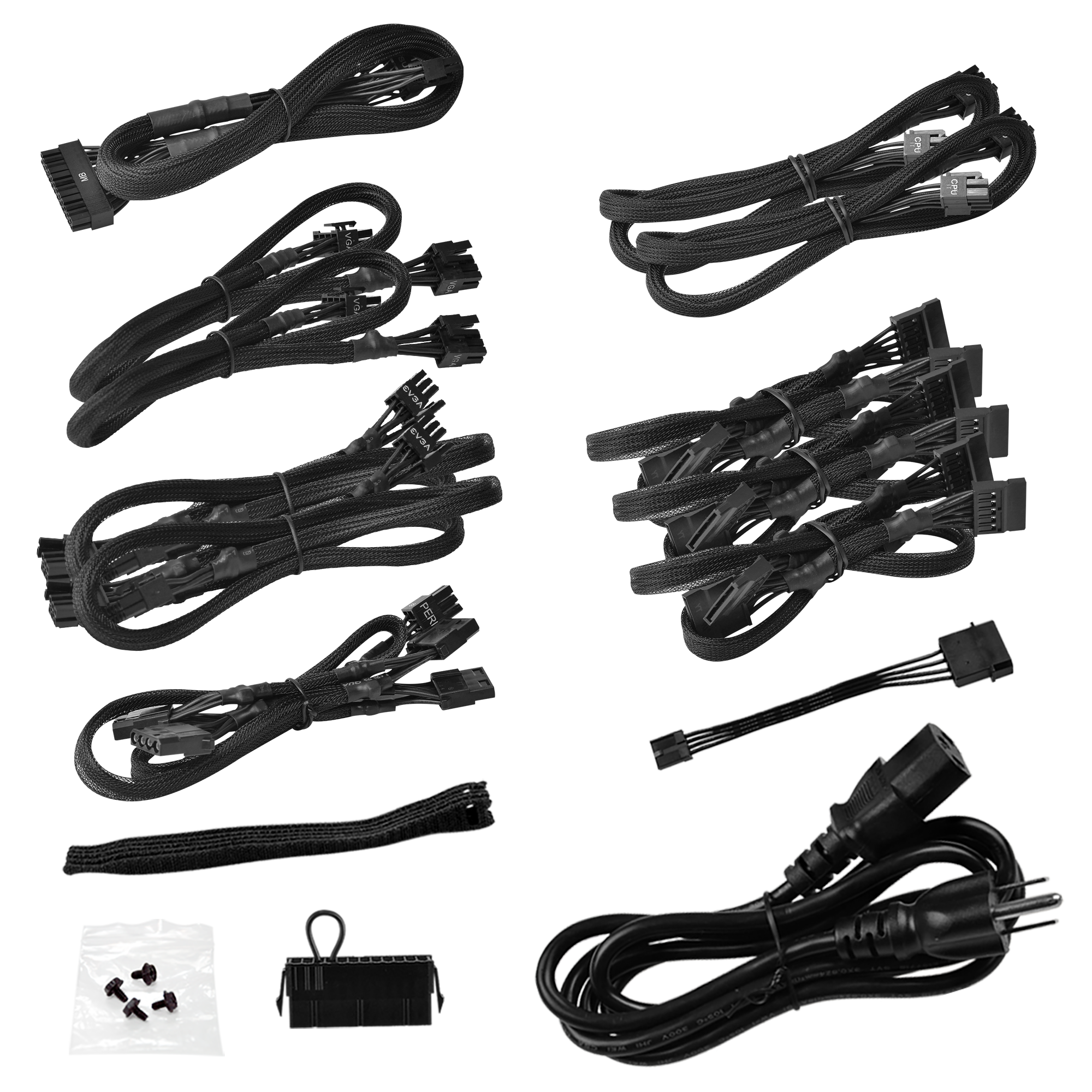

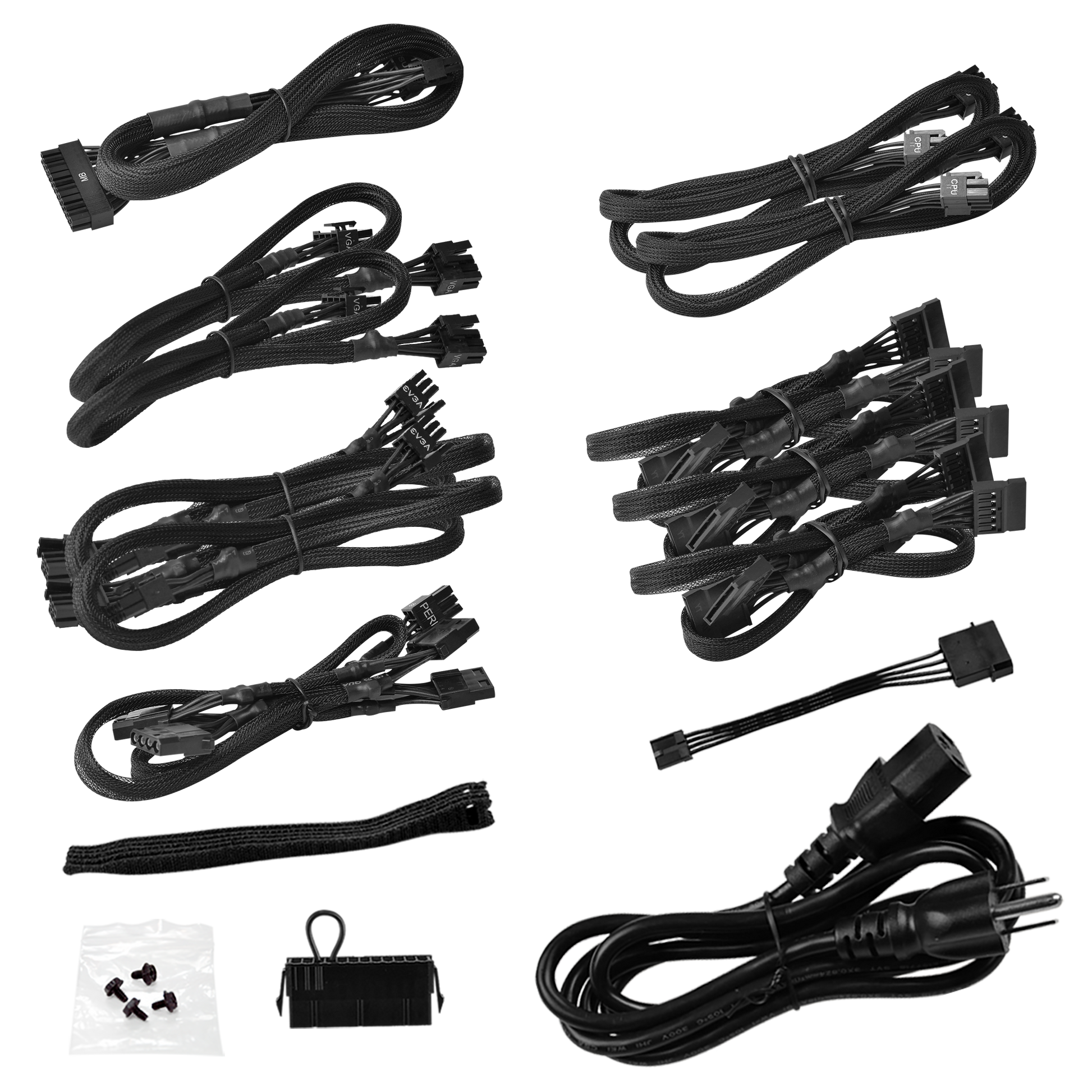

  ATX Cable	1x 600mm
  EPS Cable	2x 700mm
  PCIe Cable	2x 700mm, 2x 700mm, 850mm
  SATA Cable	3x 550mm, 650mm, 750mm
  Four-Pin Peripheral Cable	1x 550mm, 650mm, 750mm, 850mm
  Floppy Adapter	1x 100mm
  AC Power	1x 1500mm
  Modular Cable Type	Full

  Connector Quantity

  24 Pin ATX	1x 24pin
  EPS (CPU)	2x 8pin (4+4)
  PCIe	6x 8pin (6+2)
  SATA	9x
  Four-Pin Peripheral	4x
  Floppy	1x

  Power Specs

  AC Input	100-240V~, 12-5A, 60/50 Hz
  Rail	+3.3V	+5V	+12V	+5Vsb	-12V
  Max Output	24A	24A	70.8A	3A	0.5A
  	120W		850W	15W	6W
  Total	850W

  Additional Details

  Operating Temperature	0° to 50° C
  Japanese Capacitors	100%
  ECO Mode	Yes
  MTBF	100,000 Hours
  Net Weight	6.70 lbs
  Size	86mm (H) x 150mm (W) x 150mm (L)
  Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
  Fan Size / Bearing	135mm Fluid Dynamic Bearing
