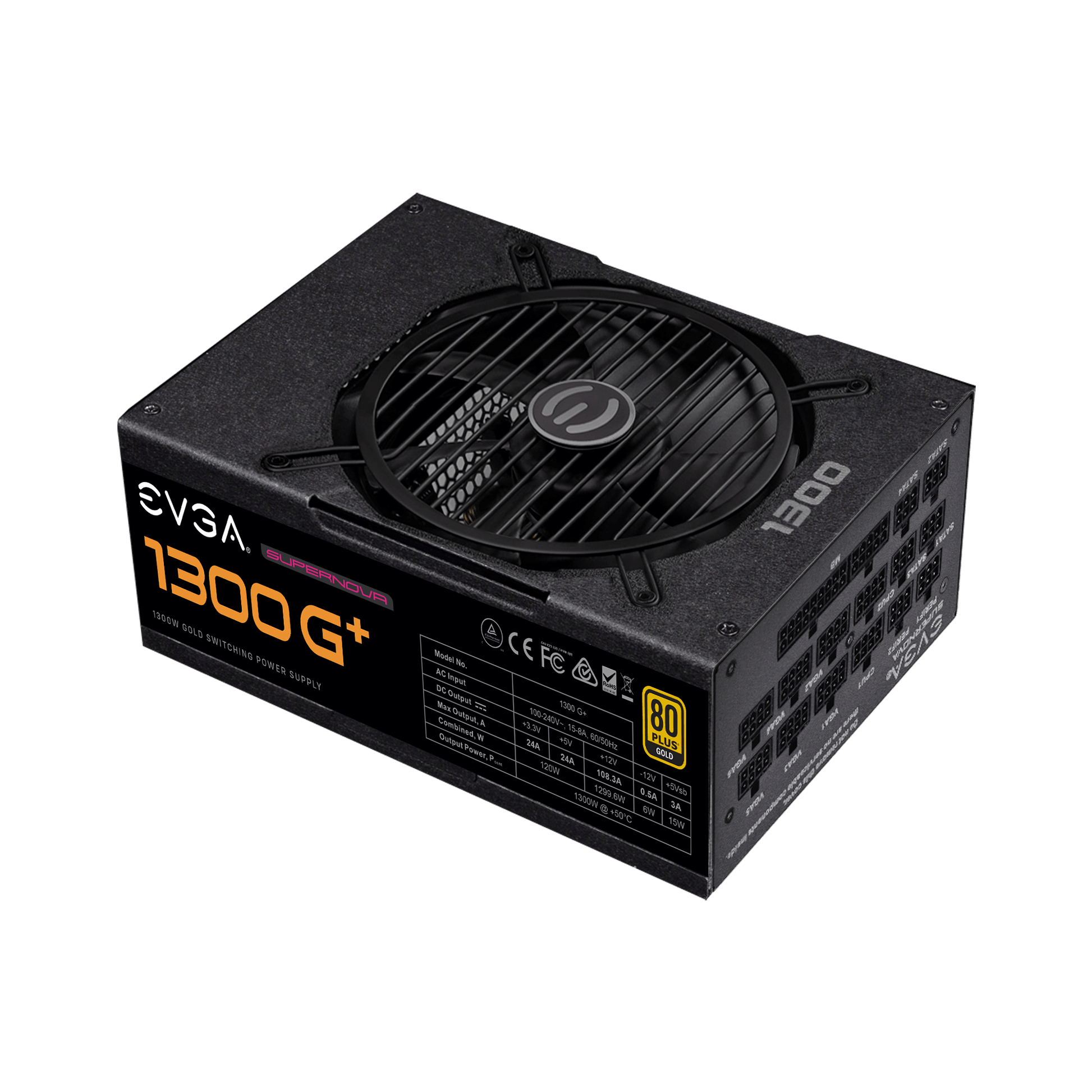

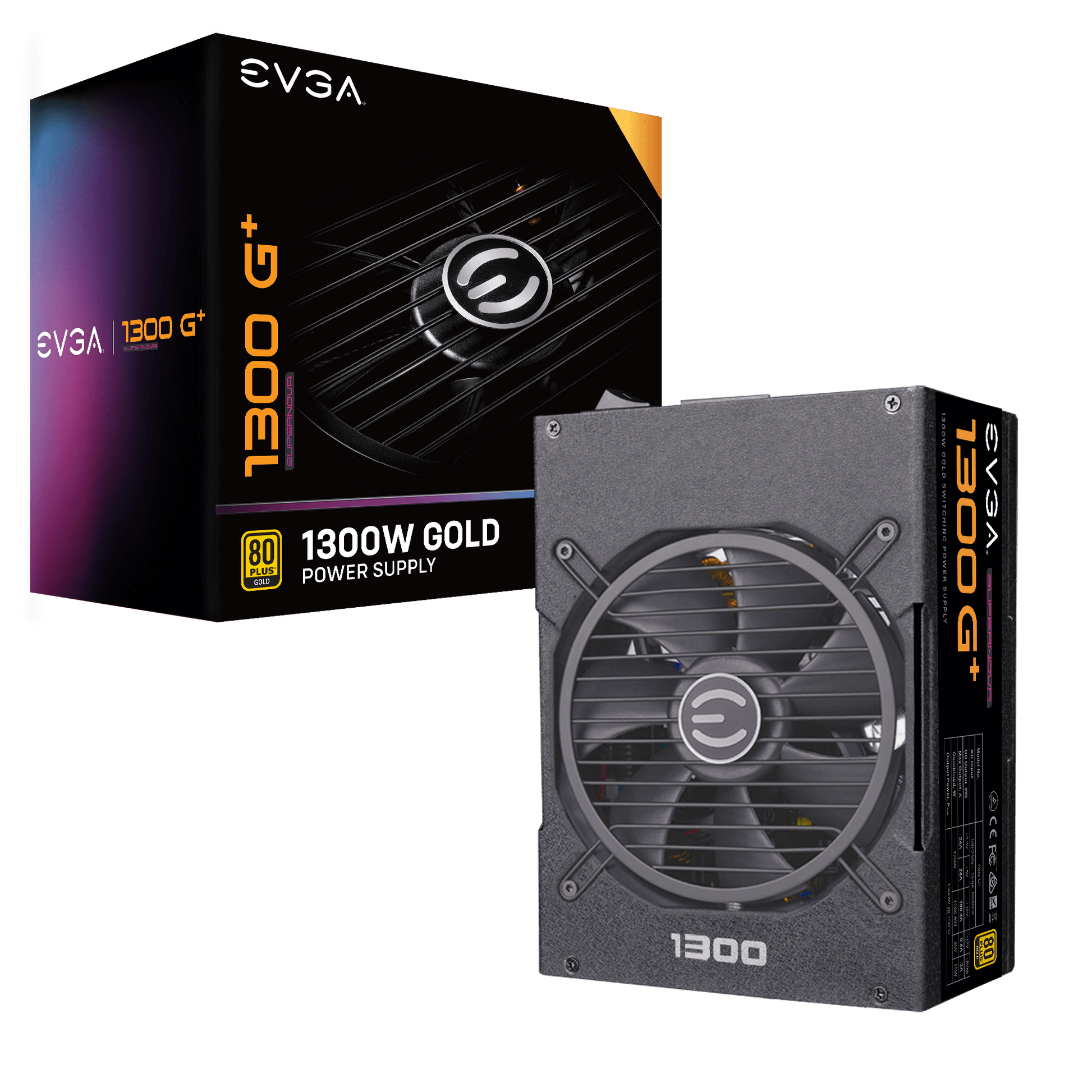

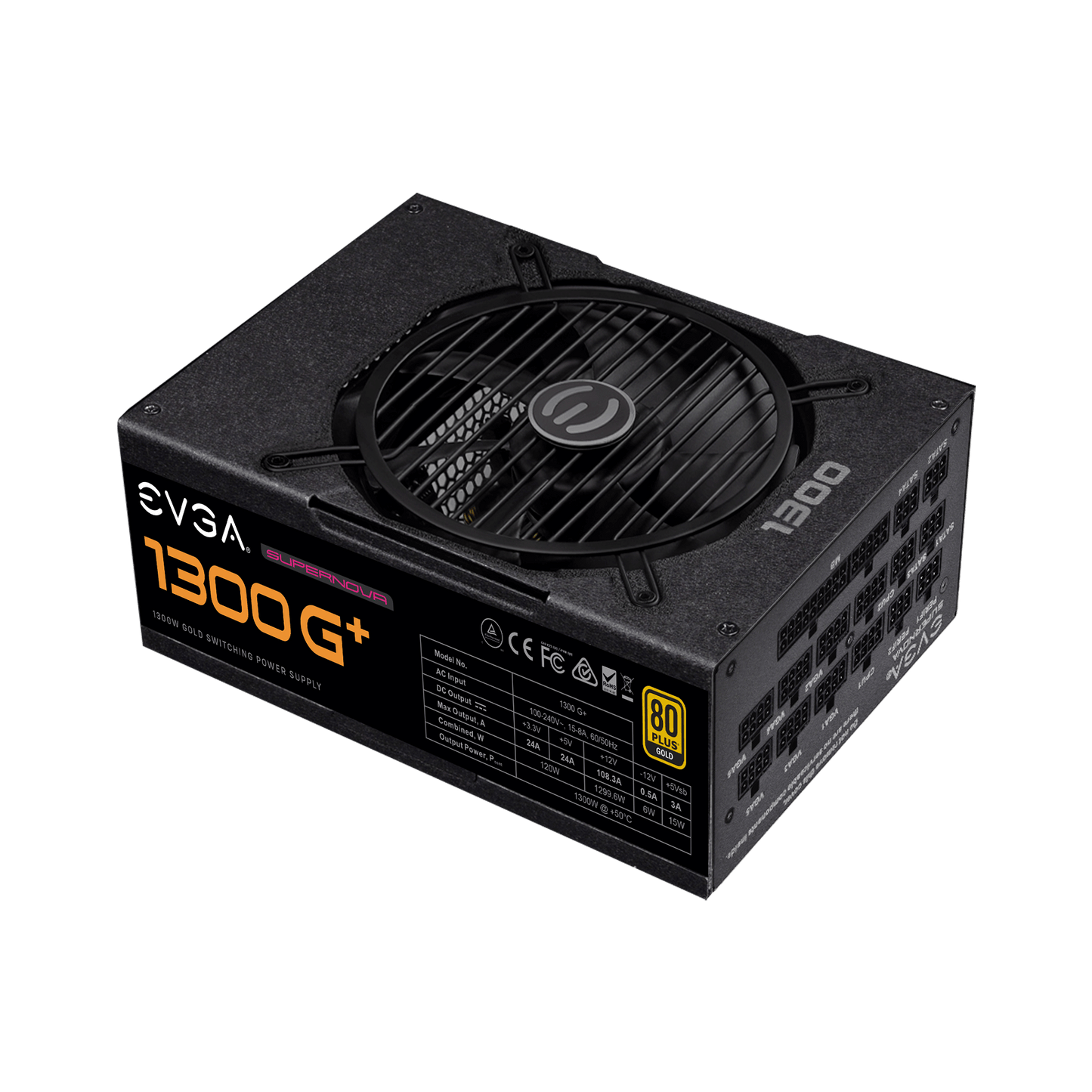

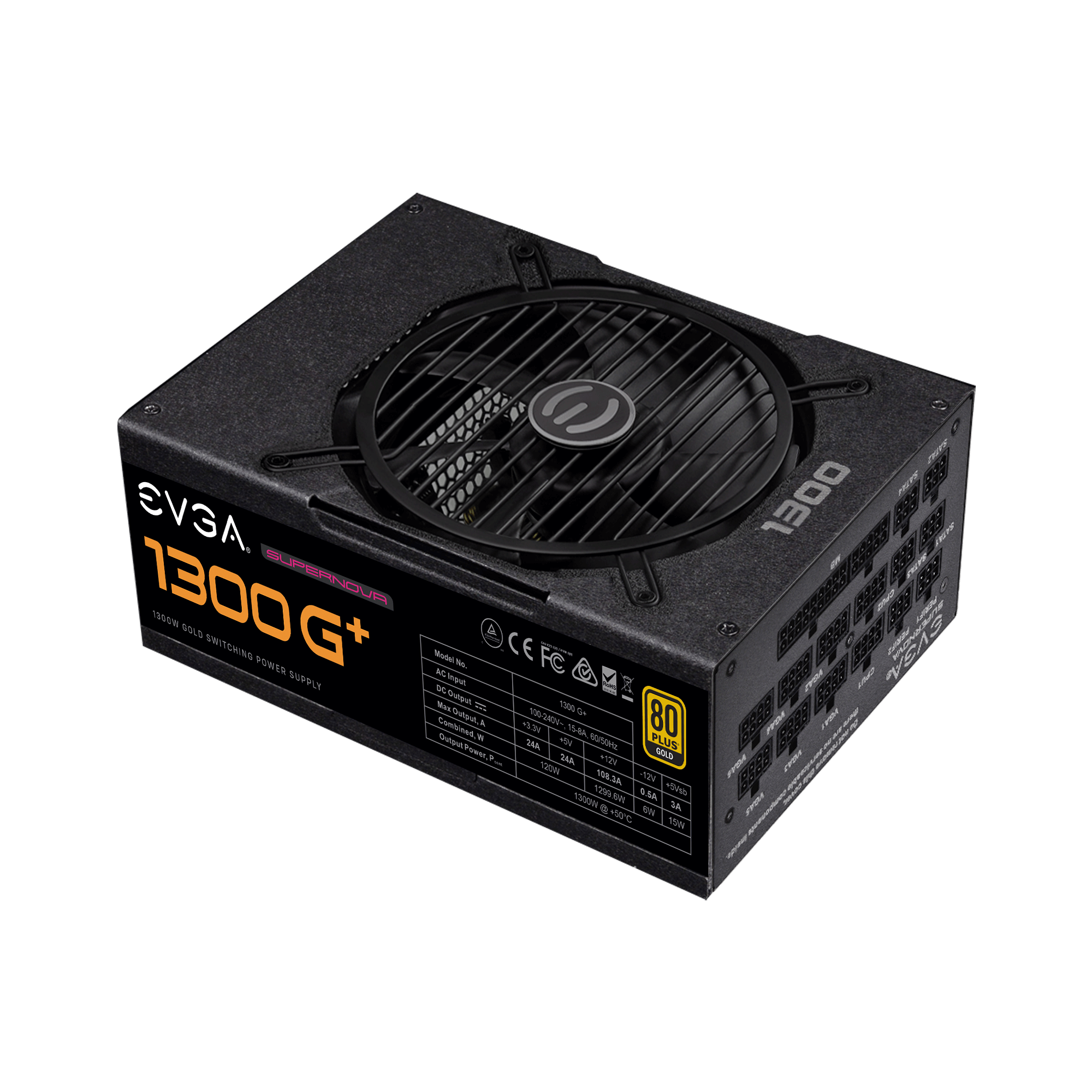

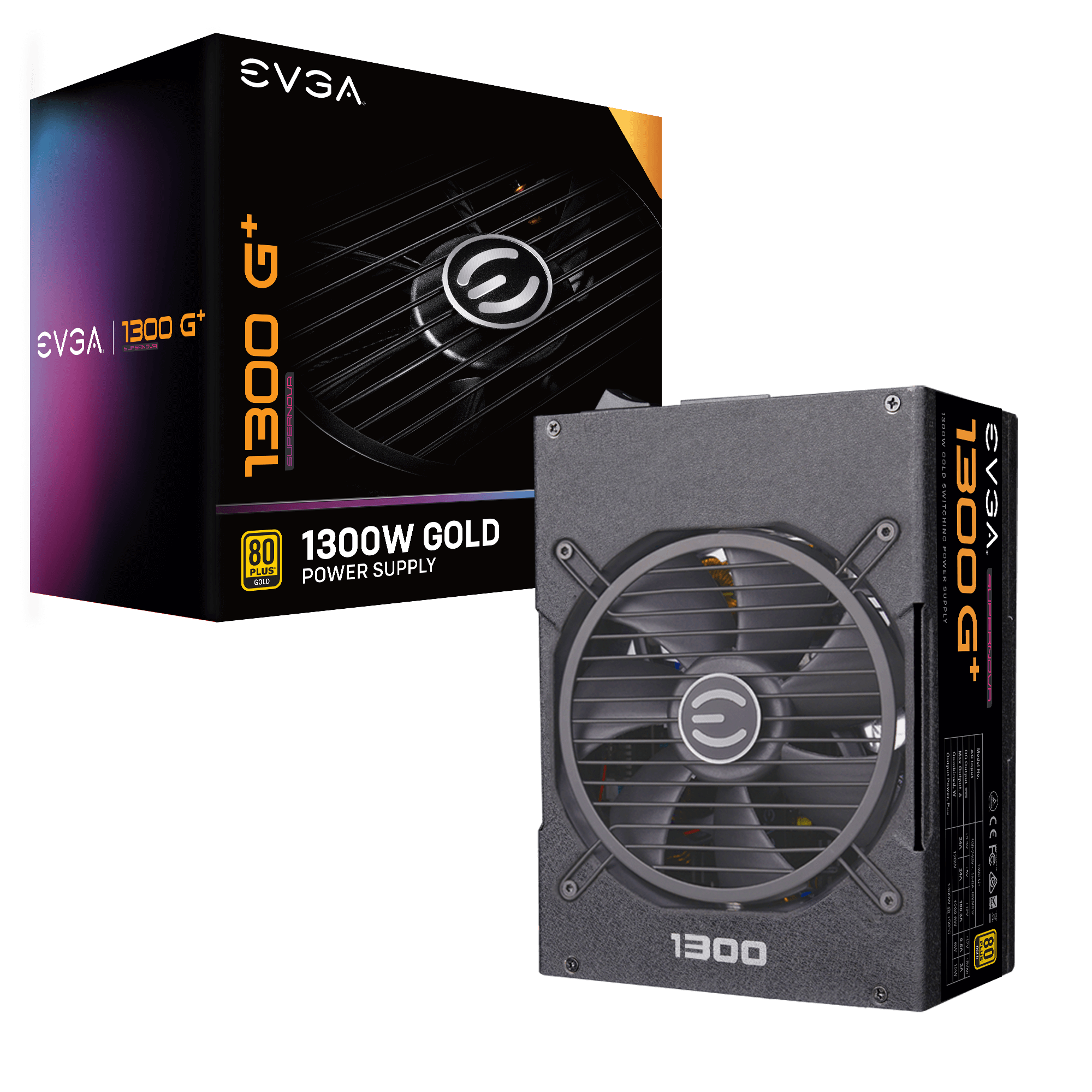

The EVGA 1300 Watt 80 Plus GOLD Fully Modular Smps delivers exceptional power efficiency and reliable performance for your high-end system. Engineered with a fully modular design and 80 PLUS Gold certification, this power supply ensures a clean build, optimized airflow, and superior energy savings.
Key Features at a Glance
- 80 PLUS Gold certified for high energy efficiency.
- Fully modular cabling system to reduce clutter and improve airflow.
- Equipped with 100% Japanese capacitors for long-term reliability.
- EVGA ECO Intelligent Thermal Control System for silent operation at low to medium loads.
- 135mm Fluid Dynamic Bearing fan ensures ultra-quiet cooling and extended lifespan.
- Comprehensive heavy-duty protections: OVP, UVP, OCP, OPP, SCP, OTP.
Optimized Efficiency and Component Quality
Achieve superior energy savings with 80 PLUS Gold certification, delivering 90% (115VAC) / 92% (220VAC~240VAC) efficiency under typical loads. This power supply features 100% Japanese capacitors, known for ensuring long-term reliability and stable power delivery to your components. A DC-DC converter further improves 3.3V/5V stability.
Silent and Durable Cooling Performance
Experience near-silent operation thanks to the EVGA ECO Intelligent Thermal Control System, which eliminates fan noise during low to medium loads. The 135mm Fluid Dynamic Bearing fan provides ultra-quiet cooling and contributes to an increased lifespan for the unit, keeping your system cool without distraction.
Enhanced System Protection and Clean Builds

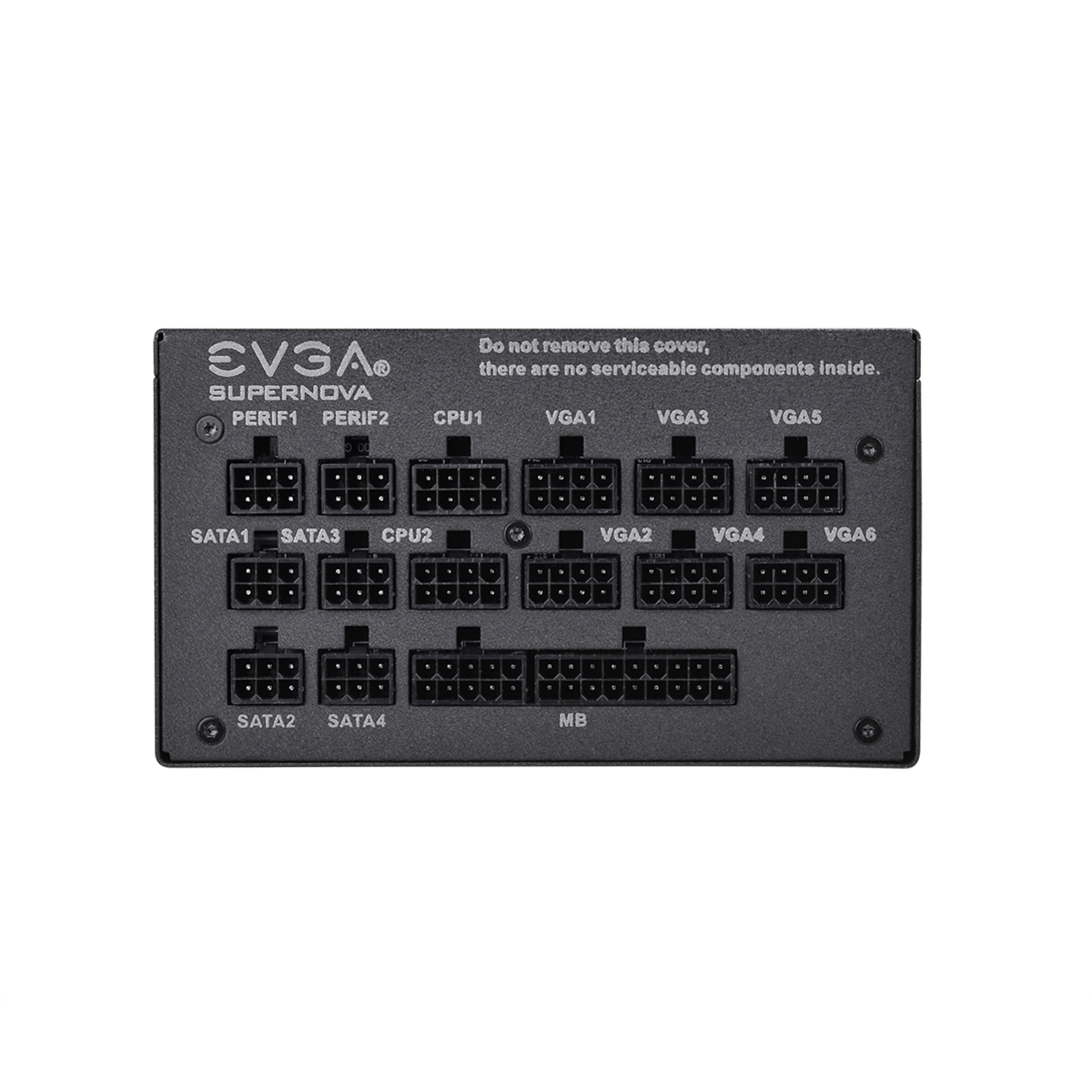

Protect your valuable PC components with a suite of heavy-duty safeguards, including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). The fully modular design allows you to use only the cables you need, reducing clutter and improving airflow within your PC case for a cleaner, more efficient build.
Technical Specifications

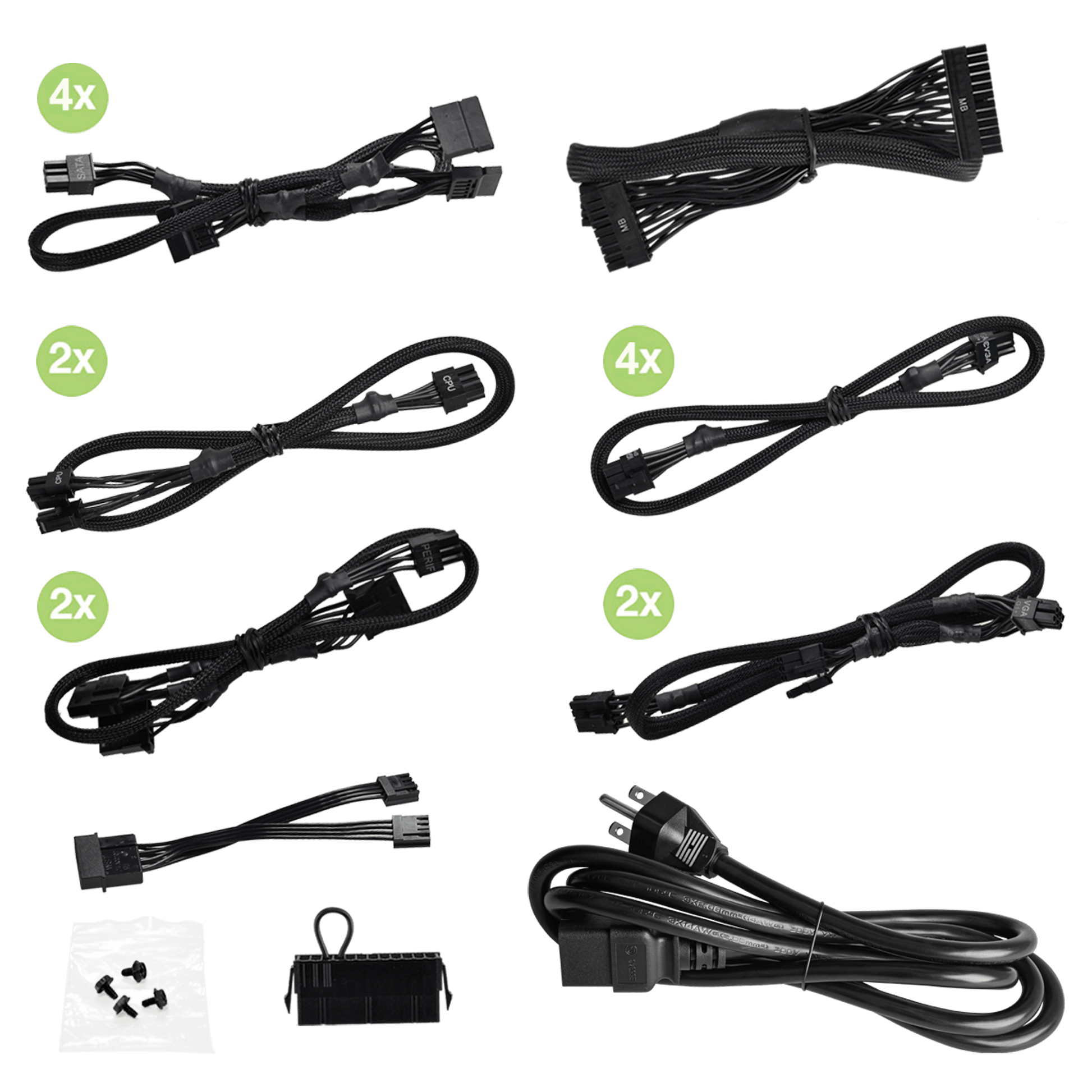

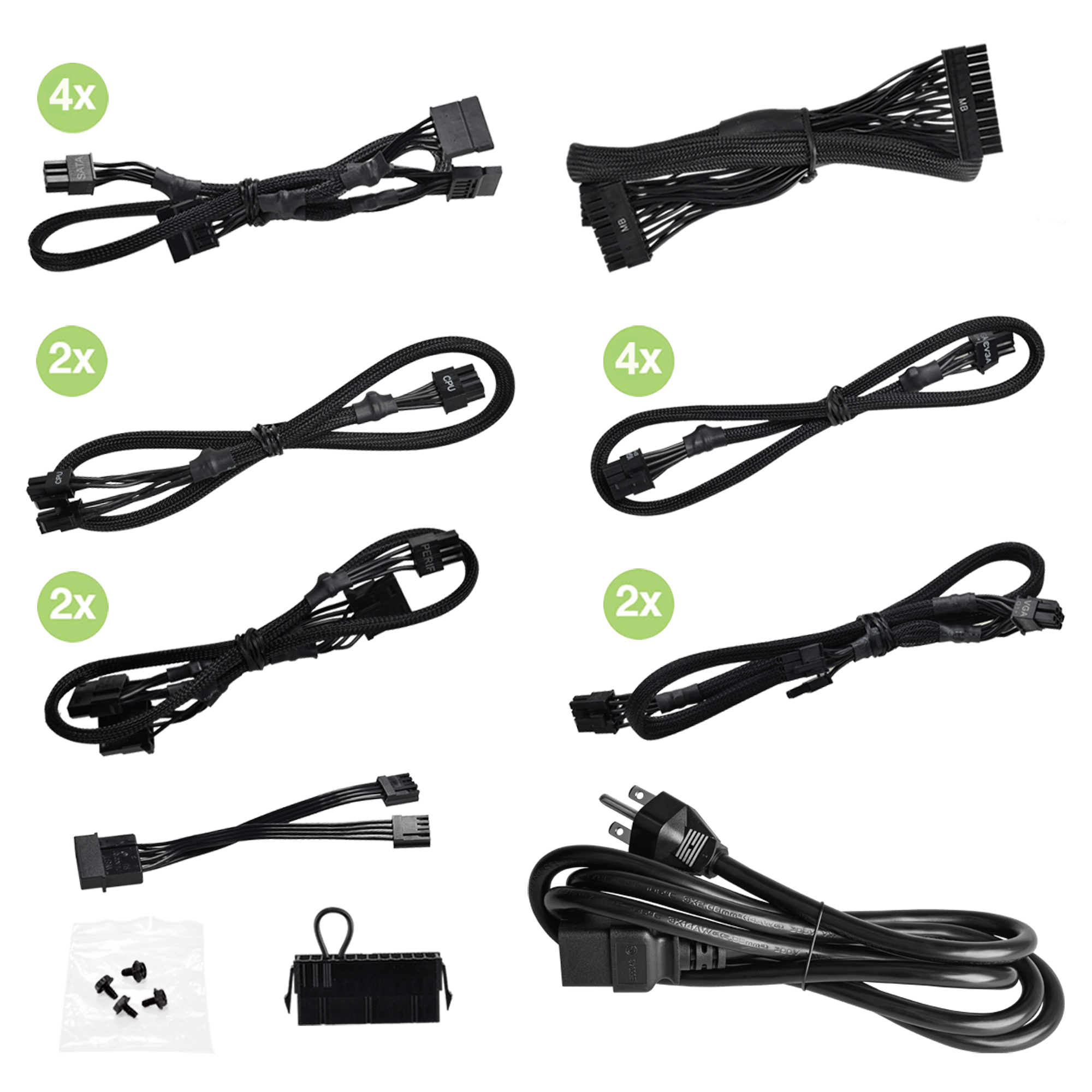

| ATX Cable | 1x 600mm |
| EPS Cable | 2x 750mm |
| PCIe Cable | 4x 750mm, 2x 750mm, 900mm |
| SATA Cable | 4x 550mm, 650mm, 750mm |
| Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm |
| Floppy Adapter | 1x 100mm |
| AC Power | 1x 1800mm |

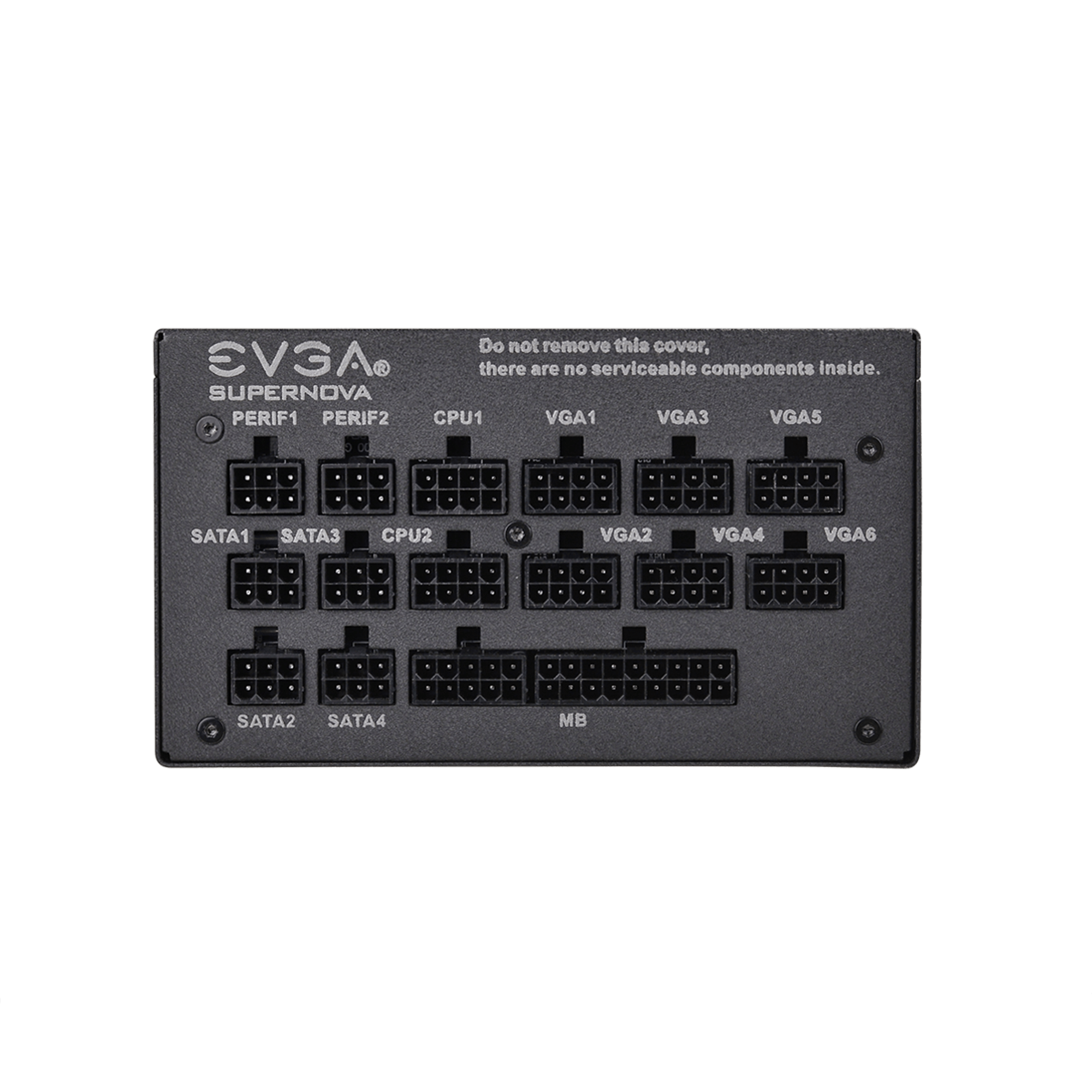

| Modular Cable Type | Full |
| Molex to FDD | 1x |
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIe | 8x 8pin (6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 6x |
| Floppy | 1x |
| AC Input | 100-240V~, 15-8A, 60/50 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 24A | 108.3A | 3.0A | 0.5A |
| 120W | 1299.6W | 15W | 6W | ||
| Total | 1300W | ||||
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 8.20 lbs |
| Size | 86mm (H) x 150mm (W) x 200mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
Frequently Asked Questions
Q: What is the efficiency rating of the EVGA 1300 Watt 80 Plus GOLD Fully Modular Smps?
A: This power supply is 80 PLUS Gold certified, achieving 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads.
Q: How does this power supply ensure quiet operation?
A: It features an EVGA ECO Intelligent Thermal Control System, which eliminates fan noise at low to medium loads, and uses a 135mm Fluid Dynamic Bearing fan for ultra-quiet cooling.
Q: What types of protections are built into this power supply?
A: It includes heavy-duty protections such as Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).
