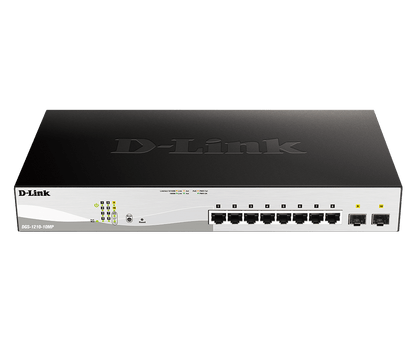

DLINK 10-PORT GIGABIT SMART MANAGED POE SWITCH DGS-1210-10MP
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The DLINK 10-PORT GIGABIT SMART MANAGED POE SWITCH DGS-1210-10MP offers robust network connectivity and power, designed to streamline your operations with intelligent management. This device combines essential features for a reliable and flexible network infrastructure.
Key Features at a Glance
- 8 x 10/100/1000BASE-T PoE ports
- 2 x Gigabit SFP ports
- Advanced L2 switching and security features
- L2+ Static Routing support
- Optional "standard mode" or "surveillance mode" management user interface
- 130W PoE budget
Effortless Power and Connectivity
Power your compatible devices directly through the network cables with 8 10/100/1000BASE-T PoE ports. A generous 130W PoE budget ensures sufficient power delivery for various connected equipment, simplifying your network infrastructure.
Enhanced Network Flexibility
Expand your network capabilities with two dedicated Gigabit SFP ports, offering options for fiber uplinks or longer-distance connections. Coupled with advanced L2 switching and security features, this switch provides reliable and protected data flow across your network.
Intelligent Management Options
Benefit from L2+ Static Routing, enabling more efficient traffic management within your network. The switch also offers an optional management user interface, allowing you to select between a standard mode for general use or a specialized surveillance mode, adapting to your operational needs.
Technical Specifications
|
Acoustic
|
0 dB |
|---|---|
|
CPU Speed
|
500MHz |
|
Dimensions
|
330 x 180 x 44 mm |
|
DRAM Size
|
DDR3 128MB |
|
FAN
|
Fanless |
|
Flash Memory Size
|
32 MB |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Interfaces
|
2 x SFP ports 8 x 10/100/1000BASE-T PoE ports |
|
Max. Packet Forwarding Rate
|
14.88 Mpps |
|
Maximum Heat Dissipation
|
507.23 BTU/hr (240 V) 519.51 BTU/hr (100 V) |
|
Maximum Power Consumption
|
152.3 W/100 V, 148.7 W/240 V (PoE on) 8.5 W/100 V, 9.4 W/240 V (PoE off) |
|
MTBF
|
1,274,005 hours |
|
Operating Altitude
|
1500 m |
|
Packet Buffer Size
|
4.1Mbits |
|
PoE Budget
|
130 W |
|
Power Input
|
100 to 240 V AC |
|
Standby Power Consumption
|
4.3 W/100V 5.2 W/240V |
|
Switch Capacity
|
20 Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage -20 - 70°C |
|
Weight
|
1.77 kg |
Frequently Asked Questions
Q: How many PoE ports does this switch have and what is its budget?
A: The DLINK DGS-1210-10MP switch features 8 10/100/1000BASE-T PoE ports with a total power budget of 130W.
Q: Does this switch support advanced routing features?
A: Yes, this smart managed switch supports L2+ Static Routing, enhancing network efficiency.
Q: What management interface options are available?
A: You can choose between an optional "standard mode" or "surveillance mode" management user interface, depending on your application.
