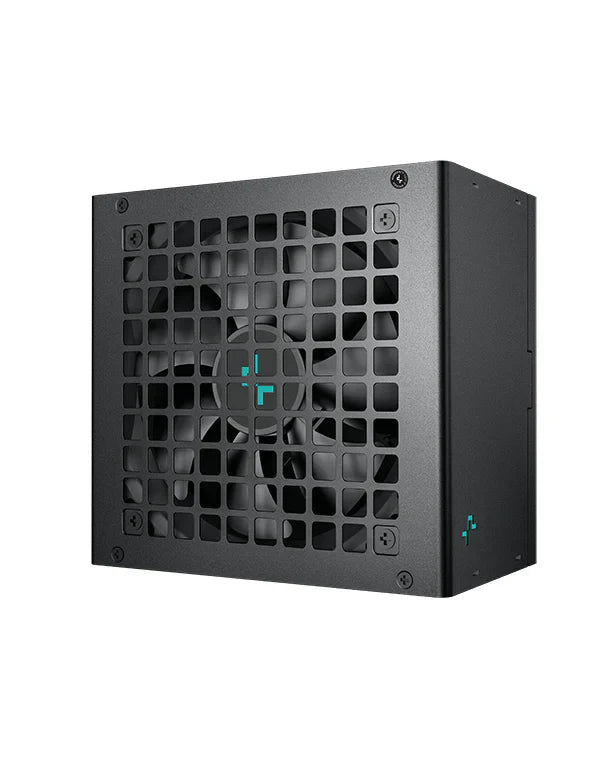

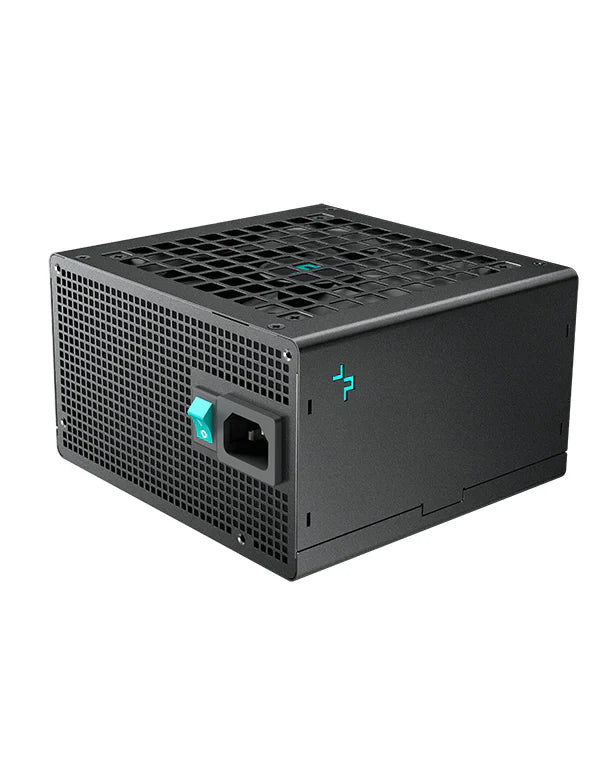

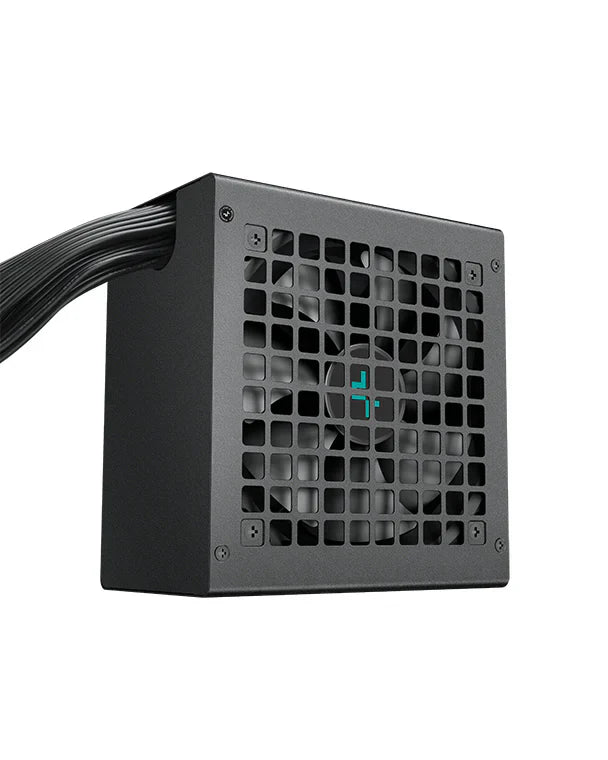

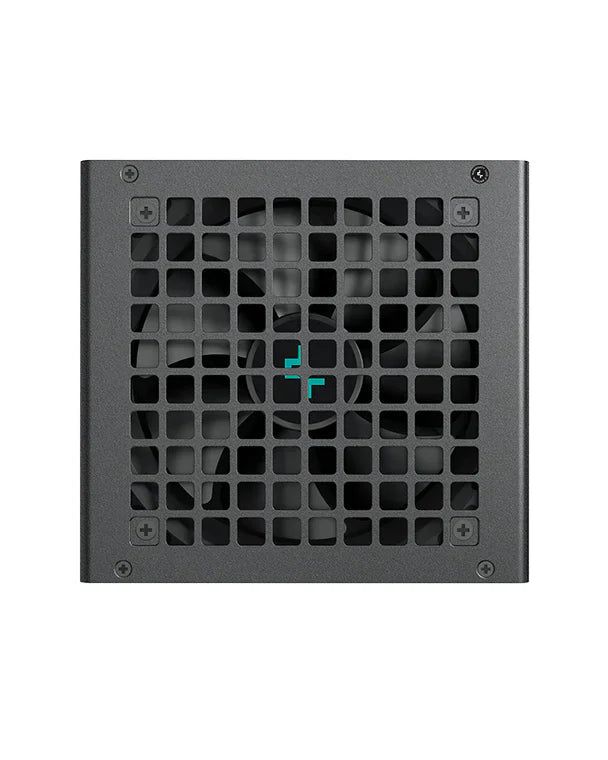

The DEEPCOOL PL650D 650 Watt 80 PLUS BRONZE ATX 3.0 Power Supply is engineered to provide essential and reliable power for your system. This power supply adheres to the modern ATX 3.0 standard and offers 650 watts of output with an 80 PLUS BRONZE efficiency rating, ensuring consistent performance for your components.
Key Features at a Glance
- Provides 650 Watt power output.
- Achieves 80 PLUS BRONZE certified efficiency.
- Compliant with the ATX 3.0 standard.
- Designed by DEEPCOOL.
Reliable Power Delivery
With a 650-watt output, this power supply ensures your system's components receive consistent and stable power, crucial for reliable operation.
Efficient Operation
The 80 PLUS BRONZE certification helps to minimize energy waste, contributing to a more efficient system and reducing operational heat.
Modern Standard Compliance
Adherence to the ATX 3.0 standard ensures compatibility and optimized performance with contemporary PC builds and hardware requirements.
Technical Specifications
| Type | ATX12V V3.0 |
|---|---|
| Product Dimensions | 150 × 140 × 86 mm (W x L x H) |
| Efficiency Certification | 80 Plus Bronze |
| Fan Size | 120 mm |
| Fan Bearing | HYB (Hydro Bearing) |
| Topology | Active PFC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150 ms |
| Hold Up Time | ? 16 ms |
| Efficiency | ? 85% Under Typical Load (50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40? |
| Regulatory | CE/FCC/CCC/RCM/EAC/BIS/CAN ICES-003(B)/NMB-003(B)/TUV-RH |
| ErP Regulation | ErP 2014 |
| Environment Protection | WEEE/?? RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
Frequently Asked Questions
Q: What is the wattage of this power supply?
A: This power supply provides 650 watts of power.
Q: What efficiency rating does the DEEPCOOL PL650D have?
A: It is 80 PLUS BRONZE certified for efficiency.
Q: Is this power supply compliant with current industry standards?
A: Yes, it complies with the ATX 3.0 standard.
