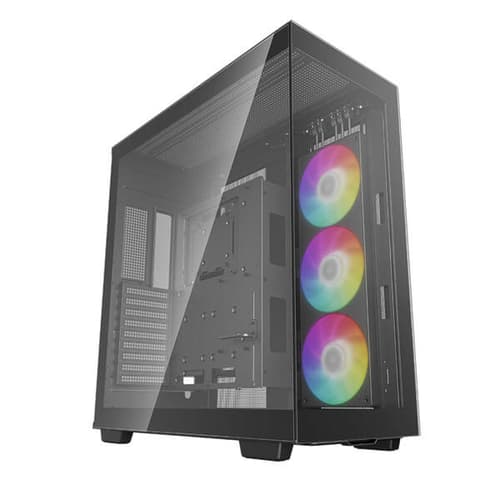

DeepCool CH780 ARGB E-ATX Full Tower Case
DeepCool CH780 ARGB E-ATX Full Tower Case
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Experience a new level of PC building with the DeepCool CH780 ARGB E-ATX Full Tower Case. This ATX+ form factor case features a panoramic glass-dual chamber layout, designed for broad component compatibility and efficient organization. Enjoy extensive cooling capabilities, streamlined ARGB fan setup, and thoughtful quality-of-life upgrades for a superior build.
Key Features at a Glance
- Panoramic glass-dual chamber layout for an expansive view.
- Supports E-ATX motherboards and GPUs up to 480mm in length.
- Extensive cooling with support for nine 120/140mm fans or four 200mm fans.
- Accommodates up to three 420mm radiators simultaneously.
- Includes three pre-installed 140mm ARGB fans with single-cable wiring.
- Magnetic tempered glass side panel with an optional screw lock for security.
Panoramic Design & Broad Compatibility
The ATX+ form factor of the CH780 ensures wide compatibility with various components, supporting E-ATX motherboards and GPUs up to 480mm in length. The panoramic glass-dual chamber layout provides an expansive view of your build, with an included PCI-e riser cable and vertical mount for your GPU.
Superior Cooling Flexibility
Achieve optimal thermal performance with extensive cooling options. The CH780 supports up to nine 120mm or 140mm fans, or four massive 200mm fans, thanks to modular fan rails. It can simultaneously accommodate up to three 420mm radiators at the top, bottom, and side for advanced liquid cooling solutions, though CPU cooler height is limited to 132mm.
Streamlined ARGB Fan Setup
Simplify your build with three pre-installed 140mm ARGB fans. These fans are united into a single 420mm unit, requiring only one set of PWM and ARGB cables. This thoughtful design significantly reduces cable management efforts, enhancing both aesthetics and convenience.
Thoughtful Quality-of-Life Enhancements
Enjoy a hassle-free building and maintenance experience. The magnetic tempered glass side panel offers easy access, with an optional screw lock for added security. A built-in swing-out GPU support arm provides stability, while a generous 26mm of cable management space keeps your interior tidy. A magnetic top mesh filter ensures dust protection and easy cleaning.
Technical Specifications
| Model Number | R-CH780-BKADE41-G-1 |
| Product Dimensions | 528×250×551mm(L×W×H) |
| Net Weight | 13.7Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / M-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×4、Audio×1、Type-C×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 9 Slots |
| Pre-Installed Fans | Side：1×420mm ARGB |
| Fan Support | Top: 3×120 / 3×140 / 2×180 / 2×200mm Side: 3×120 / 3×140mm Bottom: 3×120 / 3×140 / 2×180 / 2×200mm |
| Radiator Support | Top: 120/140/240/280/360/420mm Side: 120/140/240/280/360/420mm Bottom: 120/140/240/280/360/420mm |
| CPU Cooler Height Limit | 132mm |
| GPU Length Limit | 480mm |
| Power Supply Type | ATX PS2（maximum length: 180mm） |
| Warranty | 1 Year |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Frequently Asked Questions
Q: What motherboard form factors does the DeepCool CH780 support?
A: The CH780 supports E-ATX motherboards and has an ATX+ form factor.
Q: How many fans are pre-installed in the CH780 case?
A: It comes with three pre-installed 140mm ARGB fans, united into a single 420mm unit.
Q: Is there a limit to the CPU cooler height in this case?
A: Yes, the CPU cooler height is limited to 132mm due to the internal configuration.
