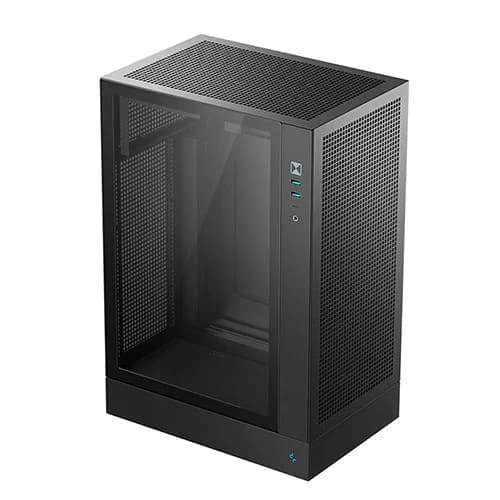

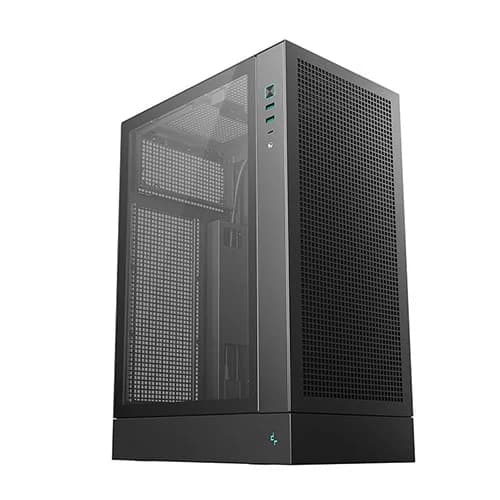

The DeepCool CH170 Plus M-ATX Mini Tower Case offers a compact yet versatile solution for your PC build. Designed for optimal airflow, this case combines robust component support with a space-saving footprint, making it ideal for various configurations.
Key Features at a Glance
- Compact vertical M-ATX mini tower design.

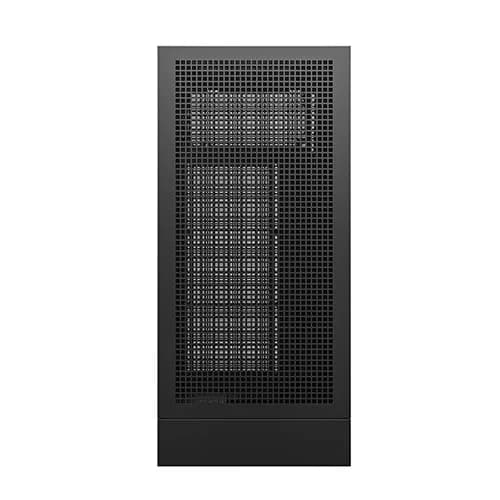

- Enhanced airflow via mesh panels on multiple sides.
- Showcase internal components with a tempered glass panel.
- Accommodates GPUs up to 342mm in length.
- Supports ATX, SFX, and SFX-L power supplies up to 140mm.
- Versatile cooling with support for 240mm radiators and multiple fans.
Optimal Airflow and Visibility
Experience superior cooling performance with mesh panels strategically placed on multiple sides, ensuring your system stays cool under pressure. A crystal-clear tempered glass panel provides an unobstructed view, beautifully displaying your internal components.
Broad Component Compatibility
This case provides generous space for high-performance components. It supports GPUs up to 342mm in length (328mm with a top fan installed), with widths up to 138mm and thicknesses up to 75mm. Power supply options are flexible, accommodating ATX, SFX, and SFX-L units up to 140mm.
Versatile Cooling Solutions
Customize your cooling setup to match your needs. The DeepCool CH170 Plus supports extensive cooling configurations, ensuring efficient thermal management for your components. Room for air coolers up to 164mm tall.
Radiator Support:
- Side: 120mm or 240mm
- Bottom: 120mm
Fan Support:
- Top: 1 x 120mm or 1 x 140mm (with SFX PSU)
- Side: 2 x 120mm
- Bottom: 1 x 120mm
Seamless Connectivity and Maintenance
Access your peripherals with ease thanks to two readily available USB 3.0 ports, a Gen2 Type-C port, and a hybrid audio jack. Four-sided dust filters simplify routine cleaning, helping to keep your system immaculate and well-maintained.
Technical Specifications
| Cabinet | |
| Cabinet Size | MINI-TOWER |
| Color | Black |
| Material | ABS+SPCC+Tempered Glass |
| Expansion Slots | 4 |
| Motherboard Size | M-ATX,M-ITX |
| Max CPU Cooler Height | 164mm |
| Max PSU Length | 140mm |
| Max Gpu Length | 342mm |
| Max 3.5" HDD | 1 |
| Max 2.5" SSD | 2 |
| Dust Filters | Top, Bottom, Front, Rear |
| Pre Installed Fans | N/A |
| Max Fan Support | 4 |
| Radiator Support | 240mm,140mm,120mm |
| Front I/O Panel | USB 3.0, USB Gen2 Type-C, Audio/Mic |
| Warranty | 1 Year |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Frequently Asked Questions
Q: What types of power supplies are compatible with the DeepCool CH170 Plus?
A: The DeepCool CH170 Plus supports ATX, SFX, and SFX-L power supplies, with a maximum length of 140mm.
Q: What is the maximum length of a graphics card this case can accommodate?
A: This case can support graphics cards up to 342mm in length. If a top fan is installed, the maximum length is 328mm.
Q: Does the DeepCool CH170 Plus include dust filters?
A: Yes, the case features integrated dust filters on all four sides for easier maintenance and to help keep your system clean.
