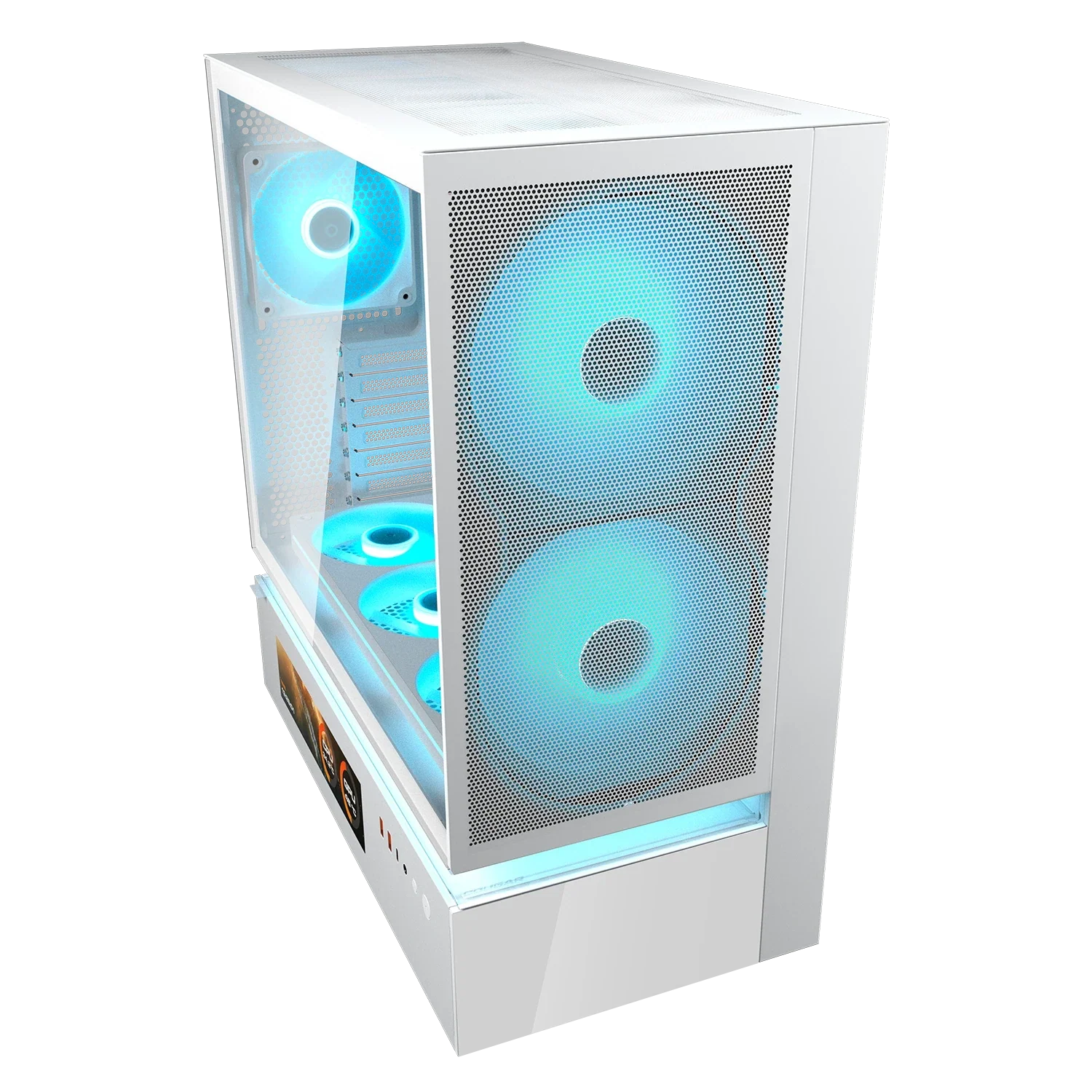

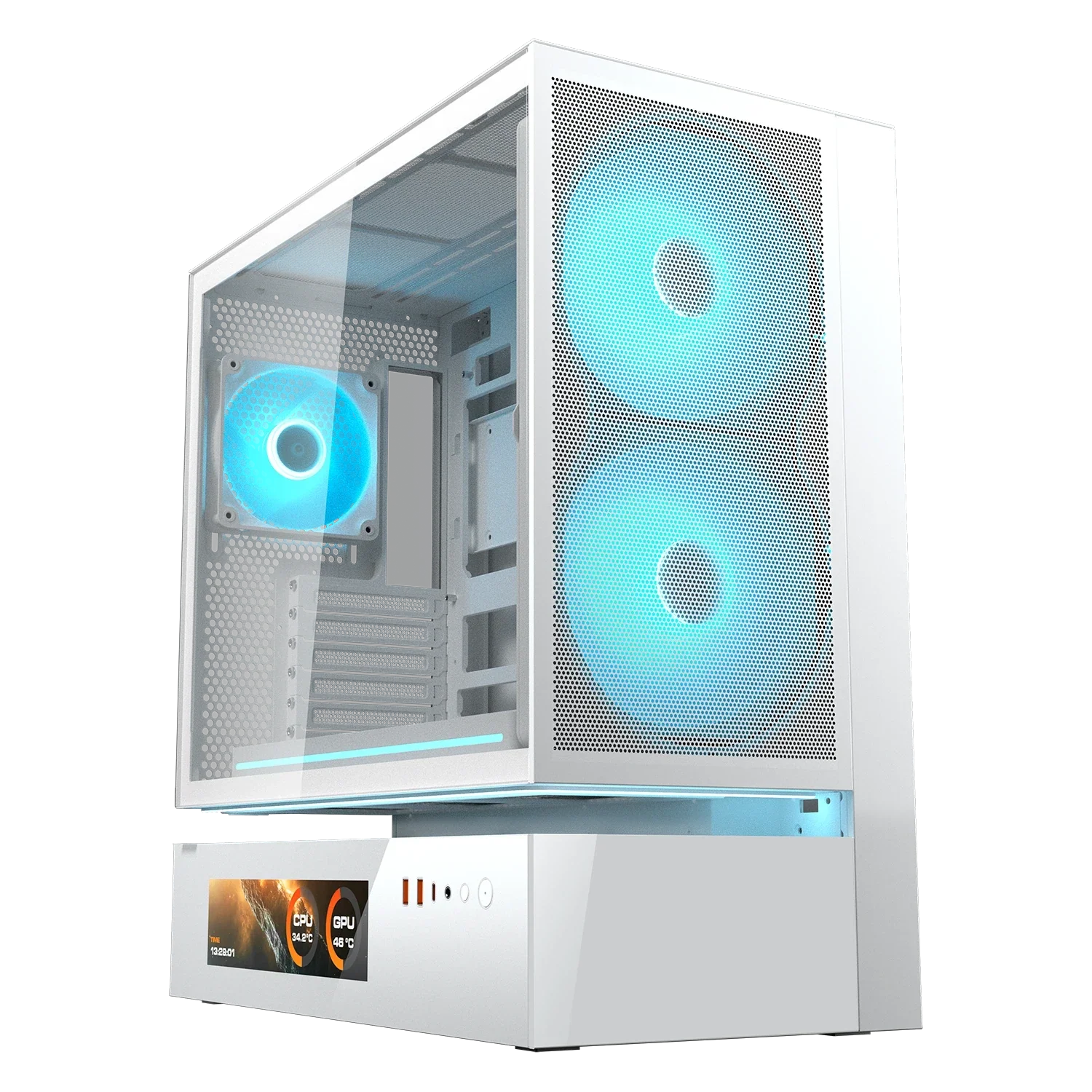

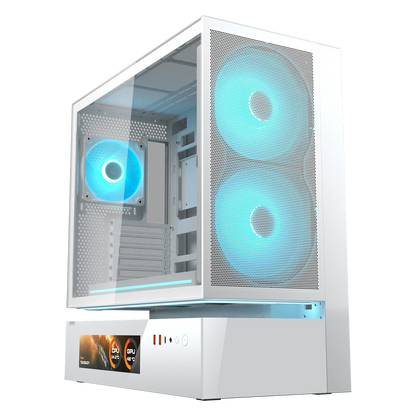

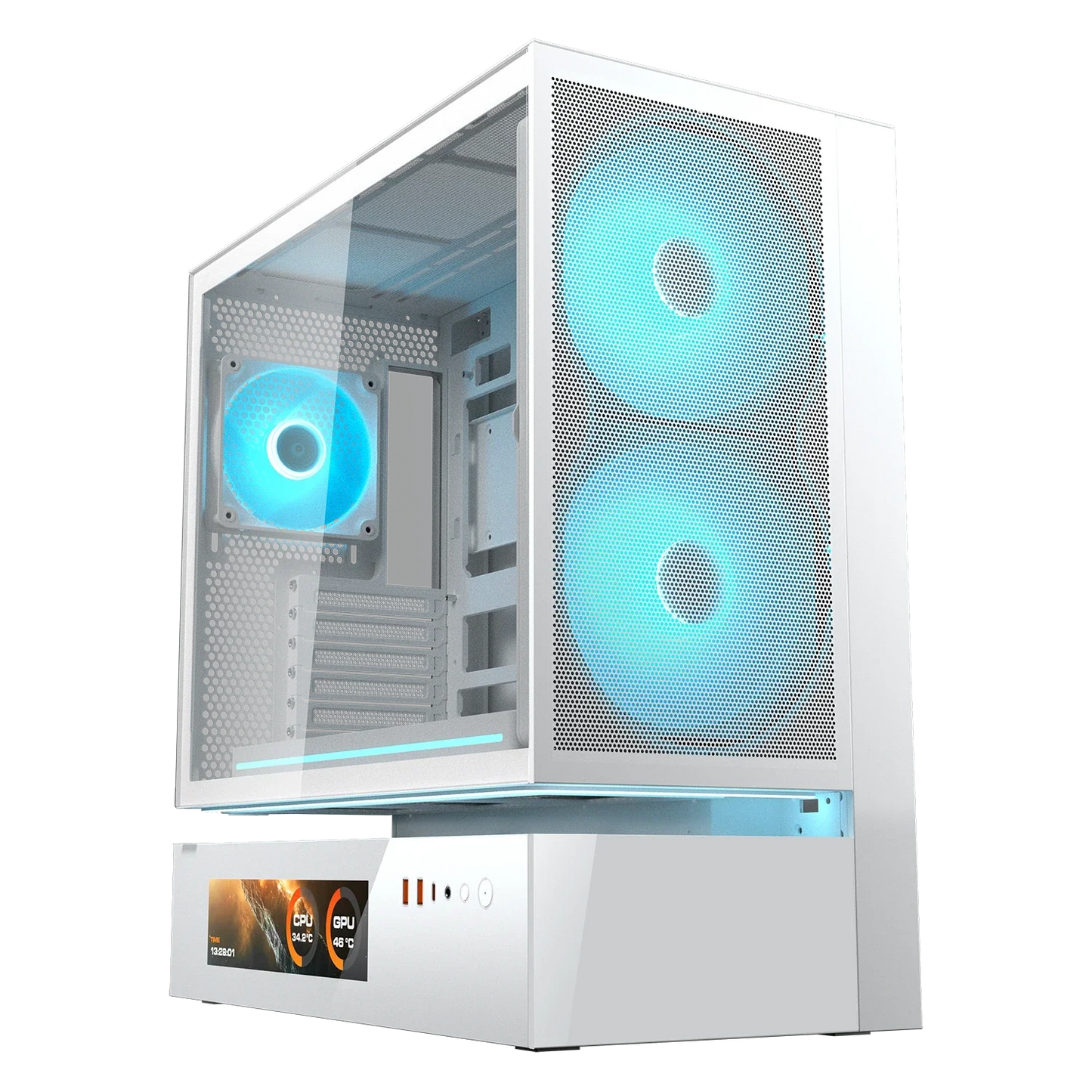

The Cougar CFV235 Mesh Vision White Cabinet offers a new kind of PC case experience, built around an innovative Central Floating Ventilation (CFV) structure. This design efficiently divides the PSU cabin and main chamber, transforming the space in between into a significant cooling advantage without increasing the case's compact footprint. An integrated 9.16-inch IPS TFT LCD panel provides real-time, software-controlled system monitoring, displaying critical data and customizable visuals in ultra-crisp 1920x462 resolution at a 60Hz refresh rate.

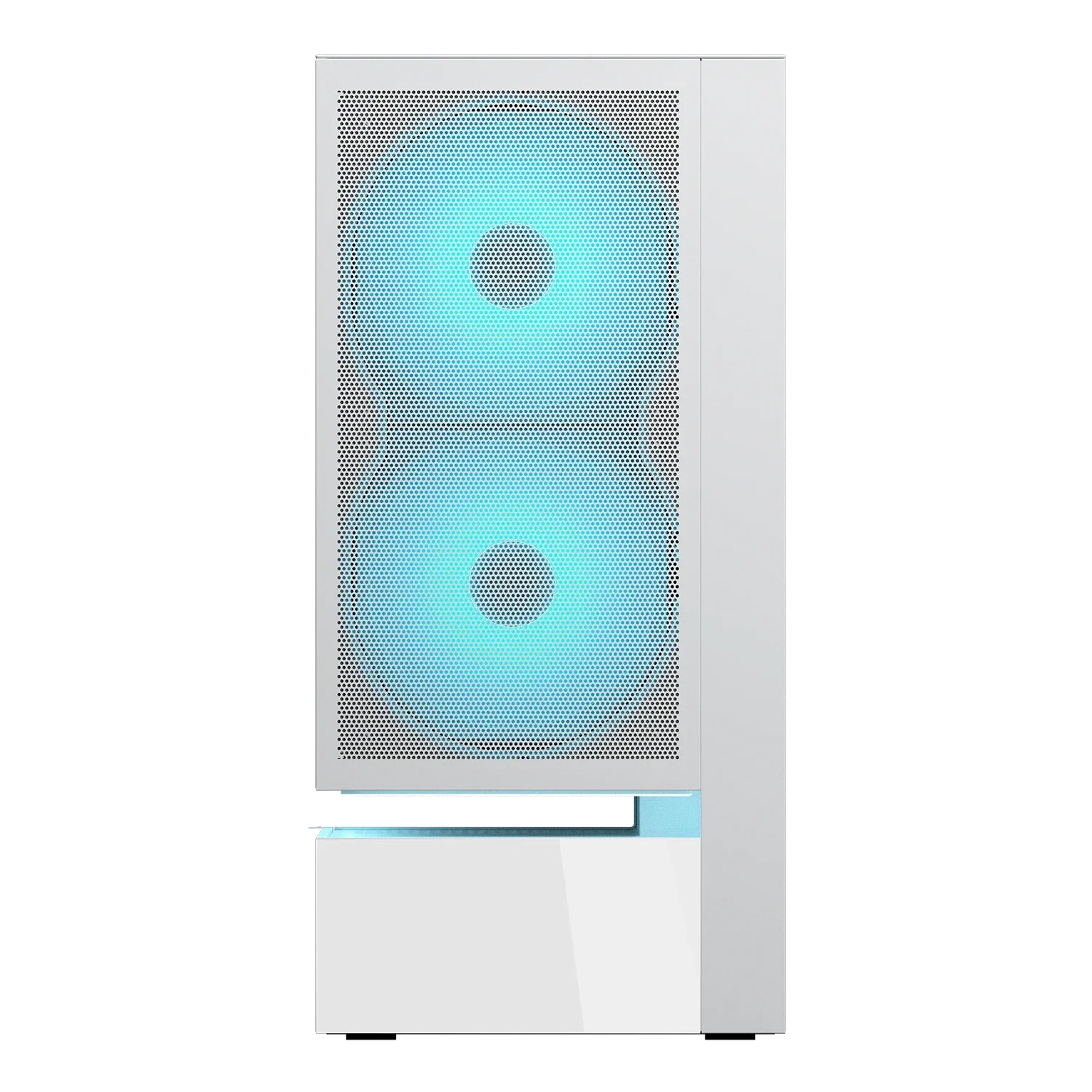

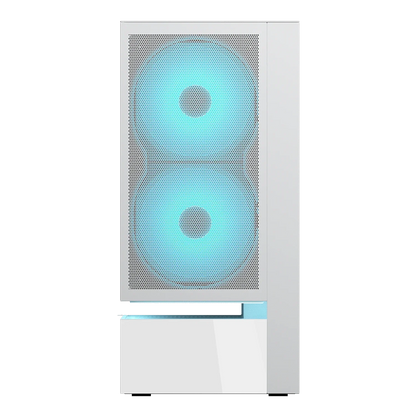

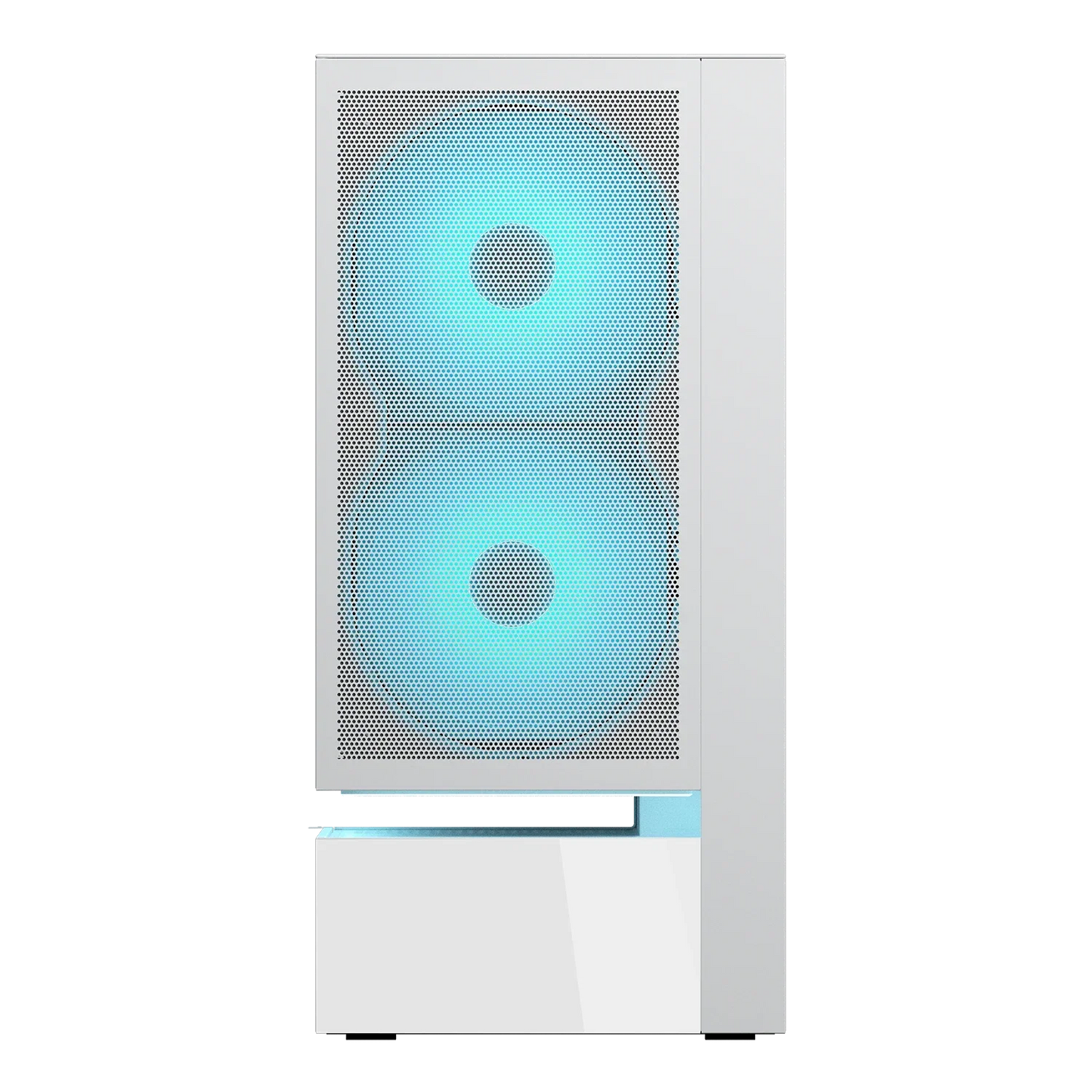

Paired with a 3-in-1 front panel module—combining mesh, dual 160mm ARGB PWM fans, and a dust filter into a single pre-assembled unit— this cabinet empowers airflow beyond ordinary dimensions, visualized.
Key Features at a Glance
- Innovative Central Floating Ventilation (CFV) structure for enhanced cooling.
- Integrated 9.16-inch IPS TFT LCD panel for real-time system monitoring.
- 3-in-1 front panel module with dual 160mm ARGB PWM fans, mesh, and dust filter.
- True floating void adds 270° airflow access and a unique visual identity.
- Aurora RGB lighting strip illuminates the free-floating space.
- Versatile connectivity: USB 3.2 Gen 2x2 Type-C, USB 3.0 Type-A, 4-pole audio jack.
Unrivaled Airflow and Cooling
The Central Floating Ventilation (CFV) structure optimizes internal space, providing architecturally-enhanced cooling performance. Its unique free-floating separation creates an extra dimension of airflow across 270 degrees, ensuring your components stay cool within a compact footprint.
Integrated System Visualization

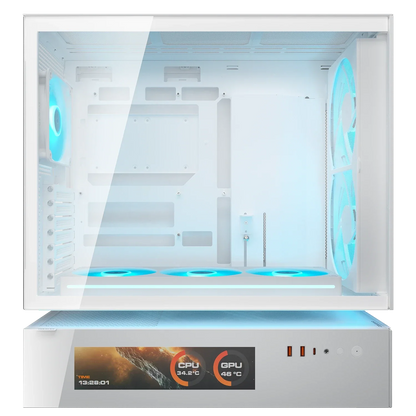

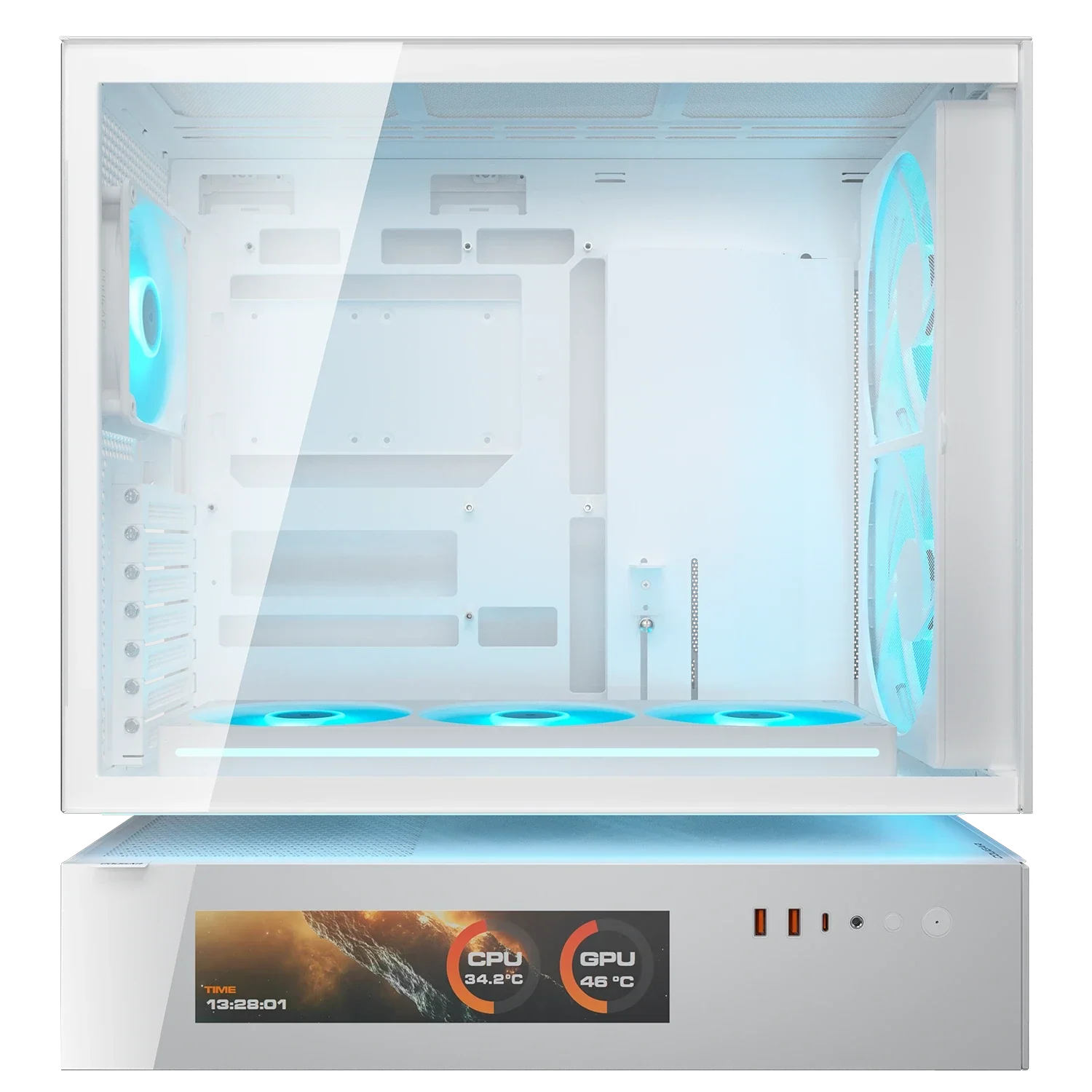

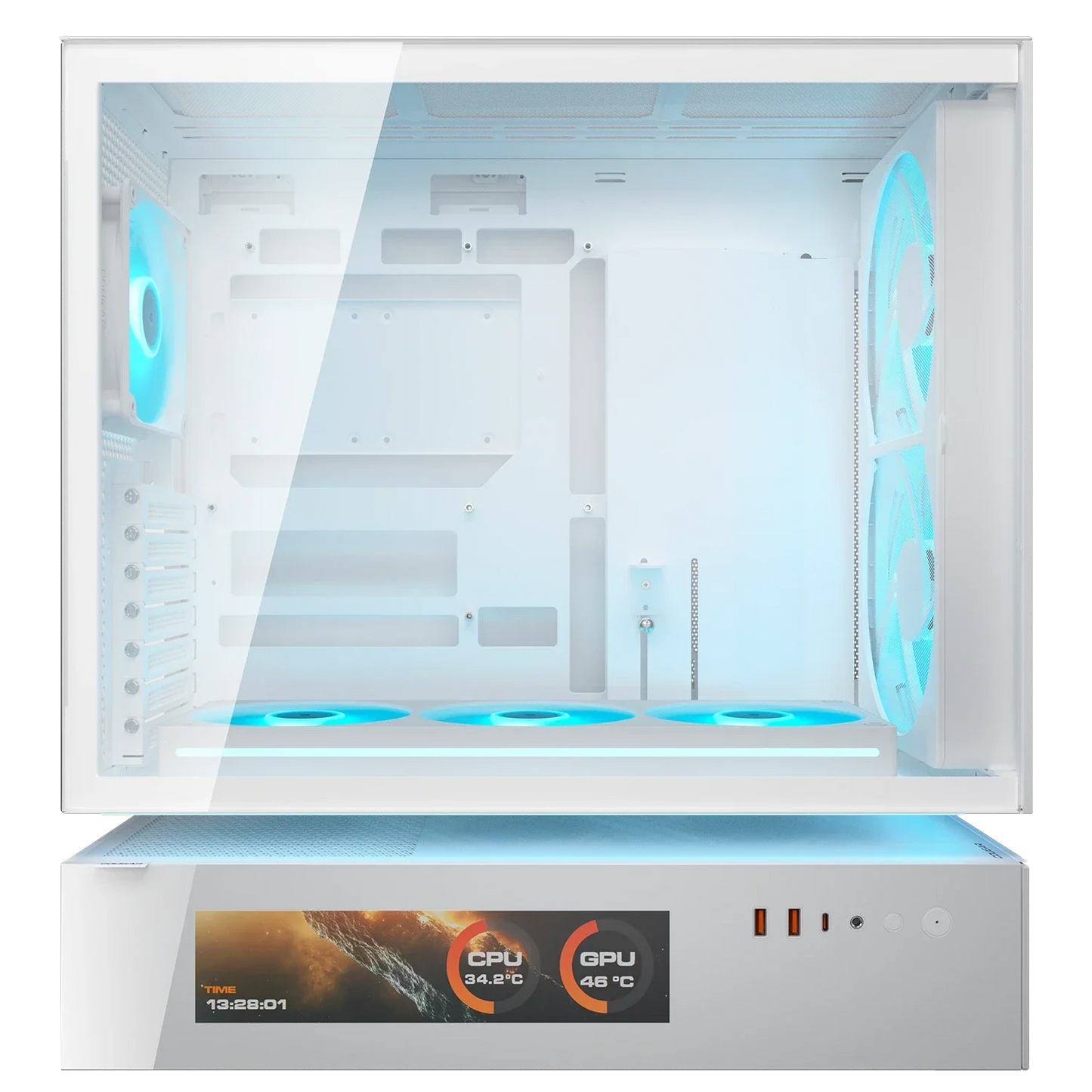

Monitor your system's performance at a glance with the built-in 9.16-inch IPS TFT LCD panel. This display delivers real-time data and customizable visuals in ultra-crisp 1920x462 resolution with a 60Hz refresh rate, fully accessible from your desktop through control software.
Effortless Setup and Maintenance

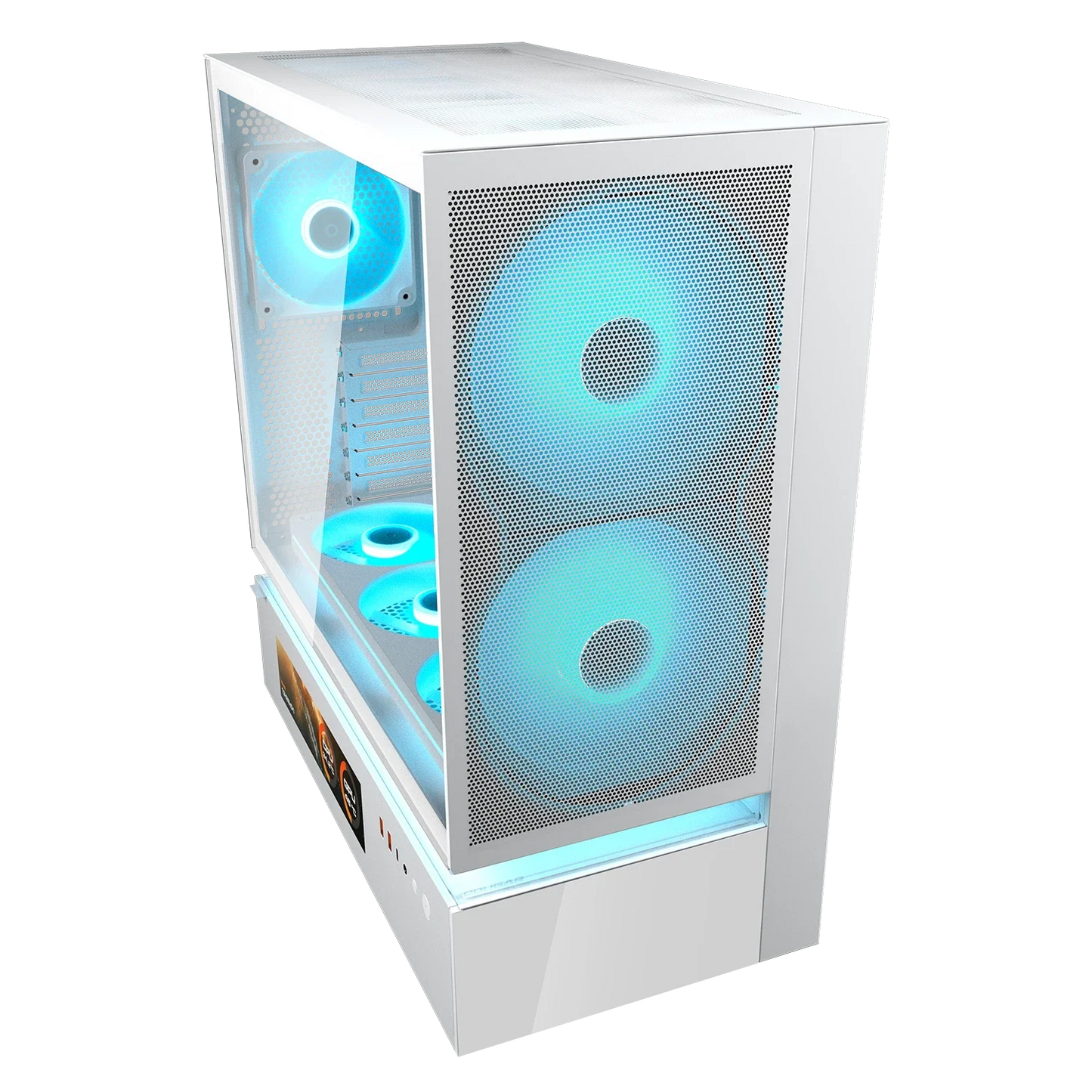

The innovative 3-in-1 front panel module simplifies assembly and upkeep. Pre-assembled with dual 160mm ARGB PWM fans, a mesh panel, and a dust filter, it connects with a pogo pin to minimize cabling, ensuring easy setup and a cleaner view.
Flexible Expansion and Connectivity
This cabinet accommodates a maximum GPU length of 400mm and is compatible with a range of motherboards including Reverse Connector, Mini ITX, Micro ATX, ATX, and CEB. Versatile front I/O options, including USB 3.2 Gen 2x2 Type-C (20 Gbps) x 1, USB 3.0 Type-A x 2, and a 4-pole headset audio jack, provide ample connectivity for all your devices.
Technical Specifications
| Product Name | CFV235 Mesh Vision (White) | ||
|---|---|---|---|
| Case Form Factor | Mid Tower | ||
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB | ||
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) |
||
| 9.16" LCD Monitor (1920 x 462 px) | Yes | ||
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button | ||
| 3.5" Drive Bay | 2 | ||
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) | ||
| Expansion Slots | 7 | ||
| Cooling Fan Support | Front | 160mm x 2 | |

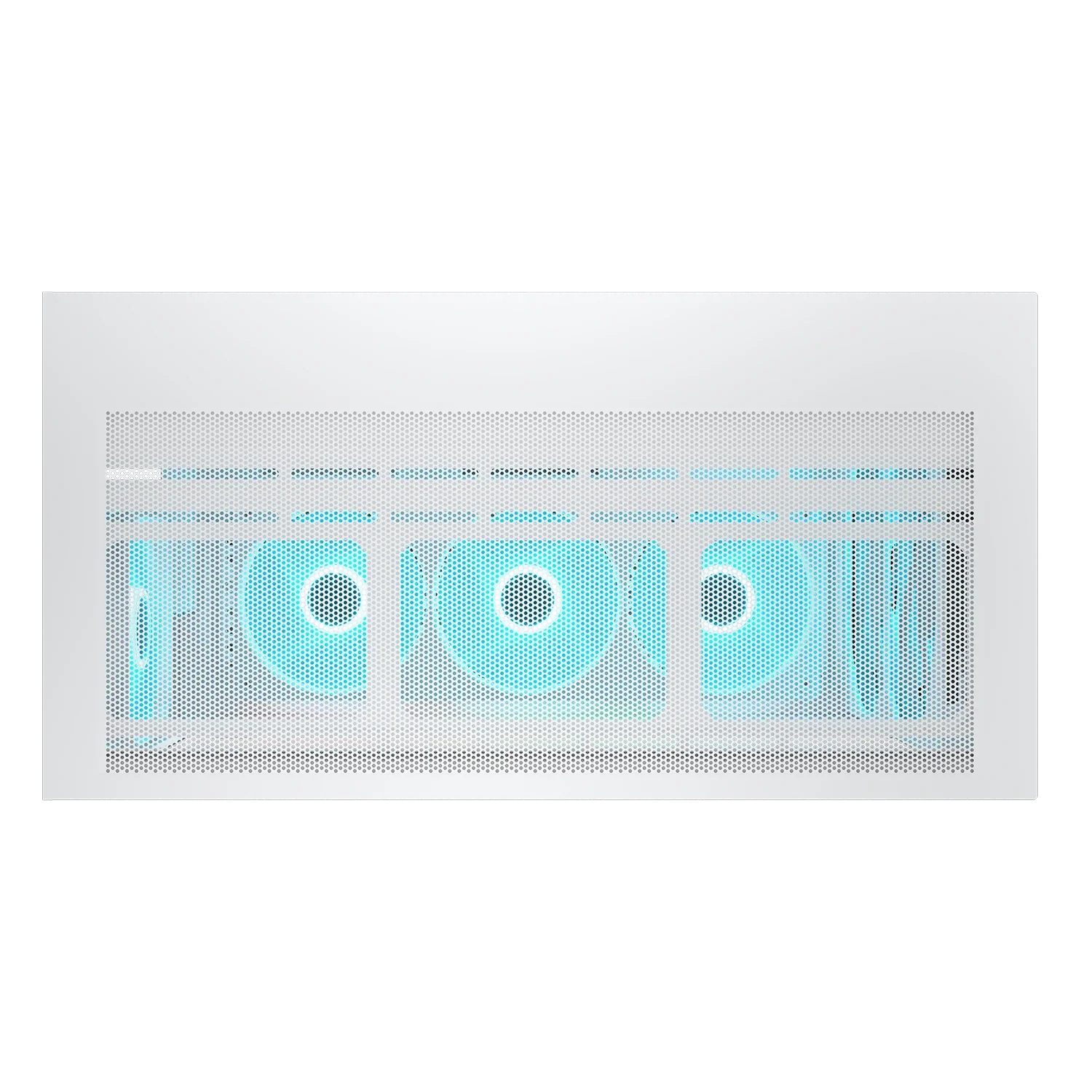

| Top | 120mm x 3 / 140mm x 2 | ||
| Bottom | 120mm x 3 | ||

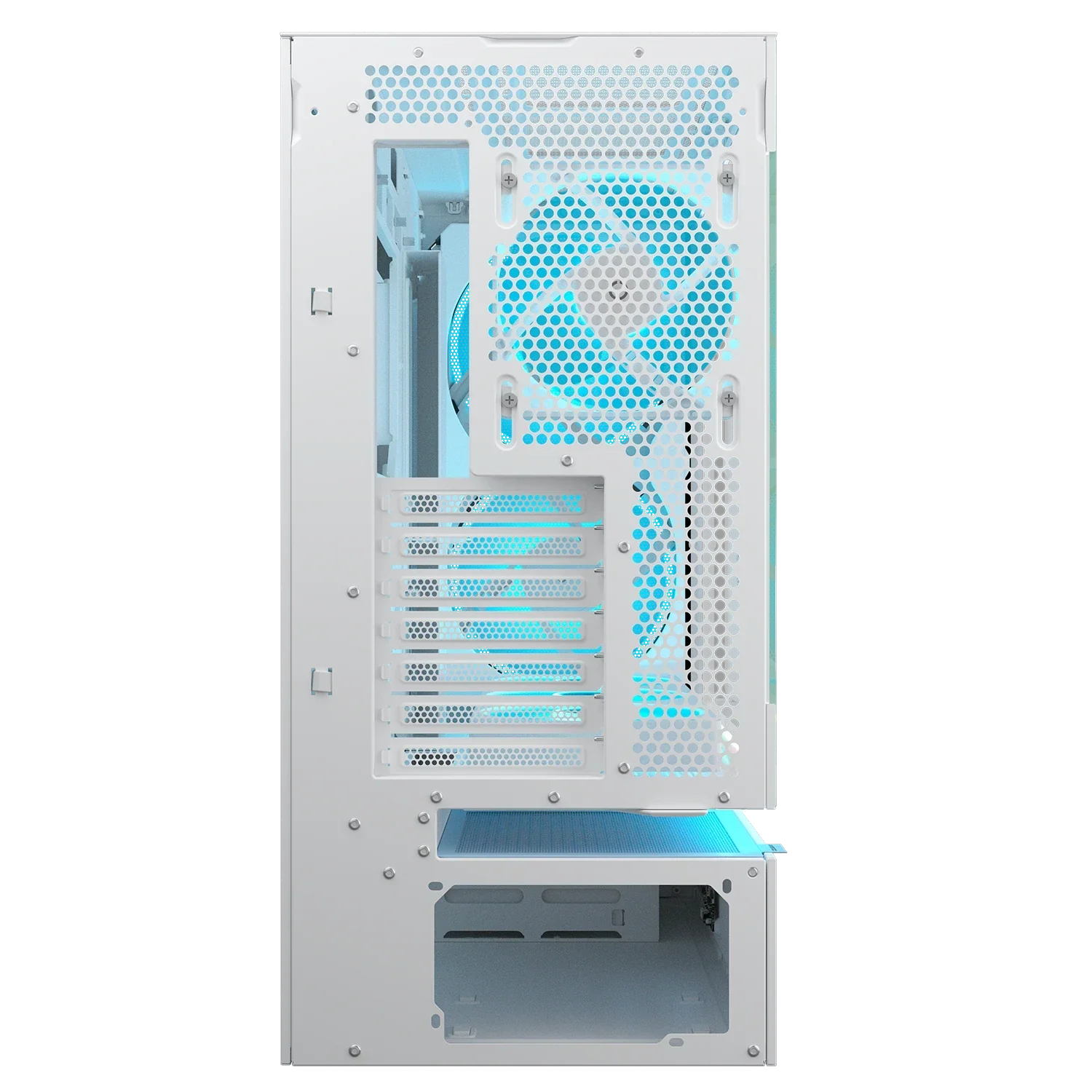

| Rear | 120mm x 1 | ||
| Pre-installed Fans | Front | 160mm ARGB PWM fan x 2 | |
| Bottom | Unity 360 ARGB PWM Reversed fan x 1 | ||
| Rear | 120mm ARGB PWM fan x 1 | ||
| Speed | 160mm ARGB PWM fan: 500-1200 ± 10% RPM Unity 360 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
||
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) | ||
| Maximun Number of Fans | 9 | ||
| Water Cooling Support | Top | 360mm / 280mm / 240mm / 140mm / 120mm | |
| Rear | 120mm | ||
| Aurora LED Strip | Yes | ||
| PWM and RGB hub Sync with M/B | Yes | ||
| Max. Graphics Card Length | 400 (mm) / 15.7 (in) | ||
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) | ||
| Max. PSU Length | 200 (mm) / 7.9 (in) | ||
Frequently Asked Questions
Q: What is the Central Floating Ventilation (CFV) structure?
A: The CFV structure is an innovative design that divides the PSU cabin and main chamber, utilizing the free space in between as a cooling advantage to provide architecturally-enhanced airflow.
Q: What kind of display is integrated into the case?
A: It features an integrated 9.16-inch IPS TFT LCD panel that displays real-time system monitoring data and customizable visuals in 1920x462 resolution with a 60Hz refresh rate.
Q: What are the storage options available in this cabinet?
A: The Cougar CFV235 Mesh Vision White Cabinet accommodates 2 x 3.5” HDD drives and 2+2 2.5” SSD drives, which can be converted from the 3.5” drive bays.
