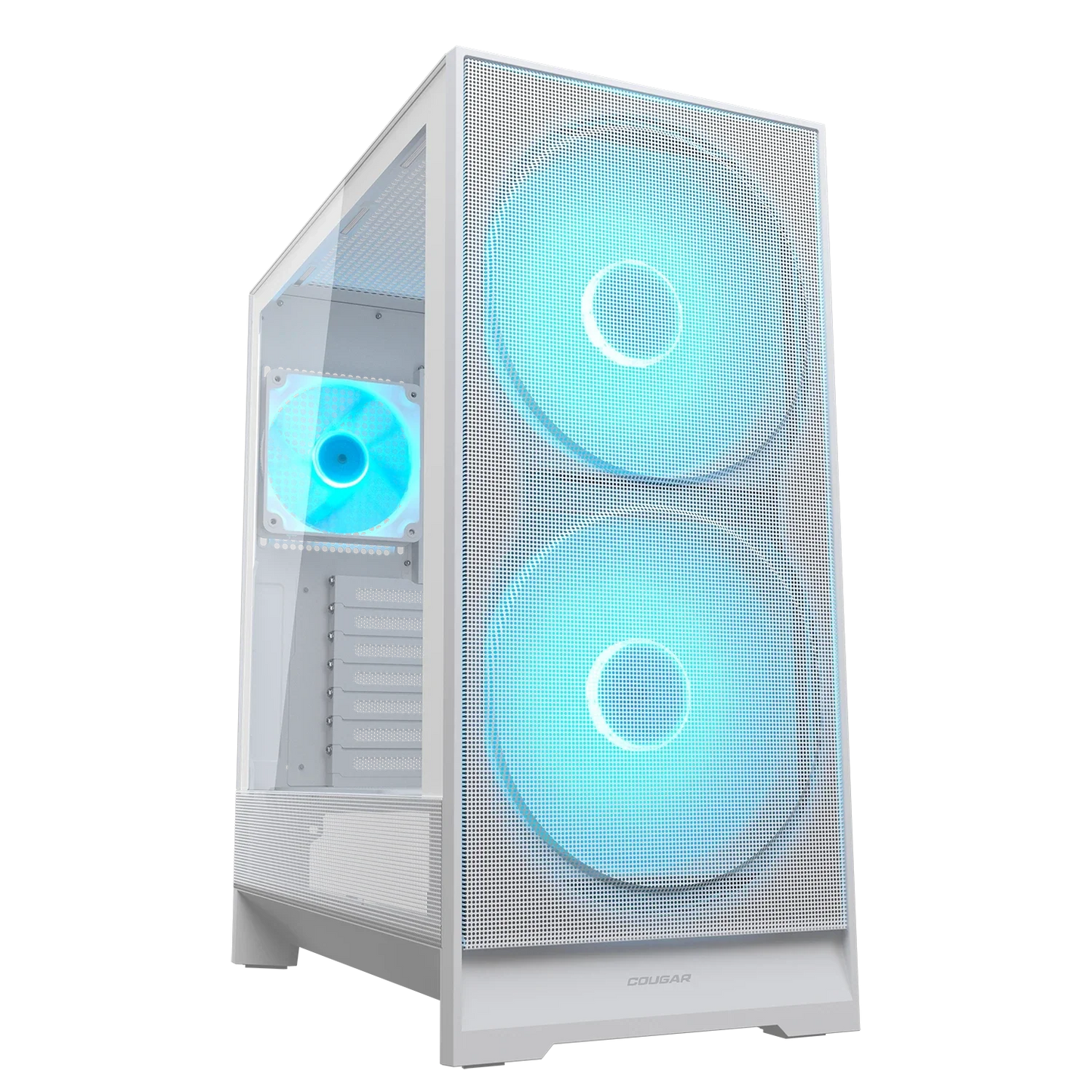

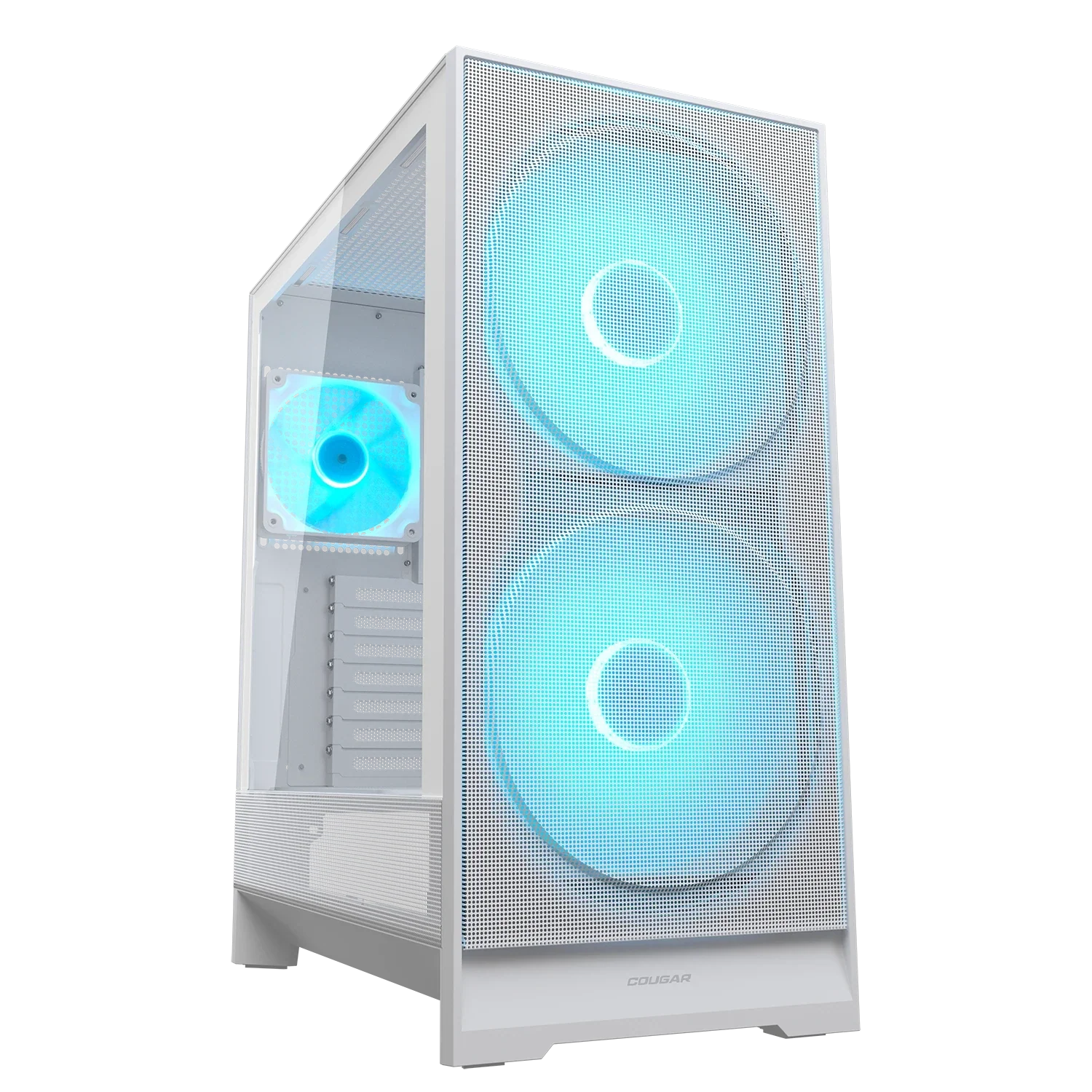

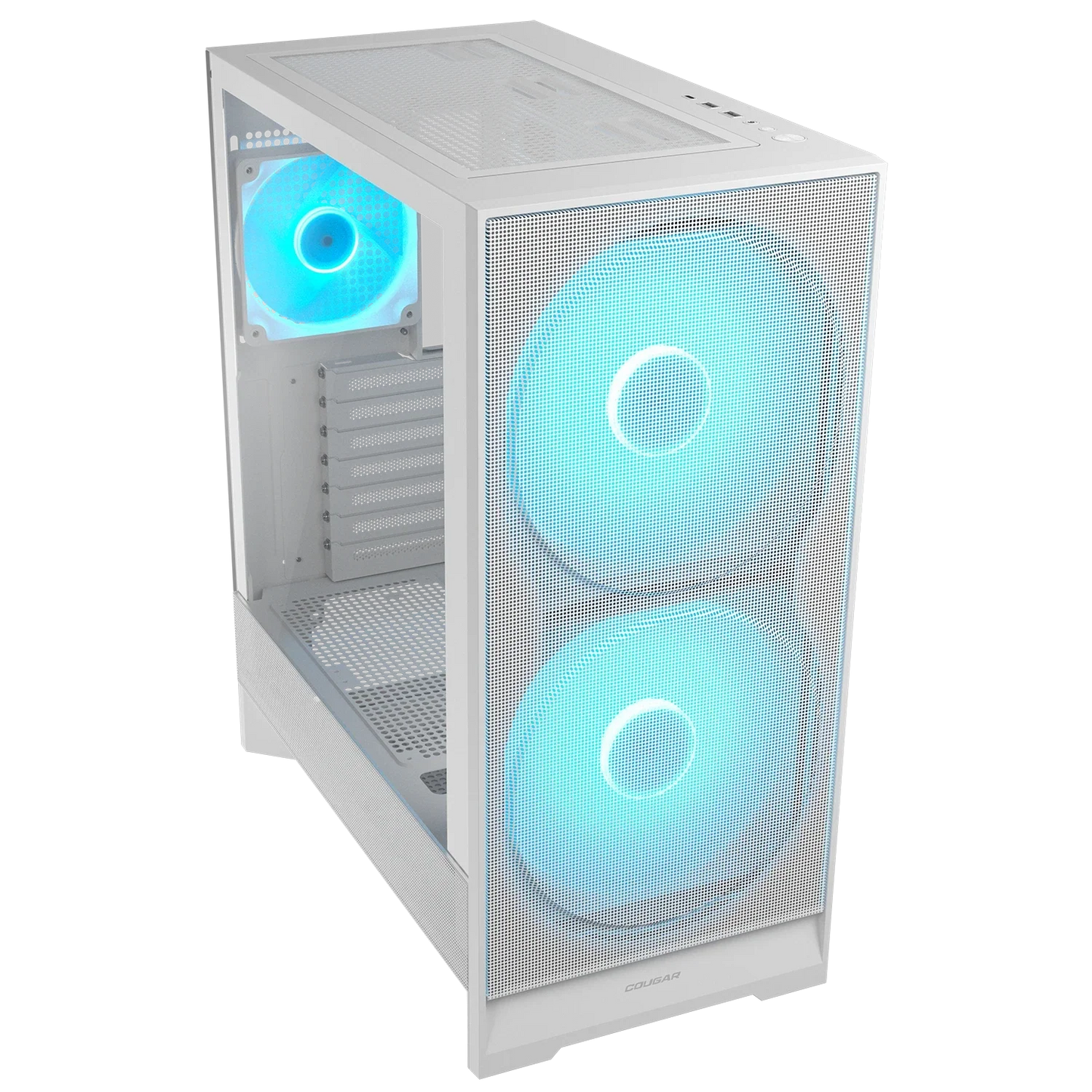

The Cougar Airface 180 White Cabinet redefines out-of-the-box cooling, offering massive airflow for peak performance. Featuring dual 180mm PWM ARGB front fans and a 120mm rear fan, this sleek cabinet is built to keep your system cool with effortless maintenance and a minimalist aesthetic.
Key Features at a Glance
- Pre-installed dual 180mm PWM ARGB front fans and a 120mm PWM ARGB rear fan.
- Magnetic front filter panel with recessed finger groove for easy maintenance.
- Optimized, right-offset PSU cabin to maximize internal airflow space.
- Accommodates GPUs up to 340mm in length.
- Compatible with Reverse Connector, Mini ITX, M-ATX, ATX, and CEB motherboards.
- Versatile connectivity with 1x USB 3.2 Gen 2 Type-C and 2x USB 3.0 Type-A ports.
Exceptional Cooling Performance

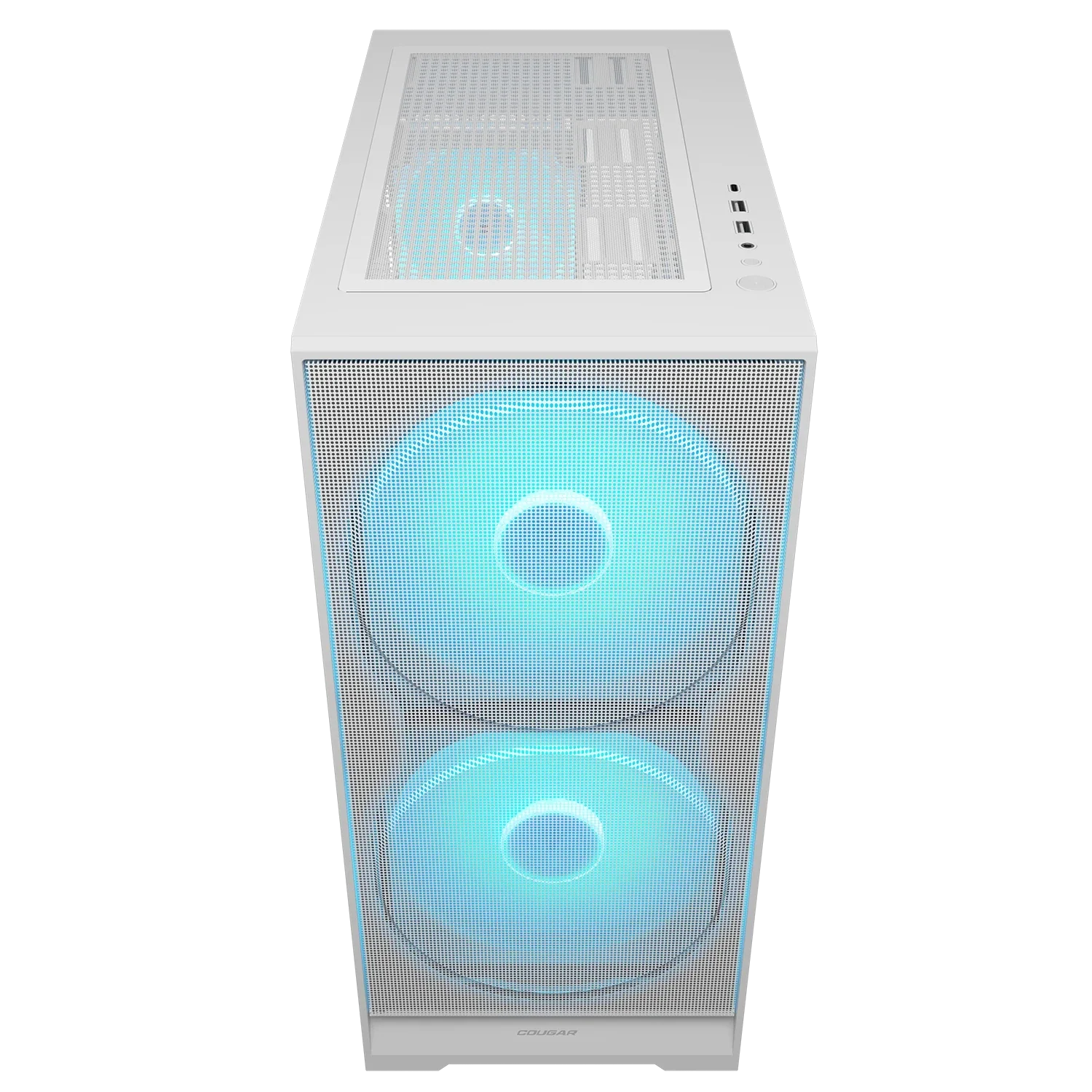

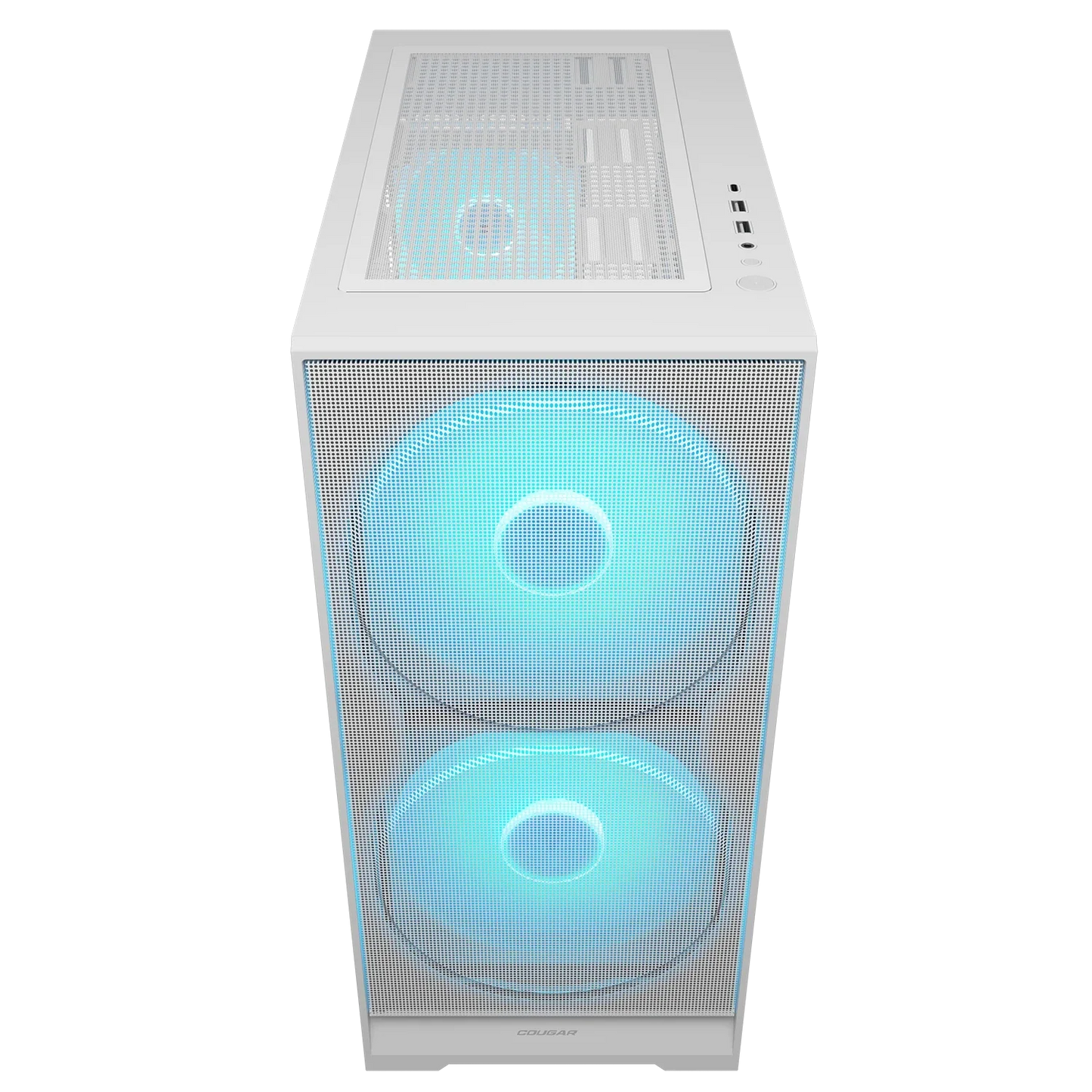

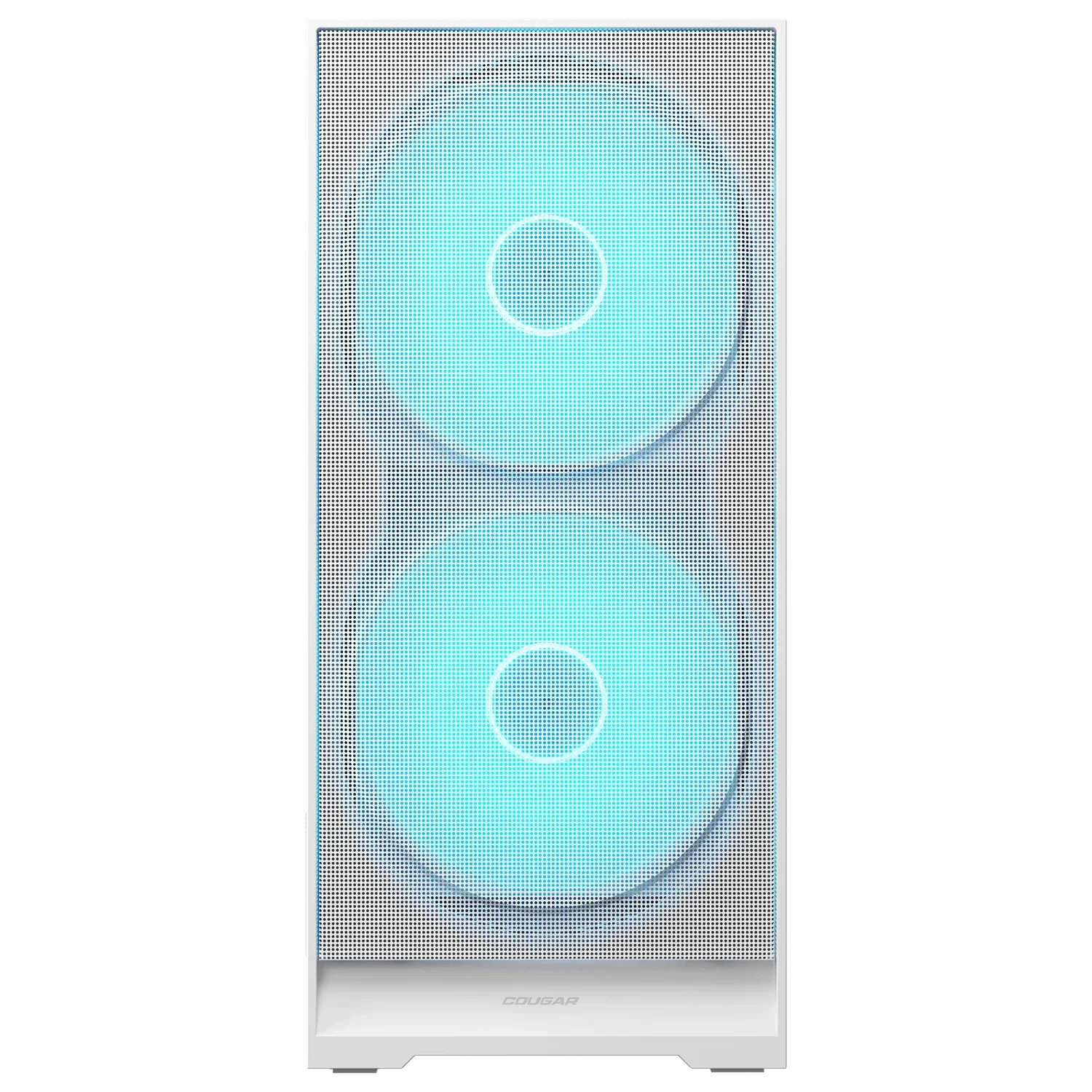

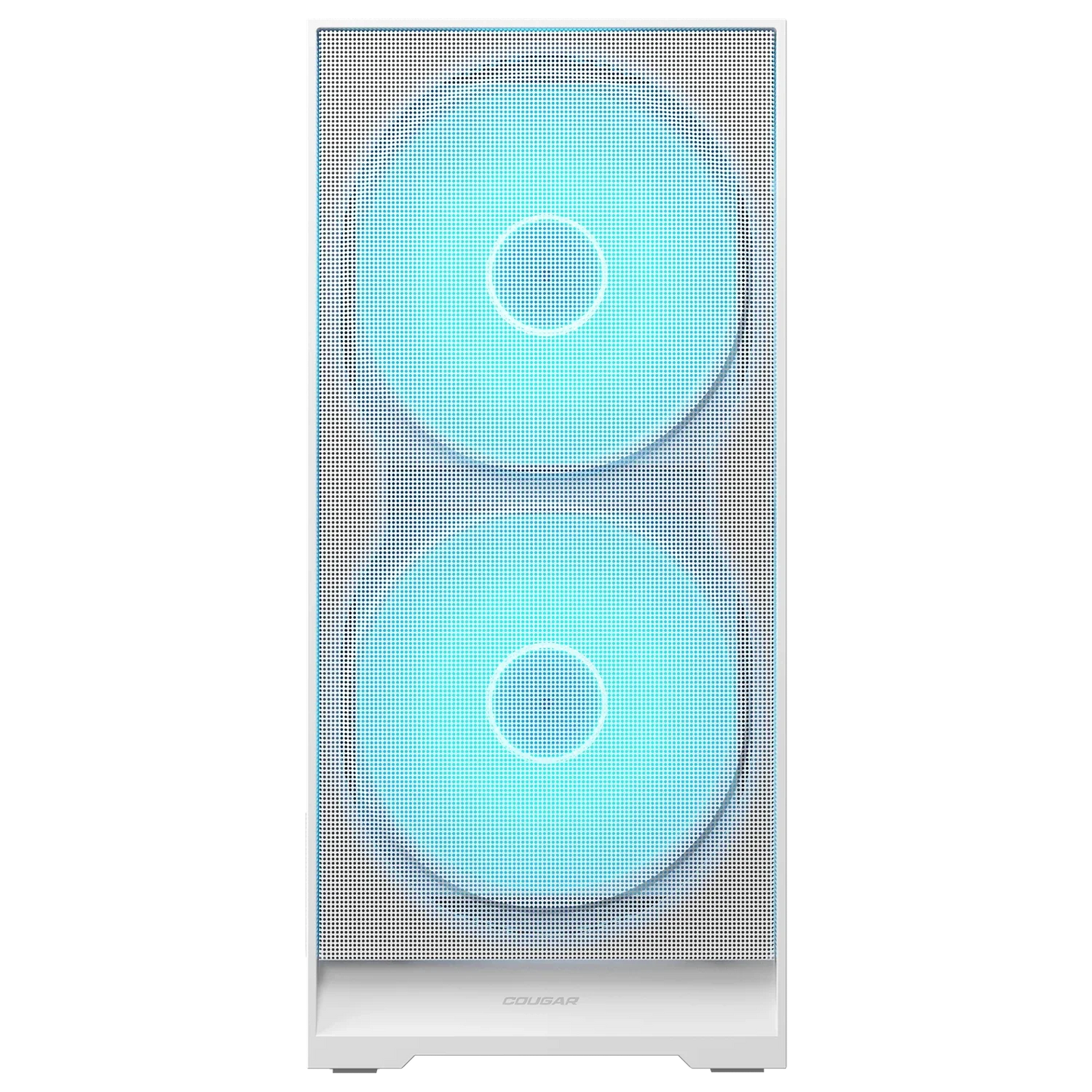

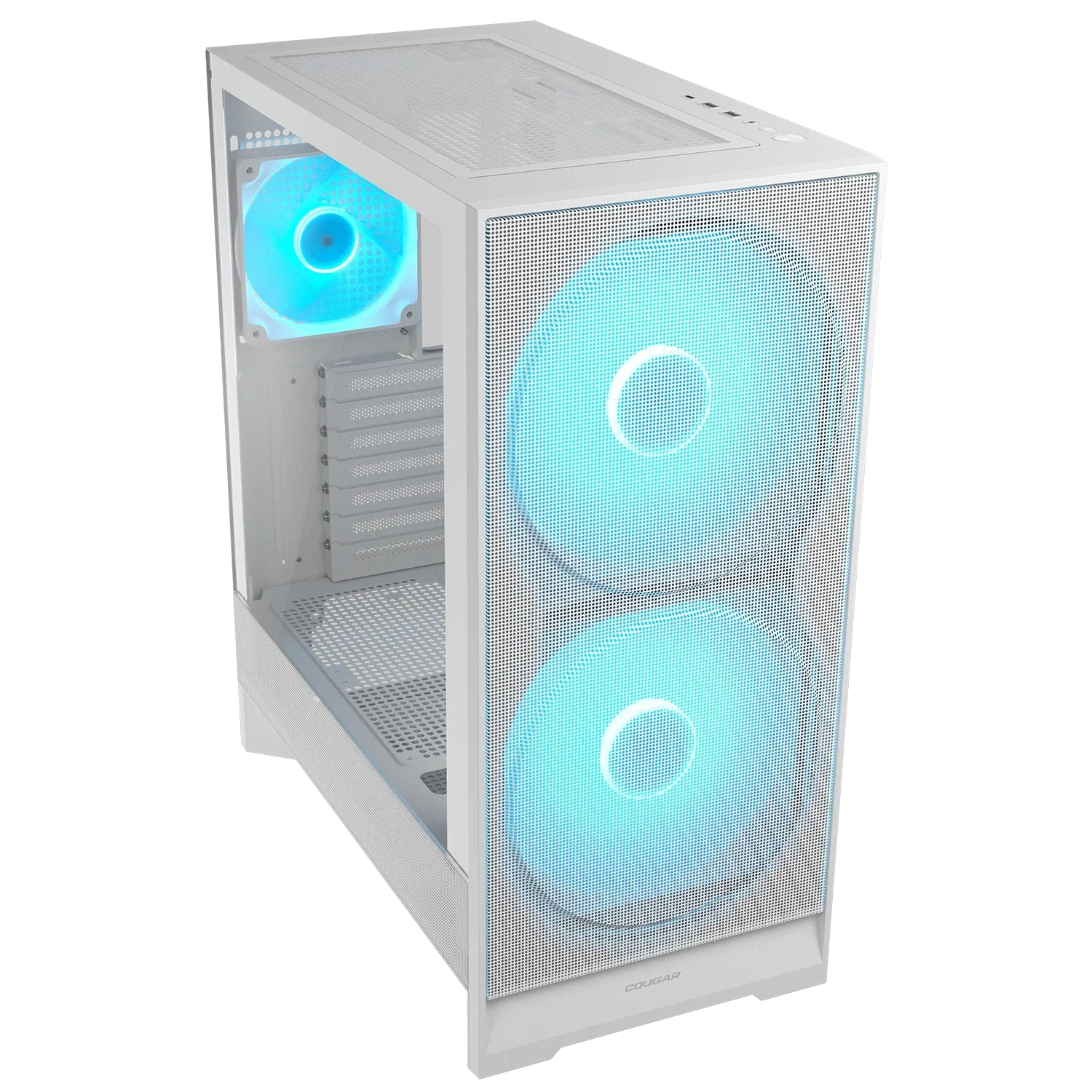

Experience extreme cooling from the moment you unbox the Cougar Airface 180. With two pre-installed 180mm PWM ARGB front fans and a 120mm PWM ARGB rear fan, this cabinet delivers massive airflow to maintain optimal temperatures for even the most demanding components. It supports a total maximum fan capacity of 8 fans for ultimate thermal management.
Smart Design for Effortless Maintenance

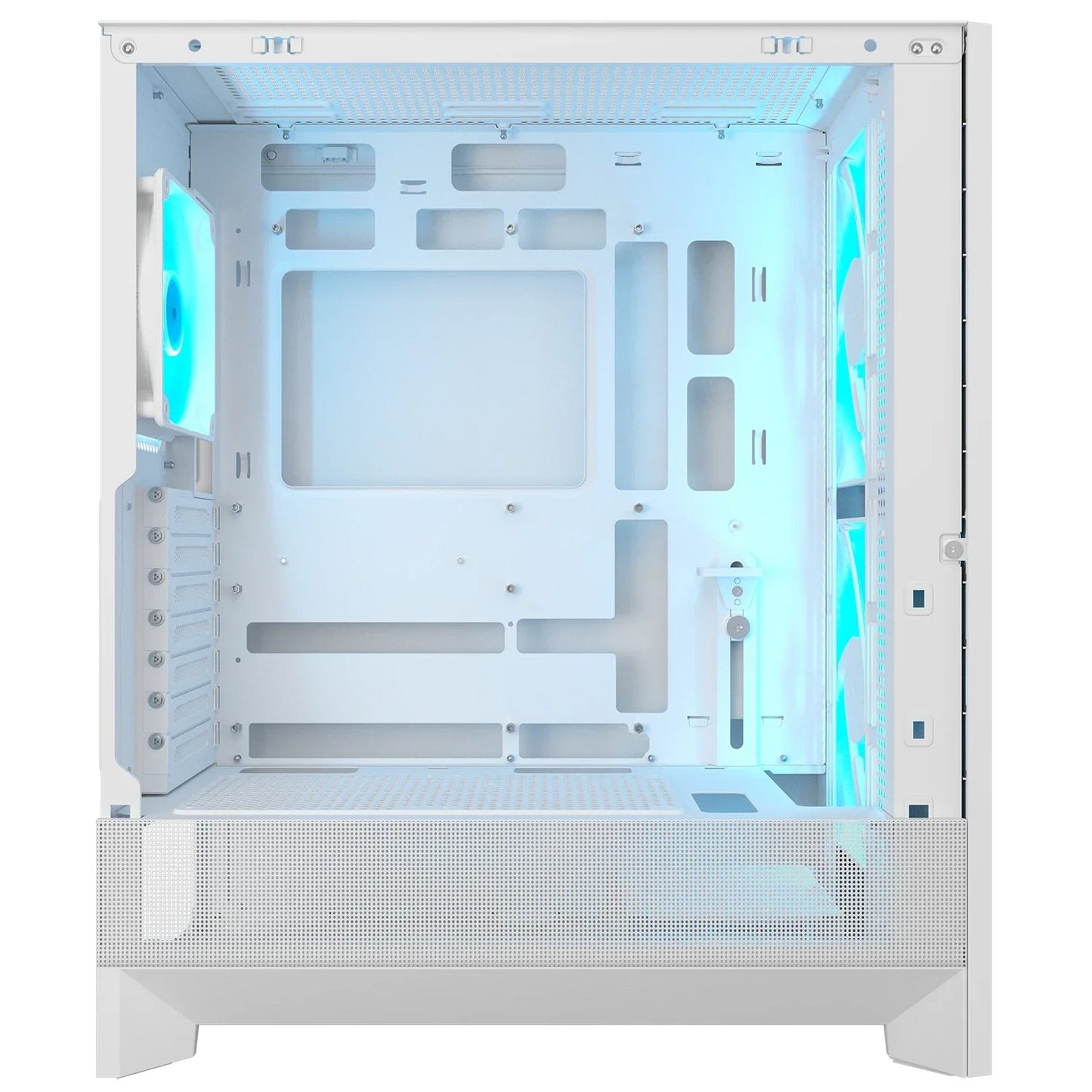

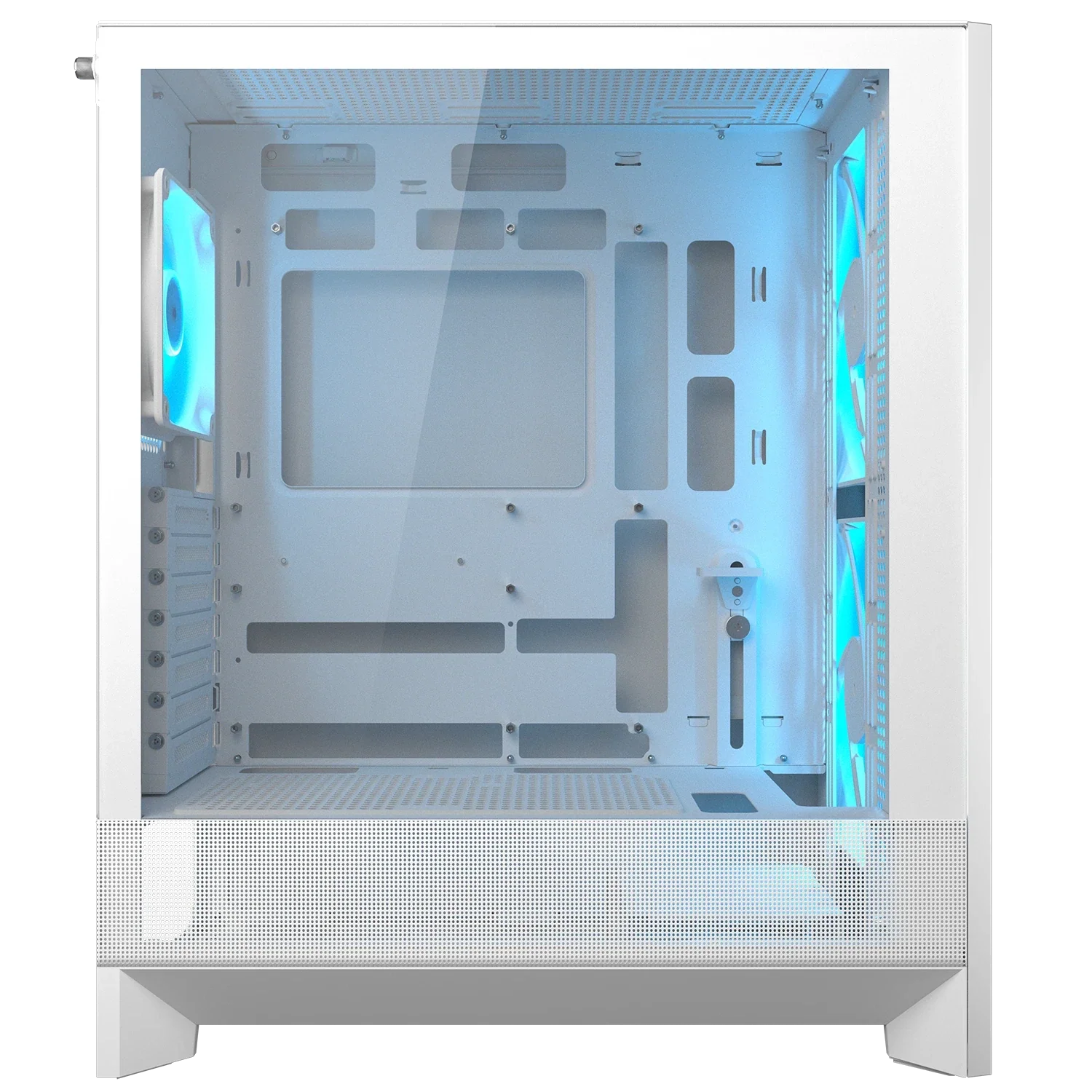

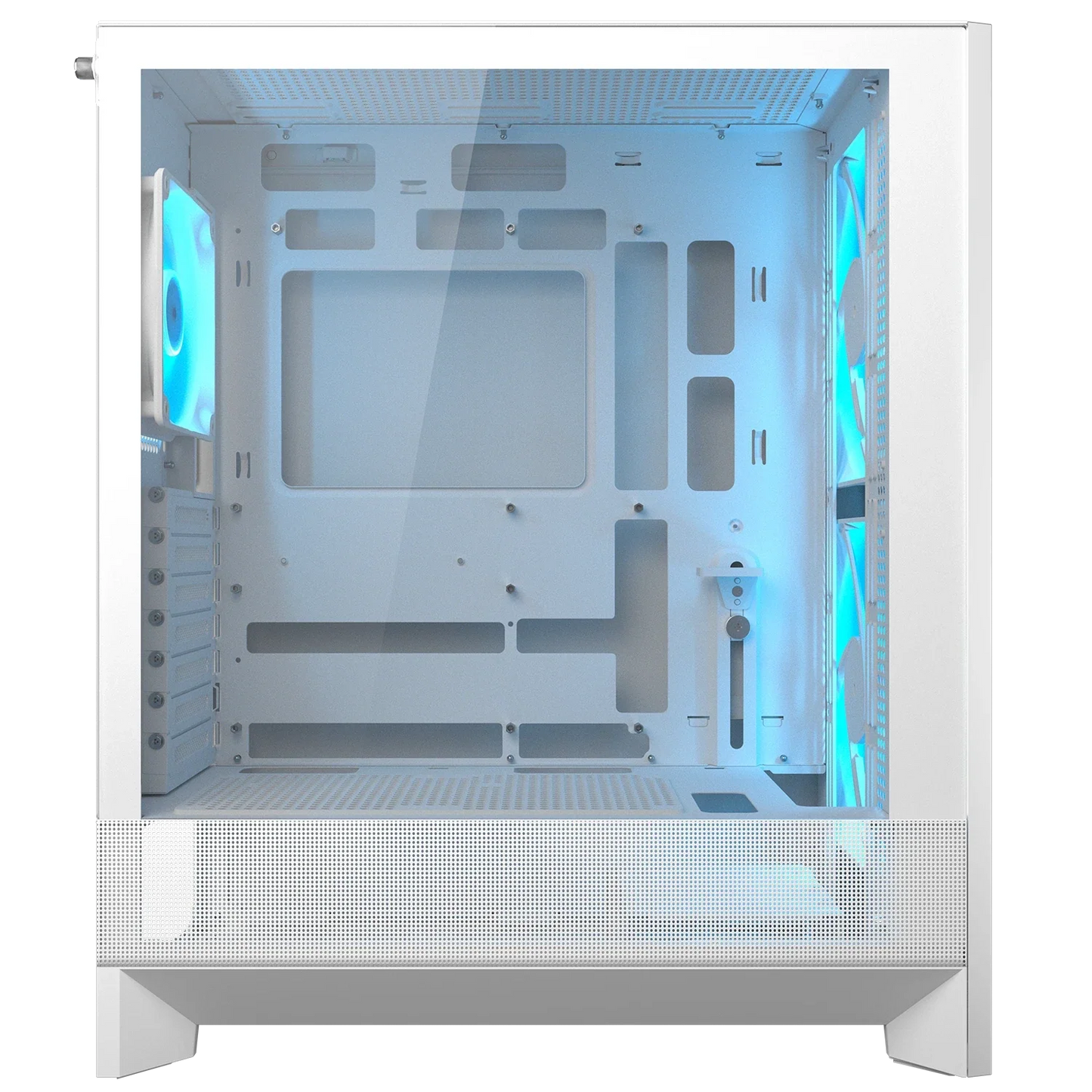

Designed for convenience, the Airface 180 features a magnetic front filter panel with a recessed finger groove, making cleaning and maintenance simple. The right-offset PSU cabin maximizes internal airflow space, ensuring components remain cool and accessible, contributing to the cabinet's overall sleek and minimalist aesthetic.
Broad Compatibility and Connectivity
The Cougar Airface 180 offers extensive compatibility, supporting Reverse Connector, Mini ITX, M-ATX, ATX, and CEB motherboards, and accommodating GPUs up to 340mm. Connect all your peripherals with ease thanks to one USB 3.2 Gen 2 Type-C port and two USB 3.0 Type-A ports. Plus, it provides ample storage for your drives with two 3.5” HDD bays and two 2.5” SSD bays (converted from 3.5” drive bays).
Technical Specifications
| Product Name | Airface 180 (White) | |
|---|---|---|
| Case Form Factor | Mid Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB | |
| Dimensions (WxHxD) | 220 x 483 x 410 (mm) 8.7 x 19 x 16.1 (in) |
|

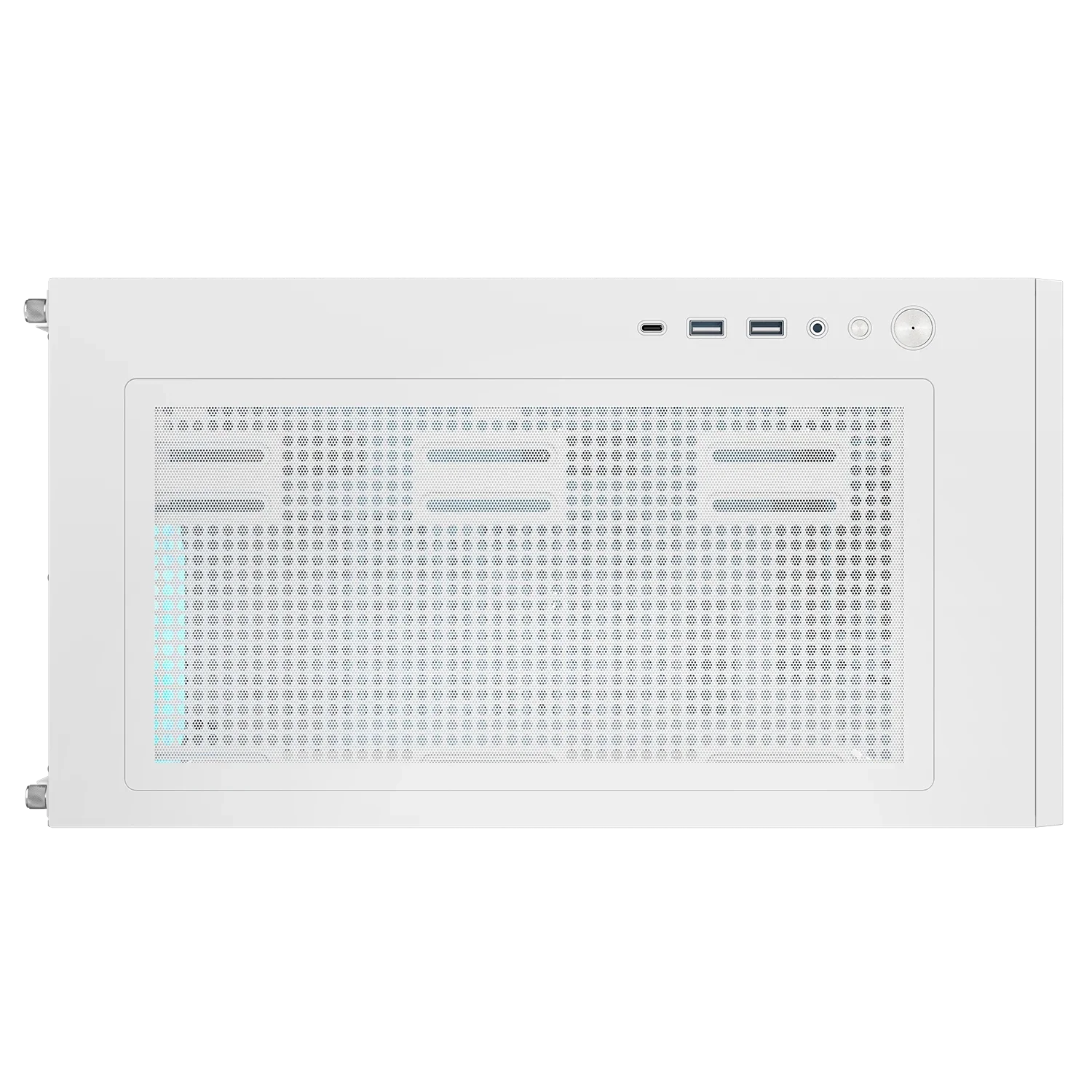

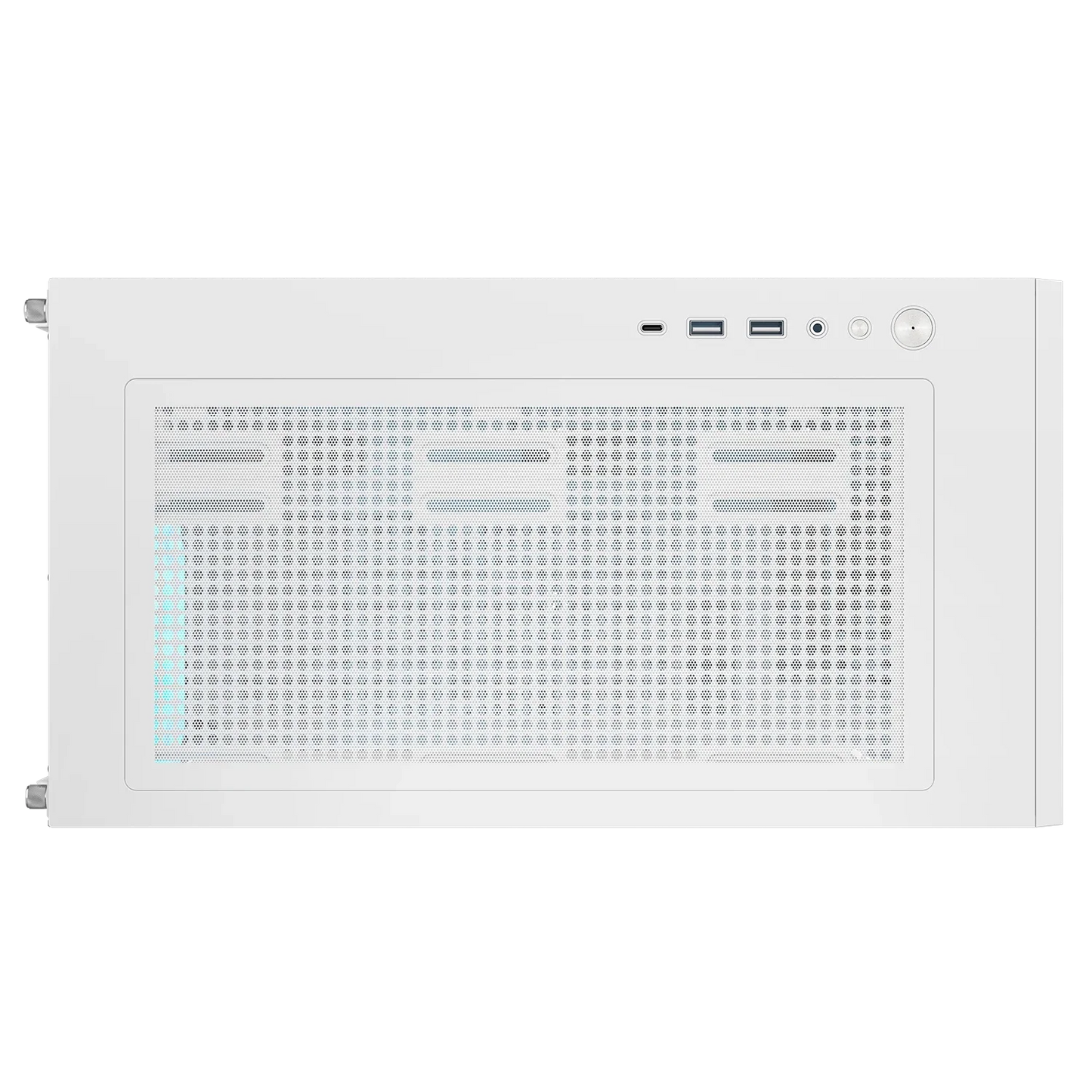

| I/O Panel | USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 1+1(converted from 3.5" drive bays) | |

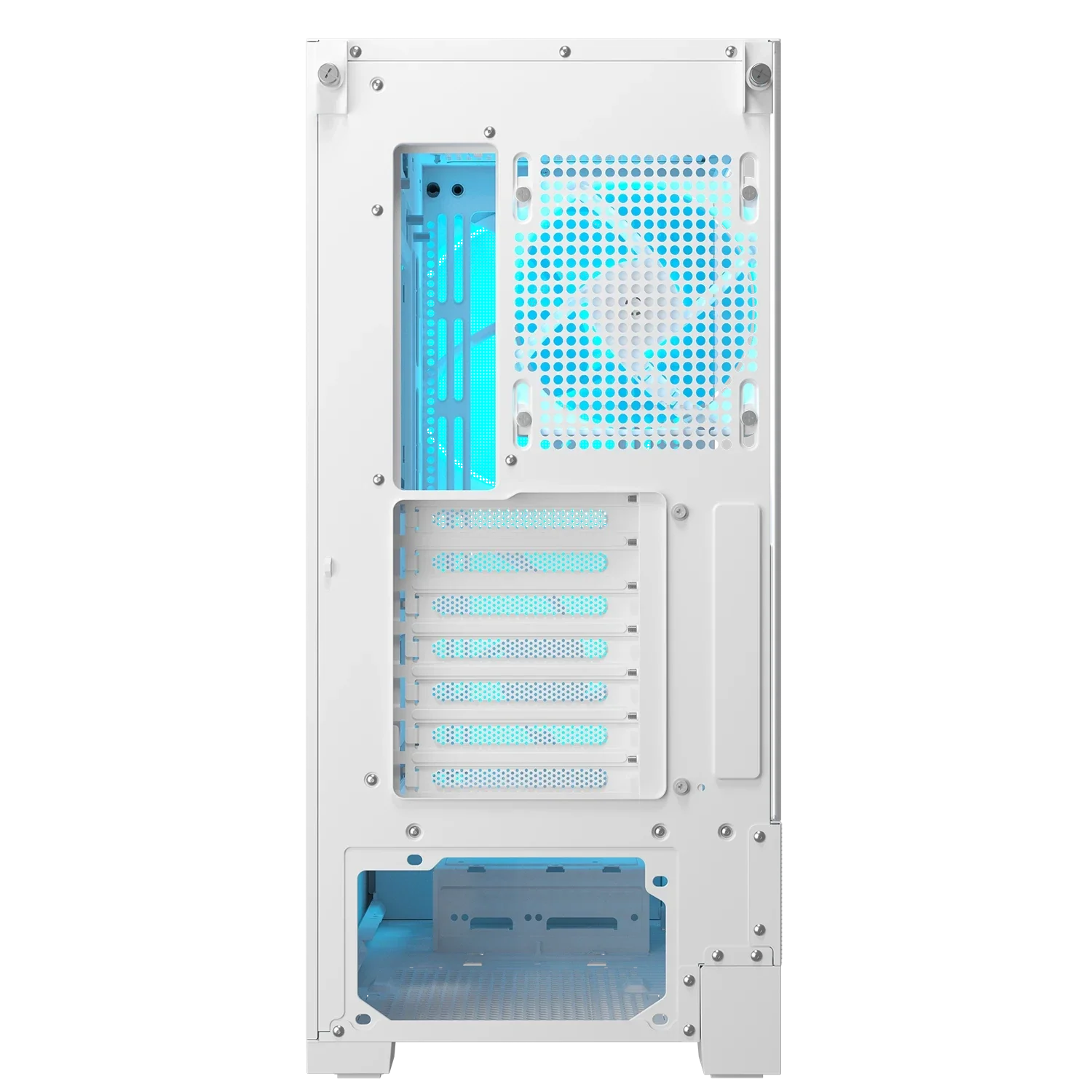

| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) | |
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Front | 180mm x 2 / 140mm x 2 / 120mm x 3 |
| Top | 140mm x 2/ 120mm x 2 | |
| PSU Shroud | 120mm x 2 | |
| Rear | 120mm x 1 | |
| Pre-installed Fans | Front | 180mm ARGB PWM fan x 2 |
| Rear | 120mm ARGB PWM fan x 1 | |
| Speed | 180mm ARGB PWM fan : 300-1200 ± 10% RPM 120mm ARGB PWM fan : 1200 ± 10% RPM |
|
| Connector | 180mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) 120mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
|
| Maximun Number of Fans | 8 | |
| Water Cooling Support | Front | 360mm / 280mm / 240mm |
| Top | 280mm / 240mm | |
| Rear | 120mm | |
| RGB Sync HUB with M/B | Yes | |
| Max. Graphics Card Length | 340 (mm) / 13.4 (in) | |
| Max. CPU Cooler Height | 170(mm)/ 6.7(in) | |
| Max. PSU Length | 160 (mm) / 6.3 (in) | |
Frequently Asked Questions
Q: What fans come pre-installed with the Cougar Airface 180 White Cabinet?
A: The Airface 180 comes with two pre-installed 180mm PWM ARGB front fans and one 120mm PWM ARGB rear fan, providing excellent cooling right out of the box.
Q: What is the maximum GPU length supported by this cabinet?
A: The Cougar Airface 180 White Cabinet can accommodate graphics cards up to 340mm in length.
Q: Which motherboard types are compatible with the Cougar Airface 180?
A: This cabinet is compatible with Reverse Connector, Mini ITX, M-ATX, ATX, and CEB motherboards.
