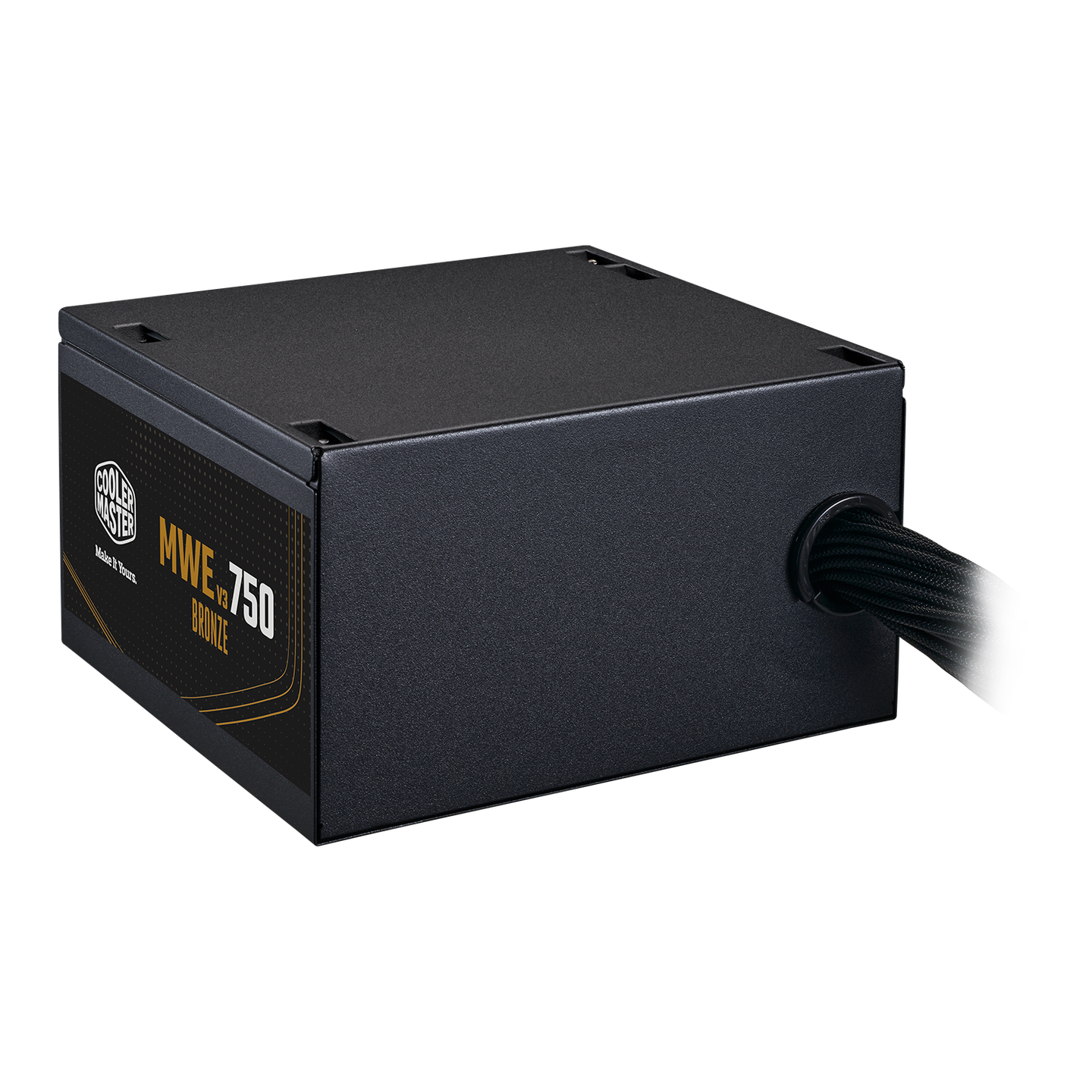

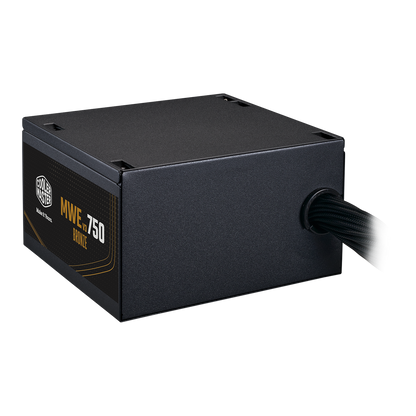

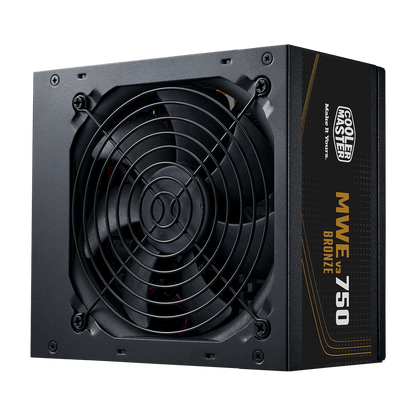

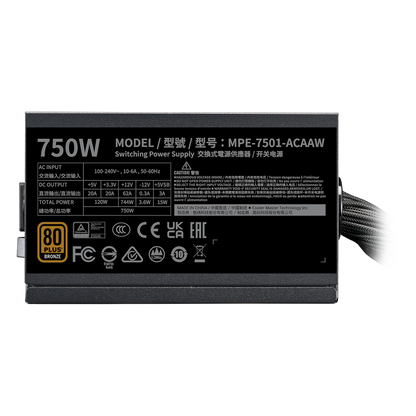

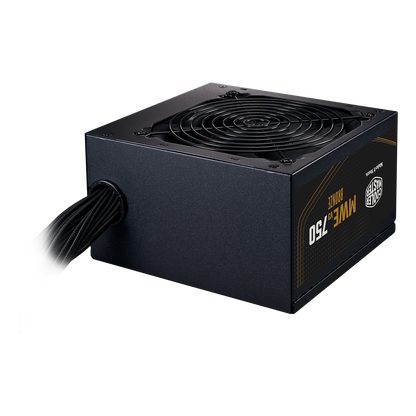

COOLER MASTER MWE BRONZE 750 V3 ATX 3.1 80 PLUS BRONZE SMPS
COOLER MASTER MWE BRONZE 750 V3 ATX 3.1 80 PLUS BRONZE SMPS
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The COOLER MASTER MWE BRONZE 750 V3 ATX 3.1 80 PLUS BRONZE SMPS is designed to provide essential power for your system. As part of the MWE Bronze series, this SMPS features 80 PLUS Bronze certification and adheres to the ATX 3.1 standard, making it a functional component for compatible builds.
Key Features at a Glance
- Part of the COOLER MASTER MWE BRONZE series.
- Features 80 PLUS BRONZE certification.
- Adheres to the ATX 3.1 standard.
- Identified as an SMPS (Switched-mode power supply).
- Model designation MWE BRONZE 750 V3.
80 PLUS BRONZE Certified
This SMPS carries an 80 PLUS BRONZE certification. This designation indicates adherence to specific efficiency requirements.
ATX 3.1 Standard Compliance
Built to the ATX 3.1 standard, this unit offers compliance with modern specifications. It integrates within systems designed for the ATX 3.1 framework.
COOLER MASTER MWE BRONZE Series
As a component of the COOLER MASTER MWE BRONZE series, this power supply unit reflects its series lineage. It is an MWE Bronze 750 V3 model within this range.
Technical Specifications
| Model | MPE-7501-ACAAW-3B |
|---|---|
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-6A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | >85% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | UVP, OVP, OPP, OTP, SCP |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests) |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 4 |
| Warranty | 5 Years |
| Series | MWE Bronze Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus Efficiency | Bronze |
| Form Factor | ATX |
| Watts | 750W |
Frequently Asked Questions
Q: What is the certification level of this SMPS?
A: The COOLER MASTER MWE BRONZE 750 V3 is 80 PLUS BRONZE certified.
Q: Which ATX standard does this SMPS follow?
A: This SMPS adheres to the ATX 3.1 standard.
Q: What type of product is the COOLER MASTER MWE BRONZE 750 V3?
A: It is an SMPS, which stands for Switched-mode power supply.
