The COOLER MASTER MWE 750 GOLD V2 ATX 3.1 FULLY MODULAR SMPS offers a robust power solution for your system. This unit features ATX 3.1 compliance and a fully modular design, providing essential power delivery capabilities for modern PC builds.
Key Features at a Glance
- ATX 3.1 Standard: Designed to meet the latest power supply specifications.
- Fully Modular Cables: For clean builds and improved cable management.
- 750W Power Output: Provides ample power for various system configurations.
- Gold Efficiency Rating: Ensures efficient operation and reduced energy waste.
- Cooler Master Quality: A reliable power supply from a trusted brand.
ATX 3.1 Compliance
Engineered to meet the ATX 3.1 standard, this power supply is ready for current and upcoming system requirements, ensuring stable power delivery for your components.

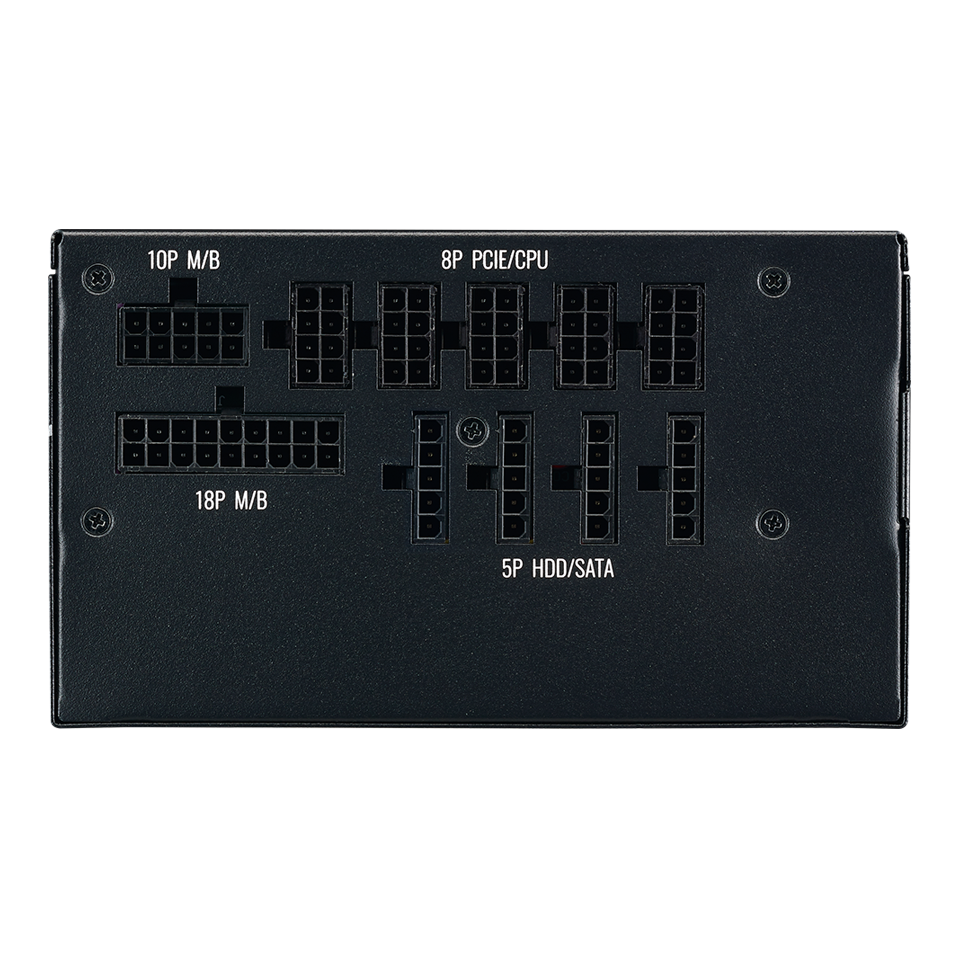

Fully Modular Design
Experience simplified system building and improved aesthetics with a fully modular cable design. Connect only the cables you need, reducing clutter and enhancing airflow within your PC case.
Efficient and Reliable Power
The MWE 750 Gold V2 series provides 750W of power with a Gold efficiency rating. This design ensures reliable operation for your system while optimizing power consumption.
Technical Specifications
| Model | MPE-7501-AFAAG-3E** |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | ?90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ? 16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory | TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 Connectors | 1 (1 to 3) |
| Category | Above 750W |
| Series | MWE Gold Series |
| Modular | Fully Modular |
| Form Factor | ATX |
| 80 Plus Efficiency | Gold |
| Watts | 750W |
Frequently Asked Questions
Q: What type of power supply is the Cooler Master MWE 750 Gold V2?
A: This is a Cooler Master MWE 750 Gold V2 ATX 3.1 Fully Modular SMPS, designed to provide reliable power to your PC system.
Q: What does "Fully Modular" signify for this SMPS?
A: A fully modular design means all cables are detachable from the power supply, allowing users to connect only necessary cables for a cleaner build and improved airflow.
Q: What is the power output of this Cooler Master SMPS?
A: The Cooler Master MWE 750 Gold V2 SMPS provides 750 watts of power, suitable for supporting various PC configurations.
