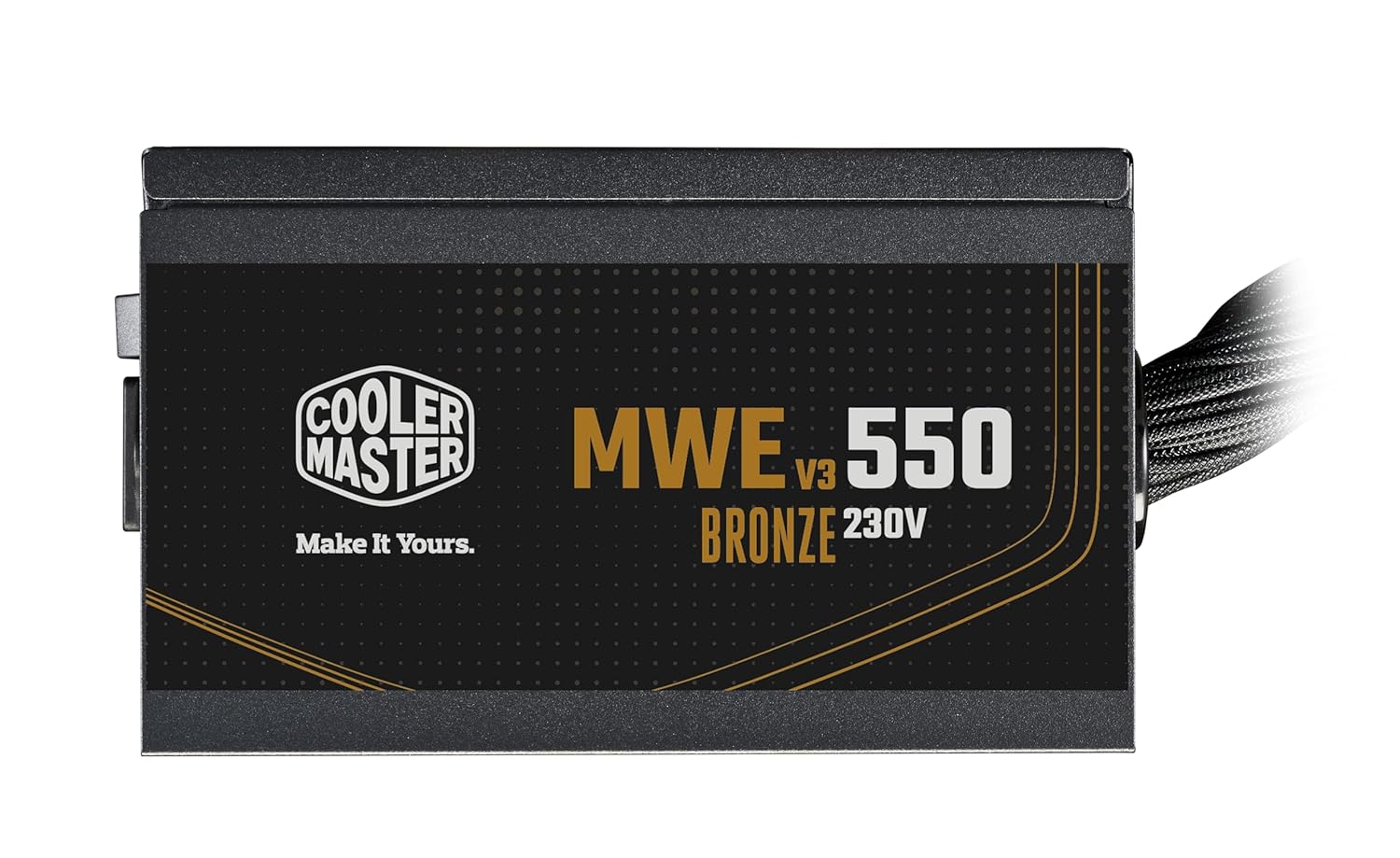

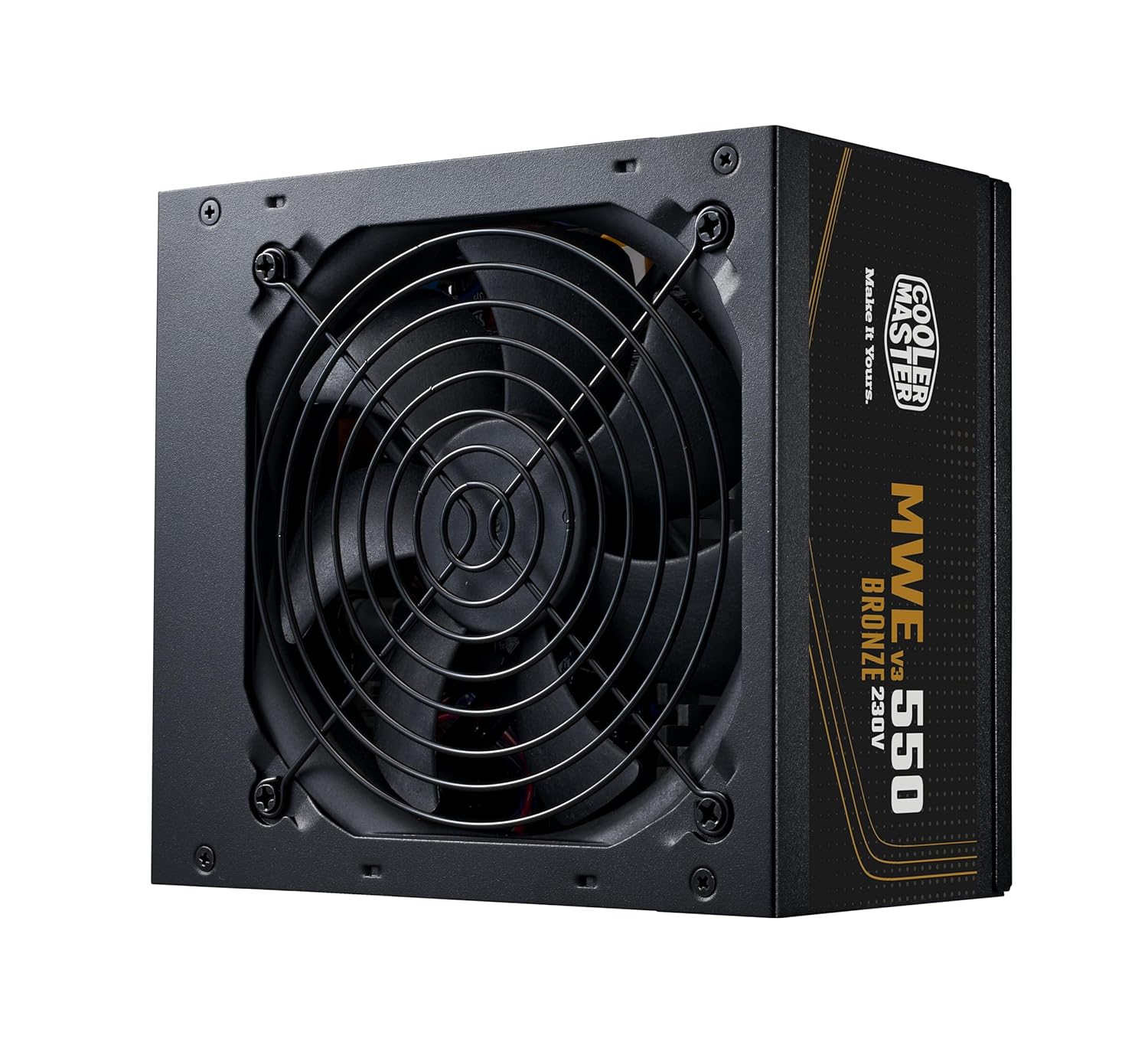

Power your system reliably with the COOLER MASTER MWE 550 V3 ATX 3.1 80 PLUS BRONZE SMPS. This power supply unit combines essential features like ATX 3.1 support and 80 Plus Bronze certified efficiency to provide stable and consistent power for your components.
Key Features at a Glance
- Advanced ATX 3.1 support for modern systems
- 80 Plus Bronze certified efficiency for optimized energy use
- Quiet HDB fan ensures low-noise operation
- High temperature resilience for consistent performance
- Embossed cables simplify cable management
- Backed by a 5-year warranty
Stable & Future-Ready Power
The COOLER MASTER MWE 550 V3 SMPS offers robust ATX 3.1 support, ensuring compatibility with the latest hardware and delivering stable power. Its high temperature resilience allows for consistent performance even under challenging conditions.
Quiet & Efficient Operation
Experience a quieter computing environment thanks to the integrated Quiet HDB fan. Coupled with 80 Plus Bronze certified efficiency, this power supply minimizes noise while reducing energy consumption, saving on operational costs.

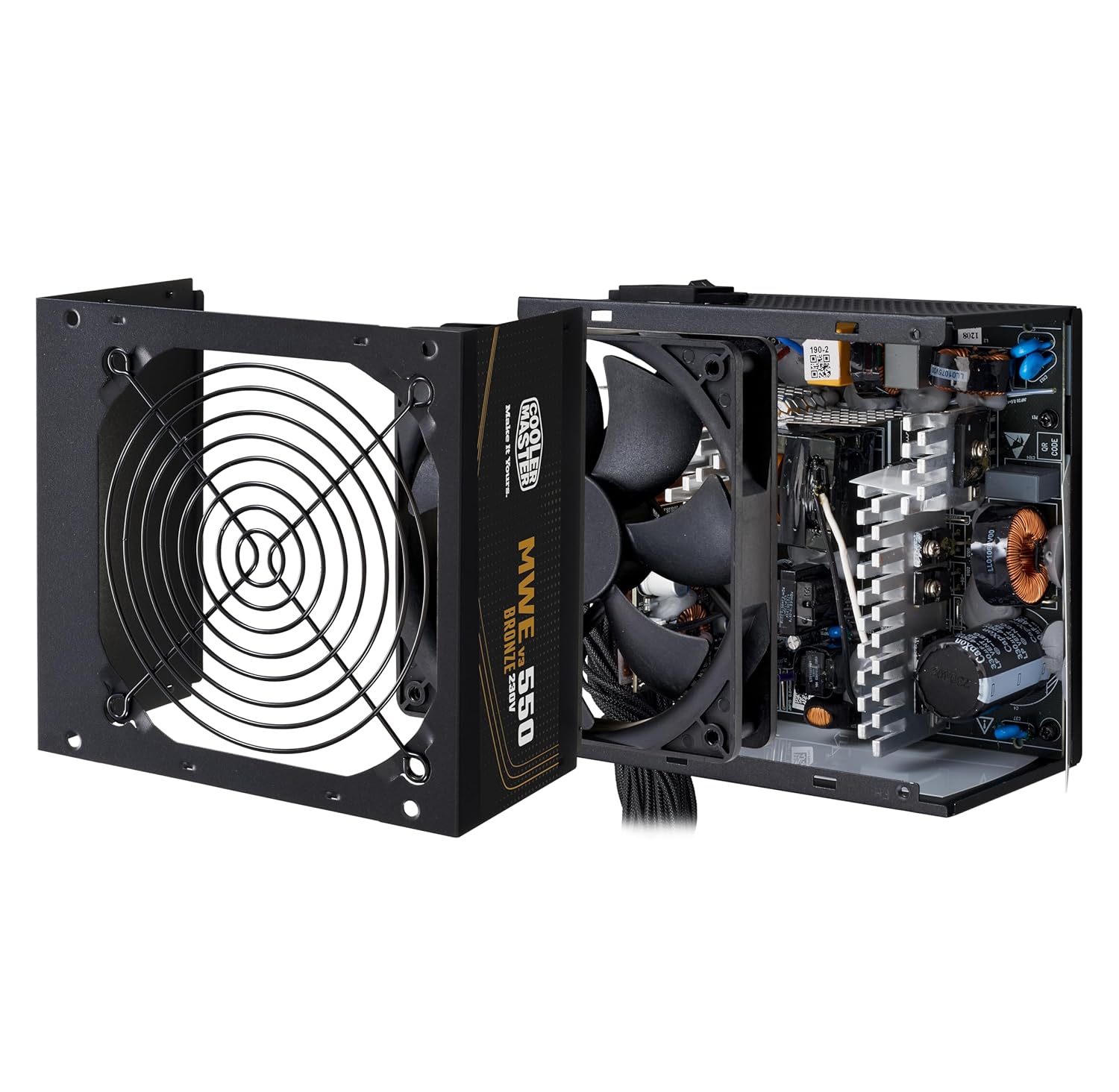

Durable Design & Easy Installation
Built for longevity, this power supply features embossed cables that simplify cable management for a cleaner PC build. Enjoy peace of mind with a 5-year warranty, highlighting its robust construction and reliability.

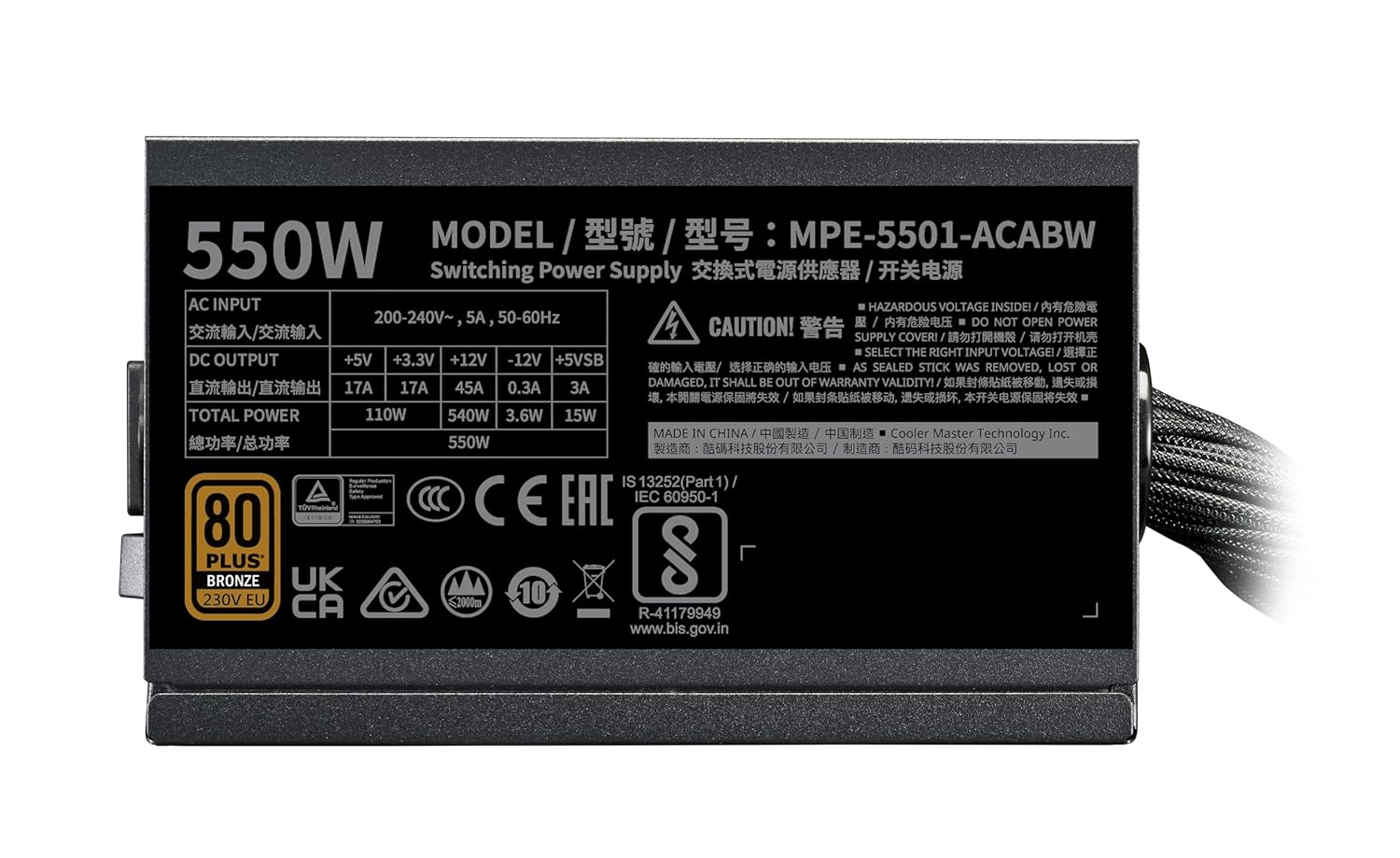

Technical Specifications
| Model Number | MPE-5501-ACABW-3BIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | >88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| Series | MWE Bronze Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus | Bronze |
| Form Factor | ATX |
| Watts | 550W |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 2 |
| Warranty | 5 Years |
Frequently Asked Questions
Q: Does the COOLER MASTER MWE 550 V3 support the latest ATX standard?
A: Yes, this power supply features ATX 3.1 support, ensuring compatibility with modern systems.
Q: What is the efficiency rating of this power supply?
A: The MWE 550 V3 is 80 Plus Bronze certified for efficient power delivery.
Q: Is this power supply designed for quiet operation?
A: Yes, it includes a Quiet HDB fan, engineered to minimize operational noise.
