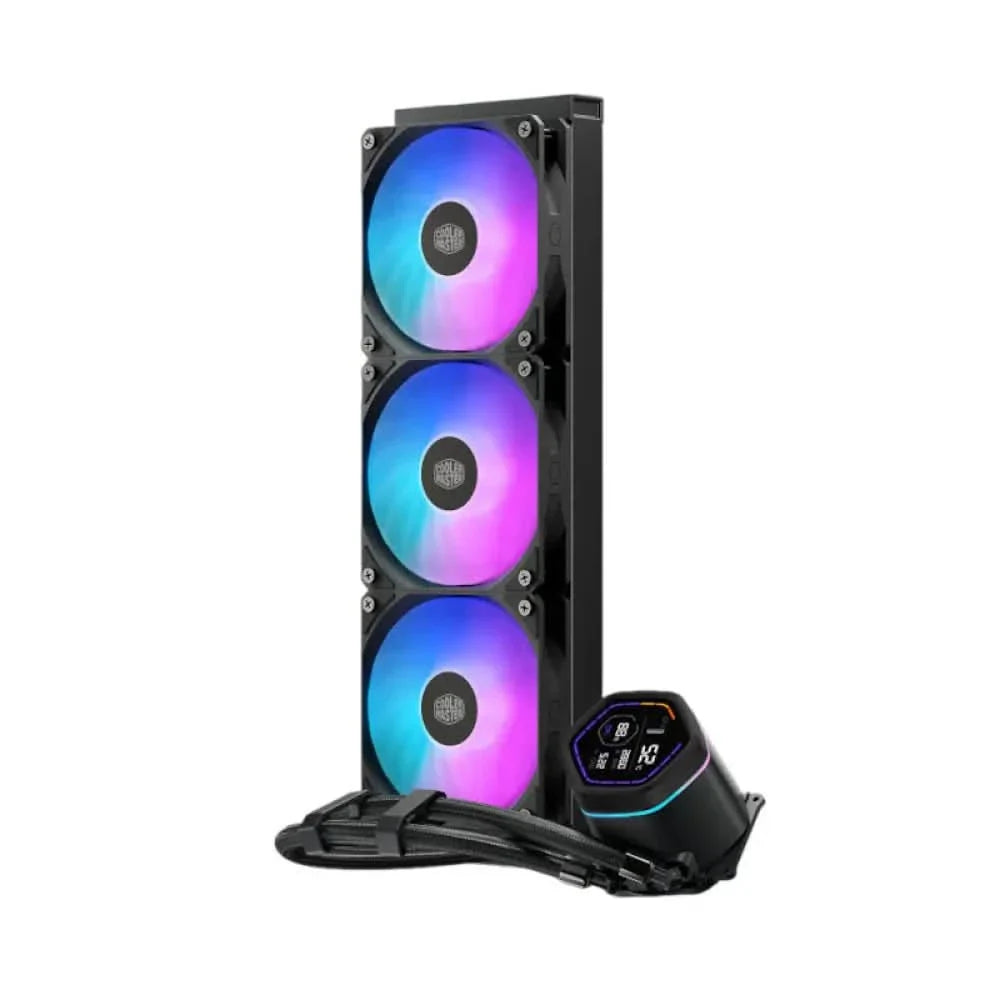

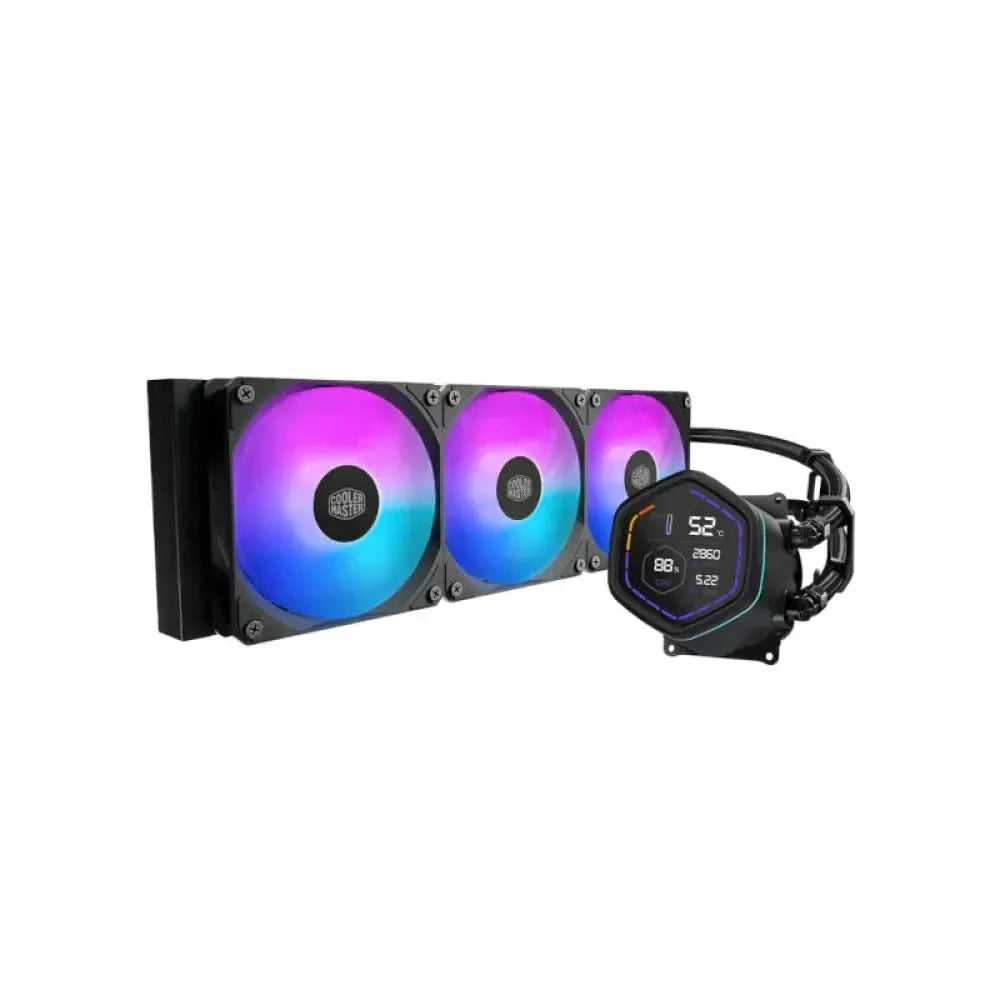

Cooler Master MasterLiquid Core Nex Digital 360 ARGB Liquid Cooler Black
Cooler Master MasterLiquid Core Nex Digital 360 ARGB Liquid Cooler Black
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
- Dual Chamber Pump
- Innovative, Smart Design
- Easy Installation
- Universal Socket Support
- Optimum Tubing Length
| Specification | |
| Product Series | MASTERLIQUID CORE NEX DIGITAL SERIES |
| Product Number | MLX-D36M-A18PA-RD |
| Exterior Color | Black |
| CPU Socket | Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
AMD AM5 / AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm
(15.5 x 4.7 x 1.1 inch) |
| Tube Length | 400 mm |
| Pump Dimension | 83.6 x 78.5 x 68.6 mm
(3.3 x 3.1 x 2.7 inch) |
| Pump Profile | Addressable RGB |
| Pump Speed | 3200 ±10% RPM |
| Pump MTTF | > 35,0000 hours |
| Pump Noise Level | 25 dB(A) |
| Pump Connector | 3-Pin ARGB + 4 Pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 7.2 W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm
(4.7 x 4.7 x 1 inch) |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable RGB |
| Fan Speed | 650 ~ 1750 RPM ± 10% |
| Fan Airflow | 122.4 m³/h (71.9 CFM) |
| Fan Noise Level | 27.2 dB(A) |
| Fan Pressure | 1.86 mm H2O |
| Fan Bearing Type | Rifle |
| Fan MTTF | > 40,000 hours |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26 A |
| Fan Safety Current | 0.37 A |
| Power Consumption | 3.12 W |
| Digital Panel Type | LED Digital Display |
| Digital Panel Display Area | 50.1 x 54.4 mm (2 x 2.1 inch) |
| Digital Panel Rated Voltage | 5 VDC |
| Digital Panel Luminance | 120 cd/m² |
| Digital Panel
Rated Current |
0.12 A±10% |
| Digital Panel
Safety Current |
0.3 A±20% |
| Digital Panel
Power Consumption |
0.6 W |
| Digital Panel
Connector |
USB 2.0 9PIN |
| Digital Panel
Orientation |
Software-MasterCtrl adjustable |
| Warranty | 5 Years |
| Note* | Price, feature and specifications are subject to change without notice |
| brand | |
|---|---|
| cooler-cpu-support |
AMD AM4, AMD AM5, Intel LGA 1150, Intel LGA 1151, Intel LGA 1155, INTEL LGA 1156, Intel LGA 1200, Intel LGA 1700, Intel LGA1851 |
| cooler-type | |
| cooler-radiator-size |
