Product Series

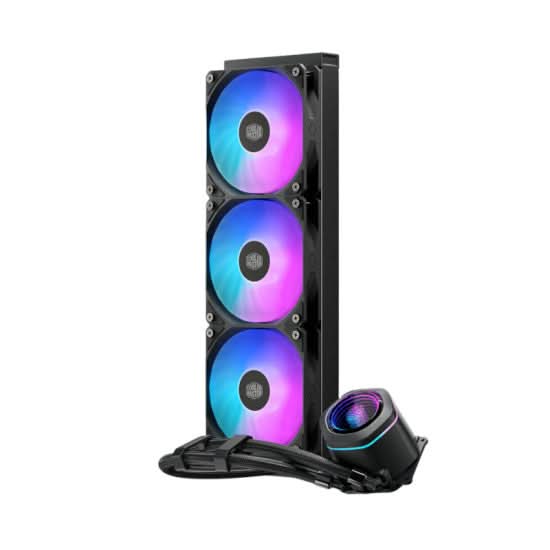

MASTERLIQUID CORE NEX SERIES

Product Number

MLX-D36M-A18PA-R1

Exterior Color

Black

CPU Socket

Intel: Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156

AMD: AMD® AM5 / AM4

Radiator Material

Aluminum

Radiator Dimensions

394 x 119.6 x 27.2 mm

(15.5 x 4.7 x 1.1 inch)

Tube Length

400 mm

Pump Dimension

83.6 x 78.5 x 62.9 mm

(3.3 x 3.1 x 2.5 inch)

Pump Profile

Addressable RGB

Pump Speed

3200 ±10% RPM

Pump MTTF

> 35,0000 hours

Pump Noise Level

25 dB(A)

Pump Connector

3-Pin ARGB + 4 Pin PWM

Pump Rated Voltage

12 VDC

Pump Power Consumption

7.2 W

Fan Dimensions (L x W x H)

120 x 120 x 25 mm

(4.7 x 4.7 x 1 inch)

Fan Quantity

3 PCS

Fan LED Type

Addressable RGB

Fan Speed

650 ~ 1750 RPM ± 10%

Fan Airflow

122.4 m³/h (71.9 CFM)

Fan Noise Level

27.2 dB(A)

Fan Pressure

1.86 mm H₂O

Fan Bearing Type

Rifle

Fan MTTF

> 40,000 hours

Fan Connector

7-Pin PWM + ARGB

Fan Rated Voltage

12 VDC

Fan Rated Current

0.26 A

Fan Safety Current

0.37 A

Power Consumption

3.12 W

Warranty

5 Years

Note*

Price, feature and specifications are subject to change without notice
