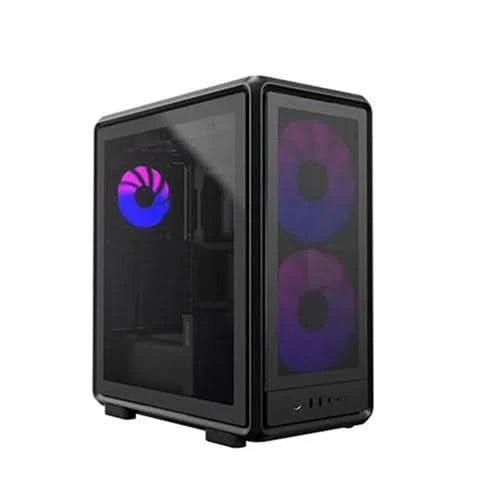

The Cooler Master MasterFrame 500 Mesh ARGB E-ATX Mid Tower Case is a premium open-frame chassis designed for high-performance components and advanced cooling setups. Embracing the FreeForm 2.0 design philosophy, it offers extensive customization with enhanced mesh panels for optimal airflow, empowering builders and modders to create unique PC designs.
Key Features at a Glance
- Premium open-frame mid-tower chassis.

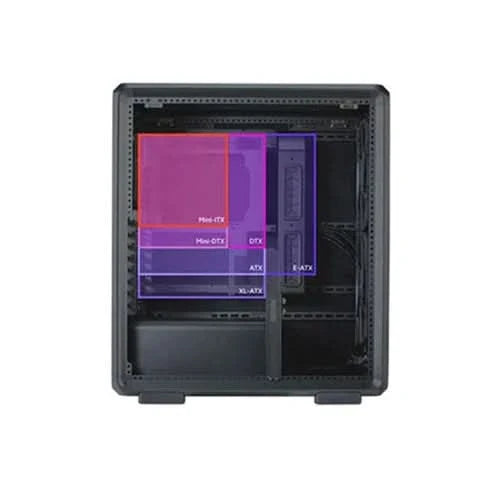

- Supports Mini-ITX to E-ATX motherboards with conditional support for SSI-CEB.
- Features FreeForm 2.0 Exo-structure for enhanced adaptability.
- Enhanced mesh panels provide improved airflow.
- Extensive cooling support for up to eight fans and 360mm radiators.
- Includes a GPU support bracket to prevent sag.
- Tool-free panel removal for easy access and modifications.
Flexible Configuration with FreeForm 2.0
The exposed FreeForm 2.0 Exo-structure enhances chassis adaptability, providing flexible configuration options for various build scenarios. This design philosophy also allows full access to modular design files, promoting creativity.
Extensive Cooling and Airflow
Engineered for superior thermal performance, this chassis can house up to eight fans and multiple radiator sizes up to 360mm. Enhanced mesh panels further contribute to improved airflow, keeping high-performance components cool and stable.
Maker-Driven Customization
With its versatile and open-source design, alongside interchangeable panels, the MasterFrame 500 Mesh offers endless personalization possibilities. Transform your chassis into a unique expression of style, perfect for builders and modders looking to push boundaries.
Convenient Access and Support
Enjoy quick access and modifications with tool-free panel removal for side panels and other components. An included GPU support bracket prevents sag and ensures stability for your graphics card during intense gaming or high-performance workloads, maintaining a clean and secure build.
Technical Specifications
- Dimensions (L x W x H): 471 x 261 x 544mm (Incl. Protrusions), 471 x 244 x 514mm (Excl. Protrusions)
- Power Supply Support: ATX
- Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX*, SSI-CEB* (*Conditional Support)
-
Drive Bays:
- 3.5" Drive Bays: 0
- 2.5" / 3.5" Drive Bays (Combo): 1 (Bottom)
- Preinstalled Drive Bays (3.5" / 2.5" or SSD): 1x 2.5" or 1x 3.5"
-
Preinstalled Fans:
- Front: 2x SickleFlow 200mm (ARGB)
- Rear: 1x 120mm (ARGB)
-
Fan Support:
- Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
- Top: 3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm
- Rear: 1x 120mm
- Bottom: 3x 120mm, 3x 140mm
-
Radiator Support:
- Front: 120 / 140 / 240 / 280 / 360mm
- Top: 120 / 140 / 240 / 280 / 360mm
- Rear: 120mm
| Cabinet | |
| Cabinet Size | MID-TOWER |
| Color | Black |
| Material | Steel, Aluminum,Tempered Glass |
| Expansion Slots | 8 |
| Motherboard Size | SSI-CEB,E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 190mm |
| Max PSU Length | 235mm |
| Max Gpu Length | 390mm |
| Max 3.5" HDD | 1 |
| Max 2.5" SSD | 2 |
| Pre Installed Fans | 3 |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB 3.2 Gen 1 Type A,USB 3.2 Gen 2x2 Type C,3.5mm Headset Jack |
| Warranty | 2 Years |
| Note*** |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Frequently Asked Questions
Q: What motherboard sizes does the Cooler Master MasterFrame 500 Mesh support?
A: This chassis supports a wide range of motherboard sizes, including Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX, and SSI-CEB, with conditional support for the larger E-ATX and SSI-CEB formats.
Q: How does the FreeForm 2.0 Exo-structure benefit users?
A: The exposed FreeForm 2.0 Exo-structure enhances the chassis's adaptability and provides flexible configuration options, allowing builders to customize their setup for various scenarios and leverage modular design files.
Q: What kind of cooling options are available with this chassis?
A: The MasterFrame 500 Mesh offers extensive cooling support, capable of housing up to eight fans and multiple radiator sizes, including up to 360mm, complemented by enhanced mesh panels for improved airflow.
