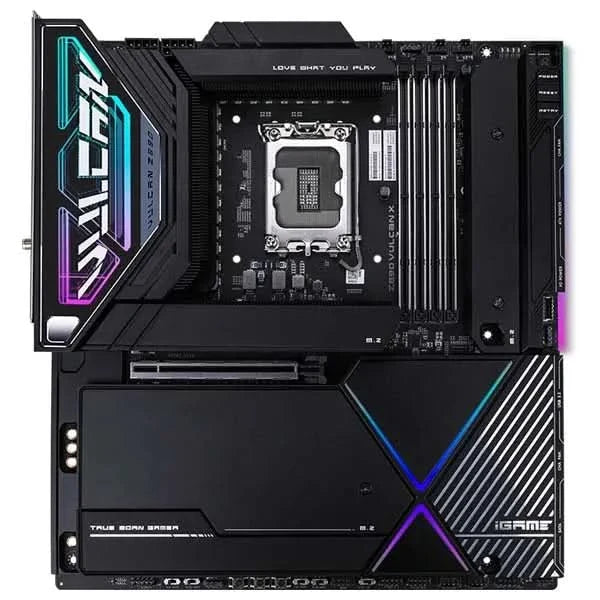

Colorful iGame Z890 VULCAN X V20 WiFi7 Intel Z890 LGA1851 DDR5 EATX Motherboard
Colorful iGame Z890 VULCAN X V20 WiFi7 Intel Z890 LGA1851 DDR5 EATX Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The Colorful iGame Z890 VULCAN X V20 WiFi7 Intel Z890 LGA1851 DDR5 EATX Motherboard is engineered for high-performance computing. This EATX motherboard combines advanced features with a robust design to provide a stable foundation for your system, supporting the latest components and connectivity standards.
Key Features at a Glance
- iGame series exclusive design with customized Vulcan heat dissipation armor.
- Supports dual-channel DDR5-8800 (OC) MHz memory.
- Features a 20+1+1+1 phase enhanced power supply design (Dr MOS 105A).
- Includes one PCIe 5.0 x4 M.2 SSD slot and four PCIe 4.0 x4 M.2 SSD slots.
- Equipped with Realtek 2.5G/5G wired and BE200 WiFi 7 wireless networking, plus Bluetooth 5.4.
- I/O backplane supports one-click BIOS upgrade and CMOS clearing functions.
Enhanced Cooling and Stability
The iGame series customized Vulcan heat dissipation armor, complete with a full-cover condenser, is designed to enhance thermal performance. This, combined with six major protection technologies and 200 strictly tested processes, contributes to more stable product operation and guaranteed quality for demanding tasks.
Advanced Connectivity
Experience next-generation speed with a front USB 3.2 Gen 2x2 20Gbps Type-C interface supporting PD3.0 @60W, and two rear USB4 40Gbps Type-C interfaces with video output capabilities up to 4K 60Hz. Network capabilities are robust with Realtek 2.5G/5G dual-speed wired and BE200 WiFi 7 wireless, plus Bluetooth 5.4.
Customizable Aesthetics
Personalize your build with iGame Center lighting control software. This allows you to synchronously adjust lighting effects for radiators, cooling fans, and memory, creating a cohesive and dynamic visual experience for your system.
Technical Specifications
| Model | iGame Z890 VULCAN X V20 |
| Series | iGame |
| Chipset | Intel Z890 |
| Processor | Intel® Core™ Ultra (LGA 1851; check colorful.cn for list) |
| Memory | 4 x DDR5 up to 192 GB (48 GB single); 8800(OC)-4800 MHz; XMP; Dual channel (check compatibility list) |
| Storage | 5 x M.2 (M2_1 PCIe5.0 x4 CPU; M2_2/3/4 PCIe4.0 x4; M2_5 PCIe4.0/SATA); 6 x SATA 6Gb/s (no RAID on SATA 5/6); RAID 0/1/5/10 |

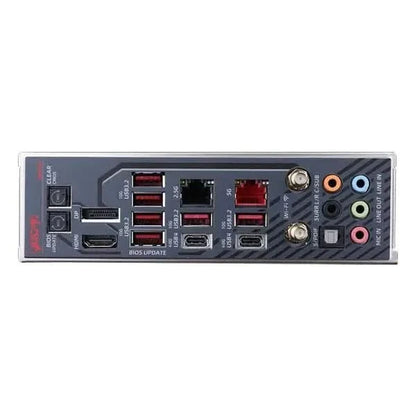

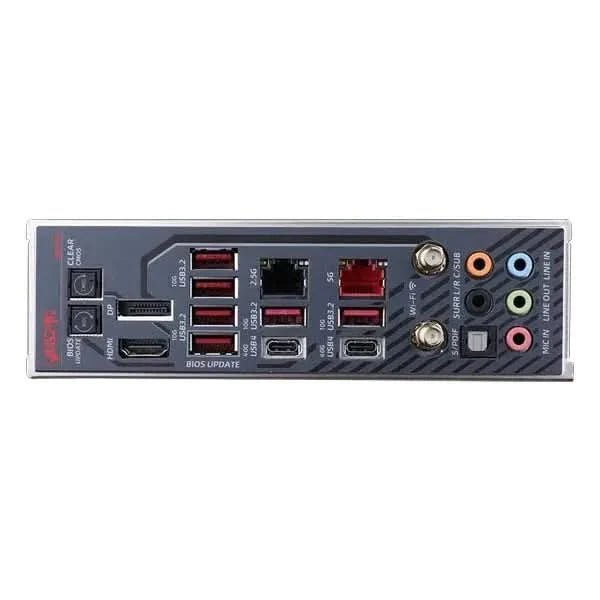

| Rear I/O | 6 x USB 3.2 Gen2 10G Type-A; 2 x USB4 40G Type-C (4K60 video); 1 x DP1.4 (8K60); 1 x HDMI2.0 (4K60); 2.5G/5G LAN; Wi-Fi7 antennas; 5 x audio; S/PDIF; BIOS/CMOS buttons |
| Internal I/O | USB: 2 x USB2.0 (4 ports), 2 x USB3.2 Gen1 (4 ports), 1 x USB3.2 Gen2x2 Type-C (20G PD60W); Fans: 2 x CPU, 4 x SYS, 1 x Pump; RGB: 3 x 5V ARGB, 1 x 12V RGB; Front audio/panel; BIOS burner |
| Expansion Slots | 1 x PCIe5.0 x16 (x16 or x8/x8); 1 x PCIe5.0 x8 (x16 slot); 1 x PCIe4.0 x4 |
| BIOS | 256M UEFI multi-language |
| Power Management | S3/S4/Network S5/USB wake; Timed boot |
| Hardware Monitor | Fan speed control; Temp/voltage monitoring |
| LAN/Wireless | RTL8125BG 2.5G + RTL8126 5G; BE200 Wi-Fi7 + BT 5.4 |
| Audio | Realtek ALC1220 (7.1 channel) |
| Form Factor | E-ATX (305 x 277 mm) |
| Other Features | Buttons: Power/Reset/Retry/BCLK(2)/Safe Start/RGB(2)/LN2/Slow/BIOS switch; 3-year warranty |
Frequently Asked Questions
Q: What type of memory does this motherboard support?
A: It supports dual-channel DDR5-8800 (OC) MHz memory.
Q: Does the motherboard include high-speed M.2 SSD slots?
A: Yes, it provides one PCIe 5.0 x4 M.2 SSD slot and four PCIe 4.0 x4 M.2 SSD slots.
Q: What networking capabilities are integrated?
A: The motherboard is equipped with Realtek 2.5G and 5G dual-speed wired network cards and a BE200 WiFi 7 wireless network card, supporting Bluetooth 5.4.
