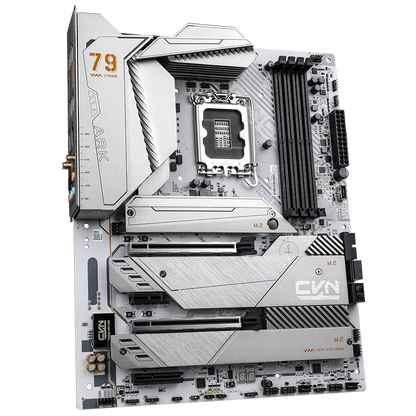

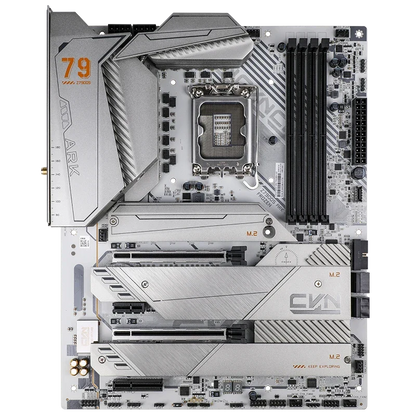

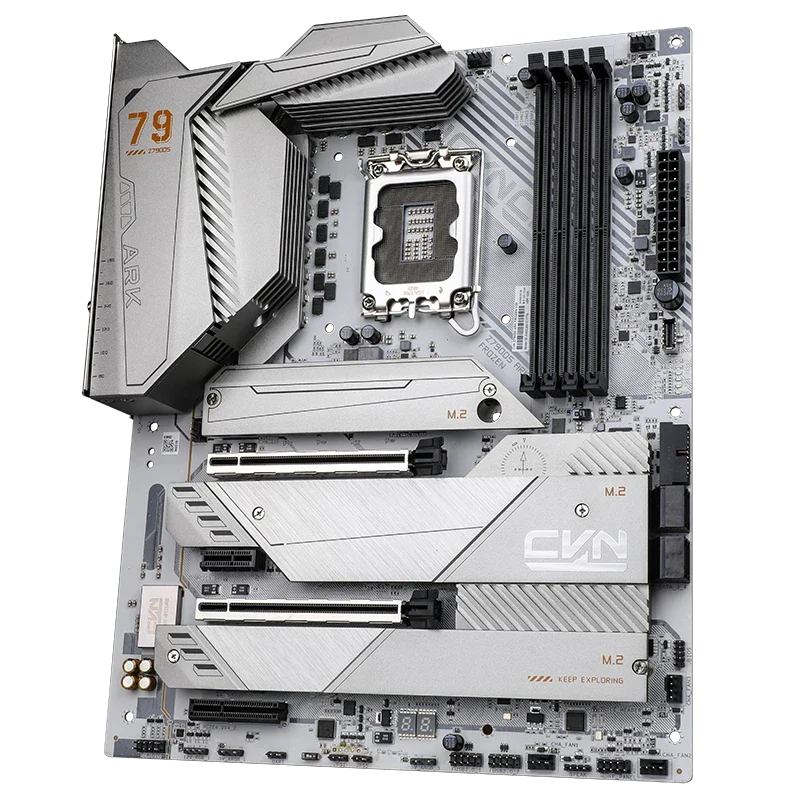

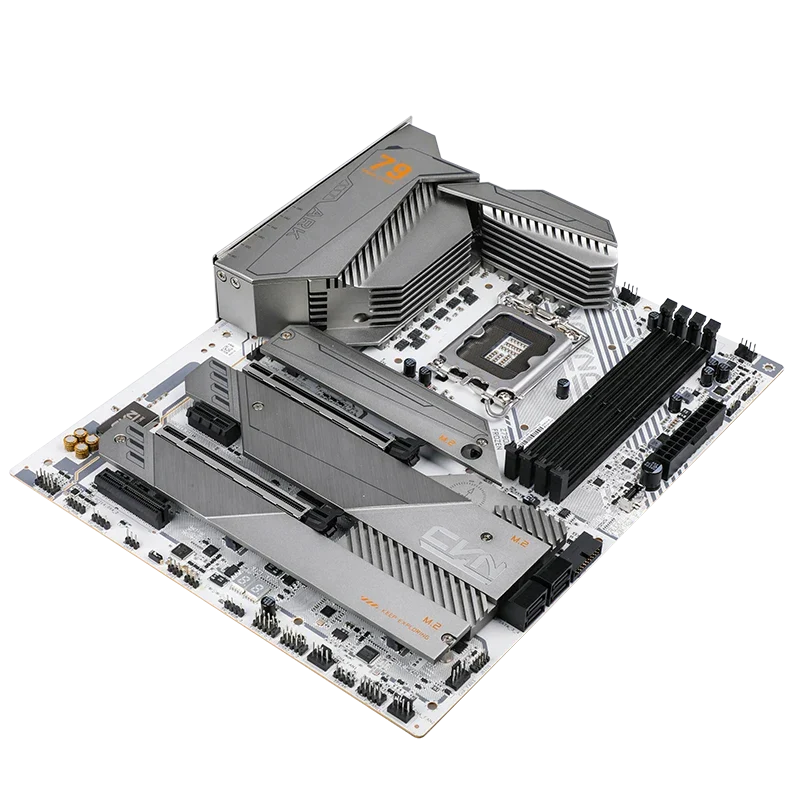

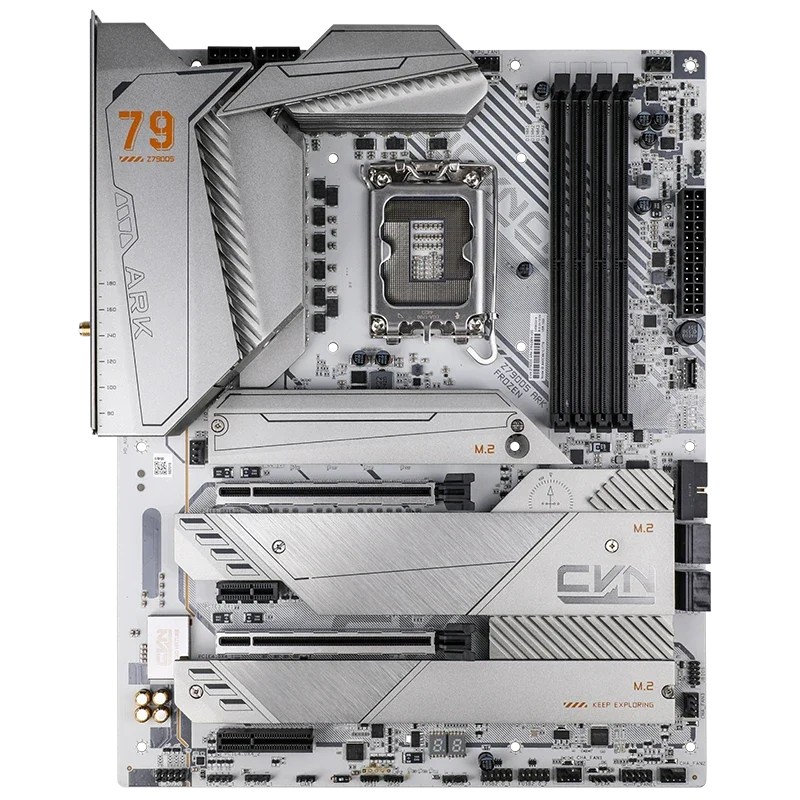

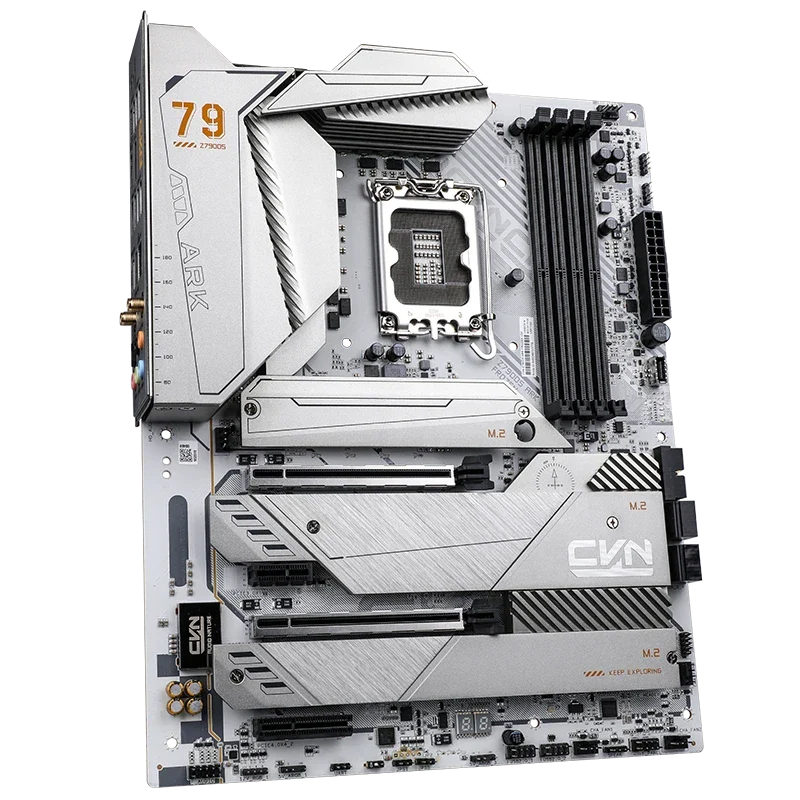

Elevate your PC build with the Colorful CVN Z790D5 ARK FROZEN V20 Intel Z790 ATX Motherboard. This customized white motherboard from the CVN series features a unique frost cooling armor design, offering robust performance with support for dual channel DDR5-7800 (OC) MHz memory and a reinforced 14+1+1 phase power supply.
Key Features at a Glance
- CVN series customized white design with frost cooling armor.
- Supports dual channel DDR5-7800 (OC) MHz memory.
- 14+1+1 Phase reinforced power supply design (Dr MOS 90A).
- Equipped with 4 PCIe 4.0 x4 M.2 SSD slots.
- Realtek 2.5G wired and AX211/AX210 WiFi 6E wireless with Bluetooth 5.3.
- I/O panel supports one-click BIOS upgrade.
Exceptional Performance and Power
Experience powerful and stable computing with the 14+1+1 Phase reinforced power supply design, featuring Dr MOS 90A. This motherboard supports dual channel DDR5-7800 (OC) MHz memory, ensuring high-speed data processing for demanding applications and gaming. Four PCIe 4.0 x4 M.2 SSD slots provide ample, fast storage expansion.
Advanced Connectivity Options
Stay connected with integrated Realtek 2.5G high-speed wired networking and AX211/AX210 WiFi 6E wireless capabilities, alongside Bluetooth 5.3. The board also provides convenient front and rear dual Type-C high-speed interfaces, with the front Type-C port supporting PD3.0 @ 30W for rapid device charging.
Distinctive Design and User-Friendly Features

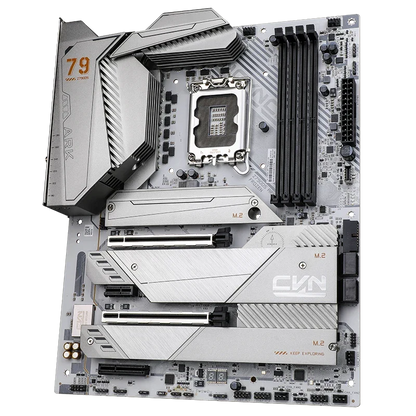

The CVN series customized white motherboard boasts a unique frost cooling armor, adding a striking aesthetic to your build. Manage your system's lighting with iGame Center software, synchronizing effects across your radiator, cooling fan, and memory. For ease of use, the I/O panel includes a one-click BIOS upgrade function.
Reliability You Can Trust
Built for durability, this motherboard incorporates six protection technologies for more stable operation. Each unit undergoes 200 strict testing processes to ensure quality, complemented by a comprehensively upgraded PCB atomization process.
Technical Specifications
| Model | CVN Z790D5 ARK FROZEN V20 |
|---|---|
| Product Series | CVN Series |
| Chipset | Intel Z790 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 4 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices - M.2_1 slot: support 2242/2260/2280/22110 specification M 2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_3 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_4 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, PCH channel) |

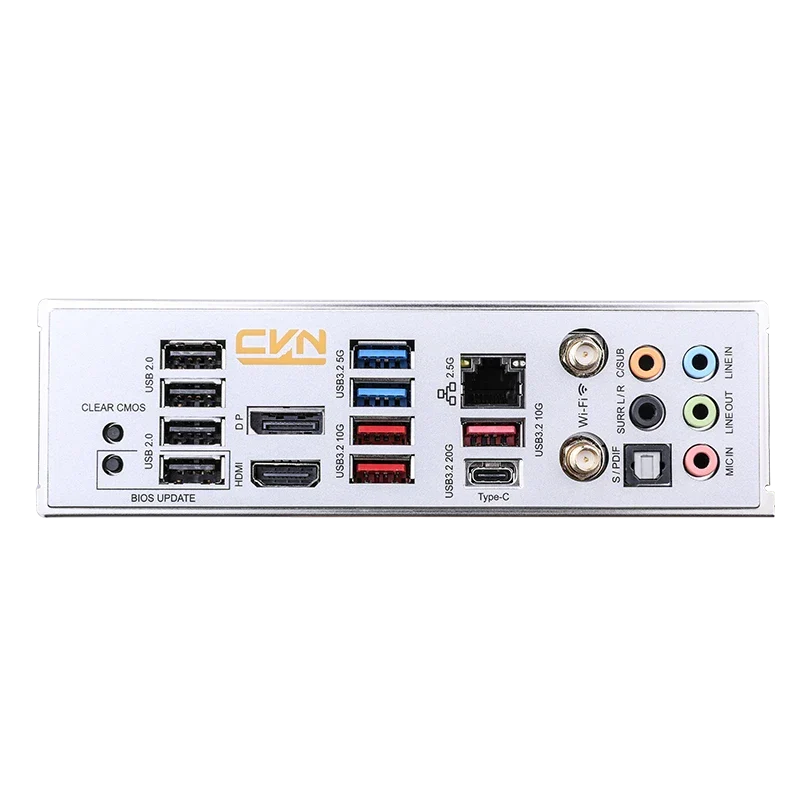

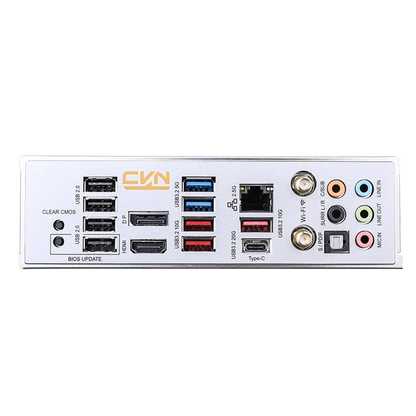

| Board I/O | Rear I/O: - 1×USB 3.2 Gen 2x2 Type-C interface - 3×USB 3.2 Gen 2 Type-A interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 4×USB 2.0 interfaces - 1×DP 1.4 interface, Supports up to 8K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×2.5G network interface - 5×Audio interfaces - 1×S/PDIF audio interface - 2×Wi-Fi 6E antenna interfaces - 1×BIOS update button - 1×CMOS clearing key On board: - 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C slot can expand 1 USB 3.2 Gen 2 Type-C interface (support PD3.0 @30W) - 2×CPU fan pins - 3×System fan pins - 1×Water cooling pump pin - 3×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×BIOS burner pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supporting PCIe 4.0 x4 specification) 1×PCIe 4.0 x4 slot 1×PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN, AX211/AX210 WiFi 6E wireless network card, Bluetooth 5.3 |
| Audio | Realtek ALC1220 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | ATX 305 x 244 mm |
Frequently Asked Questions
Q: What memory types does this motherboard support?
A: It supports dual channel DDR5-7800 (OC) MHz memory.
Q: Does it have built-in Wi-Fi and Bluetooth?
A: Yes, it features an AX211/AX210 WiFi 6E wireless network card and supports Bluetooth 5.3.
Q: How many M.2 SSD slots are available?
A: The motherboard provides 4 PCIe 4.0 x4 M.2 SSD slots for high-speed storage.
