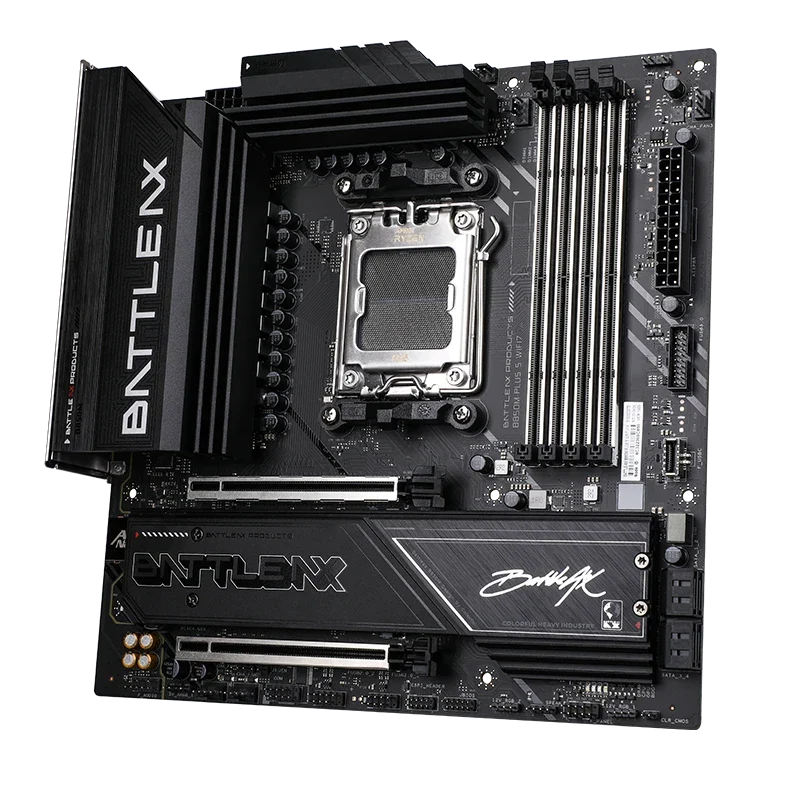

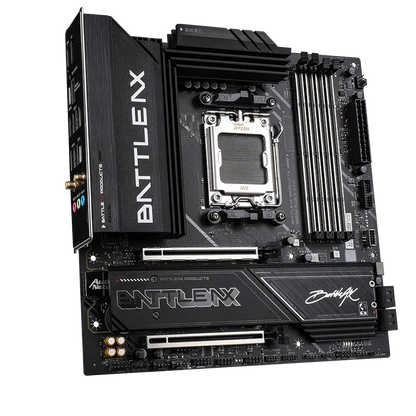

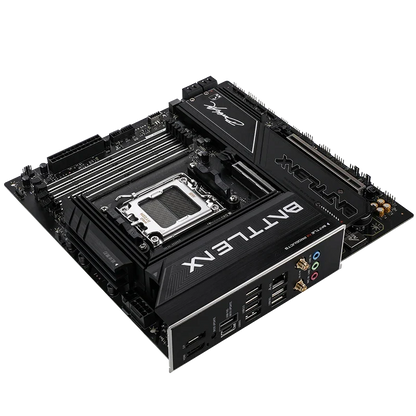

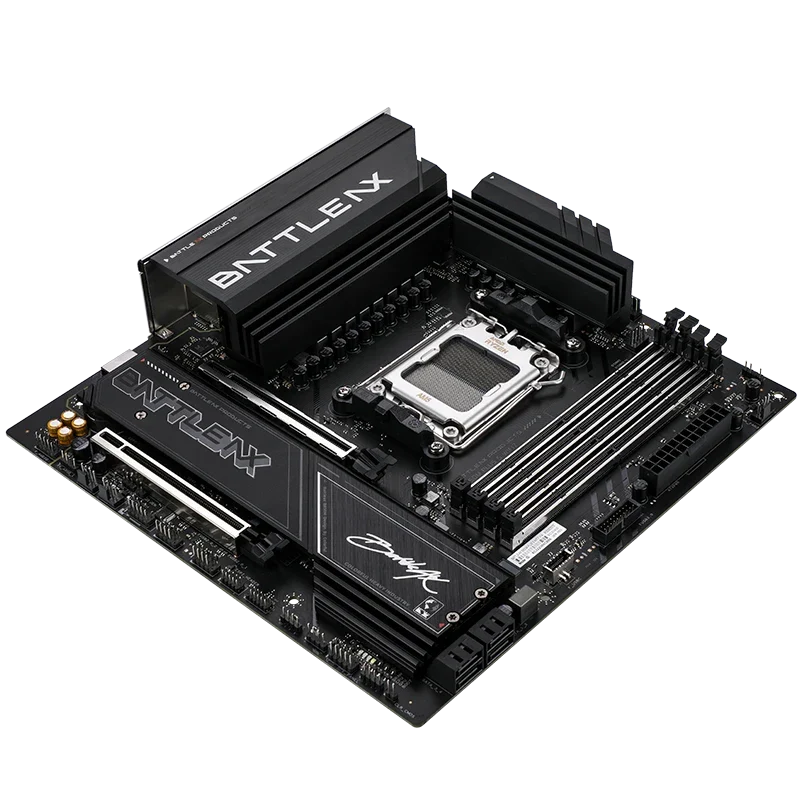

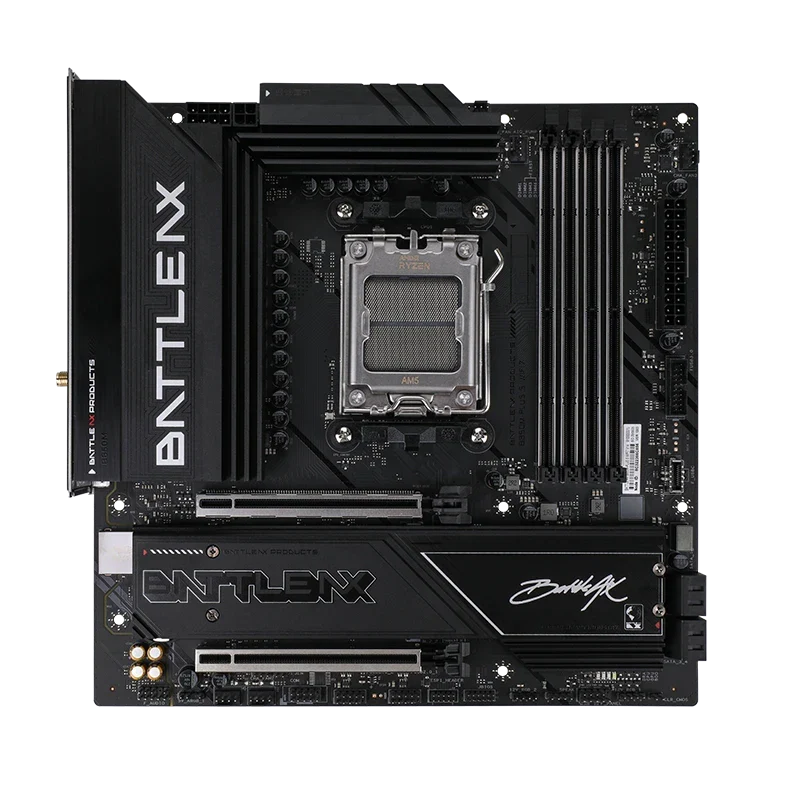

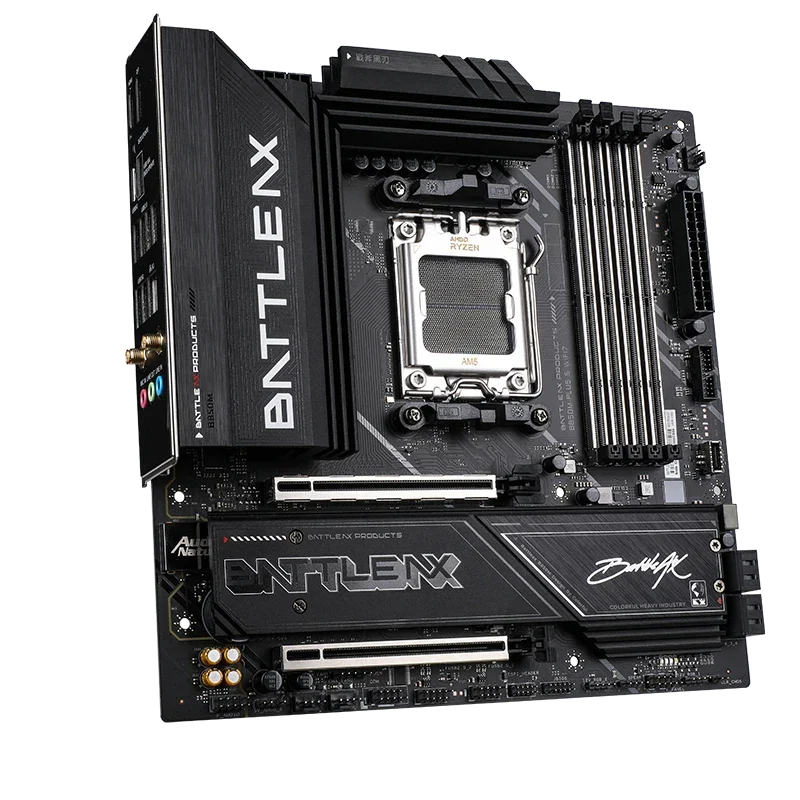

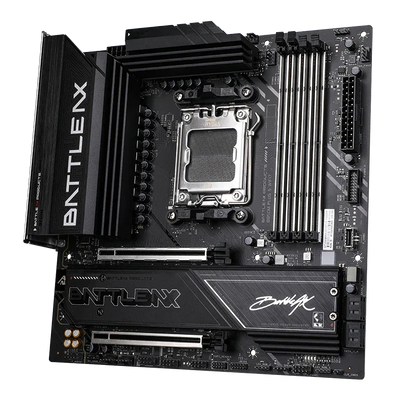

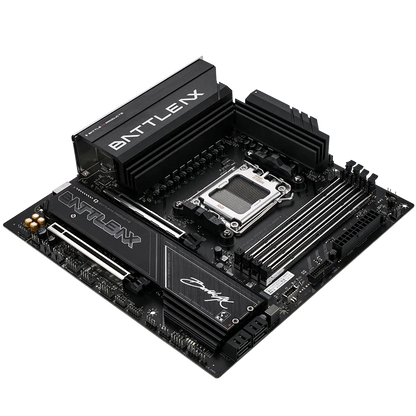

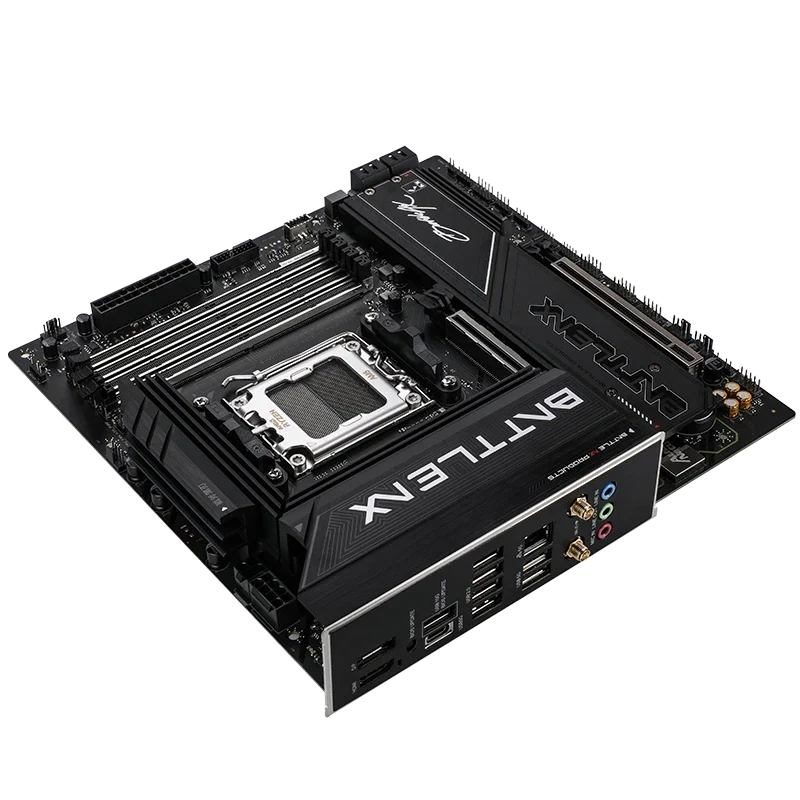

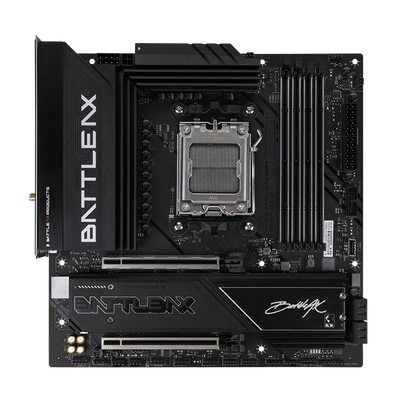

The Colorful BATTLE-AX B850M-PLUS S WIFI7 V14 AMD B850 M-ATX Motherboard provides a robust foundation for your AMD system, integrating high-speed connectivity, efficient thermal management, and reliable power delivery.
Key Features at a Glance
- Custom frost cooling armor with full-cover condenser for enhanced heat dissipation.
- 10+2+1 phase enhanced power design with F.C.C ferrite chokes (Dr MOS 55A).
- Features one PCIe 5.0 x4 M.2 SSD slot and one PCIe 4.0 x4 M.2 SSD slot.
- Equipped with WiFi 7, Realtek 5G wired network card, and Bluetooth 5.4 support.
- Includes USB 3.2 Gen 1 Type-C and USB 3.2 Gen 2 Type-A high-speed rear ports.
- I/O backplane supports convenient one-click BIOS upgrades.
Optimized Cooling Performance
Experience superior heat dissipation with the custom frost cooling armor and full-cover condenser. This advanced design ensures stable operation and extended component lifespan by efficiently managing thermal loads within your system.
Blazing-Fast Connectivity
Stay connected and transfer data at high speeds with integrated WiFi 7 wireless and Realtek 5G high-speed wired network cards, alongside Bluetooth 5.4 support. Benefit from rapid storage access via dedicated PCIe 5.0 x4 M.2 and PCIe 4.0 x4 M.2 SSD slots, plus versatile USB 3.2 Gen 1 Type-C and Gen 2 Type-A rear ports.
Robust Power & Custom Lighting
The 10+2+1 phase enhanced power design, featuring F.C.C ferrite chokes with Dr MOS 55A, ensures reliable and stable power delivery to your components. Personalize your setup with iGame Center lighting control software, allowing simultaneous adjustment of radiator, fan, and memory lighting.
Technical Specifications
| Model | BATTLE-AX B850M-PLUS S WIFI7 V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B850 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA or M.2 NVMe hard disk devices -M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) (*Whether PCIe 5.0 is supported depends on the CPU of the motherboard) |

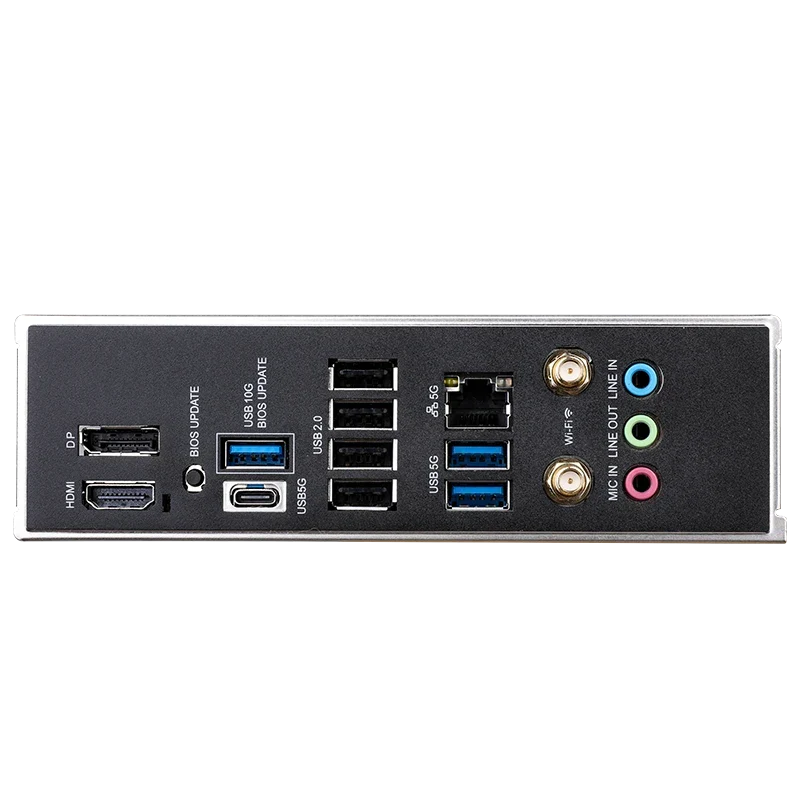

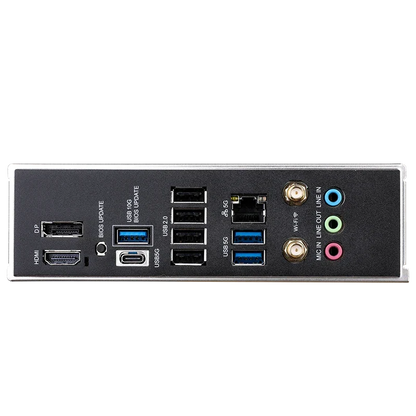

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 3.2 Gen 1 5Gbps Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution -1×5G network interface -2×Wi-Fi 7 antenna interfaces -1× BIOS update button -3×Audio interfaces (audio input/audio output/microphone) On board : -1×CPU fan pin -3×System fan pins -1×Water cooling pump pin -2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port -1 USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 Type-C port -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specification) |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4 - Wi-Fi functionality may vary depending on the operating system. - For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. - For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor's website. - Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region. - Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer's website for the latest instructions. |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 244mm x 244mm |
Frequently Asked Questions
Q: What cooling technology is featured on this motherboard?
A: It includes custom frost cooling armor with a full-cover condenser, designed for enhanced heat dissipation.
Q: What network connectivity options does the motherboard provide?
A: It is equipped with a Realtek 5G high-speed wired network card, WiFi 7 wireless network card, and supports Bluetooth 5.4.
Q: Are there fast M.2 SSD slots available on this model?
A: Yes, it provides one PCIe 5.0 x4 M.2 SSD slot and one PCIe 4.0 x4 M.2 SSD slot for high-speed storage.
