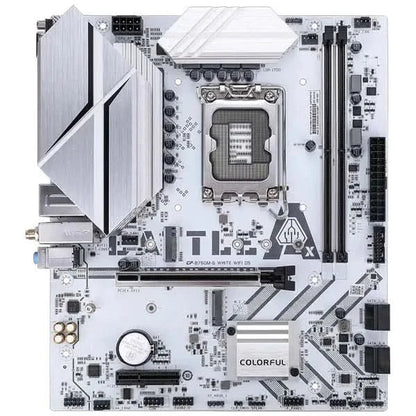

Experience superior performance and aesthetics with the Colorful BATTLE-AX B760M-G WIFI D5 V20A M-ATX Motherboard (WHITE). This exclusive customized white motherboard is engineered for stability and high-speed connectivity, featuring an upgraded PCB atomization process and rigorous testing standards.
Technical Specifications
| Model | BATTLE-AX B760M-G WHITE WIFI D5 V20A |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |

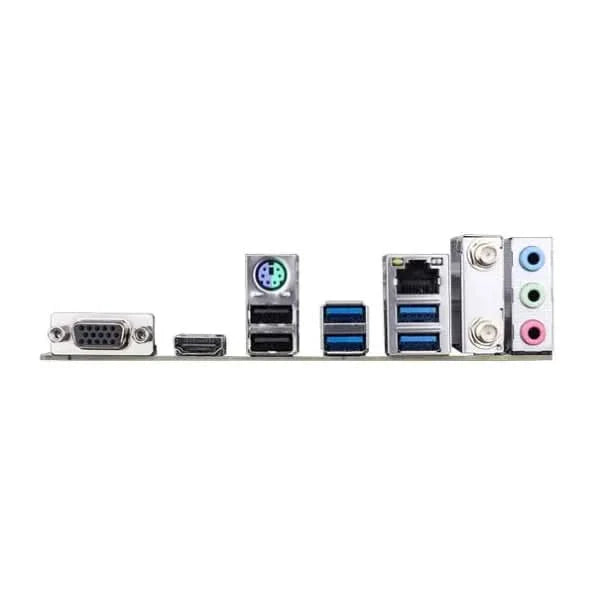

| Board I/O | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces -2×5V 3-pin ARGB pins -1×12V 4-pin RGB pin - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×Serial port pin - 1×Clear CMOS jumper - 1×BIOS burner pin - 1×RGB lighting control jumper |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe 3.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| Configuration | M-ATX 245mm x 210mm |
Key Features at a Glance
- Exclusive customized white motherboard design.
- 2 x PCIe 4.0 x4 M.2 SSD slots and 1 x PCIe 5.0 x16 slot.
- Integrated Realtek 2.5G wired and AX101 WiFi 6 wireless networking.
- Includes Bluetooth 5.2 for seamless wireless peripheral connections.
- Supports iGame Center software for synchronized lighting control.
- Enhanced system stability with six protection technologies.
Unrivaled Connectivity
Unleash high-speed data transfer and network performance. This motherboard features a Realtek 2.5G wired and AX101 WiFi 6 wireless network card for robust internet connectivity. Expand your storage with two PCIe 4.0 x4 M.2 SSD slots and integrate powerful graphics cards using the PCIe 5.0 x16 slot. Four USB 3.2 Gen 1 Type-A rear interfaces ensure fast peripheral connections, complemented by built-in Bluetooth 5.2.
Customizable Aesthetics
Personalize your system's look with the exclusive customized white design. Utilize the iGame Center light efficiency control software to synchronize lighting effects across your radiator, cooling fan, and memory, creating a cohesive and vibrant build.
Built for Reliability
Engineered for lasting performance, this motherboard incorporates six protection technologies to ensure stable and reliable operation. Every unit undergoes 200 strict testing processes, and features a comprehensively upgraded PCB atomization process, guaranteeing consistent quality.
Frequently Asked Questions
Q: What color is this motherboard?
A: This is an exclusive customized white motherboard.
Q: What network connectivity options are included?
A: It includes a Realtek 2.5G wired network card, an AX101 WiFi 6 wireless network card, and supports Bluetooth 5.2.
Q: Can I control the lighting effects on my PC with this motherboard?
A: Yes, it supports the iGame Center light efficiency control software, which can adjust the lighting of your radiator, cooling fan, and memory.
