Save 35%

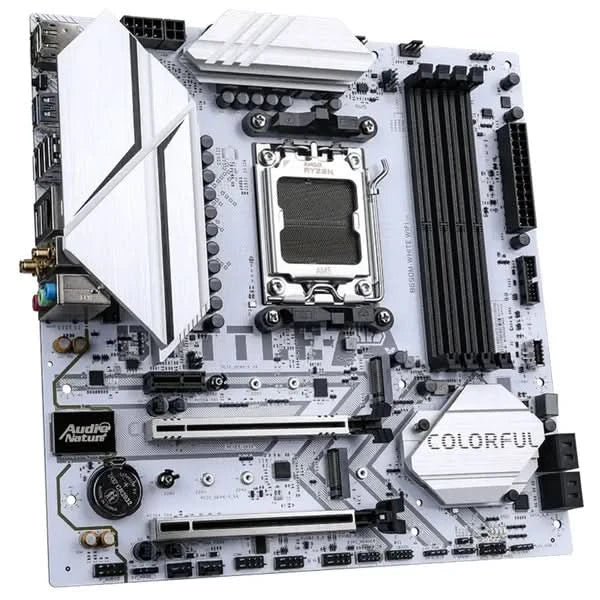

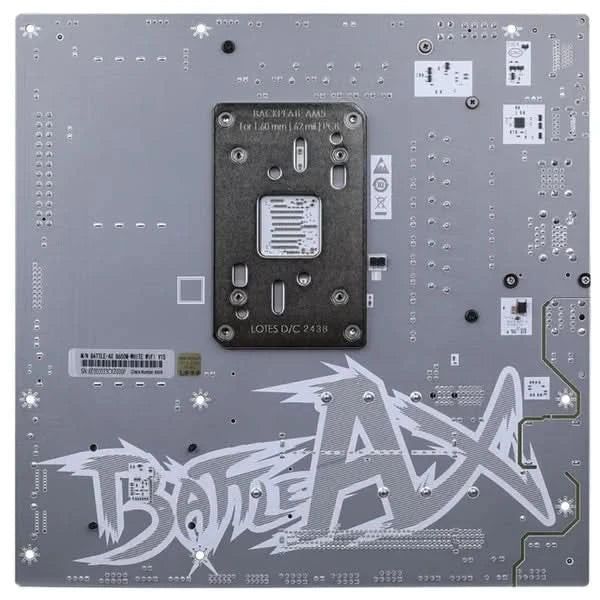

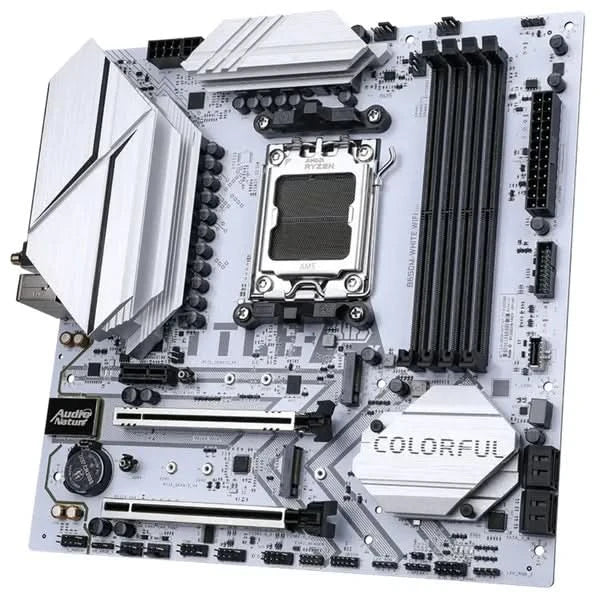

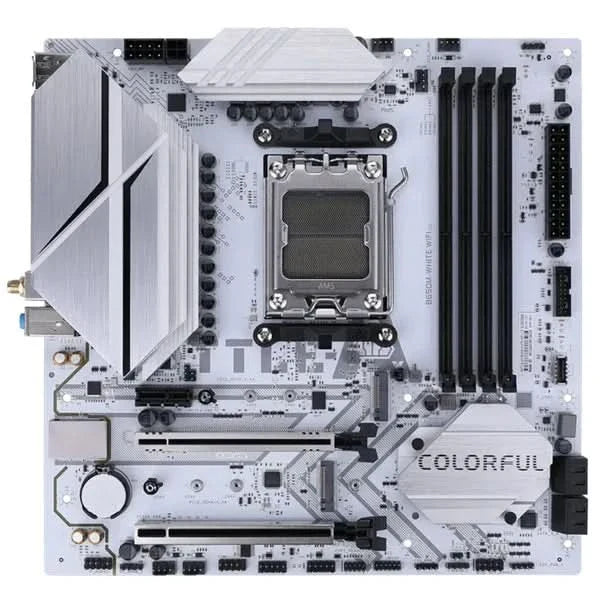

Colorful BATTLE AX B650M WHITE WIFI V15 WiFi-6 AMD B650 AM5 DDR5 MicroATX Motherboard (White)
Sale priceRs. 11,515.00Regular price
Rs. 17,686.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
| Specification | Details |
| Model | BATTLE‑AX B650M‑WHITE WIFI V15 (Model No.: BA‑B650M‑W‑WF‑V15) |
| Product Series | BATTLE‑AX series |
| Chipset | AMD B650 |
| Processor Support | AMD Ryzen 7000/8000/9000 series (AM5 socket) |
| Memory | 4× DDR5 DIMM slots; up to 192 GB (48 GB per slot) |
| Memory Speeds & Tech | DDR5‑4800 to 6800 (OC); supports XMP & EXPO; Dual‑Channel |
| Storage Interfaces | 2× M.2 slots + 4× SATA 6 Gb/s; RAID 0/1/10 |
| M.2 Slot Details | M.2_1: PCIe 5.0/4.0 x4 • M.2_2: PCIe 5.0/4.0 x4 (depends on CPU) |

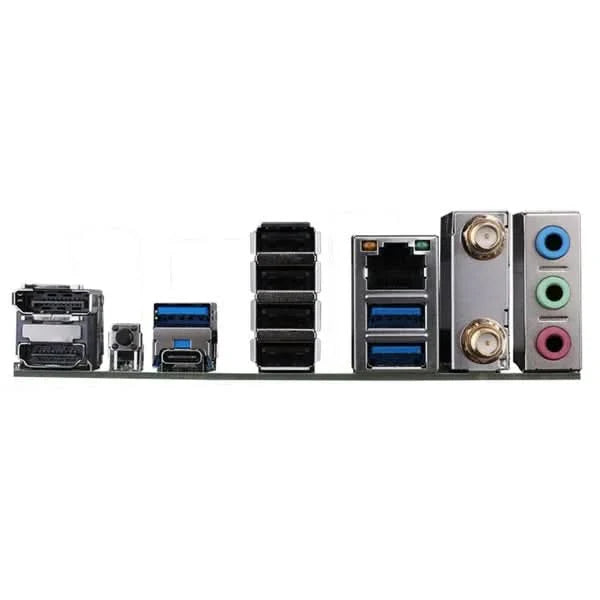

| Rear I/O | 4× USB 2.0 • 2× USB 3.2 Gen1 Type‑A • 1× USB 3.2 Gen2 Type‑A • 1× USB 3.2 Gen1 Type‑C • DP 1.2 (4K@60) • HDMI 1.4 (4K@30) • 2.5G LAN • Wi‑Fi 6 antenna ports • Audio jacks • BIOS update button |
| On‑Board Headers | CPU fan • System fans • Water pump • USB headers • RGB headers • Front audio • Front panel • CMOS jumper • COM port • BIOS burner • POST card |
| Expansion Slots | 1× PCIe 5.0 x16 • 1× PCIe x16 (PCIe 4.0 x4) • 1× PCIe 4.0 x1 |
| Graphics Output | DisplayPort 1.2 (4K@60) • HDMI 1.4 (4K@30) |
| BIOS | 128 M UEFI, multilingual |
| Power Management | S3/S4 wake‑up • Network S5 wake‑up • USB wake‑up • Scheduled boot |
| Hardware Monitor | CPU/System fan control • Temperature monitoring • Voltage monitoring |
| Networking | Realtek RTL8125BG 2.5GbE LAN • Intel AX200 Wi‑Fi 6 • Bluetooth 5.2 |
| Audio | Realtek ALC897 codec; up to 5.1 channels |
| Form Factor | Micro‑ATX (245 mm × 245 mm) |
| Country of Origin | China |
| Weight | 1.5 |
| Warranty | 3 Year |
| Model Number | BA‑B650M‑W‑WF‑V15 |
