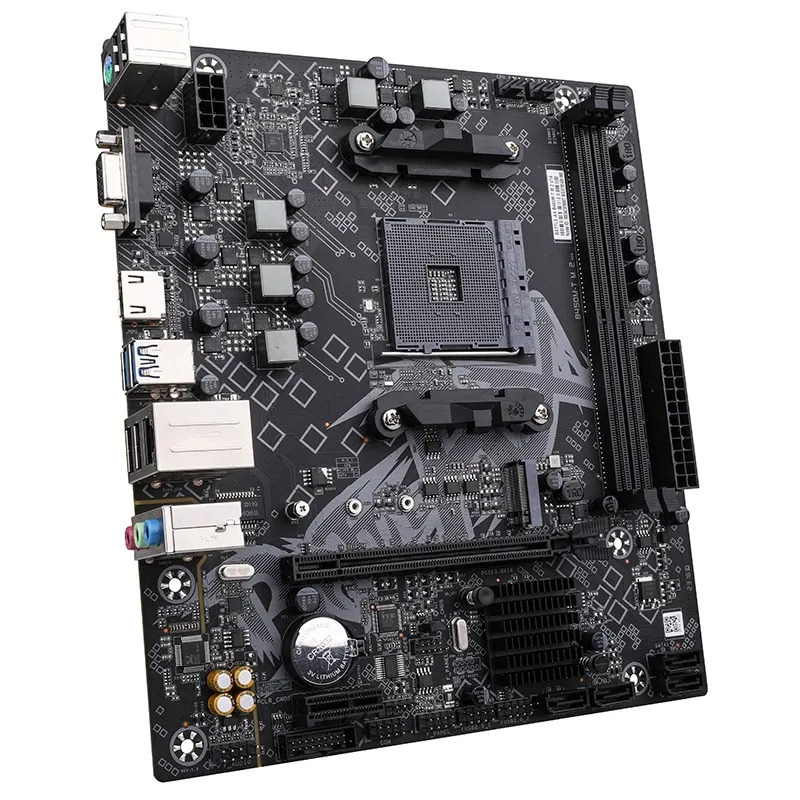

Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard
Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Upgrade your build with the Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard, designed to provide essential performance and connectivity for your system. This motherboard incorporates reliable features to support your computing needs, from fast storage to versatile peripheral connections.
Key Features at a Glance
- Equipped with 1 PCIe 3.0 x4 M.2 SSD slot.
- Features 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces.
- Includes 4 additional USB 2.0 interfaces.
- Integrated RTL8111H gigabit wired network card.
- Provides HDMI and VGA display interfaces.
- Built with six major protective technologies.
- Undergoes strict testing across 200 processes for quality.
- Features a fully upgraded PCB atomization process.
Enhanced Storage Capabilities
Benefit from rapid data access with a dedicated PCIe 3.0 x4 M.2 SSD slot, allowing for quick boot times and faster application loading on your Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard. This ensures your system can handle demanding tasks efficiently.
Versatile Connectivity Options
Connect all your essential devices with ease, thanks to two high-speed USB 3.2 Gen 1 Type-A rear interfaces and four convenient USB 2.0 ports. Enjoy reliable networking for online activities and file transfers with the integrated RTL8111H gigabit wired network card.
Reliability and Quality Assurance
Experience consistent and stable performance supported by six major protective technologies. Each BATTLE-AX B450M-T M.2 V14 motherboard undergoes strict testing across 200 processes, ensuring quality and durability through its fully upgraded PCB atomization process.
Technical Specifications
| Model | BATTLE-AX B450M-T M.2 V14 |
| Series | BATTLE-AX Series |
| Chipset | AMD B450 |
| Processor Support | AMD Ryzen Series Processors (Socket AM4) |
| Form Factor | M-ATX (220mm × 195mm) |
| Memory | 2 × DDR4 DIMM Slots (Up to 64GB, 32GB per slot) |
| Supports DDR4-3600(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz | |
| Supports Dual Channel & XMP Memory Technology | |
| Storage | 1 × M.2 Slot (2242/2260/2280, PCIe 3.0 x4, CPU channel) |
| 4 × SATA 6Gb/s Ports | |
| Expansion Slots | 1 × PCIe 3.0 x16 Slot |
| 1 × PCIe 3.0 x1 Slot | |
| Audio | Realtek ALC897 High-Fidelity Codec (5.1 Channel) |
| LAN | Realtek RTL8111H Gigabit Ethernet |
| BIOS | 128M UEFI BIOS, Multi-language Support |
| Rear I/O Ports | 4 × USB 2.0, 2 × USB 3.2 Gen1 Type-A |
| 1 × HDMI 2.0 (4K@60Hz), 1 × VGA, 1 × PS/2 | |
| 1 × Gigabit LAN, 3 × Audio Jacks (Input/Output/Mic) | |
| Internal Connectors | 1 × CPU Fan, 1 × System Fan |
| 2 × USB 2.0 Headers (expand 4 USB 2.0), 1 × USB 3.2 Gen1 Header (expand 2 USB 3.2 Gen1) | |
| 1 × Front Audio, 1 × Front Panel, 1 × Speaker, 1 × COM Port, 1 × Clear CMOS, 1 × Debug LED | |
| Power Management | Supports S3/S4 Wake, Network Wake (S5), USB Wake, Timed Boot, and Call Boot |
| Monitoring | CPU/System Fan Speed Control, Temperature & Voltage Monitoring |
Frequently Asked Questions
Q: Does the Colorful BATTLE-AX B450M-T M.2 V14 AMD Motherboard support M.2 SSDs?
A: Yes, it provides one PCIe 3.0 x4 M.2 SSD slot for fast storage.
Q: What display output options are available on this motherboard?
A: The motherboard is equipped with both HDMI and VGA display interfaces.
Q: What type of wired network card is included with the motherboard?
A: It features an RTL8111H gigabit wired network card for reliable internet connectivity.
