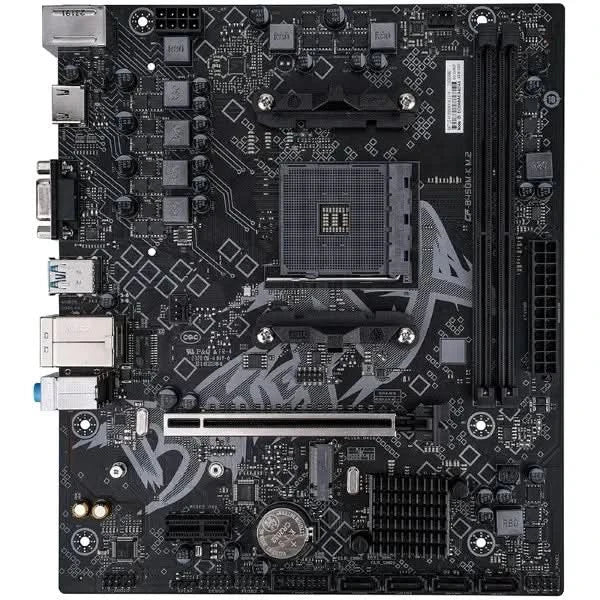

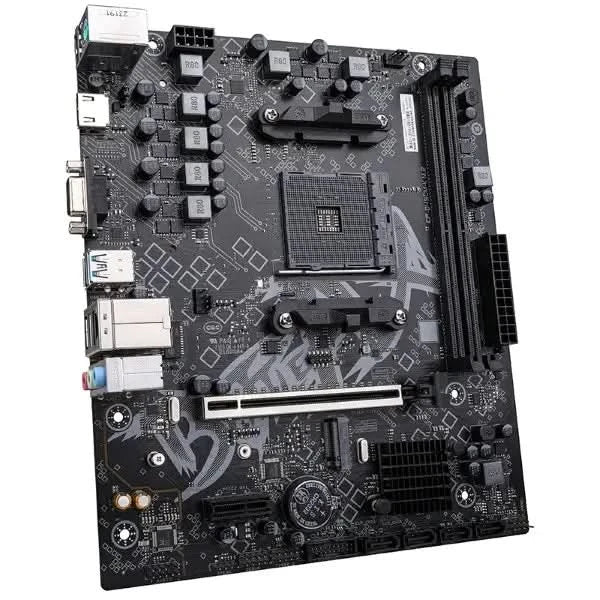

Colorful BATTLE-AX B450M-K M.2 V14 Chipset Mother Board
Colorful BATTLE-AX B450M-K M.2 V14 Chipset Mother Board
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

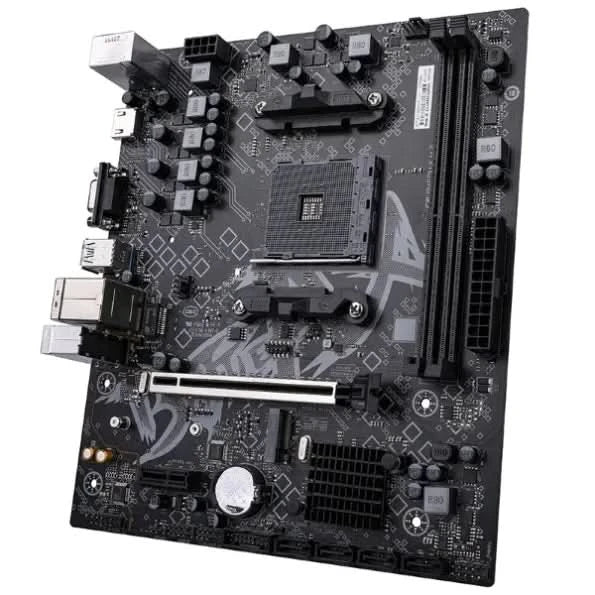

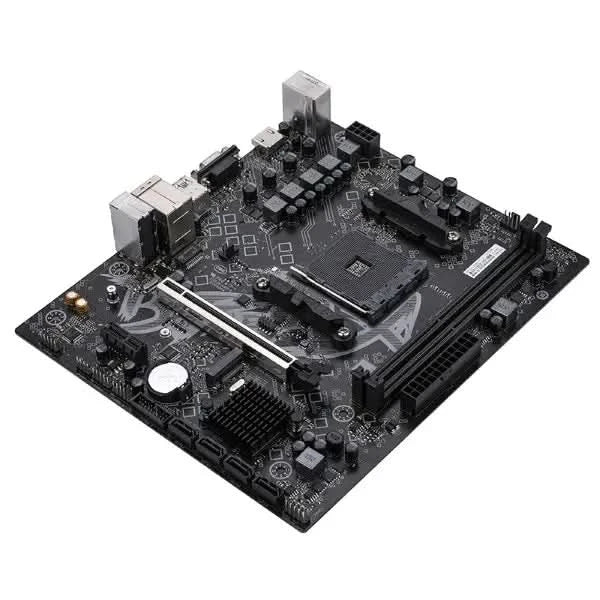

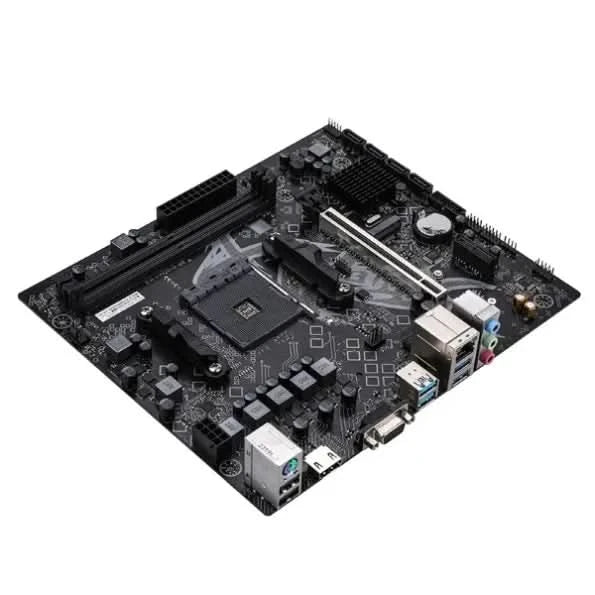

Elevate your system with the Colorful BATTLE-AX B450M-K M.2 V14 Chipset Mother Board. This robust motherboard provides essential connectivity and performance features, including a dedicated PCIe 3.0 x4 M.2 SSD slot for fast storage and a reliable Gigabit wired network card, making it an excellent foundation for your build.
Key Features at a Glance
- Equipped with 1 PCIe 3.0 x4 M.2 SSD slot.
- Features 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces.
- Includes 2 USB 2.0 interfaces for broader compatibility.
- Integrated RTL8111H Gigabit wired network card.
- Provides HDMI+VGA display output interfaces.
- Built with six major protective technologies for stable operation.
High-Speed Storage Support
Benefit from rapid data access with the integrated 1 PCIe 3.0 x4 M.2 SSD slot, allowing for the installation of modern, high-speed storage devices to significantly reduce load times and improve overall system responsiveness.
Comprehensive Connectivity
Connect all your essential peripherals with ease thanks to a generous selection of rear interfaces. This motherboard provides 4 USB 3.2 Gen 1 Type-A high-speed ports and an additional 2 USB 2.0 interfaces, ensuring broad compatibility for various devices.
Stable Networking and Display
Experience consistent and fast internet connectivity through the equipped RTL8111H Gigabit wired network card. For visual output, the board offers versatile HDMI+VGA display interfaces, accommodating various monitor setups.
Built for Reliability
Designed for lasting performance, this motherboard incorporates six major protective technologies to ensure more stable product operation. Quality is guaranteed through strict testing of 200 processes and a comprehensive upgrade of the PCB atomization process.
Technical Specifications
| Model | BATTLE-AX B450M-K M.2 V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B450 |
| Processor | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory) - Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory - Support Extreme Memory Profile (XMP) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces - M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel) |

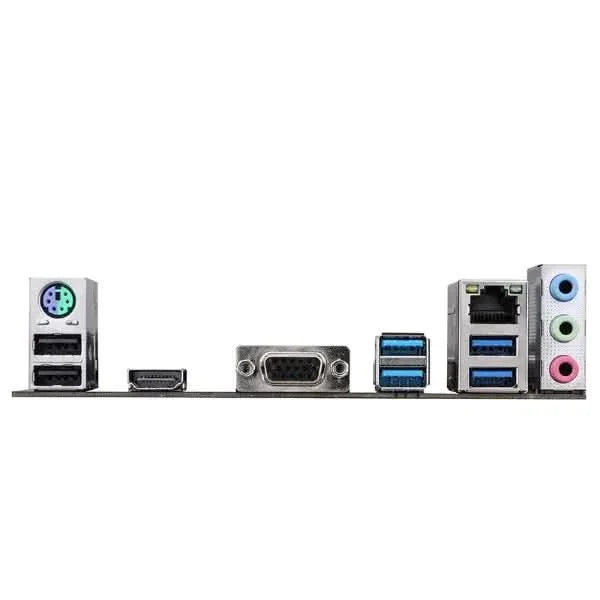

| Board I/O | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Digital audio pin -1×Clear CMOS jumper -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper |
| Expansion Slots | 1×PCIe 3.0 x16 slot 1×PCIe 2.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit Network Card |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 230mm x 197mm |
Frequently Asked Questions
Q: What kind of M.2 slot is available on this motherboard?
A: The Colorful BATTLE-AX B450M-K M.2 V14 Chipset Mother Board provides 1 PCIe 3.0 x4 M.2 SSD slot.
Q: What types of USB interfaces are offered?
A: This motherboard features 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces and 2 USB 2.0 interfaces.
Q: What are the display output options?
A: It provides both HDMI and VGA display interfaces for video output.
