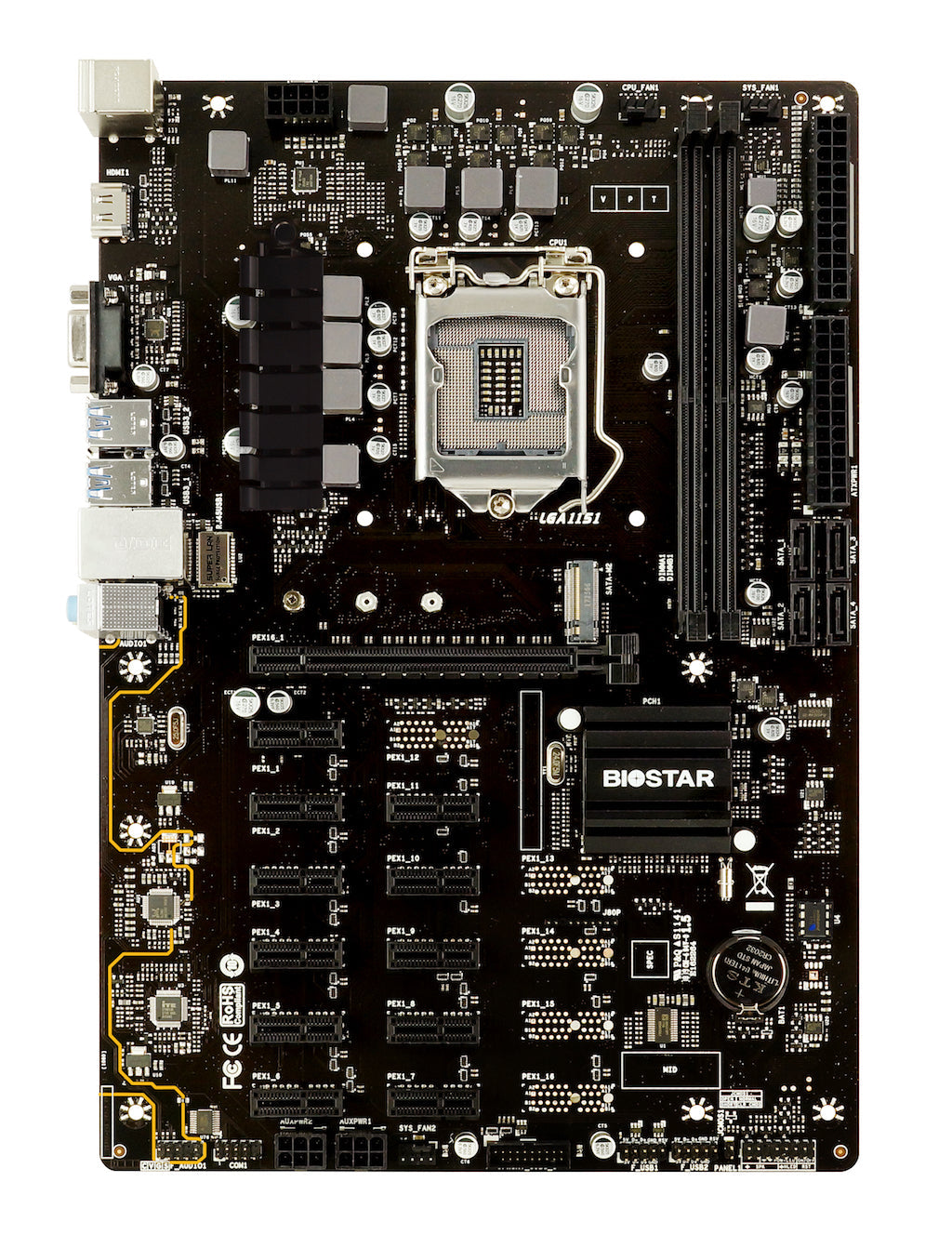

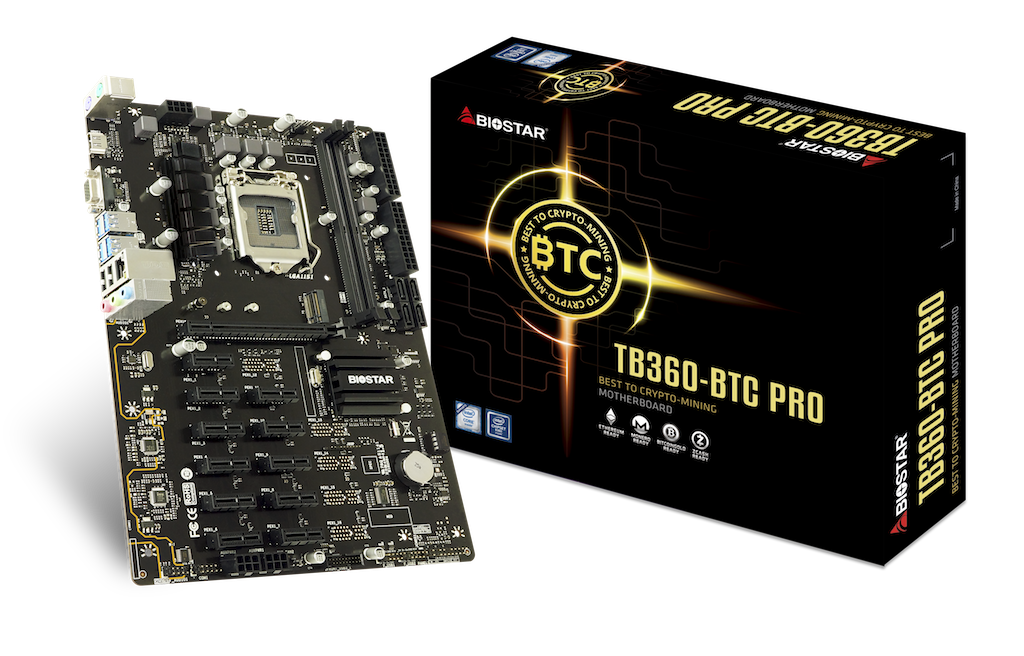

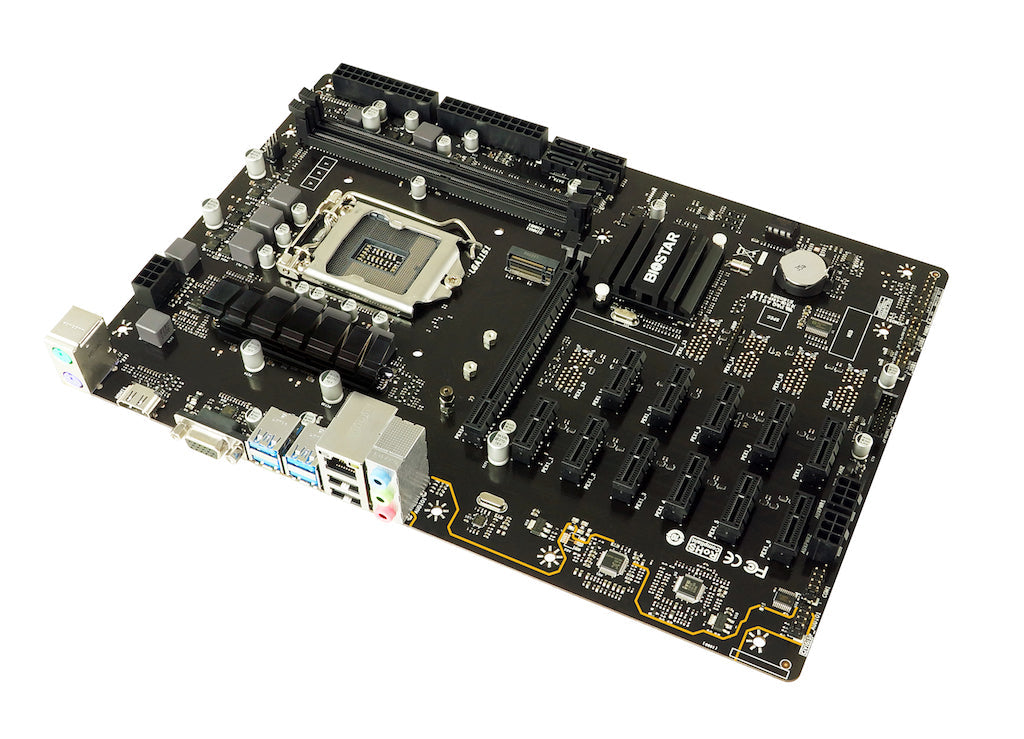

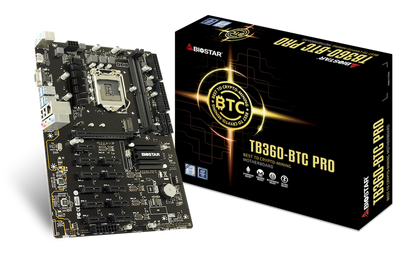

The BIOSTAR TB360 BTC PRO INTEL LGA1151 MOTHERBOARD offers a dedicated platform for building your system. Compatible with Intel LGA1151 processors, this motherboard is designed to provide the core functionality required for various computing tasks, including specialized applications hinted at by its 'BTC PRO' designation.
Key Features at a Glance
- BIOSTAR Brand Motherboard
- TB360 BTC PRO Model Series
- Intel LGA1151 Socket Compatibility
- Designed for specialized computing applications
- Part of a 'PRO' series for enhanced foundational support
Dedicated Platform
This BIOSTAR motherboard serves as the central hub for your system, providing essential component integration and a reliable base for your computing setup.
Intel LGA1151 Support
Benefit from broad compatibility with Intel LGA1151 socket processors. This ensures you can select from a range of compatible CPUs to power your system.
Specialized Design Considerations
The 'BTC PRO' designation suggests a design tailored to meet the foundational requirements for specific, demanding workloads, offering a robust base for such applications.
Technical Specifications
| Chipset | Intel B360 |
| CPU SUPPORT | 9th Gen Intel Core i9 LGA 1151 Processor 9th Gen Intel Core i7 LGA 1151 Processor 9th Gen Intel Core i5 LGA 1151 Processor 9th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Core i7 LGA 1151 Processor 8th Gen Intel Core i5 LGA 1151 Processor 8th Gen Intel Core i3 LGA 1151 Processor 8th Gen Intel Pentium LGA 1151 Processor 8th Gen Intel Celeron LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt 8th *Generation Intel Core Processor Family only support 300-Series. |
| MEMORY | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6GB/s) * Specifications vary by CPU types1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD * Specifications vary by CPU types |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| AUDIO CODEC | Realtek ALC887 8-Channel HD Audio |
| USB | 6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot * Specifications vary by CPU types11 x PCI-E 3.0 x1 Slots * Specifications vary by CPU types*Maximum VGA cards mining support are depending on VGA Driver or mining software. * Specifications vary by CPU types |

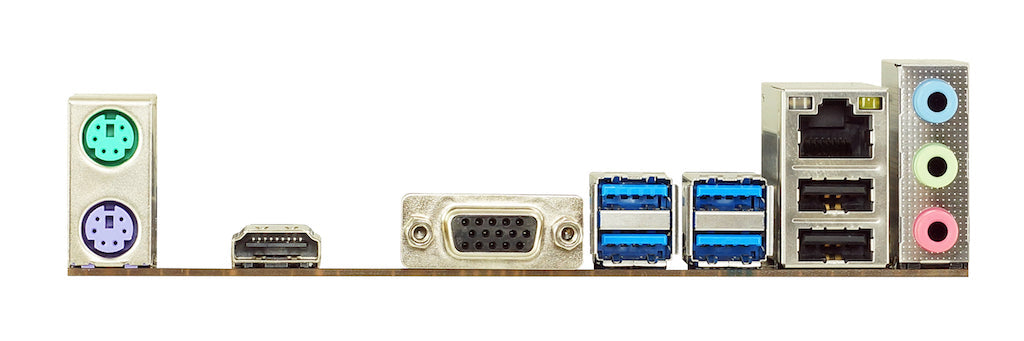

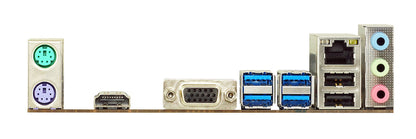

| REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.1 Gen1 Ports 2 x USB 2.0 Ports 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA III Connectors (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 2 x System Fan Connector 1 x 8-Pin Power Connector 2 x 6-Pin PCIe Power Connector 2 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) / 11(64bit) »Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | PCI-E Slot Detection BIOS Boot Screen |
Frequently Asked Questions
Q: What type of product is this?
A: This product is a BIOSTAR TB360 BTC PRO INTEL LGA1151 MOTHERBOARD, designed to be the central component of a computer system.
Q: Which CPU socket does this motherboard support?
A: The BIOSTAR TB360 BTC PRO motherboard is designed for Intel LGA1151 socket processors, providing compatibility with a specific range of Intel CPUs.
Q: What does 'BTC PRO' signify in the model name?
A: The 'BTC PRO' in the model name indicates that this motherboard is part of a series often associated with specialized computing applications, such as cryptocurrency mining, suggesting a design optimized for those foundational needs.
