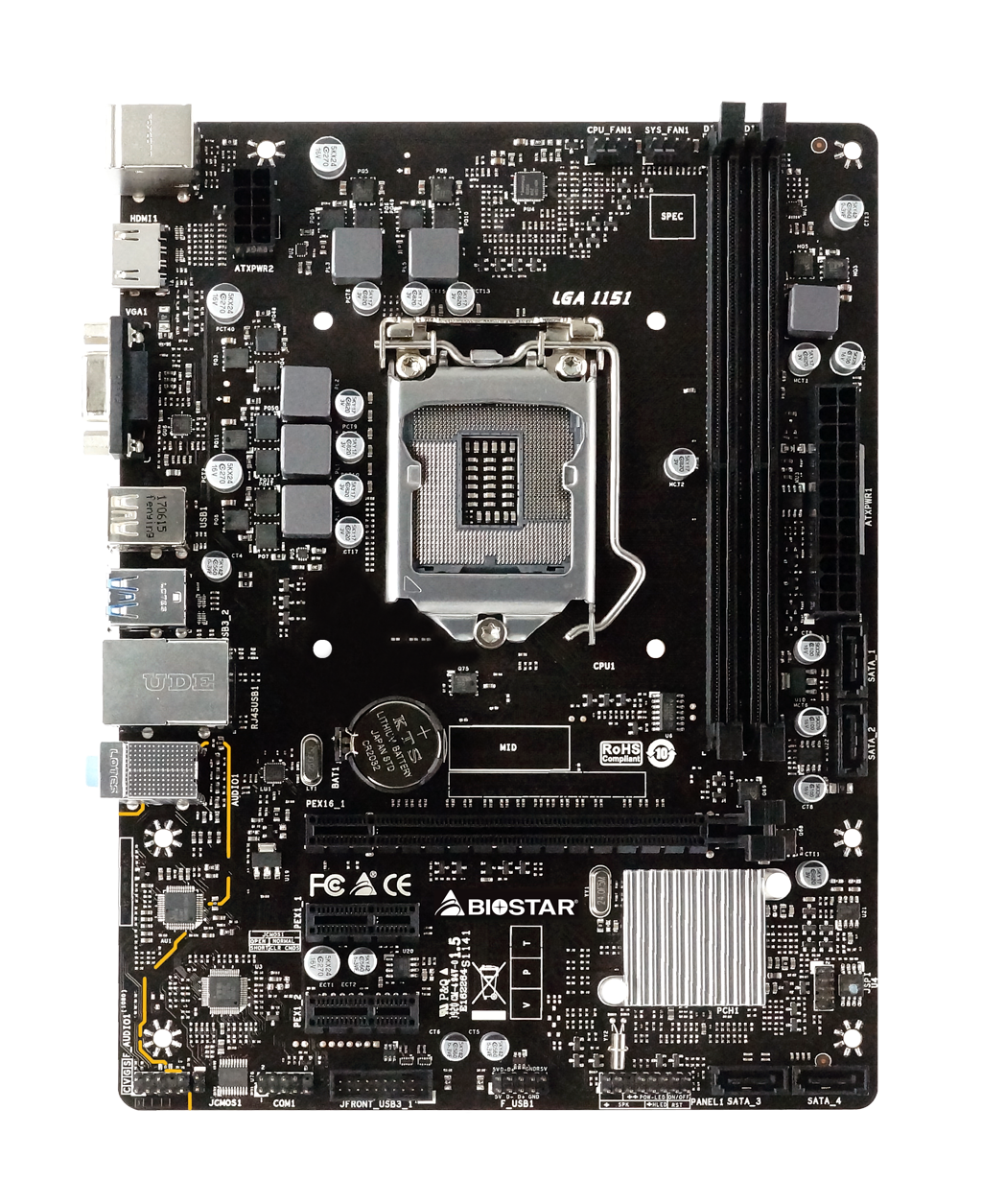

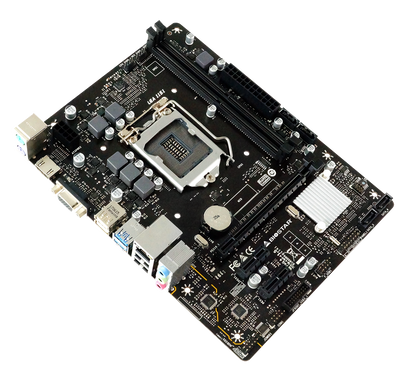

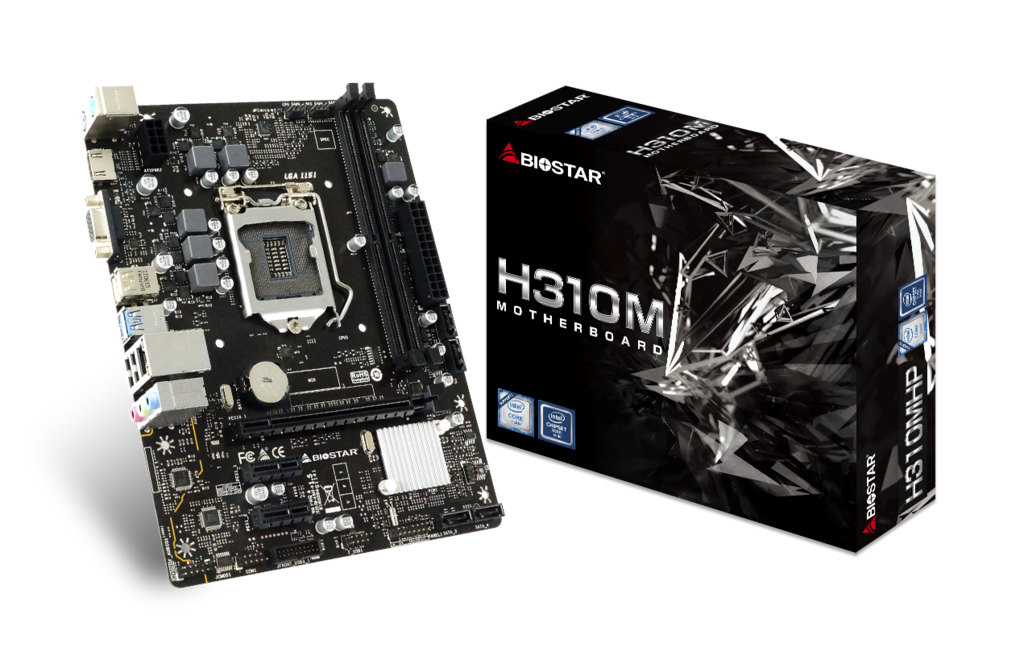

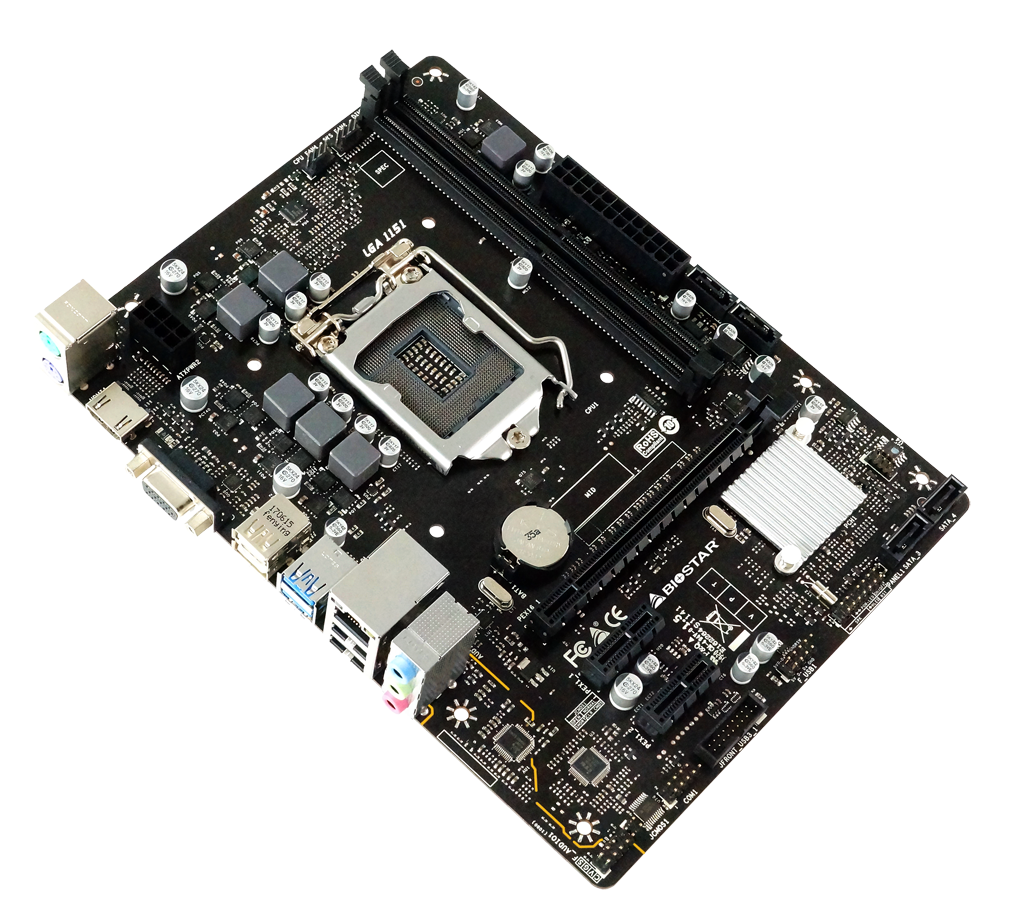

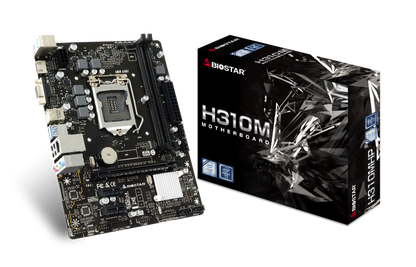

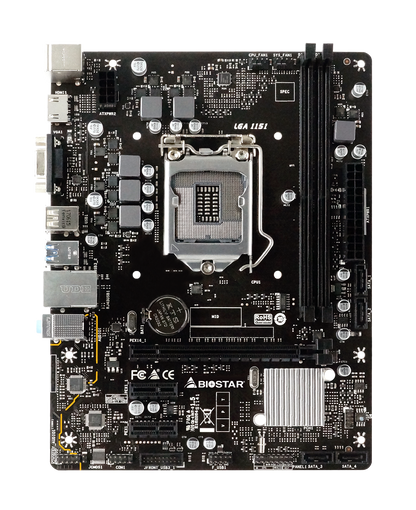

BIOSTAR H310MHP MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The BIOSTAR H310MHP MOTHERBOARD serves as the fundamental circuit board for your computer, providing the essential platform where all core components connect and communicate. Designed to be the central hub of your system, this motherboard ensures seamless integration for a stable and functional build.
Key Features at a Glance
- Official BIOSTAR H310MHP model
- Provides a foundational platform for PC components
- Supports essential system connectivity
- Designed for reliable integration
Build Your System Foundation
As a core component, the BIOSTAR H310MHP Motherboard is engineered to be the central nervous system of your desktop PC. It facilitates the connections between your processor, memory, storage drives, and other peripherals, creating a cohesive computing environment.
Reliable Core Performance
Experience the essential functionality needed for everyday computing. The BIOSTAR H310MHP is built to ensure a stable operating environment, allowing your crucial hardware to perform as intended and support your daily tasks with consistent reliability.
Technical Specifications
| Chipset | Intel H310 |
| CPU SUPPORT | Socket 1151 for 9th / 8th Gen Intel Core, Pentium and Celeron processors Maximum CPU TDP (Thermal Design Power): 95Watt * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6Gb/s) * Specifications vary by CPU types |
| LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC887 7.1 Channels, High Definition Audio Support HD Audio |
| USB | 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header) 6x USB 2.0 port (4 on rear I/Os and 2 via internal header) |
| EXPANSION SLOT | 2x PCIe 2.0 x1 Slot 1x PCIe 3.0 x16 Slot * Specifications vary by CPU types |

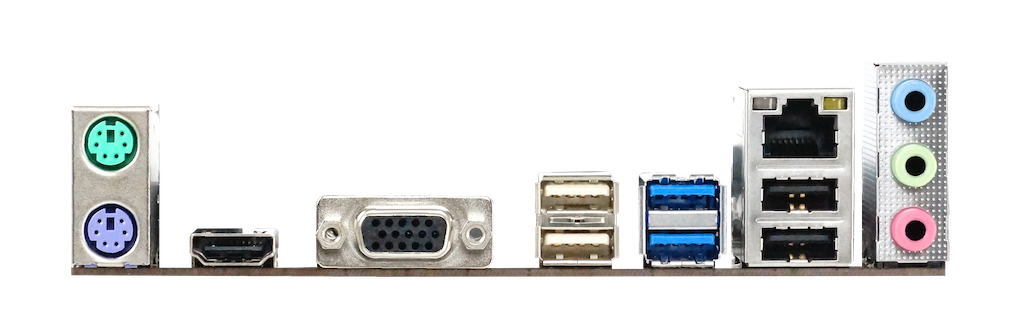

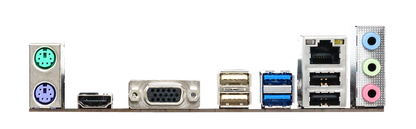

| REAR I/O | 1x PS/2 Mouse Port 1x PS/2 Keyboard Port 1x HDMI Port 1x VGA Port 1x LAN Port 4x USB 2.0 Port 2x USB 3.2(Gen1) Port 3x Audio Jack |
| INTERNAL I/O | 4x SATA III Connector 1x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports) 1x 8-Pin Power Connector 1x 24-Pin Power Connector 1x CPU Fan Connector 1x System Fan Connector 1x Front Panel Header 1x Front Audio Header 1x Clear CMOS Header 1x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 226mm x 171mm ( W x L ) |
| OS SUPPORT | Supports Windows 7/ 10(64bit) / 11(64bit) »Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | BIO-FLASHER |
Frequently Asked Questions
Q: What is the BIOSTAR H310MHP Motherboard?
A: The BIOSTAR H310MHP is a motherboard designed to serve as the main circuit board for your computer, connecting all the essential hardware components to form a functional system.
Q: What role does a motherboard play in a PC?
A: A motherboard acts as the central communication hub, allowing crucial components like the CPU, memory, and storage drives to work together seamlessly and efficiently within your system.
Q: Is this motherboard suitable for building a new computer?
A: Yes, the BIOSTAR H310MHP Motherboard provides the foundational platform required to assemble a functional desktop computer system, connecting various hardware elements.
