Save 20%

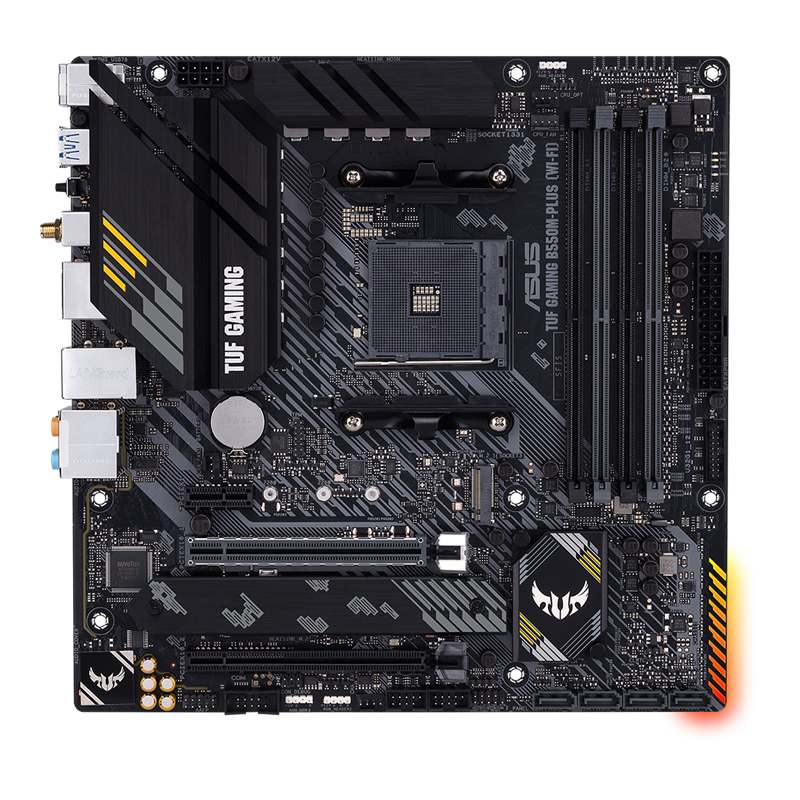

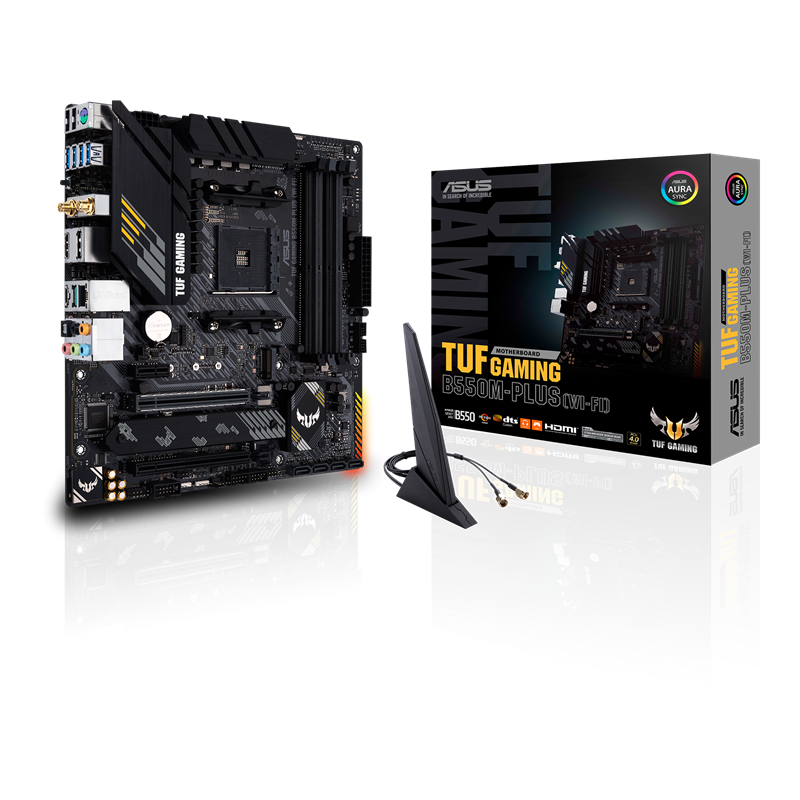

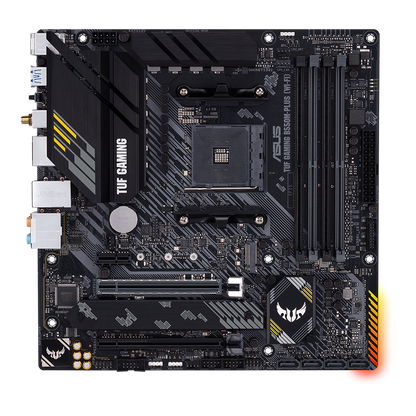

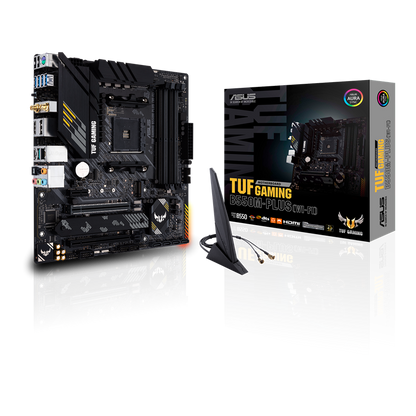

ASUS TUF GAMING B550M PLUS WIFI AMD AM4 MOTHERBOARD
Sale priceRs. 16,856.00Regular price
Rs. 21,000.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Specification | Details |
|---|---|
| Model | TUF GAMING B550M-PLUS (WI-FI) |
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors *,* Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *, Next Generation AMD Ryzen PRO Processors ,4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *, 3rd Gen AMD Ryzen Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | 1 x DisplayPort 1.2,1 x HDMI 2.1(4K@60HZ) |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 1 x PCIe 3.0 x1 * 1 ,* Support PCIe bifurcation for RAID on CPU function., AMD B550 Chipset ,1 x PCIe 3.0 x16 (x4 mode) * 1 ,1 x PCIe 4.0 x16 (x16 mode) |
| Storage | 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support, AMD B550 Chipset : , Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),, 3rd Gen AMD Ryzen Processors : ,Support Raid 0, 1, 10 |
| LAN | Realtek RTL8125B 2.5Gb Ethernet,TUF LANGuard |
| Wireless Data Network | Supports PCIe interface,2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO,Supports up to 2.4Gbps max data rate,Intel Wi-Fi 6 AX200,Supports channel bandwidth: HT20/HT40/HT80/HT160,Supports dual band frequency 2.4/5 GHz |
| Bluetooth | Bluetooth v5.1*,*BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Audio | Realtek ALC S1200A7.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Audio Cover,- Premium Japanese audio capacitors,- Exclusive DTS Custom for GAMING Headsets.,- Optical S/PDIF out port(s) at back panel, Audio Feature : |
| USB Ports | 4 x USB 2.0 port(s)(4 x Type-A), Front USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C ), Rear USB Port ( Total 8 ),2 x USB 2.0 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header |

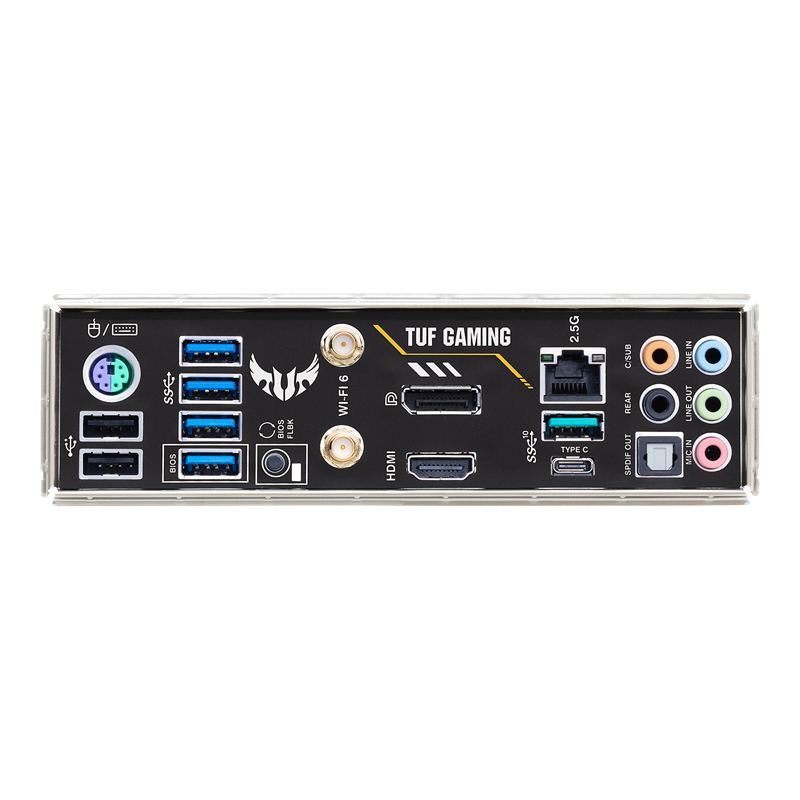

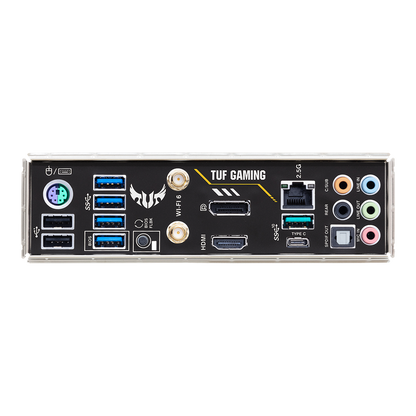

| Back I/O Ports | 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C ),1 x BIOS FlashBack Button(s),1 x LAN (2.5G) port(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x DisplayPort,1 x Optical S/PDIF out,5 x Audio jack(s),1 x ASUS Wi-Fi Module,1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,2 x USB 2.0 |
| Internal I/O Ports | 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode),1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),2 x Chassis Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector,2 x Aura RGB Strip Headers,1 x Addressable Gen 2 header(s) |

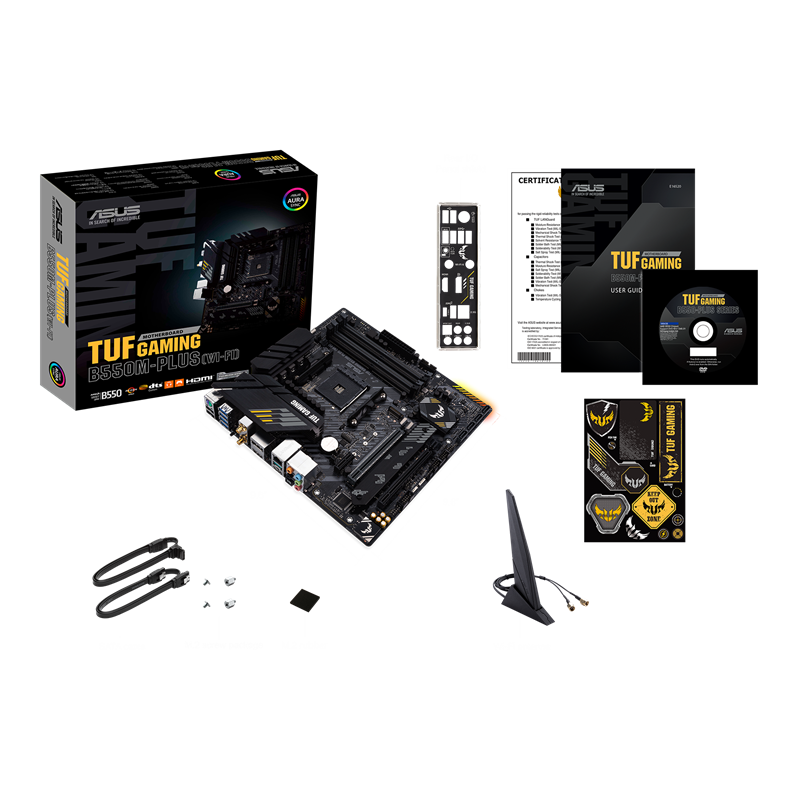

| Accessories | 1 x Wi-Fi moving antenna,1 x M.2 SSD screw package(s),1 x M.2 Rubber Package(s),1 x TUF GAMING Sticker,1 x TUF Certification card(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ),mATX Form Factor |
| Note | *1 PCIEX16_2 will run x2 mode when PCIEX1 is used. |
