Save 10%

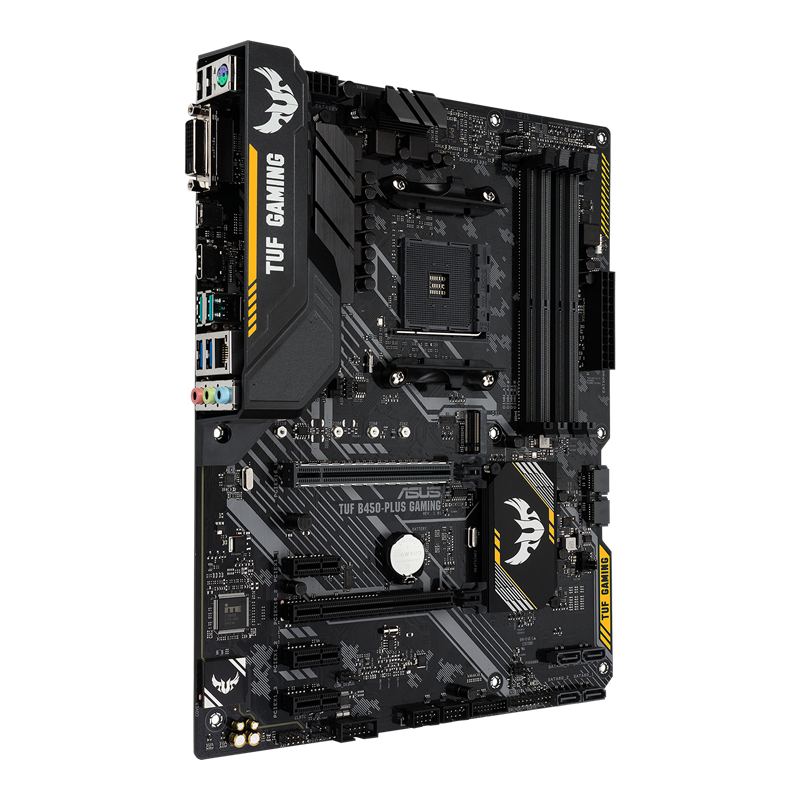

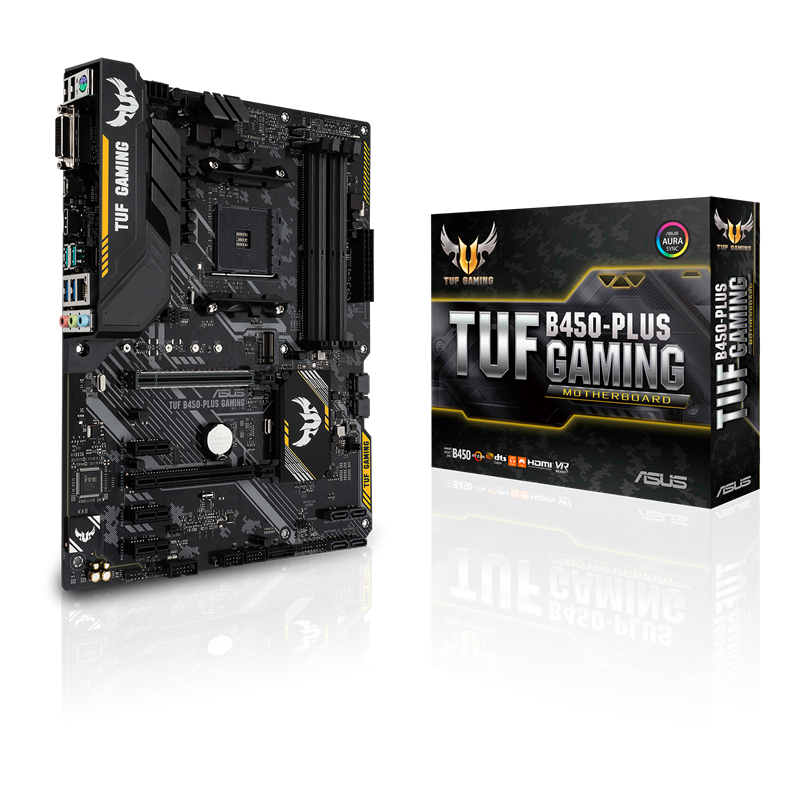

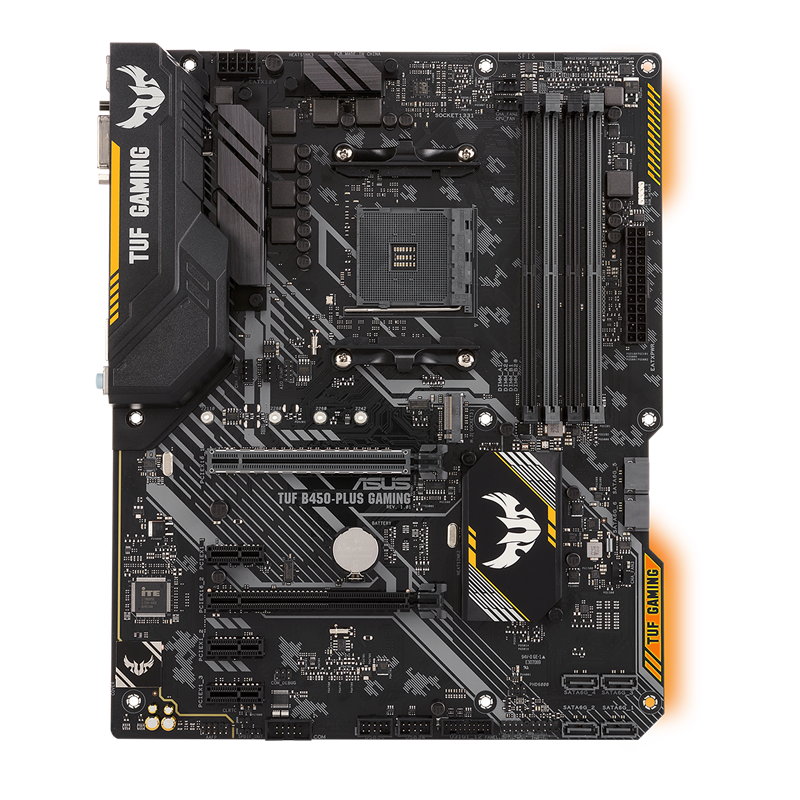

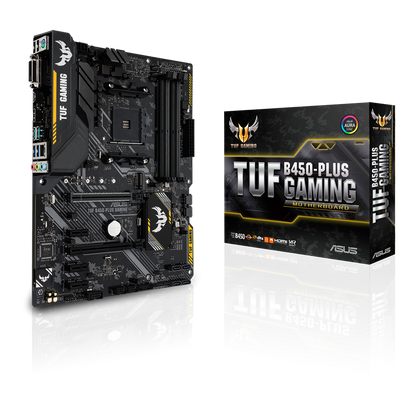

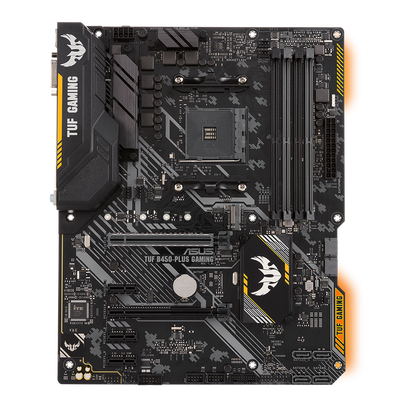

ASUS TUF GAMING B450 PLUS G AMD AM4 MOTHERBOARD
Sale priceRs. 9,457.00Regular price
Rs. 10,500.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Specification | Details |
|---|---|
| Model | TUF B450-PLUS GAMING |
| CPU | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors,* Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
| Memory | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors ,4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory,* The maximum memory frequency supported varies by processor.,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,Multi-VGA output support : HDMI/DVI-D ports,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz |
| Multi-GPU Support | Supports AMD CrossFireX Technology |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen Processors ,1 x PCIe 3.0/2.0 x16 (x4 mode),3 x PCIe 2.0 x1,1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (x8 mode), AMD Athlon with Radeon Vega Graphics Processors , AMD B450 chipset ,1 x PCIe 2.0 x16 (max at x4 mode) |
| Storage | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)* 1 , 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 , AMD Athlon with Radeon Vega Graphics Processors : ,2 x SATA 6Gb/s port(s), AMD B450 chipset : ,4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| LAN | TUF LANGuard,Realtek RTL8111H |
| Audio | Realtek ALC887-VD28-Channel High Definition Audio CODEC * 2 ,- Exclusive DTS Custom for GAMING Headsets.,- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality., Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB Ports | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : ,2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A),1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-C TM ), AMD B450 chipset : ,2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A),2 x USB 3.1 Gen 1 port(s) (2 at mid-board),6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features | - ASUS Fan Xpert 4 Core,- ASUS Q-Shield,- PC Cleaner,- File Transfer,- Stylish Fanless Design Heat-sink solution & MOS Heatsink, Overclocking Protection : , ASUS TUF PROTECTION ,- ASUS SafeSlot: Protect your graphics card Investment,- ASUS ESD Guard: Enhanced ESD protection,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Precision control for stable power, AURA : ,- Aura Lighting Control,- Aura RGB Strip Headers, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM,- ASUS C.P.R.(CPU Parameter Recall) |

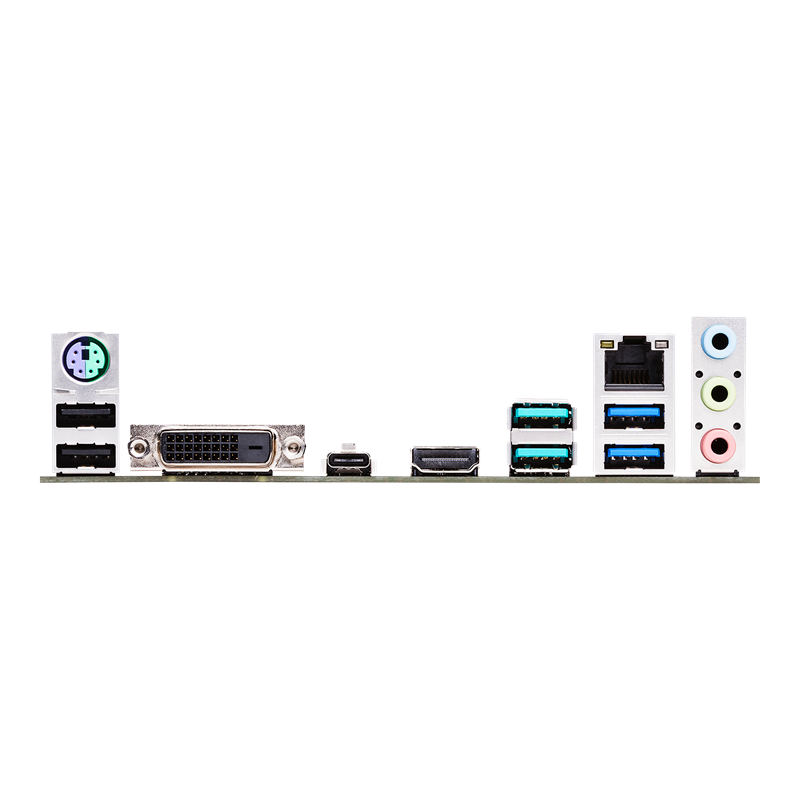

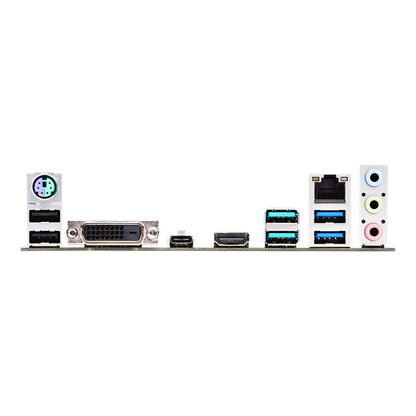

| Back I/O Ports | 1 x 5Gb/s port(s) USB Type-C TM ,2 x USB 3.1 Gen 2 (teal blue)Type-A,,1 x DVI-D,2 x USB 3.1 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) |
| Internal I/O Ports | 1 x Aura RGB Strip Header,1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),3 x Chassis Fan connector(s) (3 x 4-pin),1 x AIO_PUMP connector (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header |

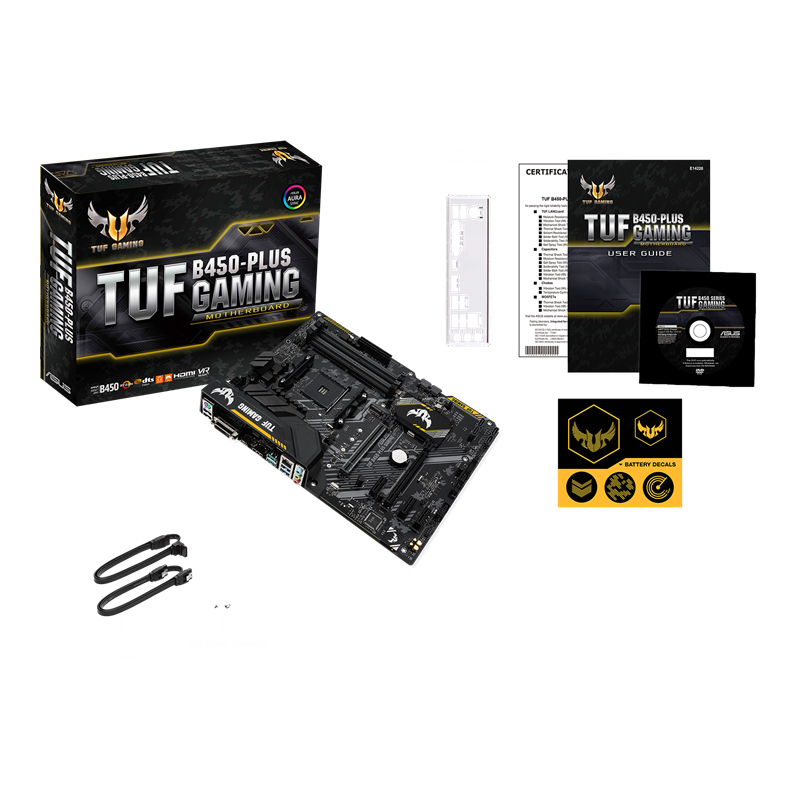

| Accessories | ASUS Q-Shield,1 x TUF GAMING Sticker,1 x TUF Certification card(s),User´s manual,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 7 64-bit * 3 ,Windows 10 64-bit |
| Form Factor | 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ),ATX Form Factor |
| Note | *1 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. *3 Windows 7 64-bit is only supported when using AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors. |
