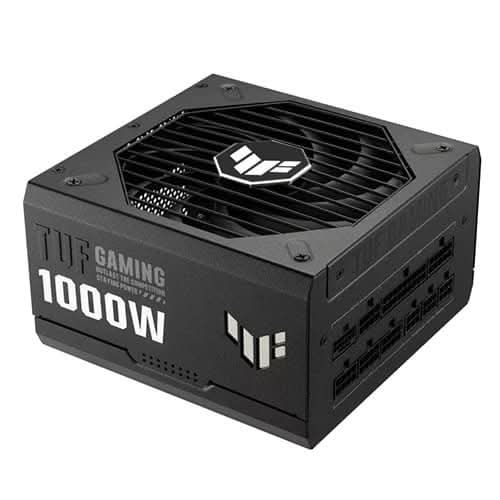

Asus TUF Gaming 1000 Watt ATX 3.1 Fully Modular 80 Plus Gold Smps
Asus TUF Gaming 1000 Watt ATX 3.1 Fully Modular 80 Plus Gold Smps
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The Asus TUF Gaming 1000 Watt ATX 3.1 Fully Modular 80 Plus Gold Smps is an efficient, resilient, and dependable power supply unit engineered for the long haul. This robust PSU delivers stable and durable power for your system, built with components designed for confidence and reliability.
Key Features at a Glance
- Military-grade Certified capacitors and chokes.
- Dual ball fan bearings for an extended lifespan.
- Protective PCB coating against moisture, dust, and extreme temperatures.
- 80 Plus Gold Certification, achieved with Japanese capacitors.
- Axial-tech fan design increases downward air pressure.
- High-Performance Copper Pins for cooler operation and improved power delivery.
Built for Durability and Confidence
The TUF Gaming 1000W Gold is designed with military-grade components, passing stringent tests for MTBF (mean time between failures), drop, vibration, and extreme temperatures. It resists damage from falls, maintains functionality against vibrations, and operates reliably in environments from -40°C to 85°C. With corrosion resistance, it can endure high humidity and salt fog, ensuring resilient operation even in challenging climates.
Efficient and Optimized Power Delivery
Achieve superior power efficiency with 80 PLUS® Gold status, delivering up to 92% efficiency for less heat and reduced fan noise. High-performance copper pins in upgraded PCIe connectors ensure cooler operation and improved power delivery, significantly reducing connector temperatures by up to 29% (12.28°C).
Advanced Cooling and Flexible Installation
The Axial-tech fan design, scaled to 135mm, provides effective cooling at low RPMs for quieter operation. Installation is made easier with pliable, etched cables that remain flexible and operate well below safety limits, meeting UL flame and certification standards for a smooth and safe PC build.
Technical Specifications
| Model | TUF Gaming 1000W Gold |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 40°C |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A25A83.3A 0.8A 3A |
| Combined Load | 130W 130W 1000W 9.6W 15W |
| Total Output | 1000W |
| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 |
Frequently Asked Questions
Q: What certifications does this PSU have?
A: The Asus TUF Gaming 1000 Watt Gold PSU features Military-grade Certification for its capacitors and chokes, and boasts 80 PLUS® Gold Certification, delivering up to 92% efficiency.
Q: How durable is the cooling fan?
A: The PSU utilizes dual ball fan bearings, which can last up to twice as long as traditional sleeve bearing designs, enhancing its long-term reliability.
Q: Is the PSU protected against environmental factors?
A: Yes, it has a protective PCB coating against moisture, dust, and extreme temperatures, and is built with corrosion resistance to withstand up to 95% humidity with salt fog for up to 240 hours.
